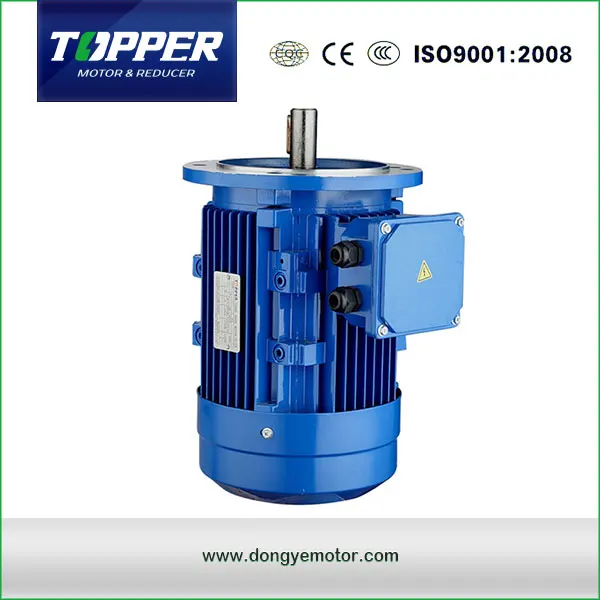

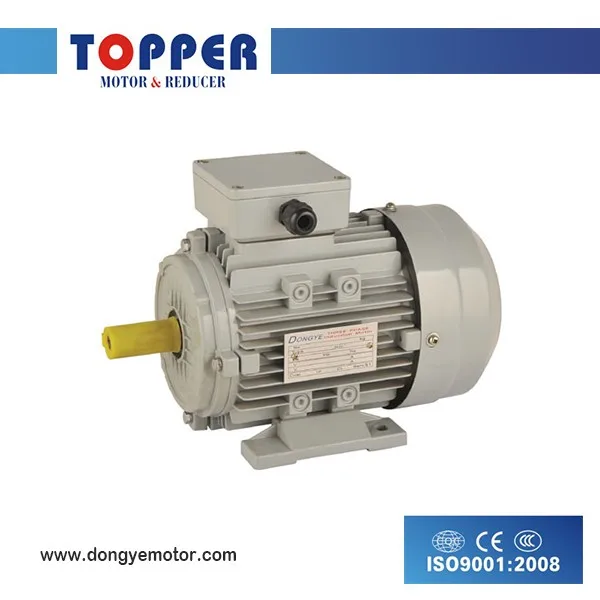

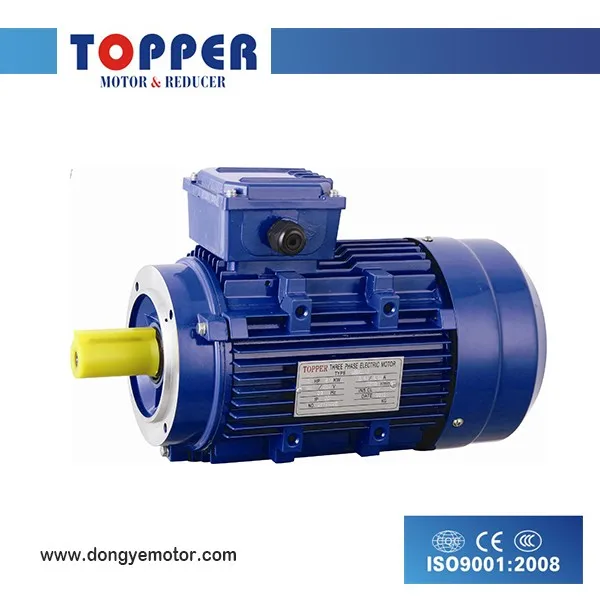

TOPPER MS Series Three Phase Electric Motor

Product Overview

Description

♦ INTRODUCE:

MS series three-phase asynchronous motors with aluminum housing adopted the newest design and high quality material.It is conformity with the IEC34-1 standards.The efficiency of the motors can meet EFF2 and EFF1 if requested.It has good features:perfect performance,low noise,slight vibration,reliable running,good appearance,small volume and light weight.



♦OPERATING CONDITIONS:

♣ Ambient temperature:-15°c<Θ<40°c

♣Altitude:not exceed 1000m

♣Rated voltage:380V,220V~760V is available

♣Rated frequency:50Hz/60Hz

♣Duty:S1(continuous)

♣Insulation class:B/F/H

♣Protection class:IP54/IP55

♣Cooling method:IC0141
