hot water central heating system radiator bimetallic 1600mm
- Category: >>>
- Supplier: Jiangsu Unbeatable Energy Group Co. Ltd.
Share on (494226675):
Product Overview
Description

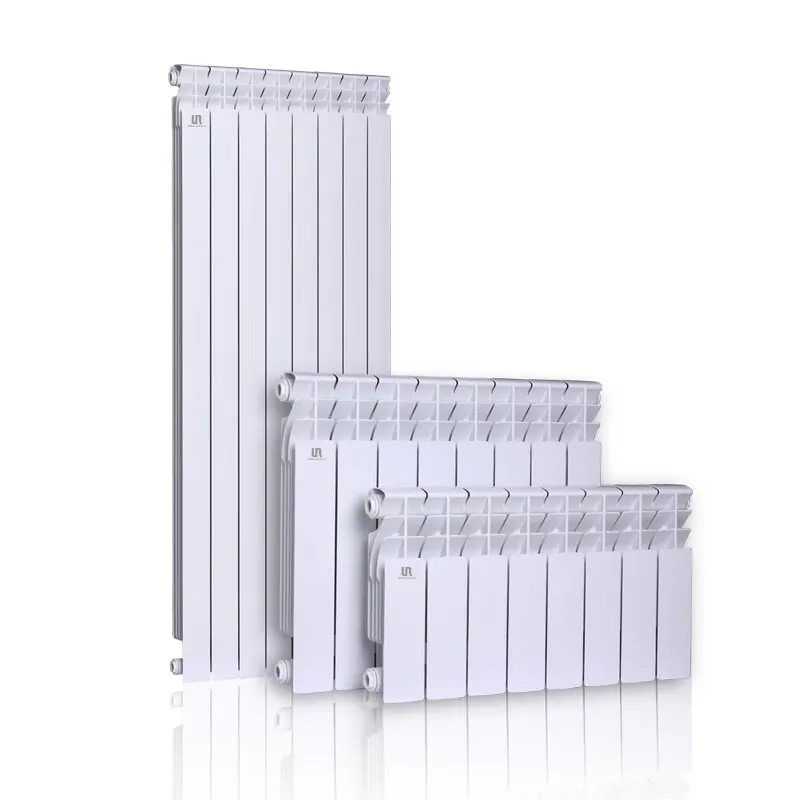

Hot system Central heating radiators bimetallic 1600*80*85
| Model | Dimension H*L*D (mm*mm*mm)
| central distance (mm) | Water capacity (L) | Thermal Output T=50 °c (W) | Thermal Output T=64.5°c (w) | weight (Kg) |
UR7002-1600
| 1666*80*85 | 1600 | 0.79 | 347 | 456 | 3.98 |

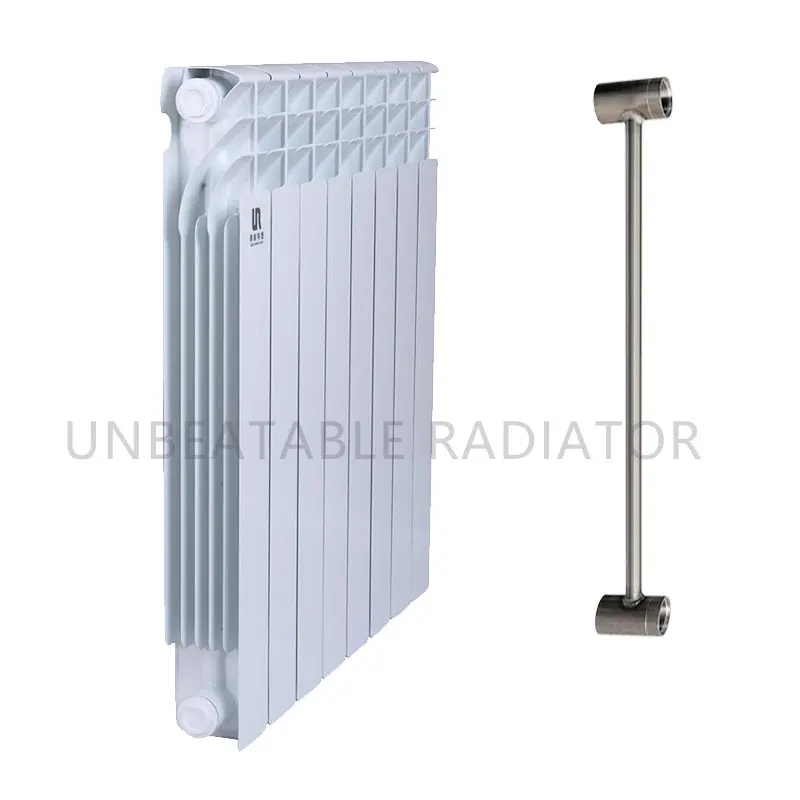

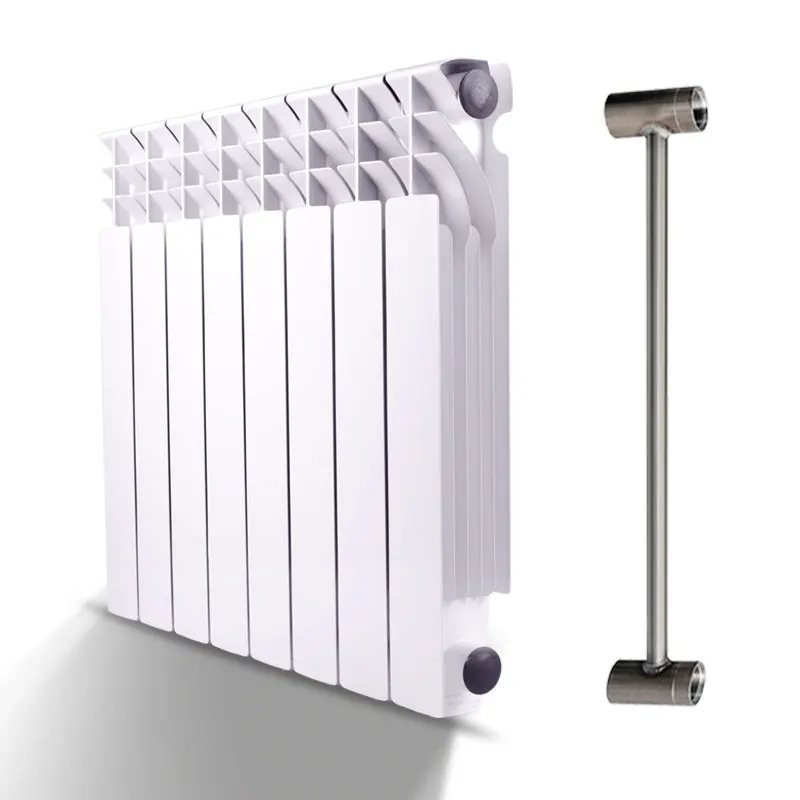

1. Model: Bimetal Radiator UR7002-1600

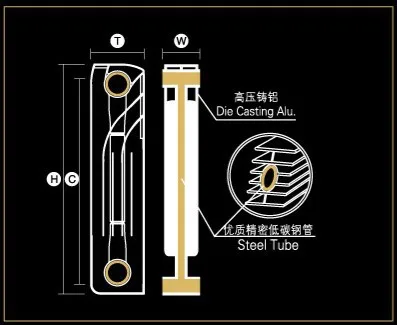

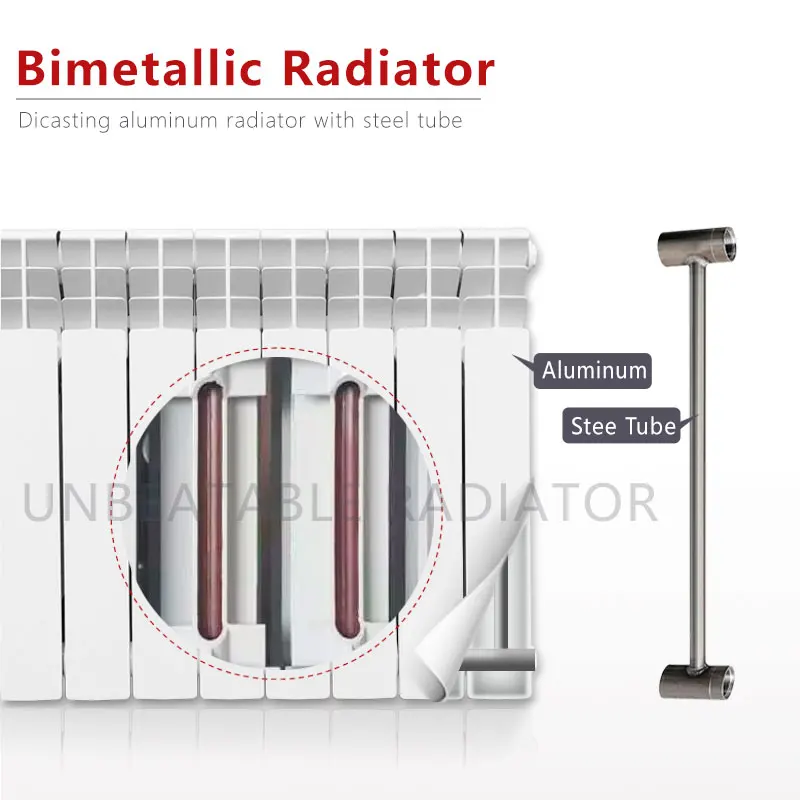

2.Meterial: ADC12 Aluminum with strong anti-friction and anti-erosion; steel tube is high qulity low-carbon steel #Q235
3. Steel water tube and inner anti-corrosion treatment supply double guarantees.
4. Bimetal radiators from 800-1600mm we adopt the advanced plug-in techonology.
5. Machine: Die casting machine with 800T to form once only.
6. Surface: Electric static spraying and then roast twice.
7. Quality Standard: CE(EN-442), ISO9001:2000, ISO14001:2004, GOST-R, Rohs.
8. The testing pressure of our produces is 24 bars of three times.
9. The working pressure is 20 bars. The Max pressure is more than 38 bars.
10.300-metre international automatic electrophoresis painting line, E-coat imported from Germany, global top level technology.
11. Powder spraying : degreasing and passivation liquid is from Germany Henkel.
12. Hidden water channel prevents children from being hurt.
13. Easy to adjust the element quantity for different room size and temperature request.
14. Thanks to automatic pretreatment procedure and electrophoresis painting line, color on surface is prefect.
15. Efficient heating and high thermal output helps energy saving and environmental protection.
16. The price is waving for Foreign exchange rate, material cost, export drawback , which be subjected to the final confirmation.
Production Flow
![VTS_01_1[20140429-1444201]_](http://sc03.alicdn.com/kf/HTB1L_AOFFXXXXXdaXXXq6xXFXXXm/2501354/HTB1L_AOFFXXXXXdaXXXq6xXFXXXm.jpg)
Electrophoresis
♦Pretreatment: Degreasing, passivation solution from world top 500 company.
♦Electrophoresis: E-coat imported from Europe.

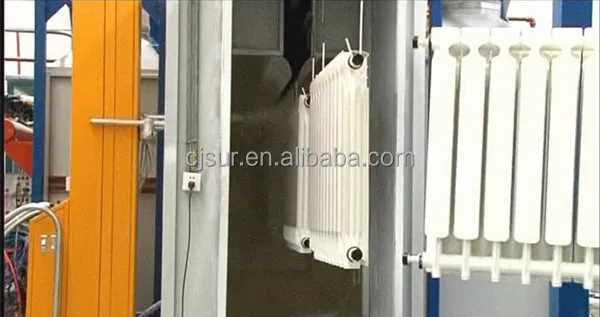

♦ Powder spraying: Four staggered spray guns,degreasing and passivation liquid is from Germany Henkel.
♦ 300-metre international automatic electrophoresis painting line, E-coat imported from Germany, global top level technology.

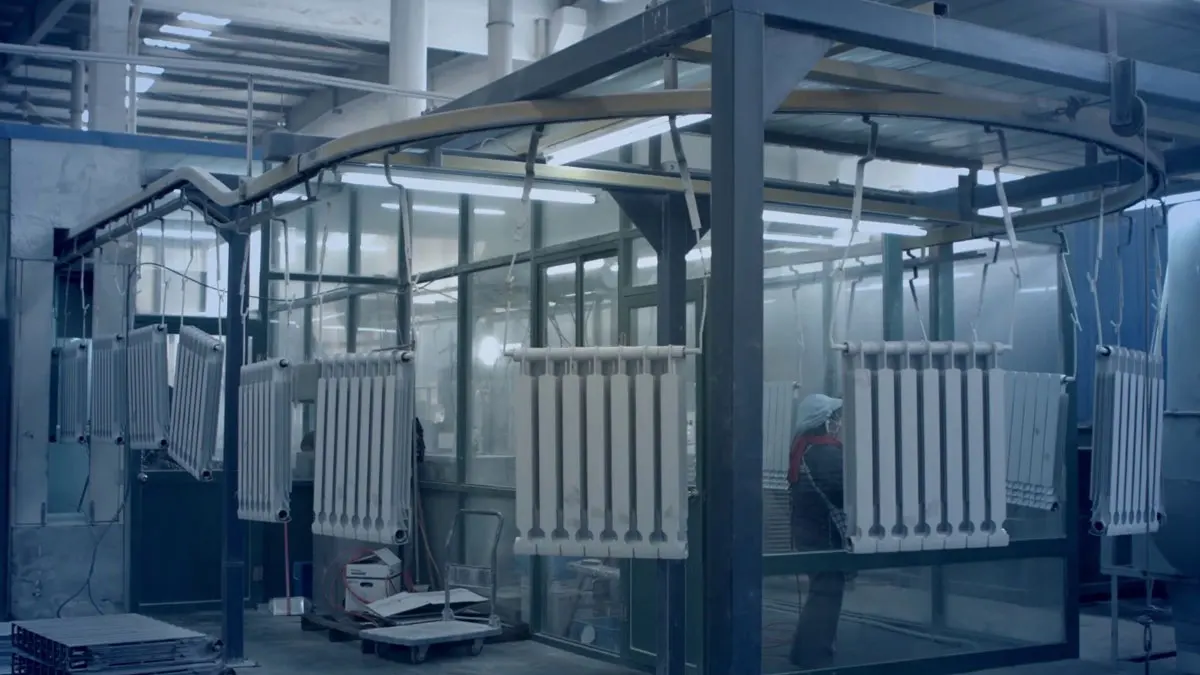

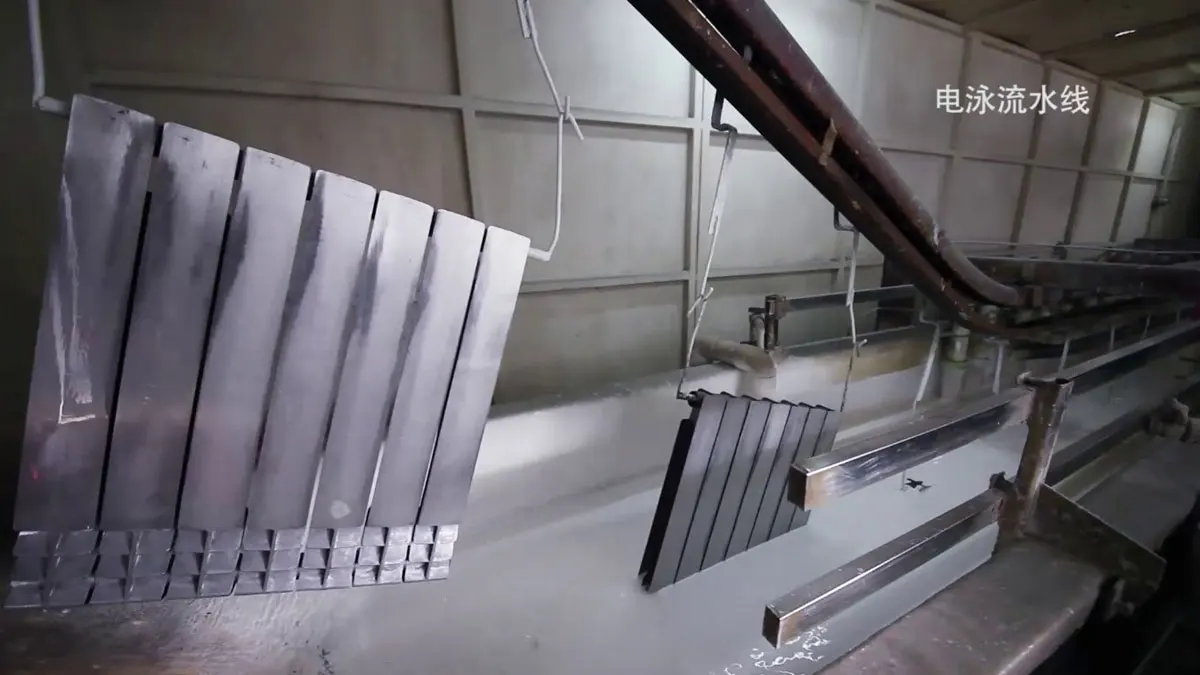

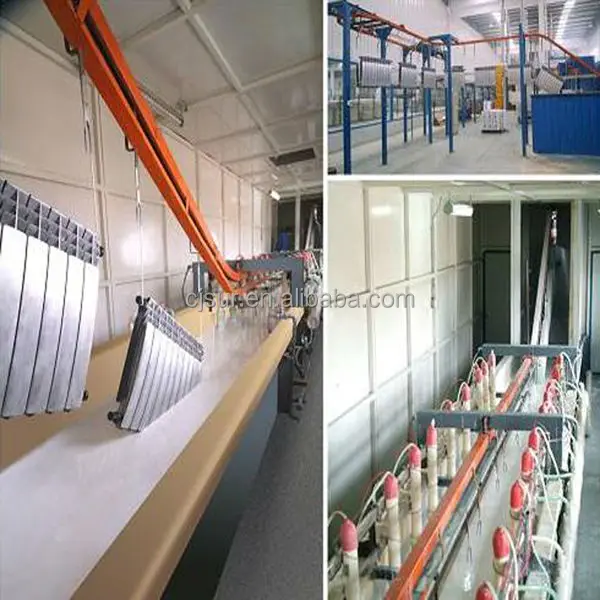

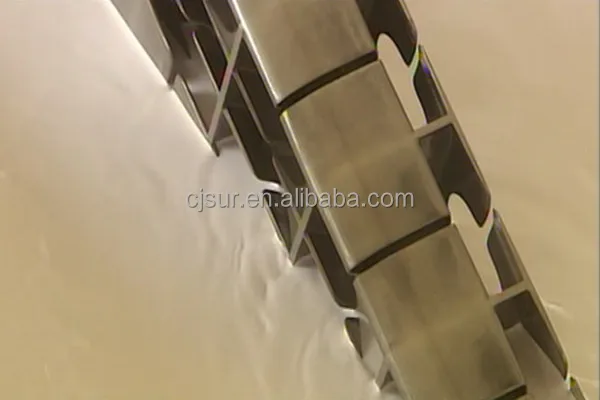

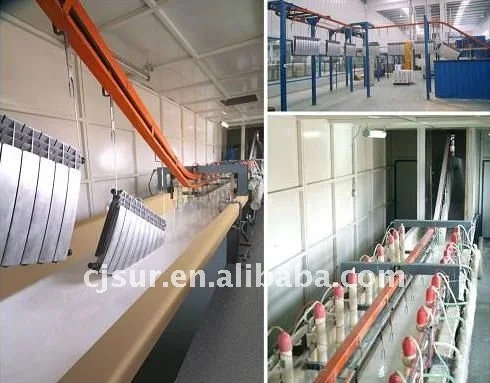

Electrophoresis paninting line :
The radiators are immersed in solution in an electrified tank containing the paint. It is draw to the parts, where the addition or subtraction of electrons change, the paint from ions in solution to solid particles adhering to the parts in a manner.
The coatings cover every nook and cranny because as the high sports become electro coated, analogous toelectroplating of metals.
Through the procedure, this painting application, offers an excellent corrosion protection and great absorption to the surface.

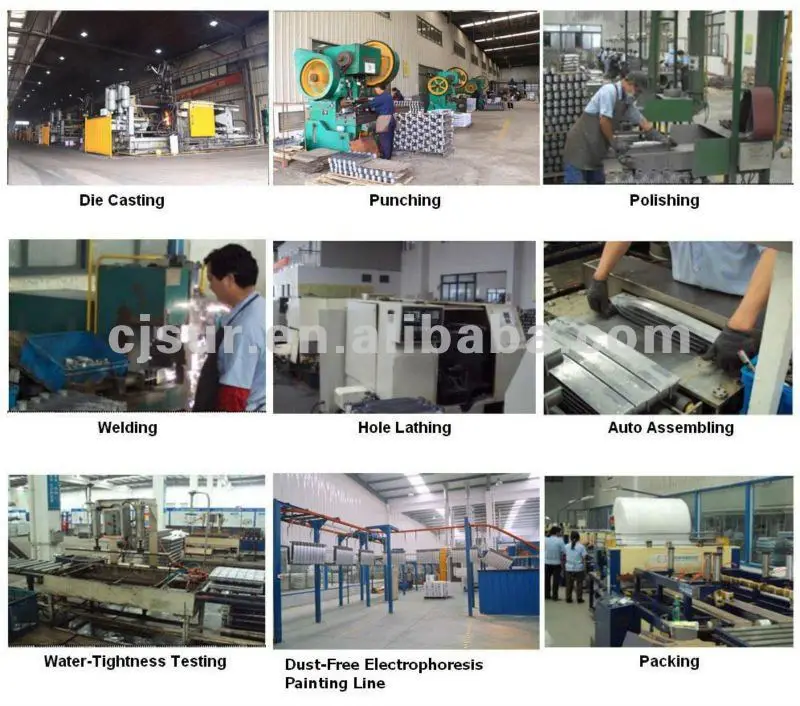

Production standard
Rew material---------ADC12 aluminum ingot
Melting------------------2 ton/hour gas central melting furnace

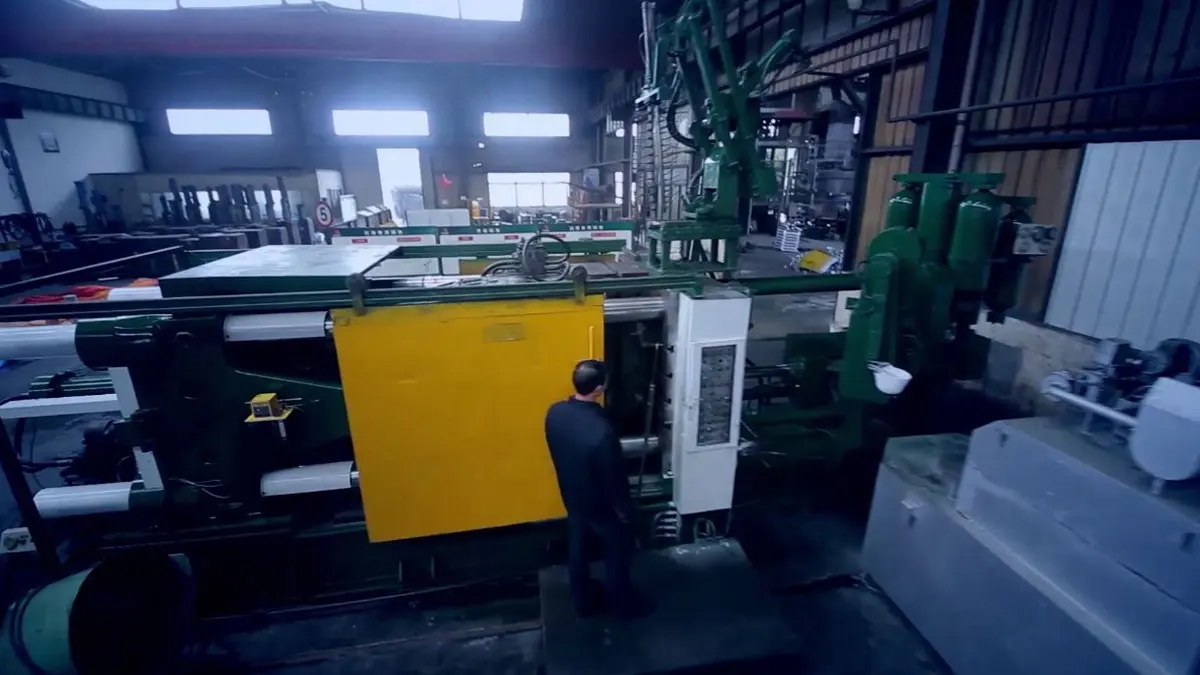

Die casting------------730°c, 800T in one step

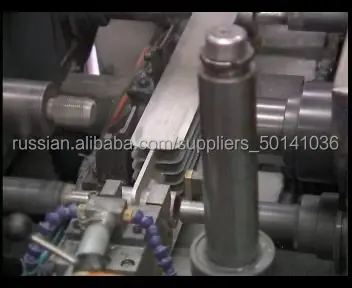

Assemble-------------Automatic assembling with Rohs nipple and gasket

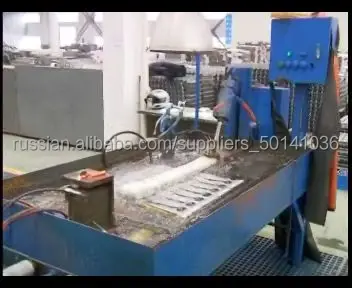

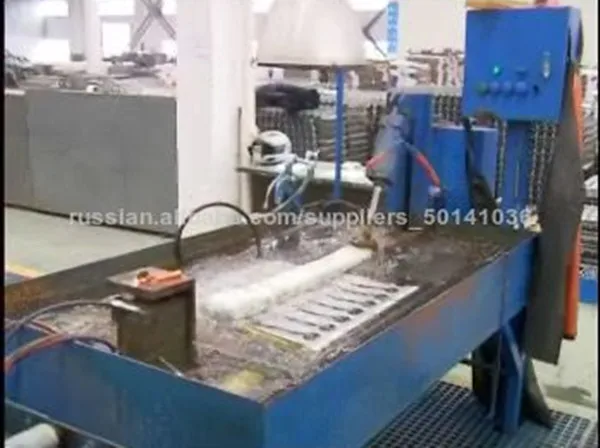

Pressure test---------2.0Mpa three times
Pretreatment----------Degreasing, passivation solution from world top 500 company
Electrophoresis------E-coat imported from Europe
Powder spraying-----Four staggered spray guns

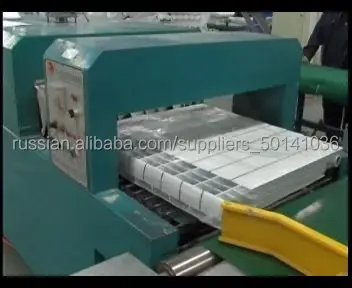

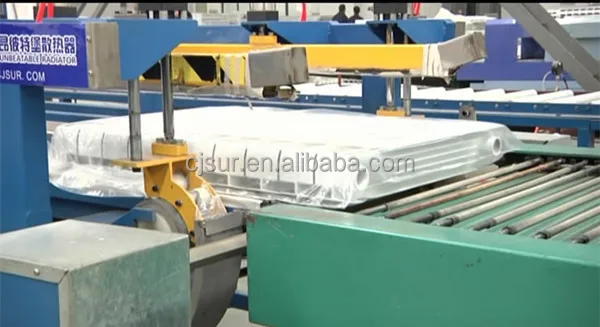

Packing-----------------Automatic thermal film and sealing system
Monitoring--------------IR 24 hours recording
Our Services
1. Guarantee Period: 10 years
2. PICC

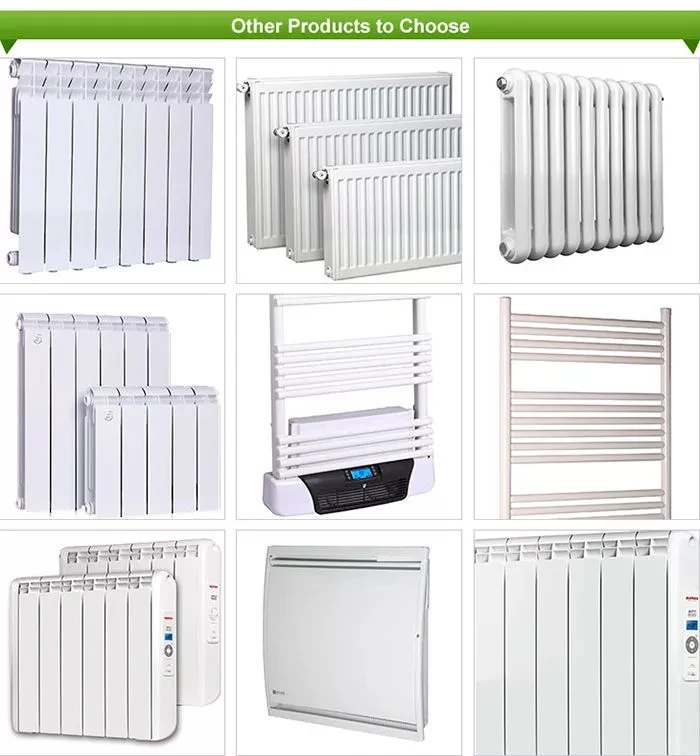

Our products:
1. Water heating system die casting aluminum radiators
2. Water heating system die casting bimetal radiators
3. Bathroom towel rails
4. Electric towel warmer
5. Electric heater radiators
6. Electric oil heater radiators
