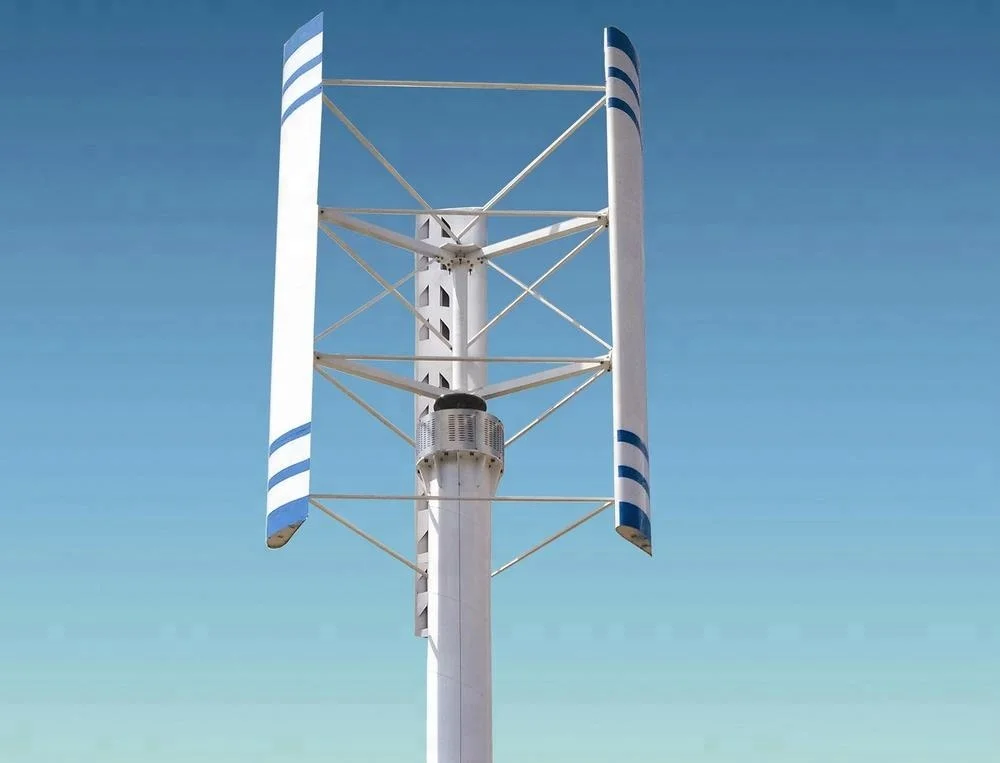

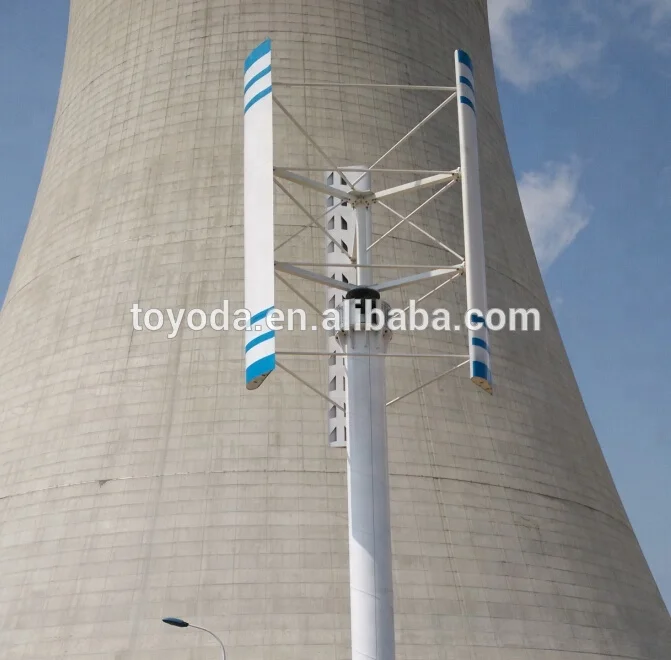

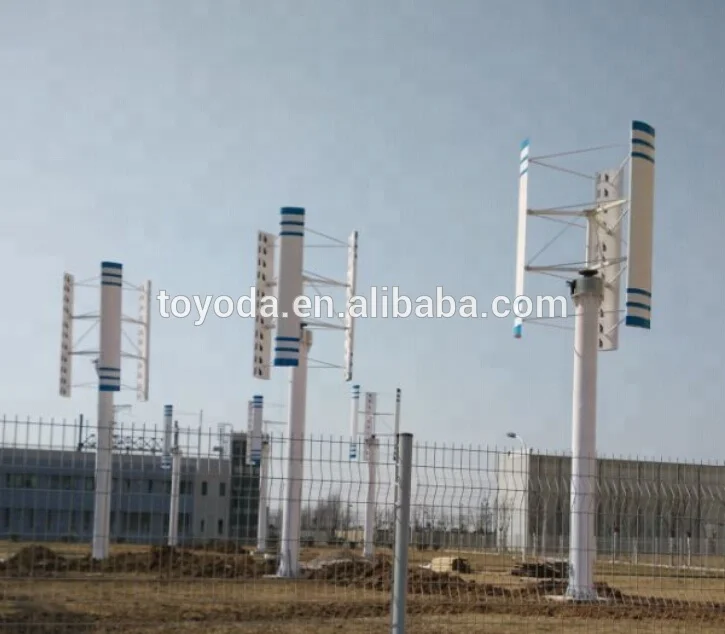

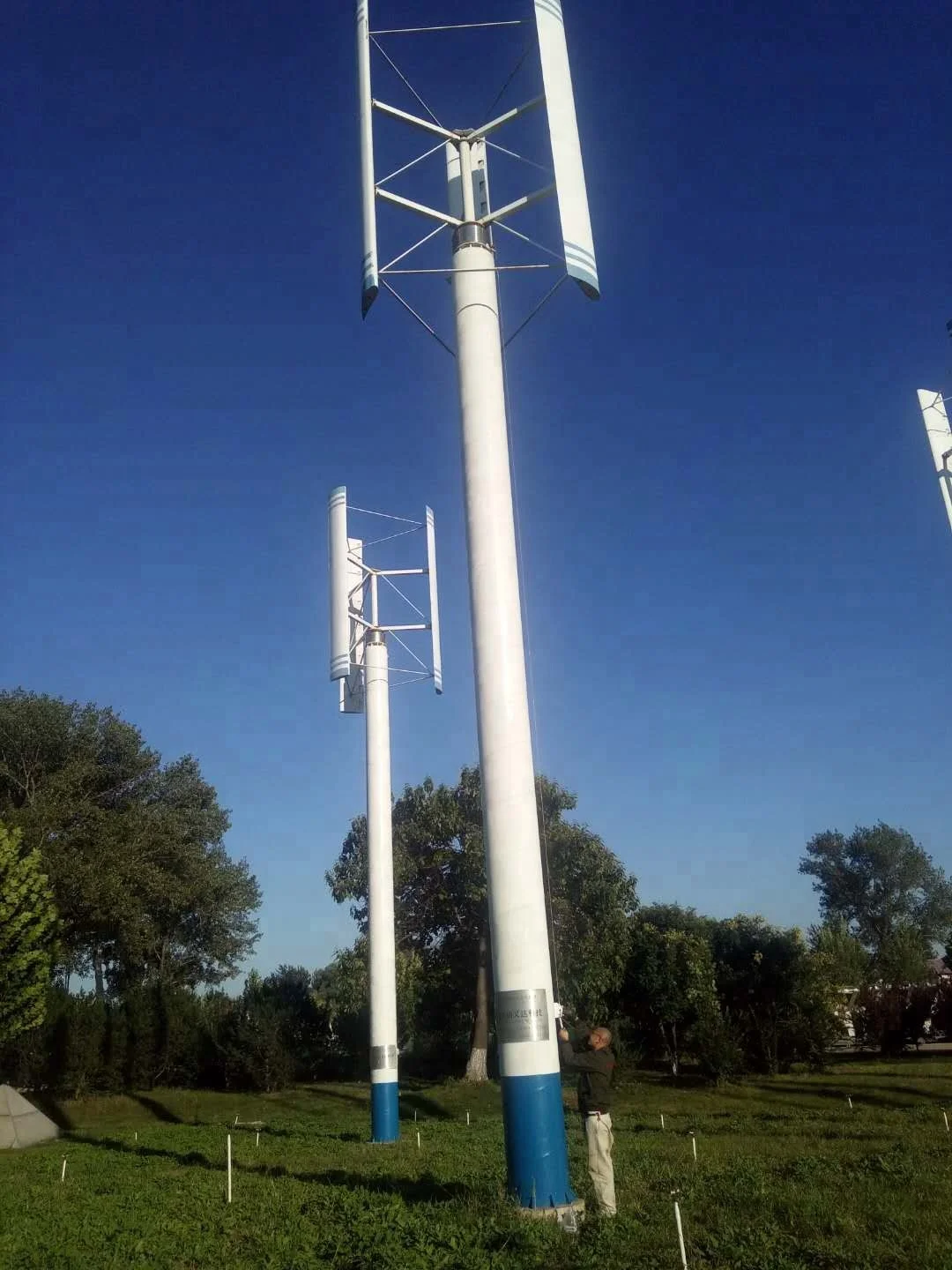

1000W vertical axis wind turbine with NACA airfoil profile Aluminum blades(vawt)

Share on (494232866):


Price:$1,200.00

Quantity:


Product Overview

Description






Product Description


 The generator features a unique outer rotor and coreless structure, and the rare earth magnet generates a strong magnetic field. Besides, the multipole design can generate high voltage even at minimum rotating speeds and realize high-power output.




1.  Starting rotation at the lowest wind speed of 1m/s


2.  the ability to catch the wind by 360 degree based on the principle of aerodynamics, streamline shape as wings of aero plane


3.  security wind speed 60 m/s


4.  noise-free rotation


5.  aluminum alloy integral extrusion molding achieves both high, strength and light weight


6.  will not be damaged, broken into fragments, or burned even in the case of a lighting strike


7.  recyclable materials are used


8.  the blades do not endanger birds


9.  a good resistance to corrosion


10. can be installed near facilities, such as residences, parks, and schools; on building rooftops; and streets and pedestrian street, etc.


The specification of 1000w wind turbine


With steady power output, it is widely used ranging from low-wind area to high-wind area.

















































































model



TYD-WT-1000



power



1000w



Wind power generation



Start-up wind speed



1.5m/sec



Generating electricity speed



2.0m/sec



Rated output wind speed



12.0m/sec



Subsisitence wind speed



60m/sec



Breaking style



Braking system



Fully automatic electric breaking system; independent dual protection



Blade



Length



3m



Width



30cm



Diameter



1.5m



Number of blade



3pcs



Cover material



Erosion resistant aluminum



Generator



Model



Coreless multipolar rare-earth permant-magnet AC generator



Driving mode



Direct



Rated speed



300rpm



Rated output



1000w



Cover material



Erosion resistant aluminum















Company Information


 Tangshan TOYODA Technology co.,ltd, which is specilized in vertical axis wind turbine,  wind blades, permanent magnet generator, wind solar hybrid street light, etc for more than 10 year.


DSC_9750_

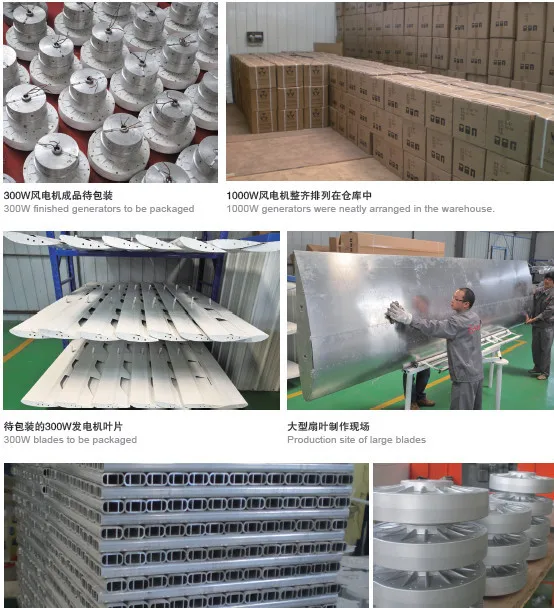

generator packaged








FAQ


Q1: Are you manufacturer?
A1: yes, 10 years manufacturer.

Q2: How many watts of the vertical axis wind turbine?
A2: From 300w to 10kw.

Q3: Can we only buy blades or generator?
A3: Yes.
