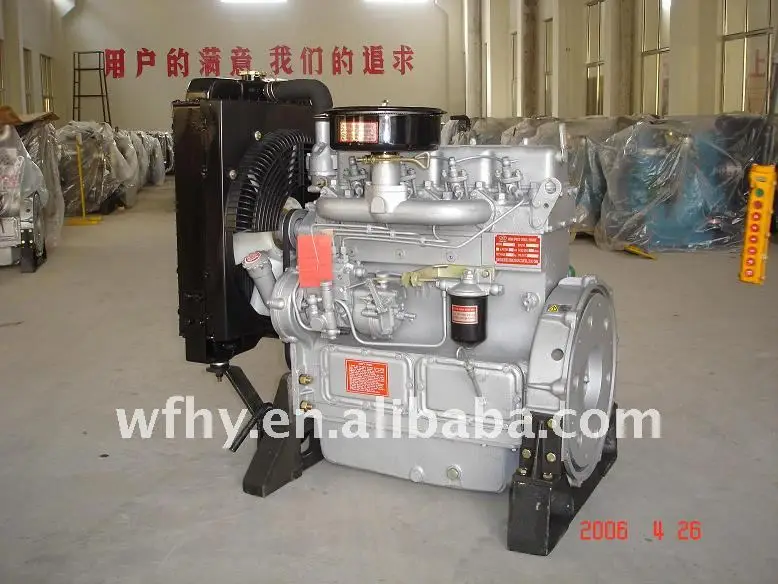

China HUAFA Brand direct injection ZH4100D Diesel Engine

Product Overview

Description







4100D DIESEL ENGINE SPECIFICATION



Weifang Huayuan diesel engine can be widely used as the main power for generator set, fixed power, engineering machinery, agricultural machines and water pump set. All series engines are developed on the basis of original model by optimizing its fuel system, air intake and exhaust system, cooling system and transmitting system, to achieve high performance reliability and economical efficiency. The engines mainly have following features: lower oil consumption, higher reliability, bigger torque, easy starting & maintenance, and better adaptability.



1.The main technical parameters of HFK4100D diesel engine



Engine Model	HFK4100D
Manufacturer	Weifang Huayuan Diesel Engine Manufacture Co., Ltd
Brand	HUAFA
Type	Four stroke, in line, water cooled
Rating power(kw)	30.1
Engine Speed(rpm)	1500
Bore*stroke(mm)	100*115
Number of cylinders	4
Air input mode	Natural
Compression ratio	17:1
Fuel consumption	≤232g/kw.h
Oil consumption	≤1.63g/kw.h
Speed regulator	Mechanical
Displacement	4L
Lub oil capacity	12L
Cooling capacity	16L
Starting method	Electric starting, 12V
Cooling method	Forced water cooled
Lubrication method	Pressure & splash lubricating
Exhaust gas temperature	≤600°C
Net weight	390kgs
Application	Generator set or water pump set



FACTORY  SHOW



4100D DIESEL ENGINE PRODUCTION LINE







CERTIFICATES





4100D DIESEL ENGINE CONFIGRATION







4100D DIESEL ENGINE SHOW
