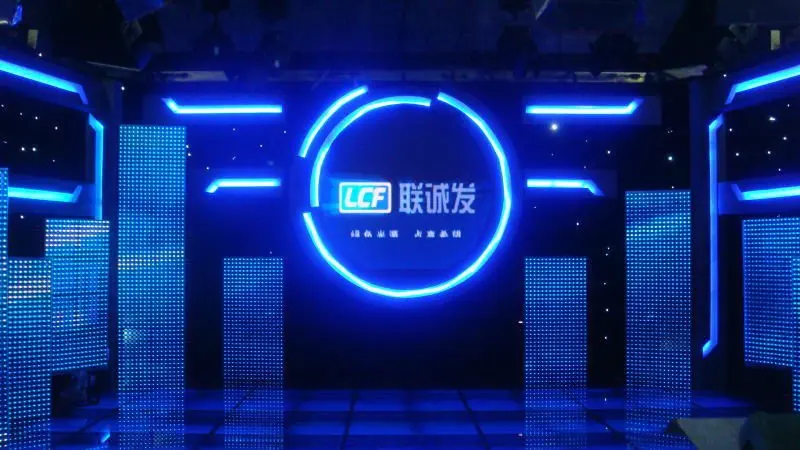

360 degree arc shape LED display sign

Product Overview

Description

1	Pixel pitch	20mm
2	Pixel Composition	2R1PG1PB
3	Physical Pixel density	2500dots/m2
4	Virtual pixel density	10000 dots/m2
5	LED package	DIP 546
6	Module resolution	16*8
7	Module size	320mm*160mm
8	Cabinet size	1280mm*960mm
9	White balance brightness	≥6500cd/m2
10	Grey Scale/Color	≥16M
11	Best viewing distance	20m
12	Scanning method	static,constant current
13	View Angle	(H) 140°(V)/ 120°
14	Frame frequency	≥ 10 MHz
15	Refresh rate	≥1000Hz
16	Power consumption	Maximum: 550W Average: 160W
17	Protection grade	IP65(Front) IP54(Back)
18	Cabinet Weight	55 Kg
19	Working voltage	110V/60Hz, 220V/50Hz
20	Control method	Synchronization or Asynchronization
21	Malfunction dot rate	Less than 0.0001
22	Working temperature	-20 to +60 degree Celsius
23	Working Humidity	10%-95% RH
24	Lifetime	100,000 hours
25	MTBF	≥ 100000 hours
26	Whole display flatness	less than 1mm juncture
27	Transmission distance	LAN cable ≤ 100m, optic fiber transmission: MMF ≤500m, SMF ≤15km
