ST12 Wall Mount IP44 Outdoor With TUV PC Material PIR Motion Sensor

Product Overview

Description

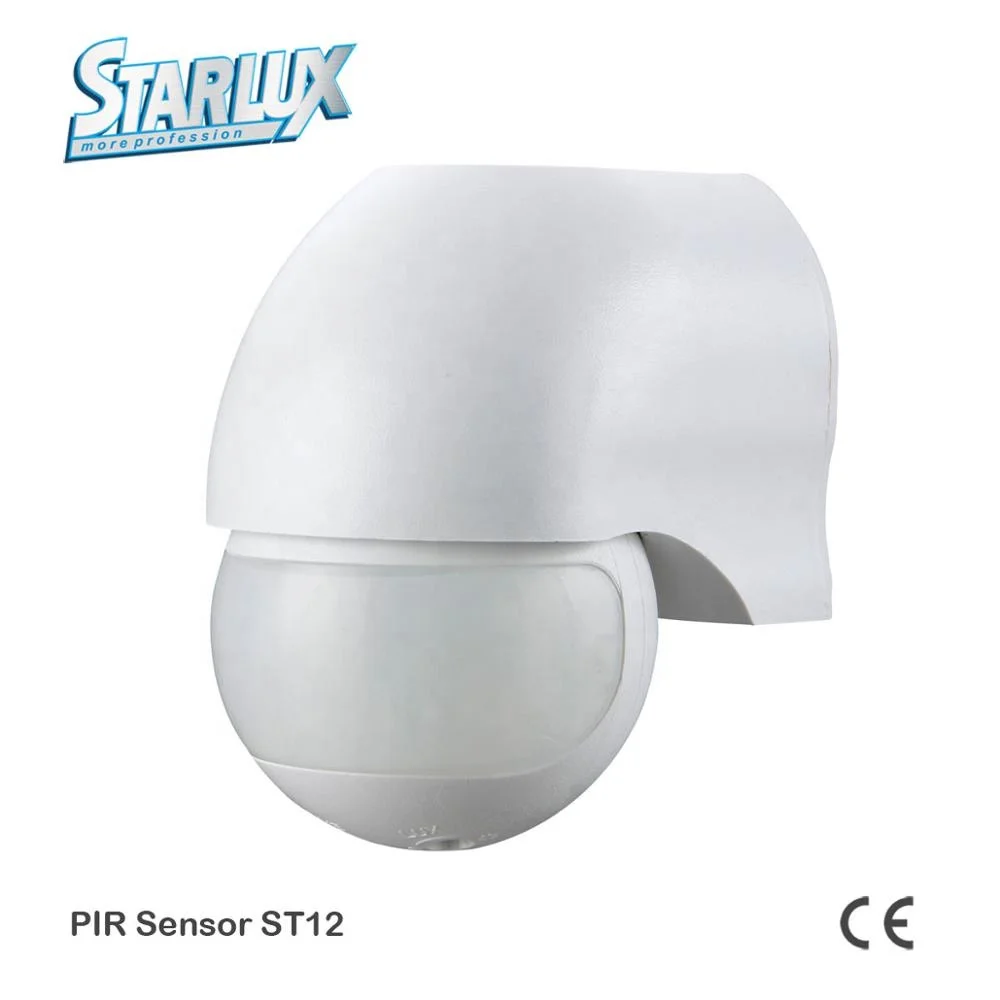

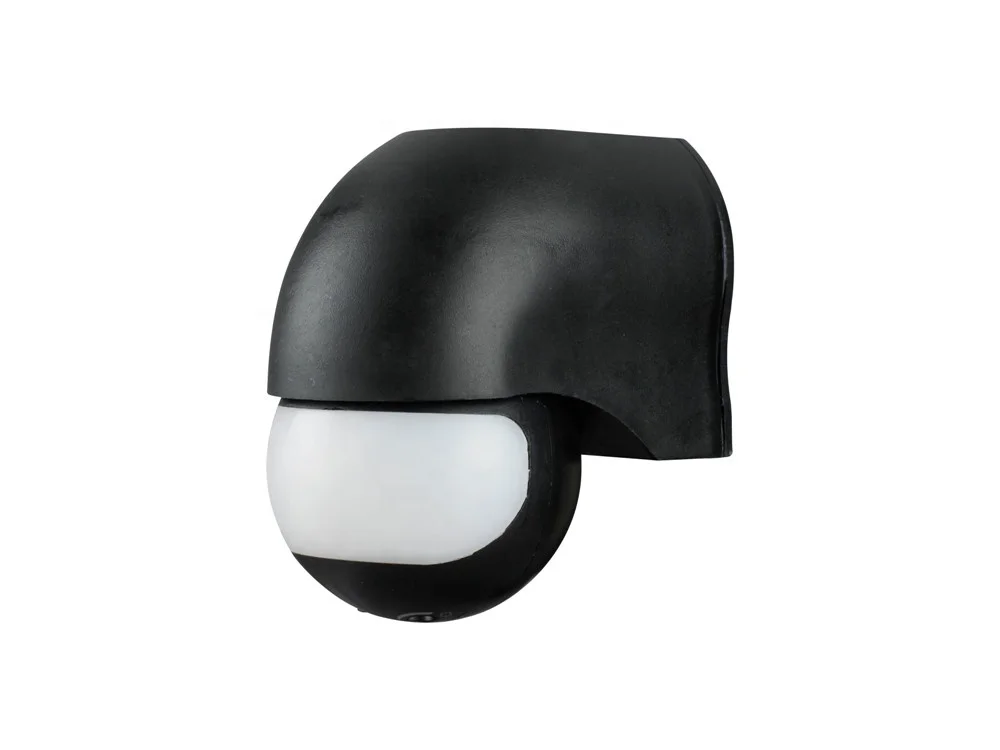

ST12 Wall Mount IP44 Outdoor With TUV PC Material PIR Motion Sensor

The product adopts good sensitivity detector and integrated circuit. It gathers automatism, convenience, safety, saving-energy and practical functions. It utilizes the infrared energy from human as control-signal source and it can start the load at once when one enters detection field. It can identify day and night automatically. It is easy to install and used widely.



Electronical Characteristics:



Power Source: 110 -130V/AC   220 -240V/AC       Detection Range: 180°



Power Frequency: 50/60Hz                                    Detection Distance: 12m max(<24℃)



Ambient Light: <3-2000LUX (adjustable)               Working Temperature: -20~+40℃



Time Delay: Min.10sec±3sec                                 Working Humidity: <93%RH



                   Max.15 min±2min                                Power Consumption: approx 0.5W



Installation Height: 1.8-2.5m                                  Detection Moving Speed: 0.6-1.5m/s





 Rated Load:  110 -130V/AC :                           220 -240V/AC :

                    800W(incandescent lamp)            1200W(incandescent lamp)

                    300W(energy-saving lamp)           600W(energy-saving lamp)



Lifetime and Warranty:

Lifetime (hr)	26000-45000 at least
Warranty	5 years



FUNCTION:

Ø  Can identify day and night: The consumer can adjust working state in different ambient light. It can work in the daytime and at night when it is adjusted on the “sun” position (max). It can work in the ambient light less than 3LUX when it is adjusted on the “moon” position (min). As for the adjustment pattern, please refer to the testing pattern.

Ø  Time-Delay is added continually: When it receives the second induction signals within the first induction, it will restart to time from the moment.



CONNECTION:



Ø  Loosen the screw in the back and unload the bottom (refer to figure 1).

Ø  Find the wire hole with gasket in the downside of the sensor and pass the power wire through hole. Connect the power wire into connection-wire column according to the connection-wire diagram.

Ø  Fix the bottom with inflated screw on the selected position. (refer to figure 2)

Ø  Install back the sensor on the bottom, tighten the screw and then test it.



CONNECT-WIRE FIGURE:(See the below figure)





TEST:

Ø  Turn the TIME knob anti-clockwise on the minimum (-).Turn the LUX knob clockwise on the maximum (sun).

Switch on the power; the sensor and its connected lamp will have no signal at the beginning. After Warm-up 30sec, the sensor can start work .If the sensor receives

Ø  the induction signal, the lamp will turn on. While there is no another induction signal any more, the load should stop working within 10sec±3sec and the lamp would turn off.

Ø  Turn LUX knob anti-clockwise on the minimum (moon). If the ambient light is more than 3LUX, the sensor would not work and the lamp stop working too. If the ambient light is less than 3LUX (darkness), the sensor would work. Under no induction signal condition, the sensor should stop working within 10sec±3sec.
