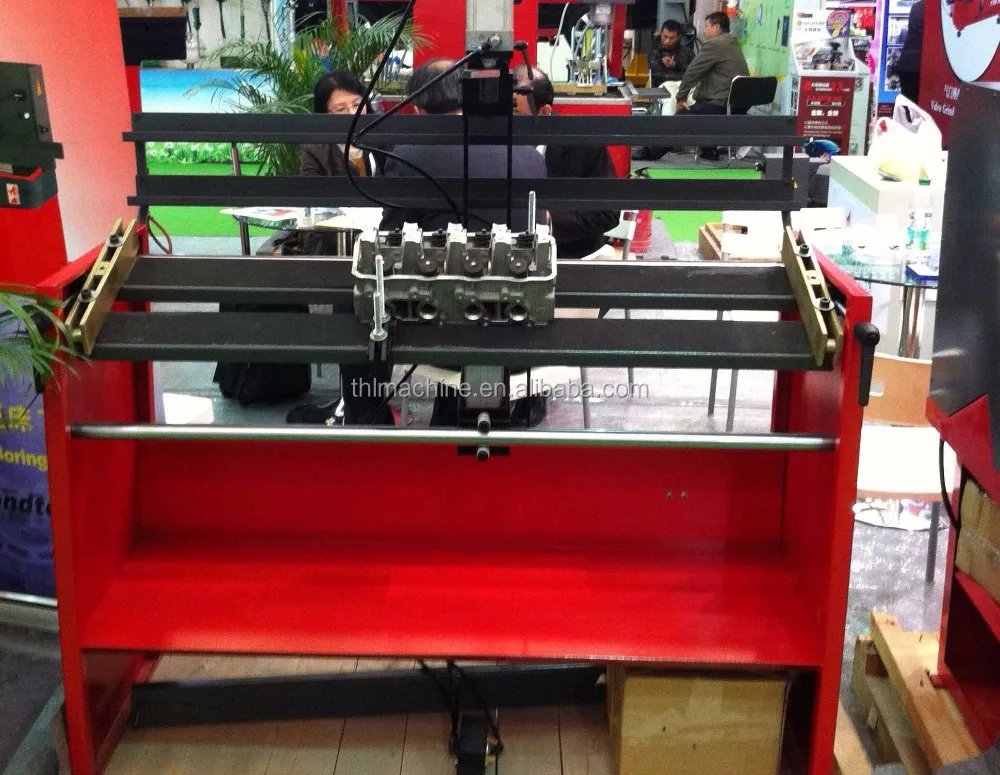

cylinder head work station HD1100 assembly and disassembly of valve spring

Product Overview

Description

The most universal work station with easy access to all faces of the cylinder head.
Valve compressor lock for easy retainer removed “hand free”.
Access for camshaft setting and all other cylinder head operations.



1. Rapid, adjustable manual clamping systems
2. 360°table adjustable
3. Pneumatic foot control
4. Variable speed regulation for air cylinder
5. Air cylinder easily tilts to any valve angle and assembly slides from valve
6. 5 sizes compressing feet
7. Valve keeper installing tool
8. Valve keeper retrieving tool
9. Support to hold the valves with polyethylene plate

Machine capacities ( max )		Space requirements
Length	1125mm / 44.29”	Length	1260mm / 49.61”
Width	390mm / 15.35”	Width	650mm / 75.20”
Height	240mm / 9.45”	Height	1700mm / 66.93”
Weight	250kg / 550lbs	Net weight	130 kg / 286 lbs
