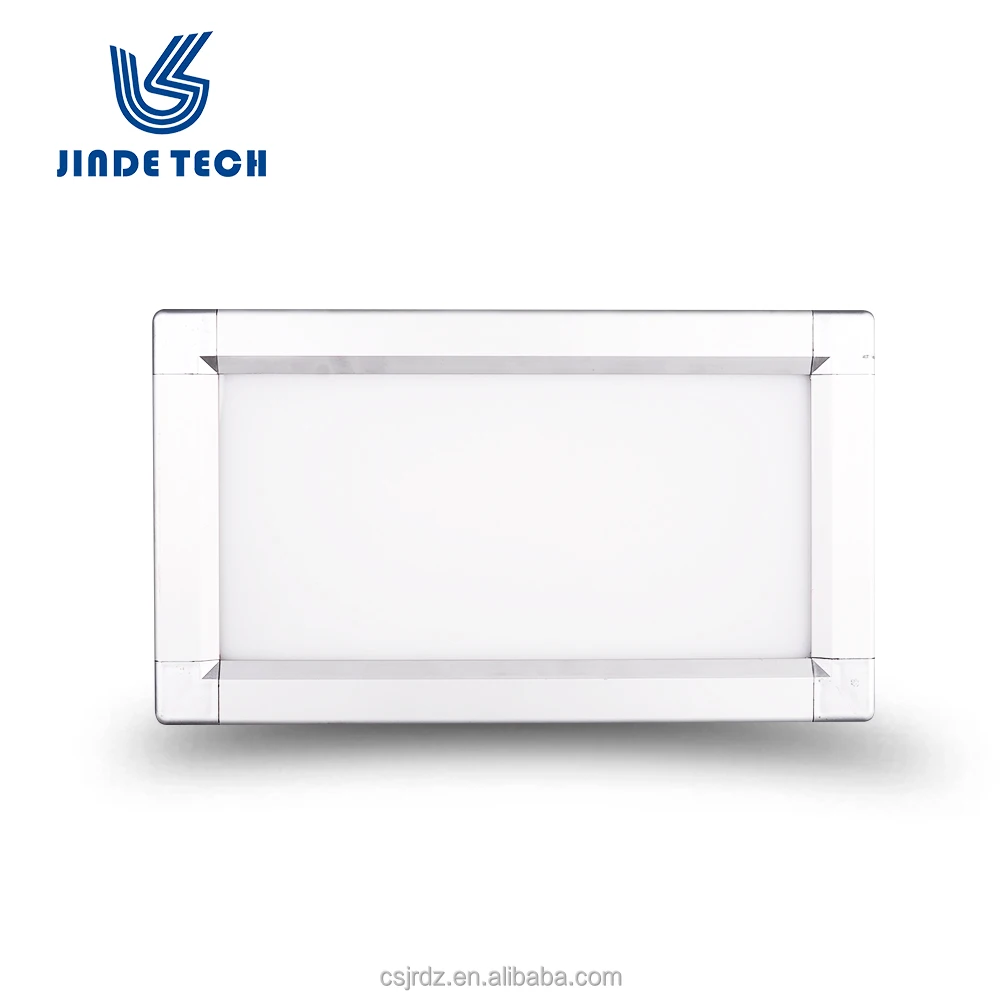

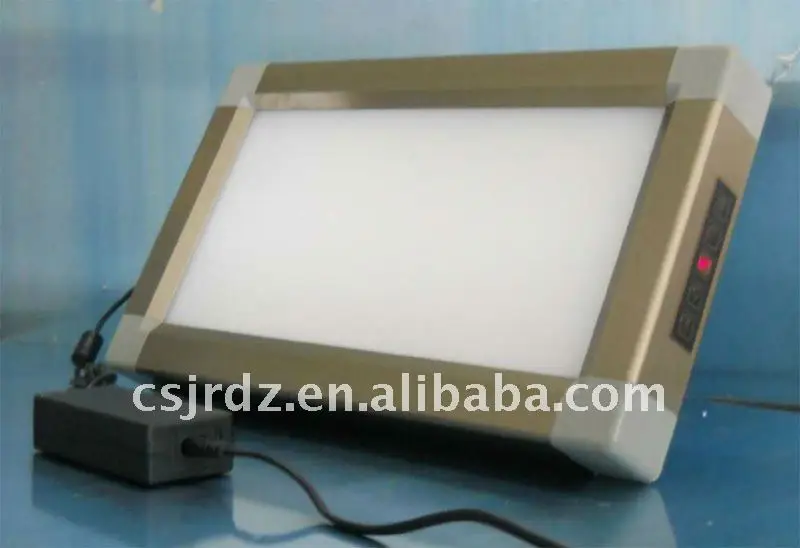

dental X ray film Viewer (W/CE&ISO)

Price:RUB 7,301.28 - RUB 36,890.64

Quantity:

name : dental X ray film Viewer

model: JD-01R

Description of LED x ray dental film viewer:

Special design for panoramic dentary film viewing

High luminance(>3500cd/m 2)

dental X ray film Viewer

Circuit take use of high frequent contravariant technology, flick-free.

Take use of anti-ultraviolet radiation panel, never turn yellow and deform.

Adopt the advanced silicon gel clamping set, fit for all kinds of film

internal power design,space saving and convenients to use.

Adopt LED backlight and high frequency inverted technology,no flash or fake film.

Internal electric power, unique ultrathin design.Ultra-thin design of our x ray dental film viewer,

the thickness is only 4.5cm, available for desk and wall mounting, space saving.

Fine power supply design broad frequency voltage, can work regularly with Voltage ranging between AC100-250V.

Technical Parameters
Product Name		LED X ray film viewers ( X-ray illuminator / X-ray view box / LED negatoscope )
Type		SINGLE SCREEN	DUAL SCREEN	TRIPLE SCREEN	QUADRUPLE SCREEN
Model		JD-01AIII	JD-01BIII	JD-01CIII	JD-01DIII
Dimensions (mm)	Frame (L x H x T)	500 x 510 x 45	850 x 510 x 45	1200 x 510 x 45	1570 x 510 x 45
Dimensions (mm)	Viewing Area (W x H)	360 x 440	736 x 440	1112 x 440	1488 x 440
Mitsubishi brand Screen		√	√	√	√
Film Sensor		√	√	√	√
Light Source		Matrix LED	Matrix LED	Matrix LED	Matrix LED
LED lifespan		> 100,000hrs	> 100,000hrs	> 100,000hrs	> 100,000hrs
Light Uniformity		> 98%	> 98%	> 98%	> 98%
Brightness		>15,000 lux >4,500 cd/m2	>15,000 lux >4,500 cd/m2	>15,000 lux >4,500 cd/m2	>15,000 lux >4,500 cd/m2
Dimming		√	√	√	√
Jinde Patent elastic silicon chips		√	√	√	√
Power Supply Input		AC100-240V 50/60Hz	AC100-240V 50/60Hz	AC100-240V 50/60Hz	AC100-240V 50/60Hz
Power Consumption		15W	30W	45W	60W
Built-in Power Adapter		√	√	√	√
Aluminum Alloy Board & frame		√	√	√	√
Net Weight (Kgs)		3 Kgs	5 Kgs	7.5 Kgs	9 Kgs
Gross Weight(Kgs)		5Kgs	7 Kgs	10 Kgs	13 Kgs
Single package size(mm)		600 x 610 x 110	960 x 610 x 110	1320 x 610 x 110	1680 x 610 x 110
All Jinde products are CE certified and manufacturer under ISO9001 system
