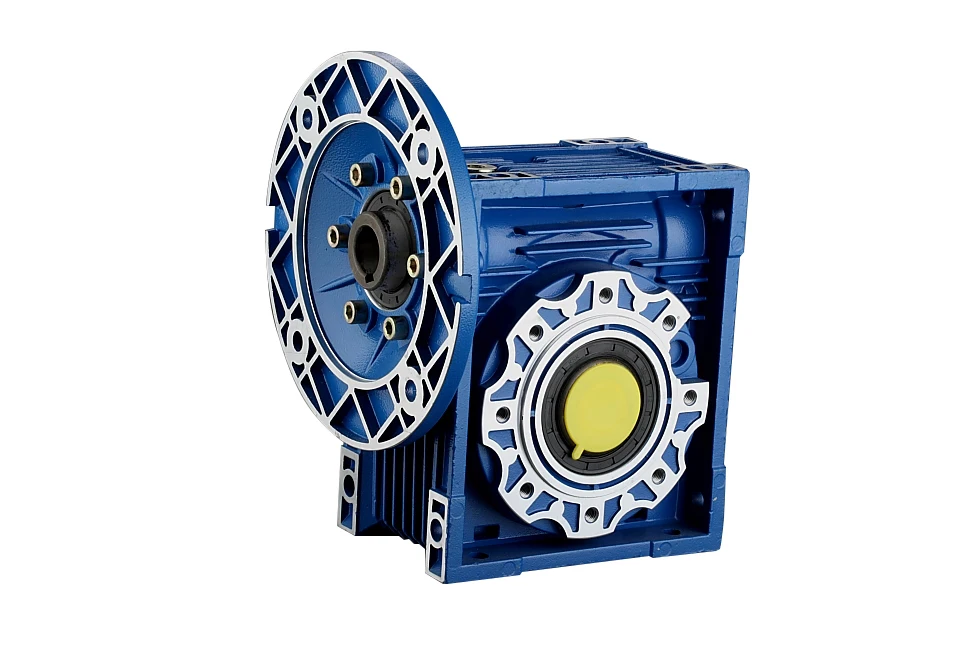

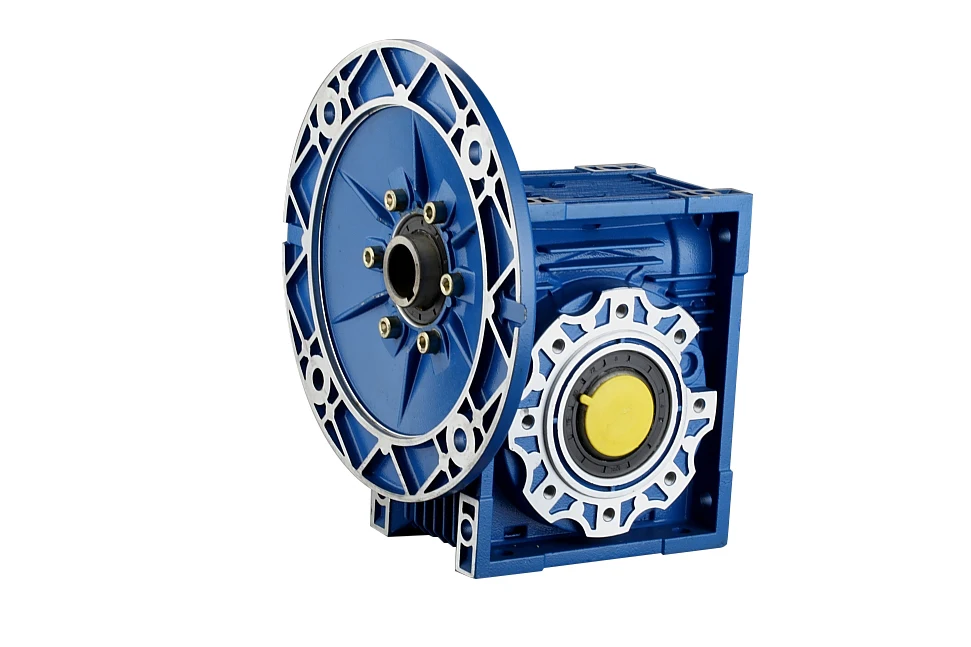

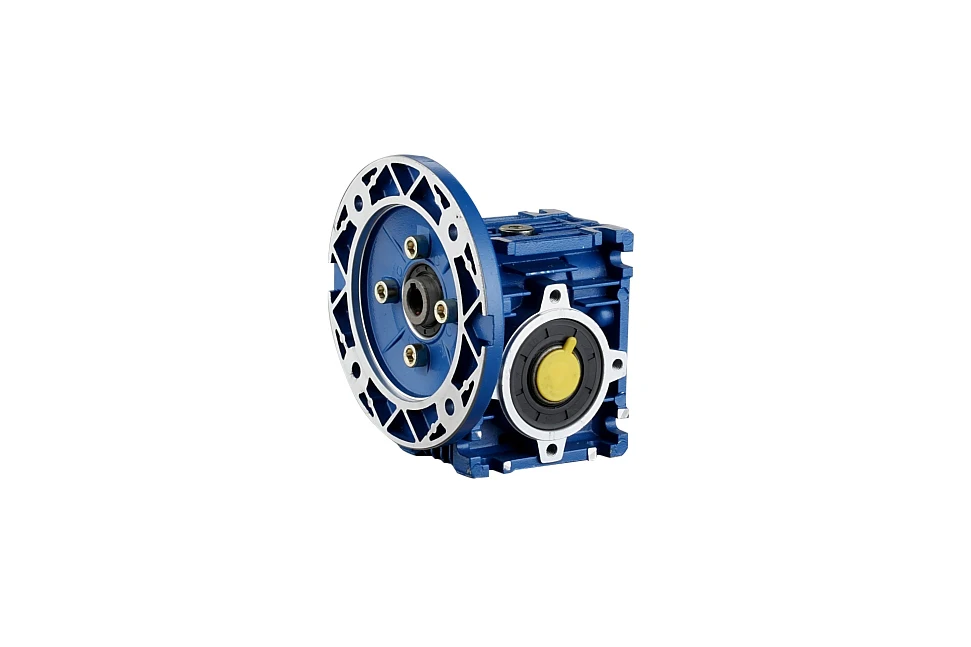

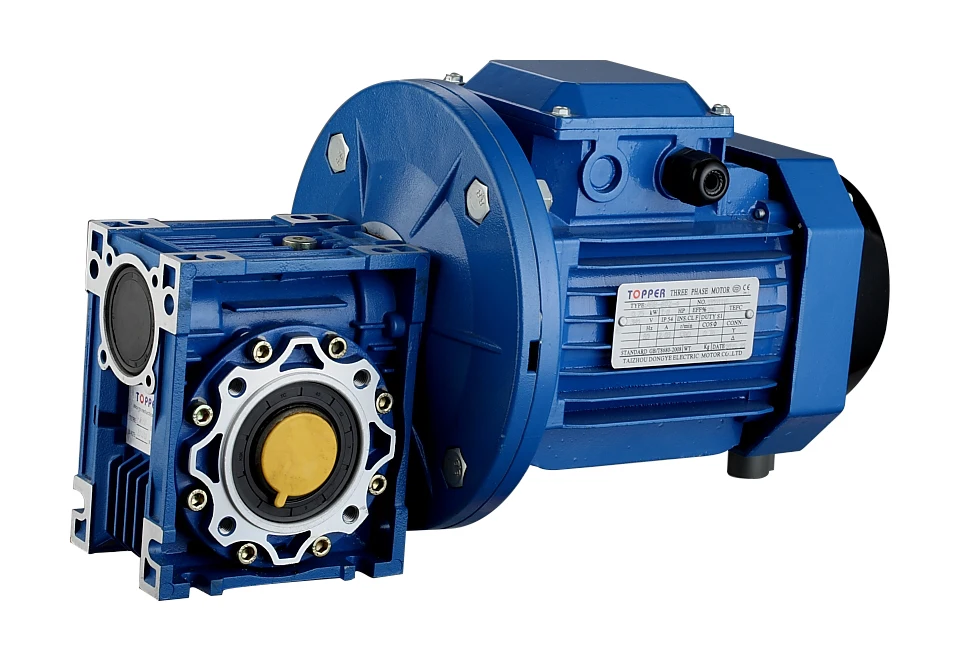

NMRV075 ration 1:30 Worm Gear Reducer
- Category: >>>
- Supplier: Zhejiang Dongye Transmission Electromechanical Co. Ltd.
Share on (495294585):
Product Overview
Description
♦NMRV series aluminum alloy worm reducer
♣ high quality aluminum alloy,appearance elegant,efficient radiator,high carrying ability
♣ installed in multi-surfaces,hollow output shaft,various input and output type,conjoin other transmission machinery easily
♣ small size,contriction compact,lightweight,and save place for mounting
♣ run steadily and low noise
♣ high reliability and high efficiency
♦Reducer model
NMRV-063-30-VS--AS-80B5-0.75KW-B3 | |||
NMRV | Means hole-input with flange | ||
NRV | Means shaft-input without flange | ||
063 | Centre-to-centre spacing of worm-gear speed reducer | ||
30 | ratio | ||
VS | Double input shaft | F1(FA) | Flange putput shaft |
AS | Single output shaft | AB | Double output shaft |
PAM |
| 80B5 | Motor mounting facility |
0.75KW |
| B3 | Mounting position |
N2 | VRV025 | NRV030 | NRV040 | NRV050 | NRV063 | NRV075 | NRV090 | NRV110 | NRV130 |
400 | 390 | 530 | 1020 | 1400 | 1830 | 2160 | 2390 | 3020 | 3950 |
250 | 460 | 620 | 1200 | 1650 | 2150 | 2520 | 2800 | 3530 | 4610 |
150 | 550 | 740 | 1420 | 1960 | 2450 | 2990 | 3310 | 4180 | 5470 |
100 | 630 | 850 | 1620 | 2250 | 2910 | 3430 | 3800 | 4790 | 6260 |
60 | 740 | 1000 | 1920 | 2660 | 3450 | 4060 | 4500 | 5680 | 7420 |
40 | 850 | 1150 | 2200 | 3050 | 3950 | 4650 | 5150 | 6500 | 8500 |
25 | 990 | 1350 | 2570 | 3570 | 4620 | 5440 | 6020 | 7600 | 9940 |
10 | 1350 | 1830 | 3490 | 4840 | 6270 | 7380 | 8180 | 10320 | 13500 |
|
|
|
|
|
|
|
|
|
|
A | 50 | 65 | 84 | 101 | 120 | 131 | 162 | 191 | 203 |
B | 38 | 50 | 64 | 76 | 95 | 101 | 122 | 151 | 163 |
