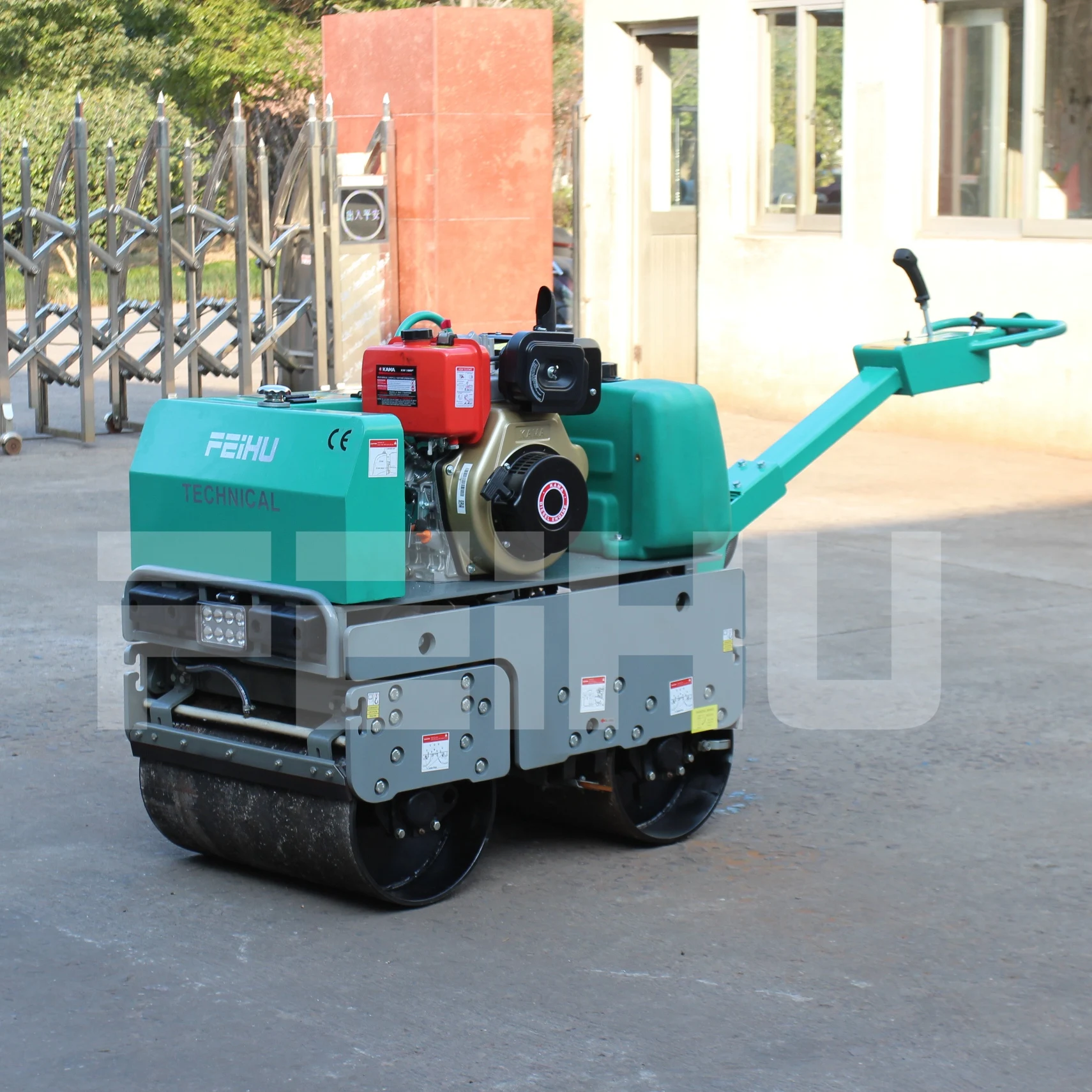

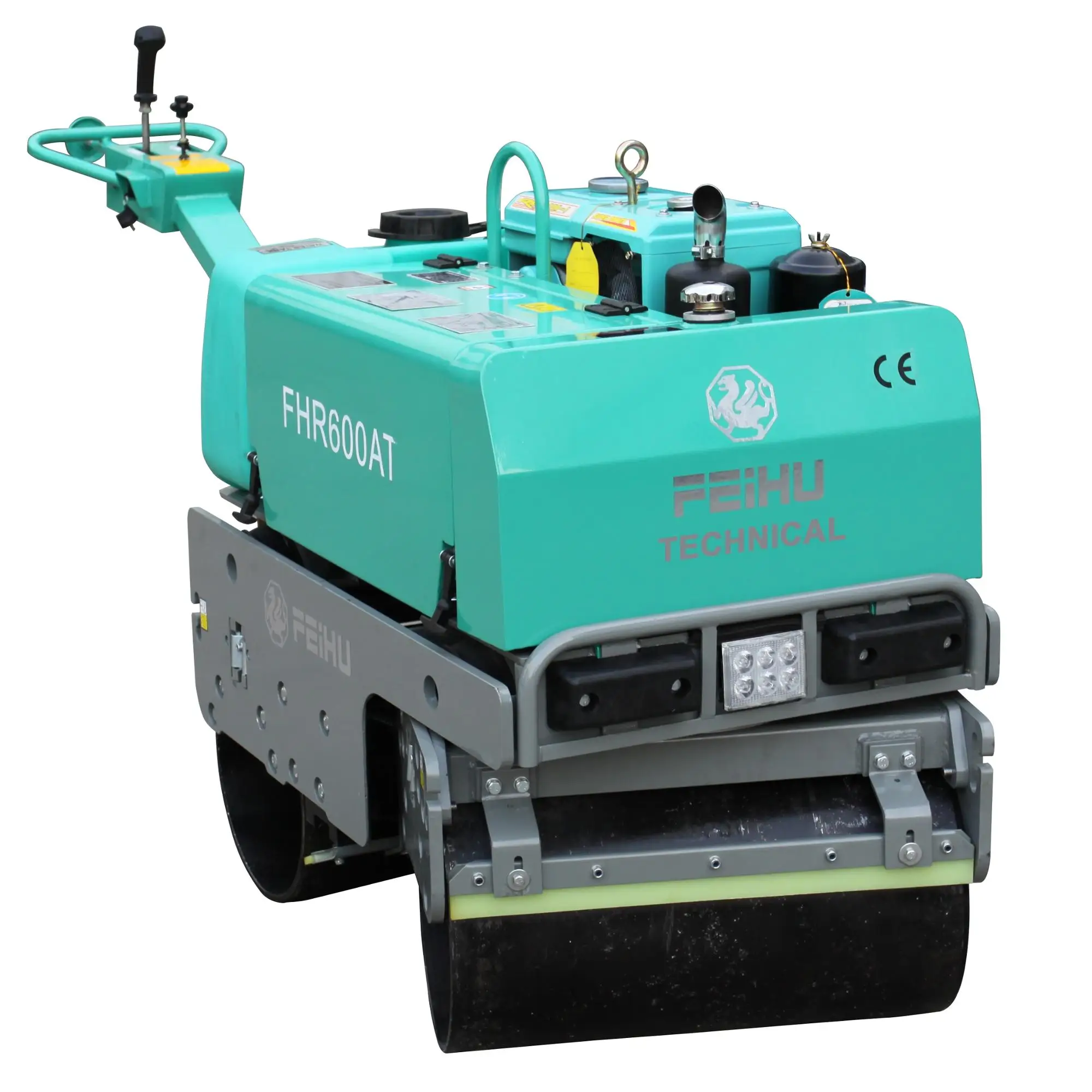

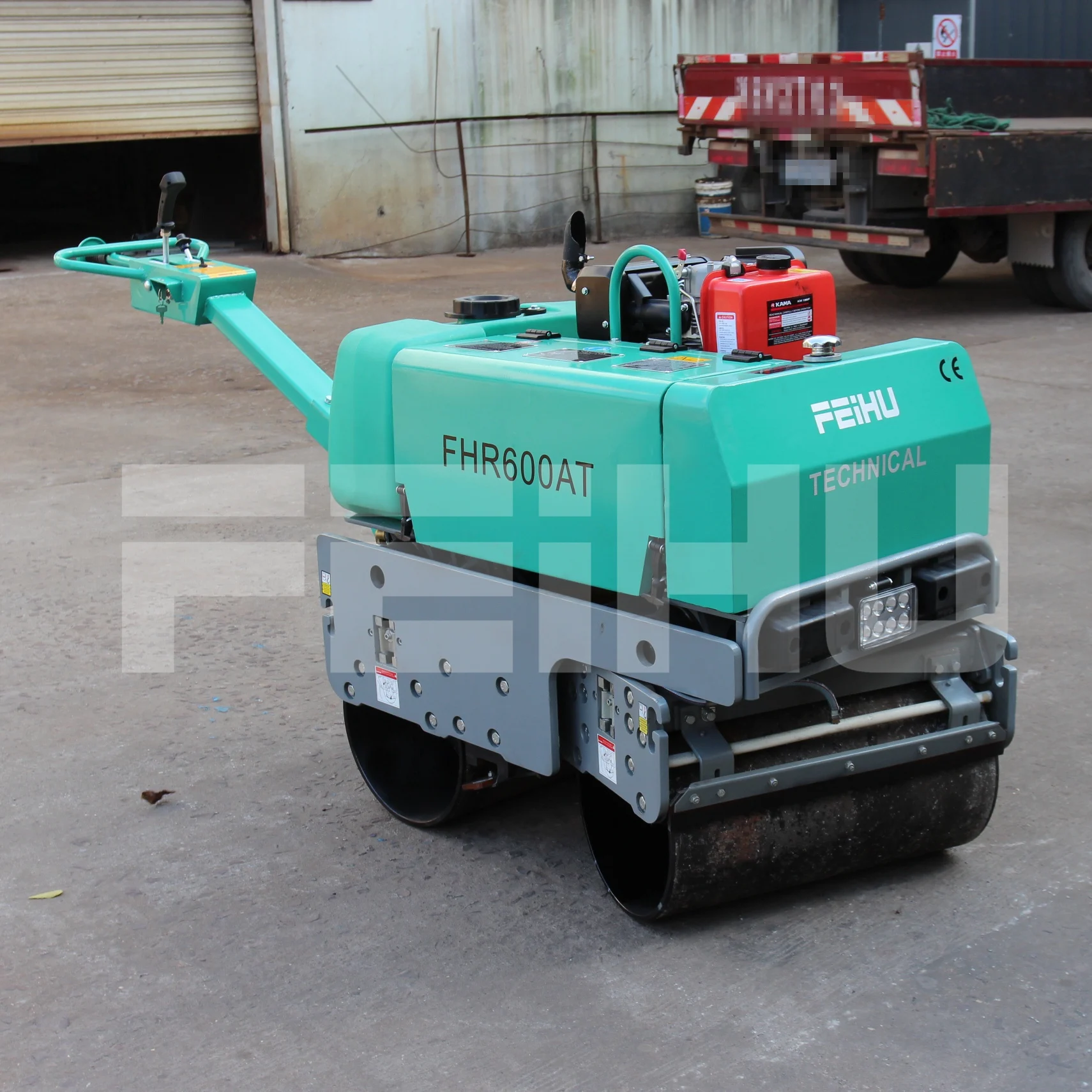

Road Roller Compactor FHR 600AT Turn Able Mini Compactor Roller
- Category: Road Rollers >>>
- Supplier: Ningbo Feihu Machinery Co. Ltd.
Share on (495769838):
Product Overview
Description
Product Application
Small operating radius, can work within small area.
Adopts America WHITE static hydraulic drive device with stepless speed regulation, reverts conveniently and long life.
For handrail, adopts plane gear adjusting mechanism, not only suitable for people with different heights to operate, but also can be transported easily.
Top grade practical long-distance throttle controlled lever.
SPECIFICATIONS FOR FHR-600A VIBRATORY ROLLER | ||||||
Engine Suitable Model | WATER COOLED DIESEL | Kw/rpm | 9HP/2400 | |||
GX390 | Kw/rpm | 13HP/3600 | ||||
Diesel 186F AIR COOLED | Kw/rpm | 9HP/3600 | ||||
Main performance parameters | Centrifugal Force | KN | 20 | |||
Travel speed (max. & min.) | KM/M | <=5KM/H | ||||
Max. Climbing Capacity | ° | 30 | ||||
Hydraulic system | Hydraulic Oil Tank | L | 25 | |||
Water Tank | L | 40 | ||||
Weight | KG | 630 | ||||
SPECIFICATIONS FOR FHR-700A VIBRATORY ROLLER | ||||||
Engine Suitable Model | WATER COOLED DIESEL | Kw/rpm | 9HP/2400 | |||
GX390 | Kw/rpm | 13HP/3600 | ||||
Diesel 186F AIR COOLED | Kw/rpm | 9HP/3600 | ||||
Main performance parameters | Centrifugal Force | KN | 22 | |||
Travel speed (max. & min.) | KM/M | <=5KM/H | ||||
Max. Climbing Capacity | ° | 30 | ||||
Hydraulic system | Hydraulic Oil Tank | L | 25 | |||
Water Tank | L | 40 | ||||
Weight | KG | 730 | ||||
SPECIFICATIONS FOR FHR-600AT VIBRATORY ROLLER | ||||||
Engine Suitable Model | WATER COOLED DIESEL | Kw/rpm | 9HP/2400 | |||
GX390 | Kw/rpm | 13HP/3600 | ||||
Diesel 186F AIR COOLED | Kw/rpm | 9HP/3600 | ||||
Main performance parameters | Centrifugal Force | KN | 20 | |||
Travel speed (max. & min.) | KM/M | <=5KM/H | ||||
Max. Climbing Capacity | ° | 30 | ||||
Hydraulic system | Hydraulic Oil Tank | L | 25 | |||
Water Tank | L | 40 | ||||
Weight | KG | 680 | ||||
Main Features
1) POCLAIN HYDRAULIC PUMP.
2) HYDRAULC MOTOR.
3) ELECTRIC CLUTCH.
4) PARKING BRAKE
5) PLASTIC WATER TANK .

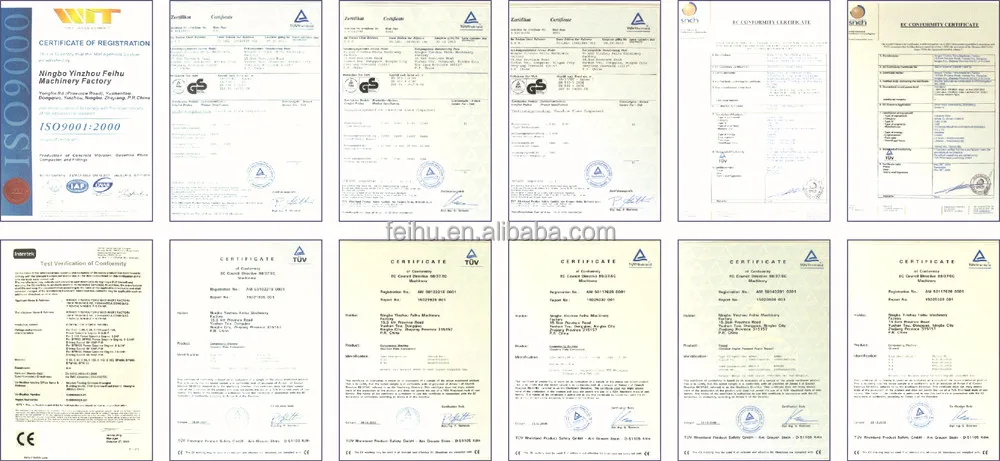

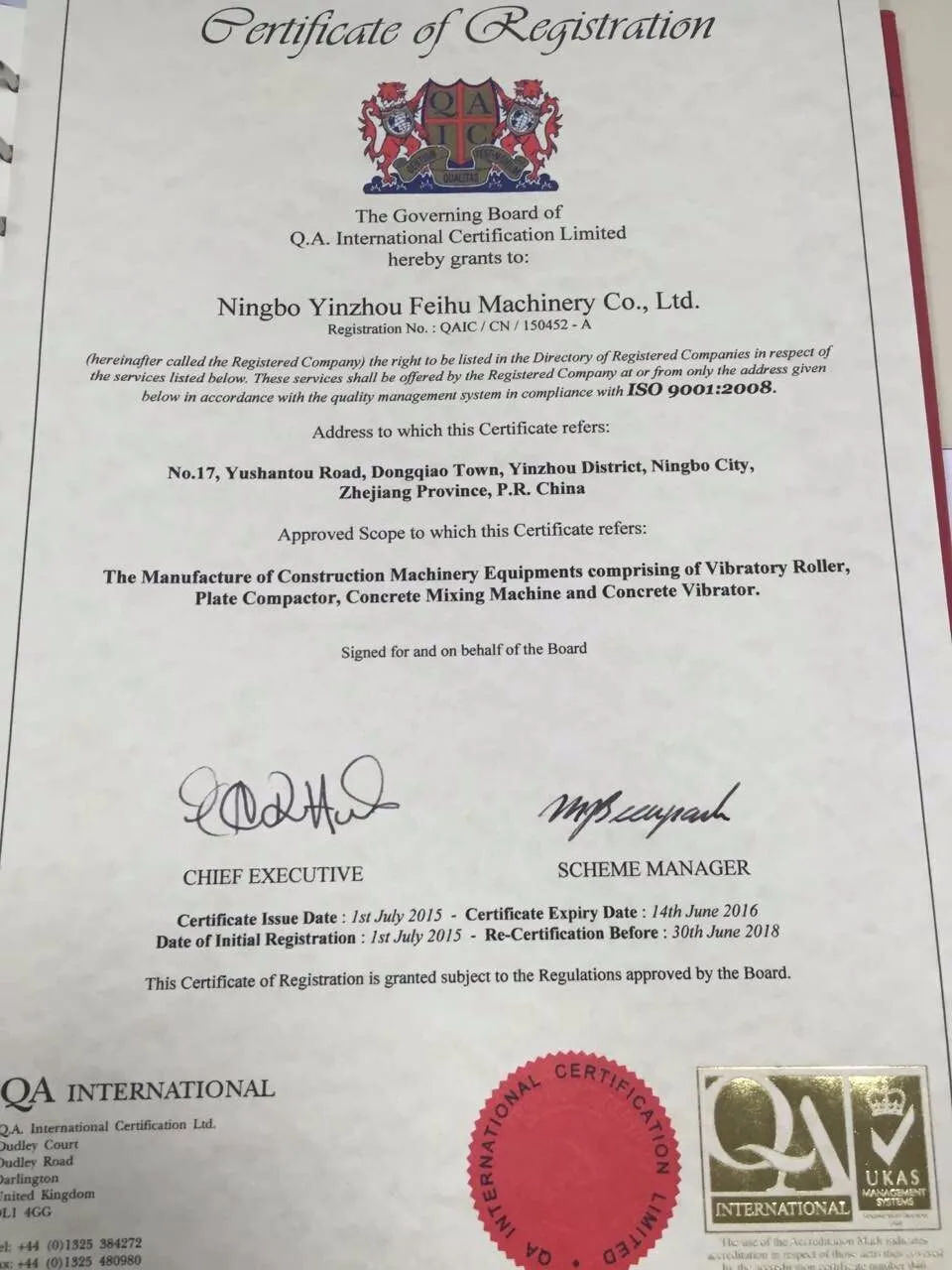

Certifications
Detailed Images

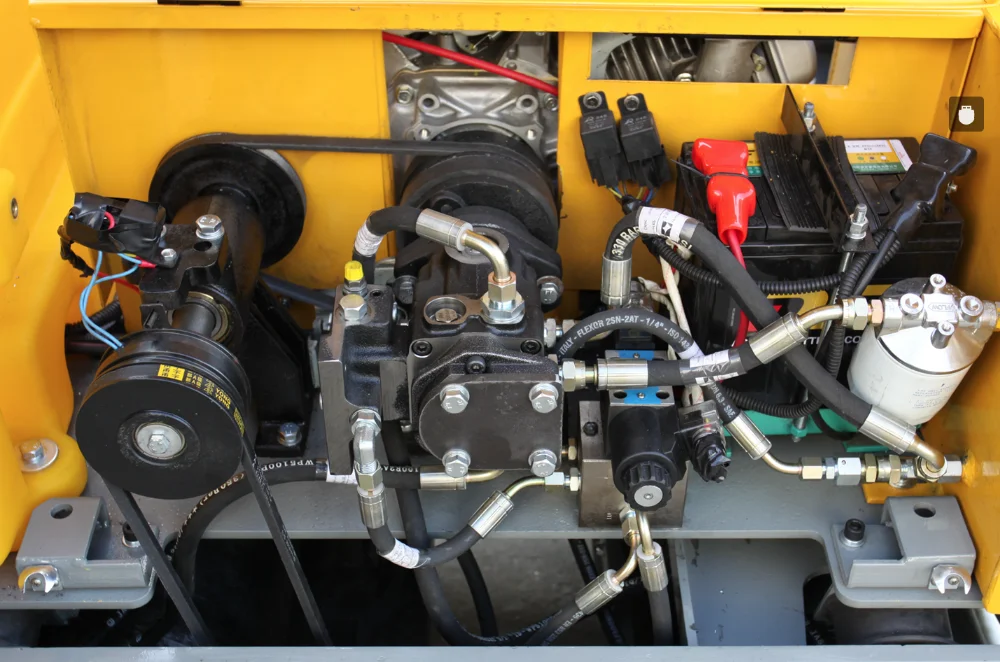

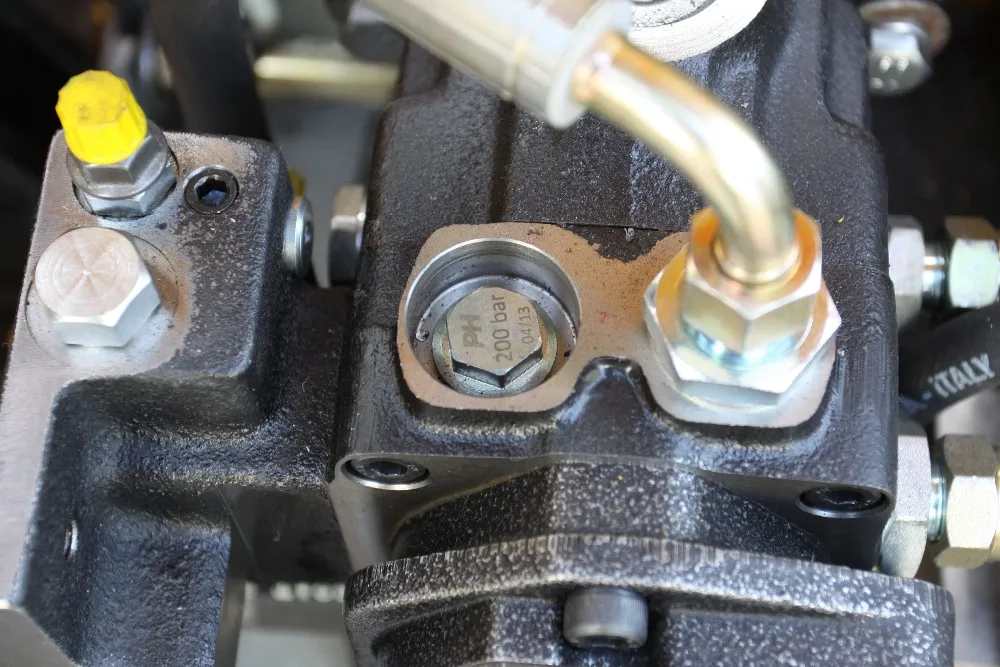

HYDRAULIC PUMP
HYDRAULIC PUMP

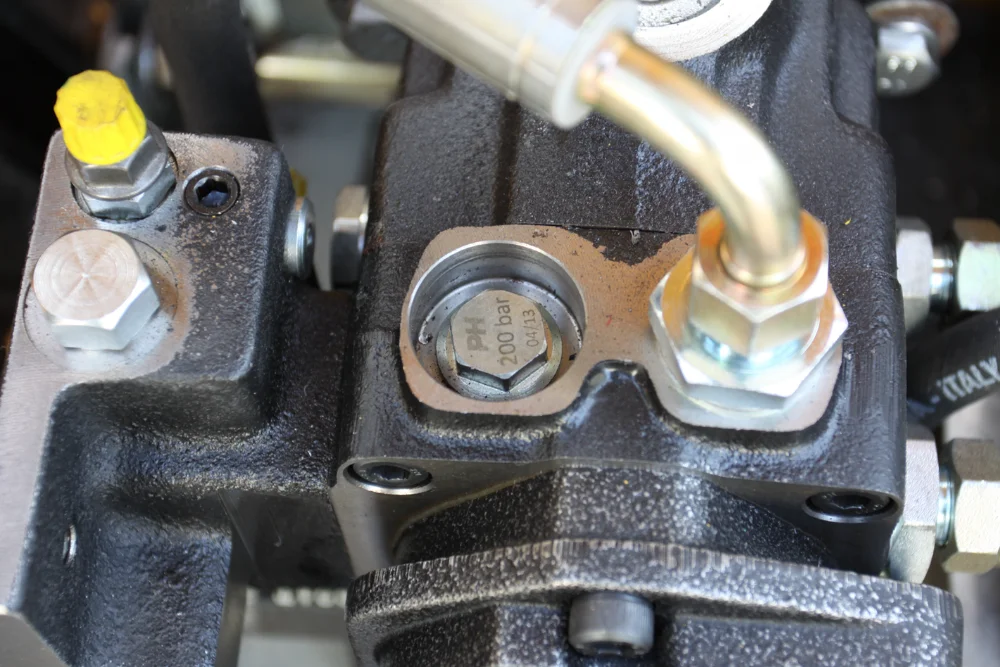

Name: HYDRAULIC PUMP
Brand: POCLAIN
Original: FRANCE
Adopts static hydraulic drive device with stepless speed regulation,reverts conveniently and long life
TAIWAI QIANDAI ELECTRIC CLUTCH
Name: ELECTRIC CLUTCH
Domestic famous electric clutch, strong driving force, long working time, one year quality guarantee.
25° Double Side Turning Radius
Controled by the hand and 20° left and right side Turing Radius.
Our Service
After-Sales Service
Pre-Sales Service
* Inquiry and consulting support.
* Sample testing support.
* View our Factory.
After-Sales Service
* Training how to instal the machine, training how to use the machine.
* One year spear parts and quality quarantee.
Packing & Delivery
Packaging | ||
Size | 130 (L) * 75 (W) * 120 (D) | |
Weight | 680KG | |
Packaging Details | The normal package is iron frame inside and carton outside . Fork can rase the package through the foot on the bottom. | |
