HSS M2 Shank type Finger Gear Milling Cutter Module 20

Product Overview

Description

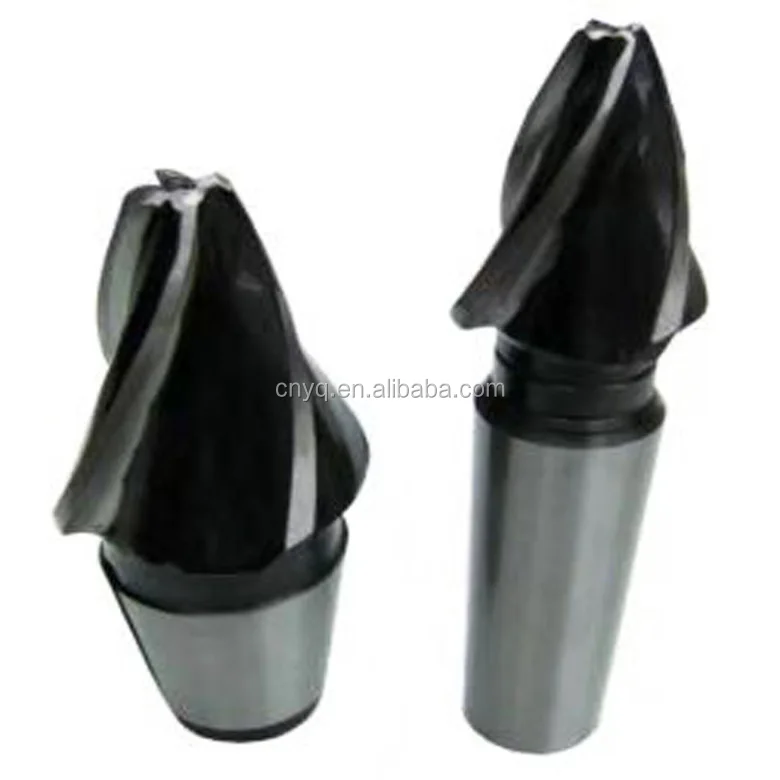

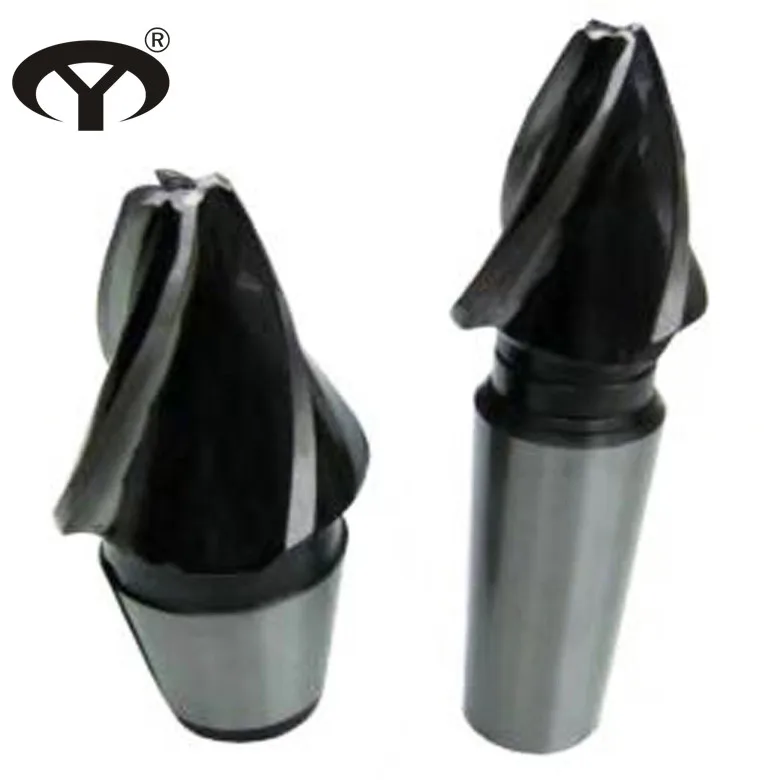

HSS M2 Shank type Finger Gear Milling Cutter Module 20



Specification table of finger gear milling cutter :



Module	Outside dia.	Length
8	30~24	48~47
9	34~26	50~51
10	38~28	53~55
11	42~32	64~59
12	45~34	67~61
13	48~38	69~65
14	52~40	73~69
15	55~42	80~78
16	60~45	85~82
18	65~50	94~86
20	75~55	100~99
22	80~60	114~104
25	90~70	120~117
28	100~75	135~118
30	110~80	145~138
33	120~90	155~150
36	130~95	170~160
40	145~110	180~172













Milling cutter series :   Shank end mill  , keyway milling cutter , shell end mill , angle milling cutter , cylindrical milling cutter, side and face milling cutter , concave convex milling cutter , rack milling cutter , roller chain sprocket milling cutter, T-slot milling cutter, woodruff keyseat milling cutter and dovetail milling cutter.





The production process of HSS M2 module finger gear milling cutter :











Material Introduction:



A. W6Mo5Cr4V2 (GB)  M2( ASTM), S6-5-2(DIN), SKH51(JIS)
   chemical composition:C 0.85, Si 0.38, Mn 0.35, P≤0.030, S≤0.030,  Cr 4.10, W 6.00, Mo 4.80 V 1.85
   main application:It is widely used for making all kinds of cutters and durability cold-work die



B. W6Mo5Cr4V2Co5 (GB), M35( ASTM), 1.3243(DIN), SKH55(JIS)
   chemical composition: C 0.93, Si 0.38, Mn 0.35, P≤0.030, S≤0.030, Cr 4.10, W 6.30, Mo 4.80 V 1.85, Co 5.00
   main application:It is often used for making blades with  high-speed and great cutting difficulty as it’s good abrasive resistance





W6Mo5Cr4V2(M2),W9Mo3Cr4V(W9),W18Cr4V(W18),W6Mo5Cr4V2Al(M2Al),W6Mo5Cr4V2Co5(M35),W2Mo9Cr4VCo8(M42),W4Mo3Cr4VSi(4341),W4Mo2Cr4VSi(4241)
