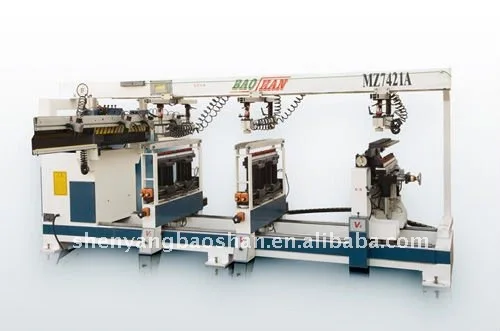

MZ 7421A Four line Multi Spindle Wood Drilling Machine multi hole drilling machine

Product Overview

Description

Wood Drilling Machine:

Baoshan woodworking drilling machine is used for drilling holes, which can be operated easily and conveniently. Baoshan Woodworking Machinery Factory’s equipment is developed on the basis of quality-guarantee, a function of better, more efficient, more convenient for the users. Professional Services in the production of wooden doors, cabinets and office furniture such as plate, for flat engraving and horizontal play keyhole, slotting users.



Drilling Machine Technical Specifications:



Total Number of Drilling Shafts	86
Max. Drilling Diameter	Φ15mm
Max. Drilling Depth	55mm
Revolving Speed	2840r/min
Aerial Pressure	0.6mpa
Working Power	3-HP_380V
Installation Pitch of Drilling Head	Φ10mm
Total Power	7.4kw
Overall Dimension	L*W*H 3500*1300*1550
Weight of the Machine	1500kg
