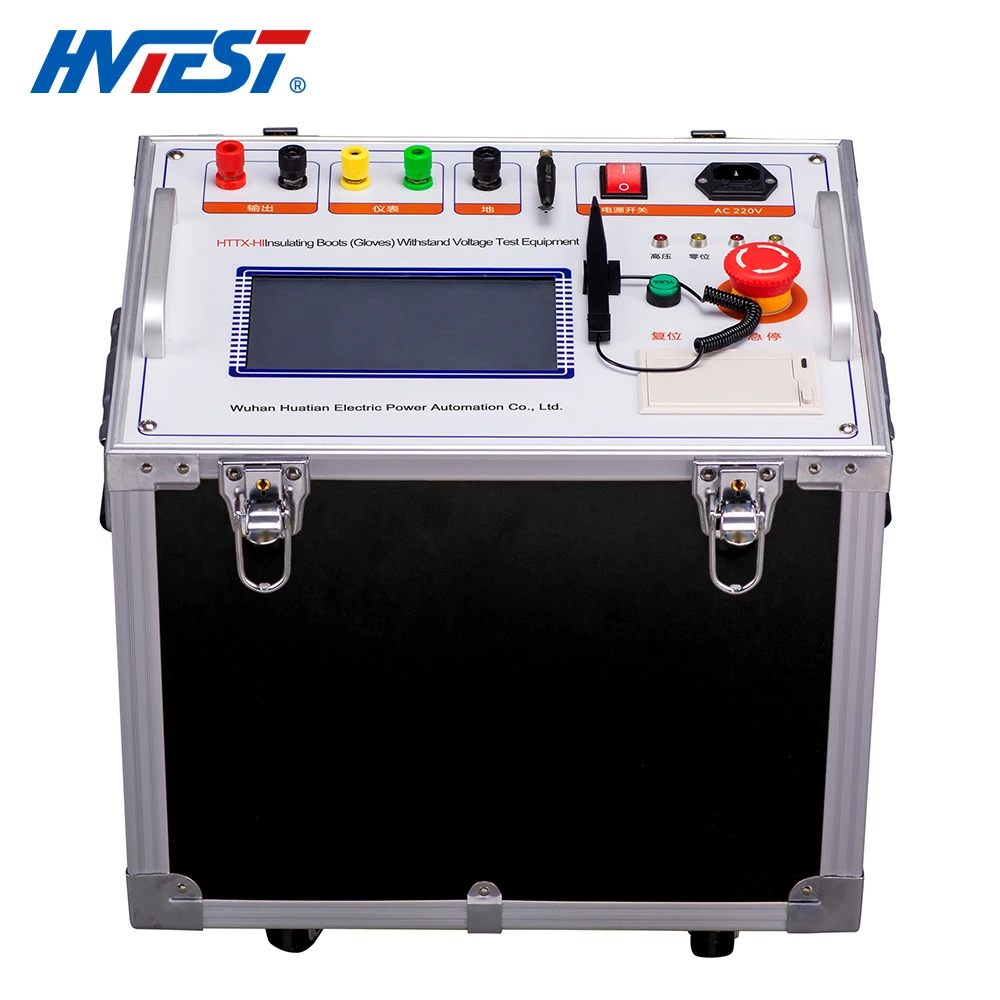

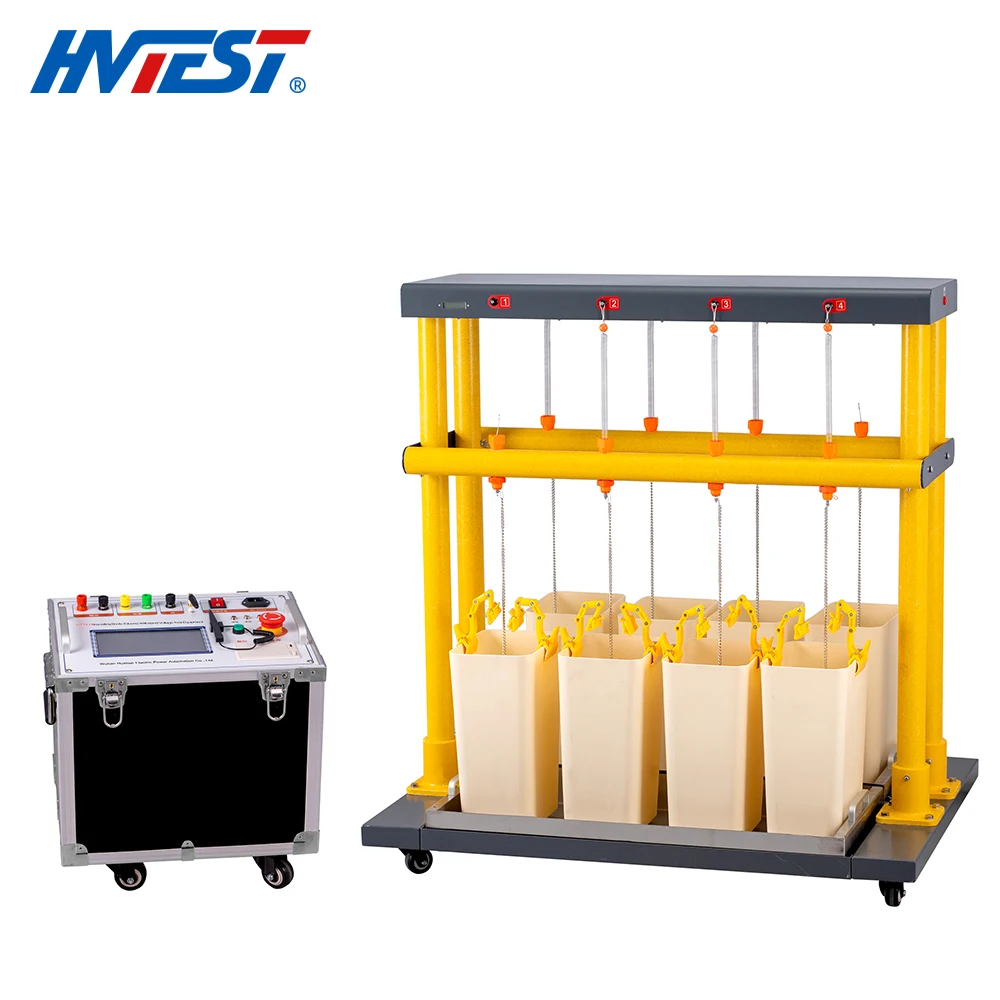

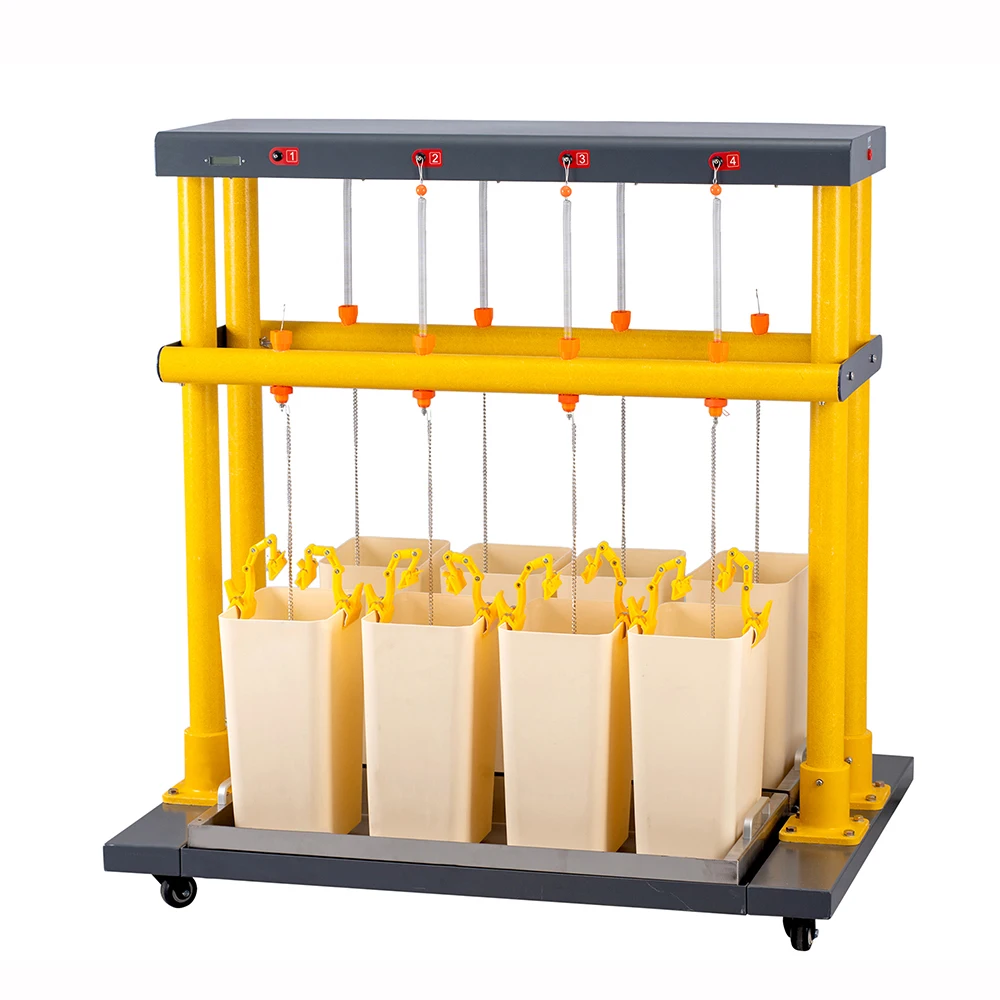

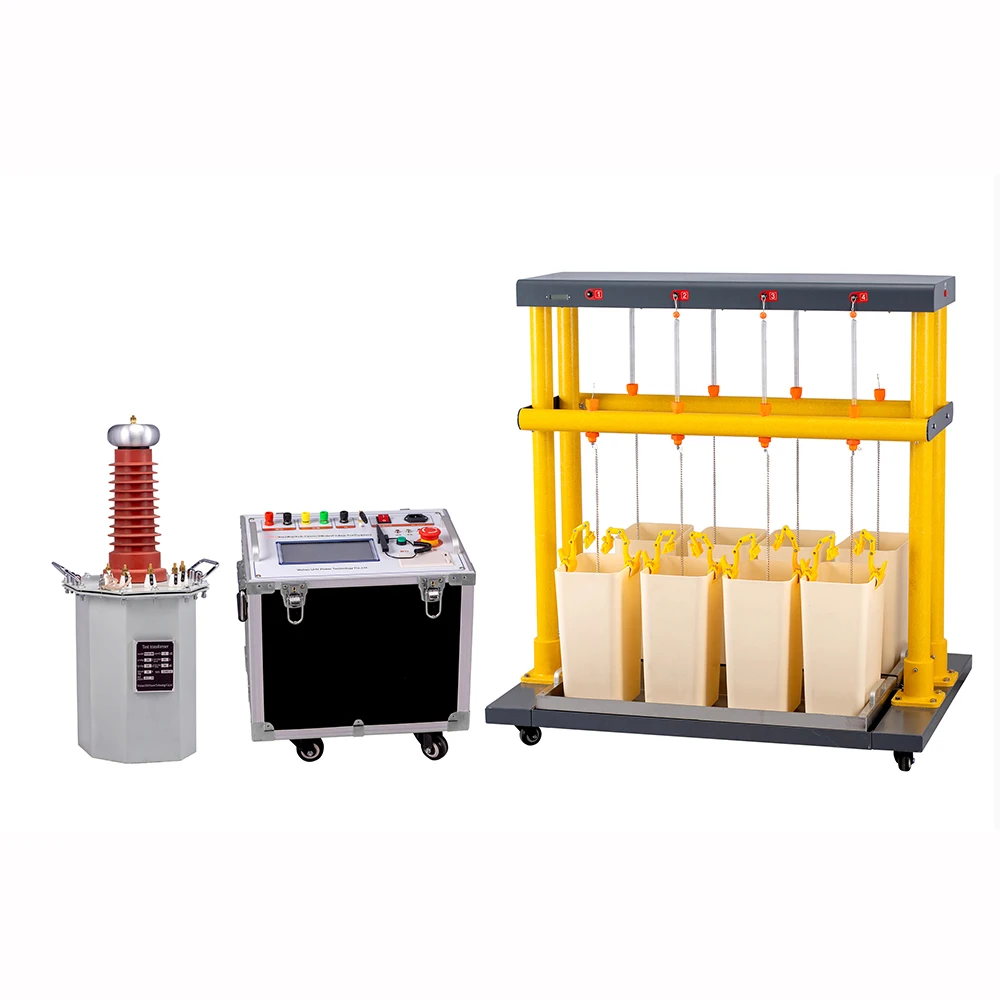

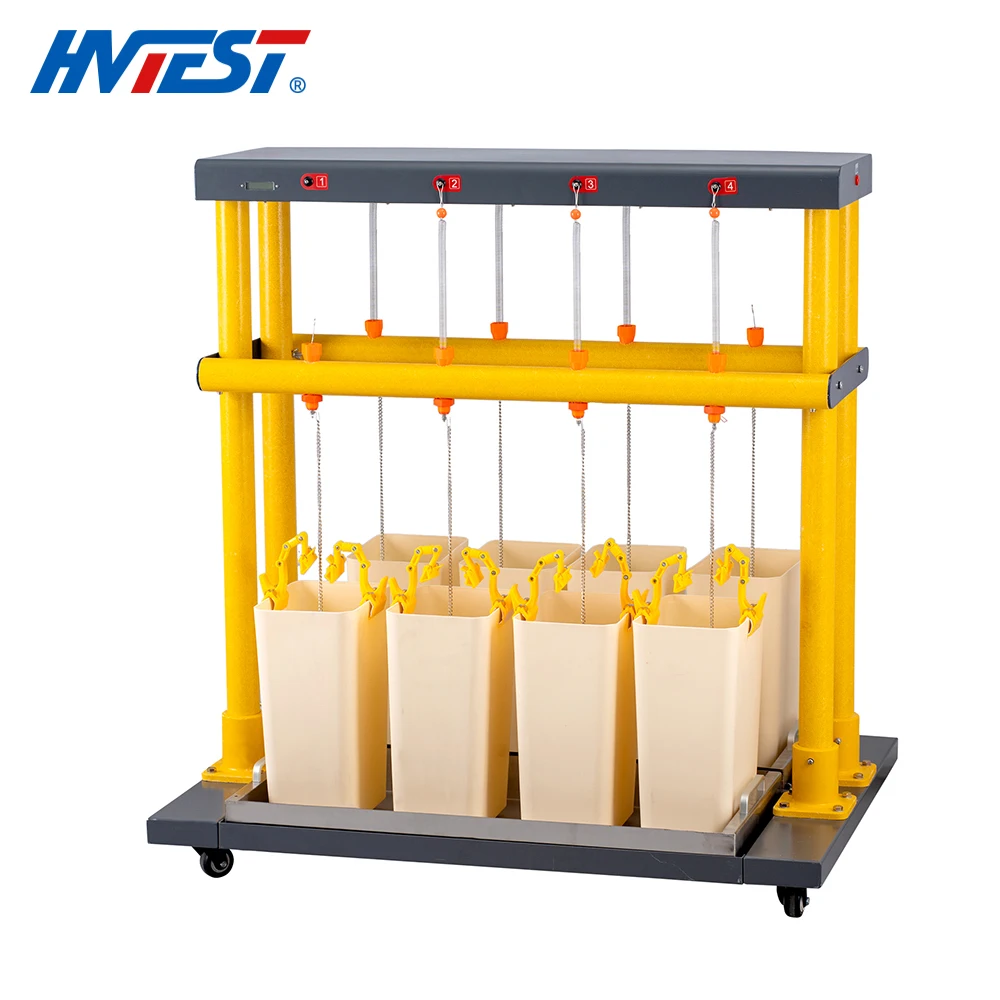

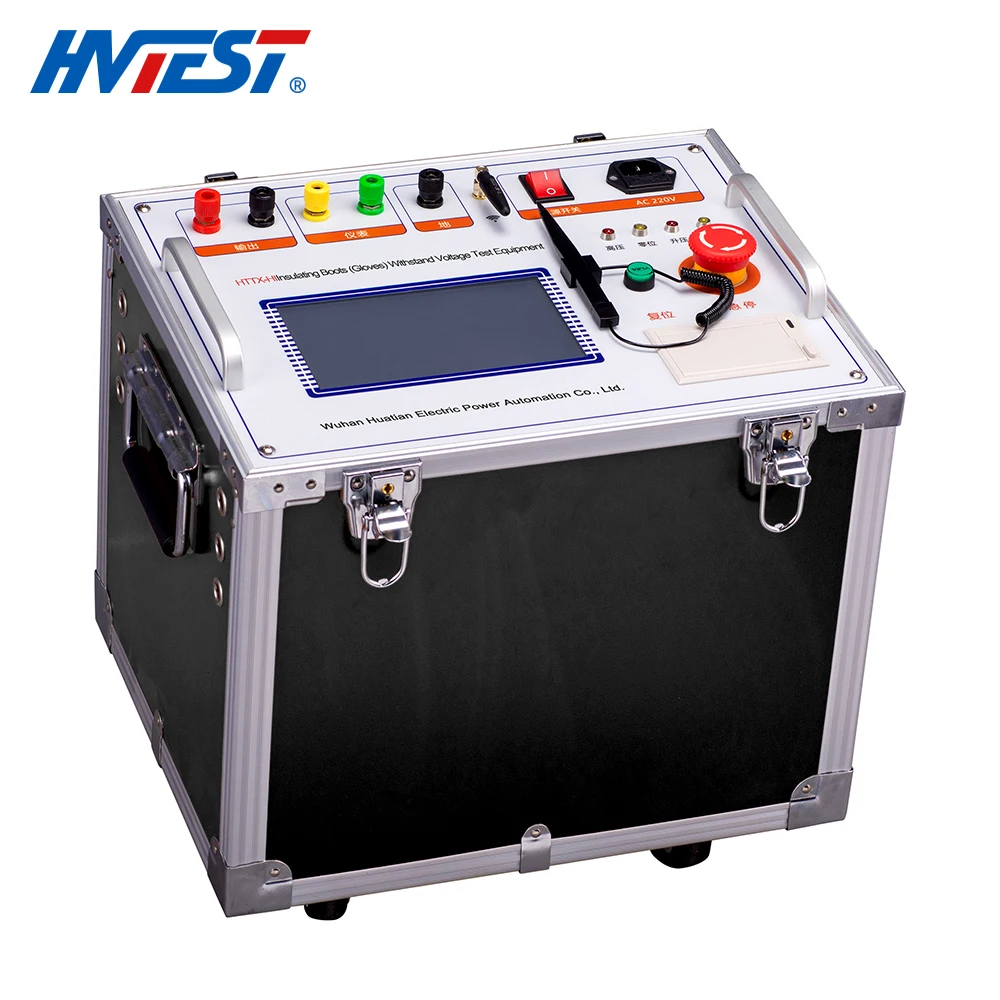

HTTX HI Automatic Insulation Boots and Gloves Withstand Voltage Tester
- Category: >>>
- Supplier: Wuhan Huatian Electric Power Automation Co. Ltd.
Share on (496743830):
Product Overview
Description
Product Paramenters
nsulating boot test | Voltage | 15kV | |
Leakage current | ≤6mA | ||
time | 1min | ||
Resolution | 0.1kV、0.1mA | ||
Precision | Voltage±（2%＋3d）Current±（2%＋3d） | ||
Insulating glove test | Voltage | high pressure：8kV Low pressure：2.5kV | |
Leaking Current | high pressure≤9mA Low pressure≤2.5mA | ||
time | 1min | ||
Resolution | 0.1kV、0.1mA | ||
Precision | Voltage±（2%＋3d）Current±（2%＋3d） | ||
Insulating rubber pad test | Voltage | high pressure：15kV Low pressure：3.5kV | |
Leaking Current | No breakdown | ||
time | 1min | ||
Resolution | 0.1kV、0.1mA | ||
Precision | Voltage±（2%＋3d）Current±（2%＋3d） | ||
Custom test | Voltage | 1-30kV | |
Leaking Current | 1-20mA | ||
time | 1-10min | ||
Resolution | 0.1kV、0.1mA | ||
Precision | Voltage±（2%＋3d）Current±（2%＋3d） | ||
Working power supply | AC220V 50Hz | ||
Output Voltage | 0-30kV | ||
Capacity | 3kVA | ||
test numbers | 6 pcs each time | ||
Ambient temperature | －10℃ ～ ＋50℃ | ||

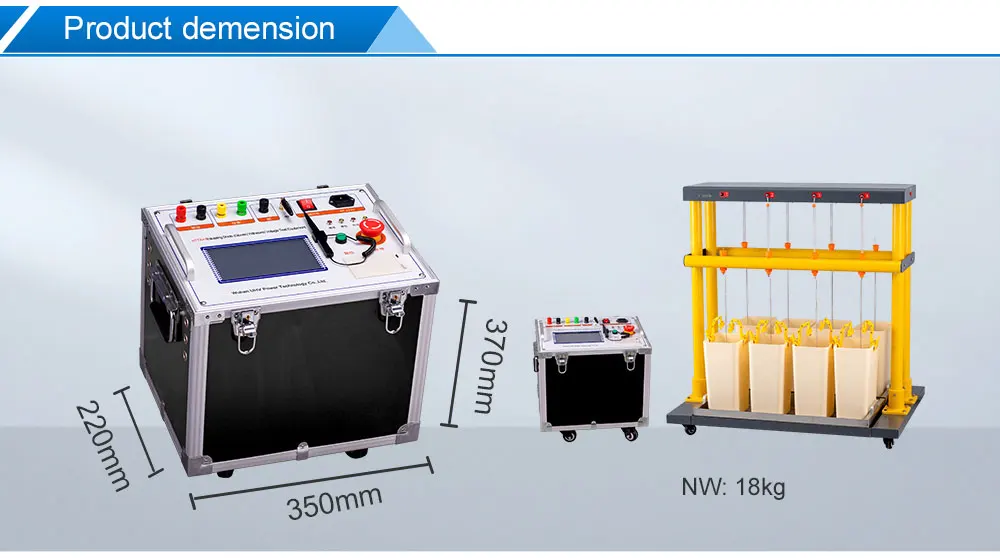

Operating box volume | 35*22*37cm | ||
Operating box quality | 12kg | ||
Test vehicle volume | 75*90*102cm | ||
Test vehicle quality | 60kg | ||

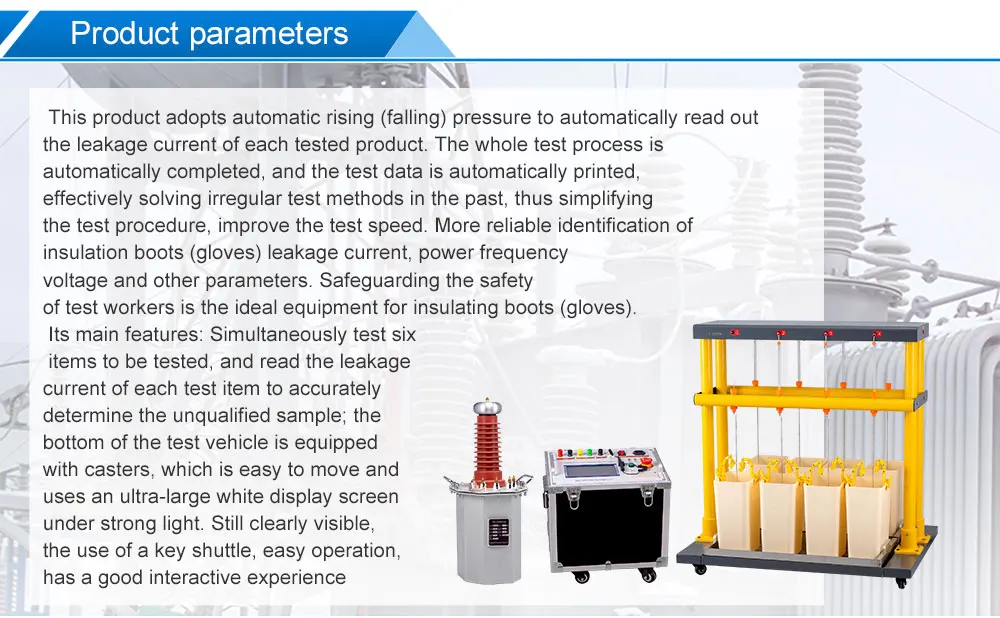

Function&Characteristics
1, the instrument can carry out the test of 8 insulating boots or insulating gloves at the same time, and measure the leakage current of each test product.
2, insulation shoes test using a small steel ball placed inside the dry test method, get rid of the traditional filling shoes to do the test, after the test is not easy to dry.
3, high and low pressure separation, leakage current using anti-interference wireless transmission technology to transmit back to the control box, great protection of personal safety.
4, each test has a breaking mechanism, when any one of the breakdown or exceed the set leakage current value, the test will automatically out of the test, does not affect other test.
5, the instrument uses 7 inch TFT touch large screen LCD Chinese character display, display large amount of information, a screen at the same time display test voltage, 8 high voltage leakage current, perpetual calendar, timing time and other parameters as well as Chinese prompt content.
2, insulation shoes test using a small steel ball placed inside the dry test method, get rid of the traditional filling shoes to do the test, after the test is not easy to dry.
3, high and low pressure separation, leakage current using anti-interference wireless transmission technology to transmit back to the control box, great protection of personal safety.
4, each test has a breaking mechanism, when any one of the breakdown or exceed the set leakage current value, the test will automatically out of the test, does not affect other test.
5, the instrument uses 7 inch TFT touch large screen LCD Chinese character display, display large amount of information, a screen at the same time display test voltage, 8 high voltage leakage current, perpetual calendar, timing time and other parameters as well as Chinese prompt content.
6, the use of DC motor control voltage regulator boost process, fully automatic voltage test. After the start of the test, the automatic closing of the instrument to the national standard requirements of the speed of automatic voltage boost, reach the predetermined voltage start time, and maintain the test voltage, time to, automatic voltage drop, to zero after automatic power off, prompt the end of the test, at the same time display the leakage current of each test, and automatically save the test results.
7, insulation boots test with a special stainless steel grounding tray, insulation gloves test with a special stainless steel container, easy to operate.
8, the test transformer ratio can be set freely, but also can be matched with the customer's existing transformer.
9, with overcurrent protection function.
7, insulation boots test with a special stainless steel grounding tray, insulation gloves test with a special stainless steel container, easy to operate.
8, the test transformer ratio can be set freely, but also can be matched with the customer's existing transformer.
9, with overcurrent protection function.
Company Profile
Wuhan Huatian Electric Power Automation CO., LTD.
Wuhan Huatian Electric Power Automation CO., LTD. established in 2004. located in Wuhan Optical Valley East Lake High-Tech Development Zone. We are a well-experienced OEM/ODM factory engaged in the research, development, manufacture, sale and service of electric power testing equipment or systems. Including AC Series Resonant Test System, AC/DC/VLF Hipot Test Set, Transformer Tester, Secondary Injection Relay Tester, Cable/Line Tester, Insulation Oil Tester, Circuit Breaker/Switch Tester & SF6 Test Equipment etc. Widely used in electric power,energy, transportation,metallurgical,chemical,mining and water conservancy project.
We have obtained the ISO 9001 quality system certification, OHSAS 18001:2007 Occupational Health and Safety Management System certification and all products conform to the international CE or Chinese state standards.
Our products are widely exported to all over the world and our service are recognized and highly appreciated by world scale customers, we will always provide you the best solution. Looking forward to building a thrust-worthy and long term relationship with you.
We have obtained the ISO 9001 quality system certification, OHSAS 18001:2007 Occupational Health and Safety Management System certification and all products conform to the international CE or Chinese state standards.
Our products are widely exported to all over the world and our service are recognized and highly appreciated by world scale customers, we will always provide you the best solution. Looking forward to building a thrust-worthy and long term relationship with you.
