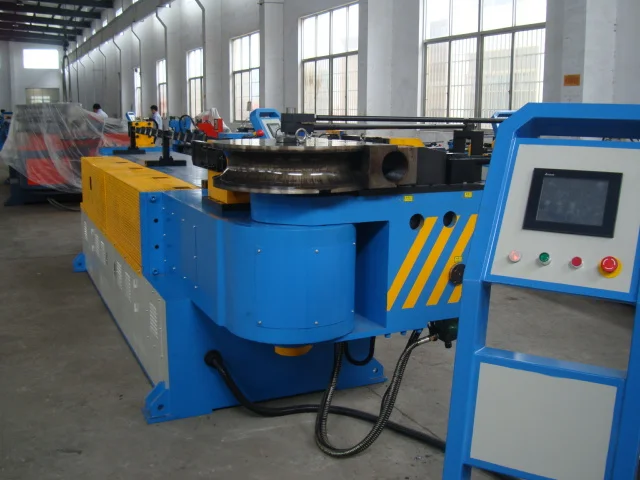

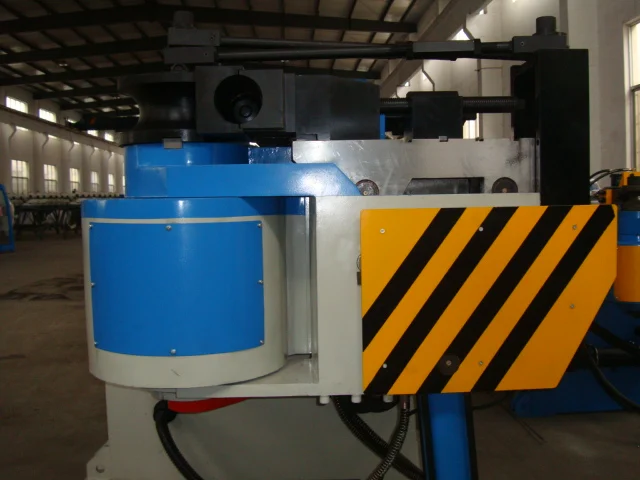

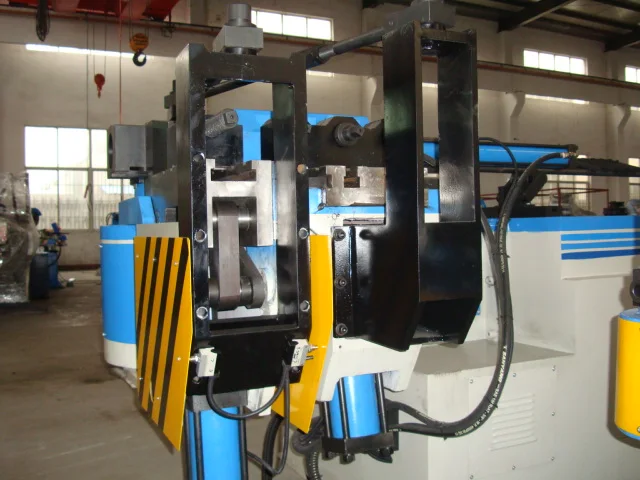

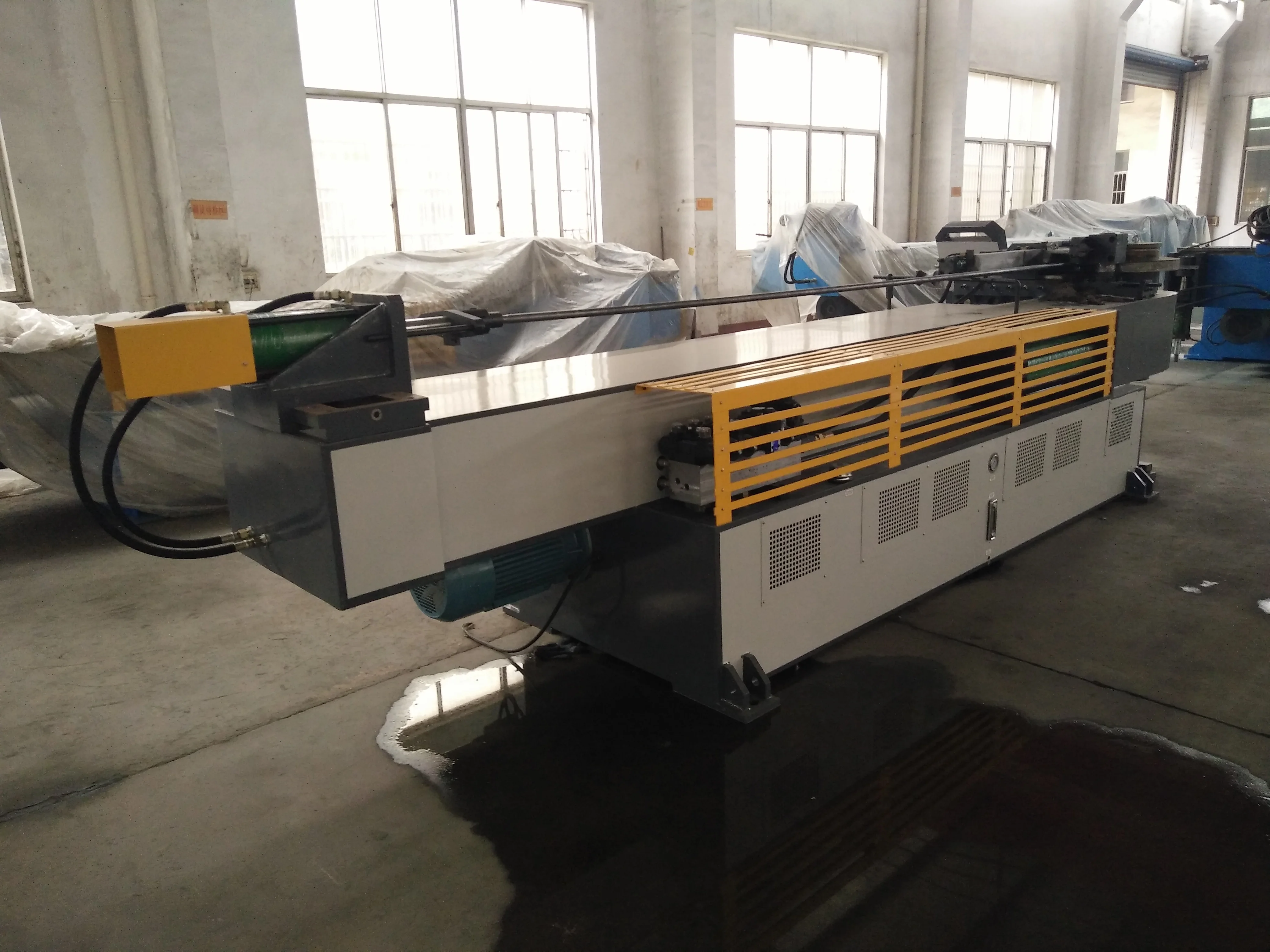

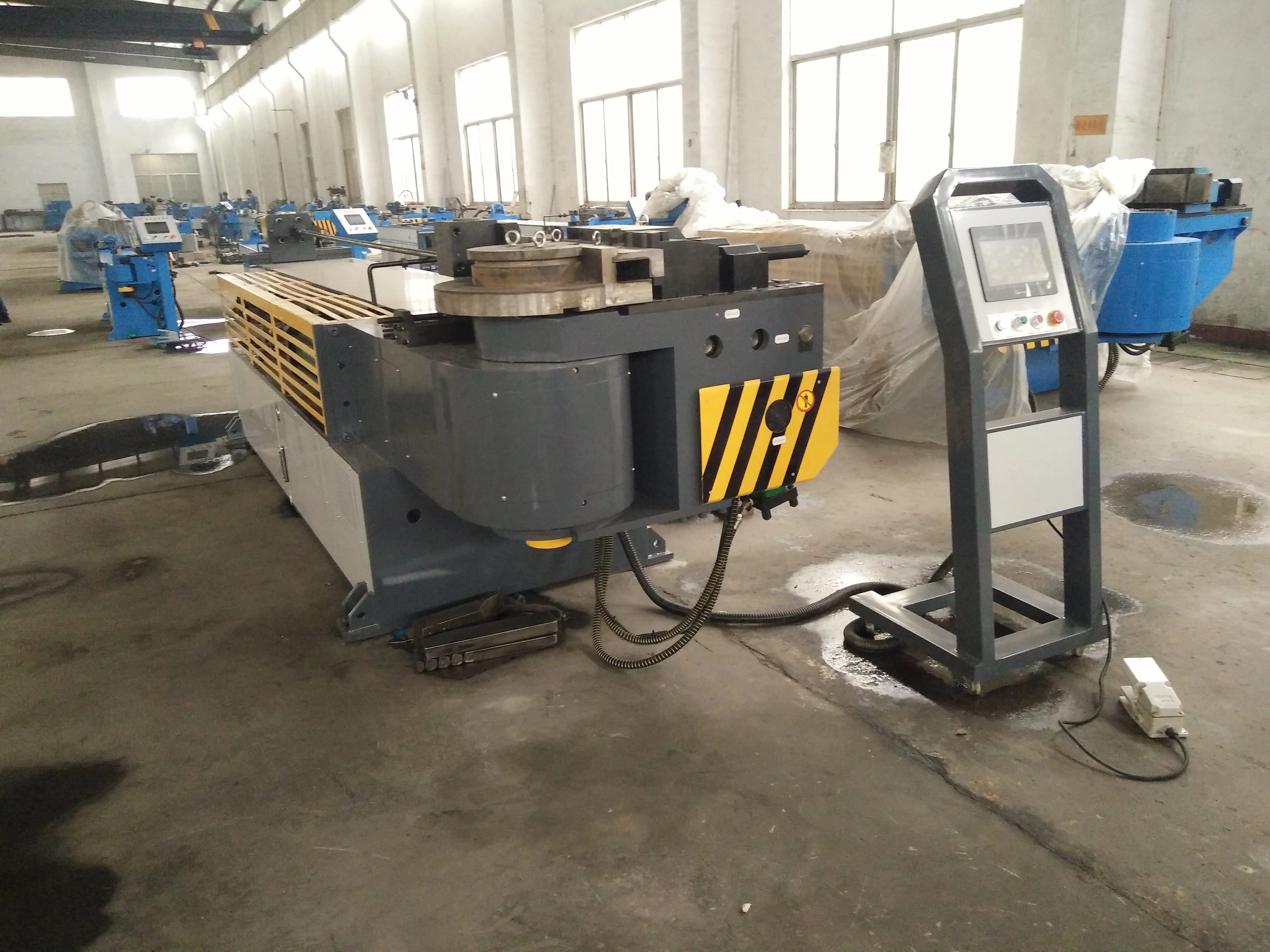

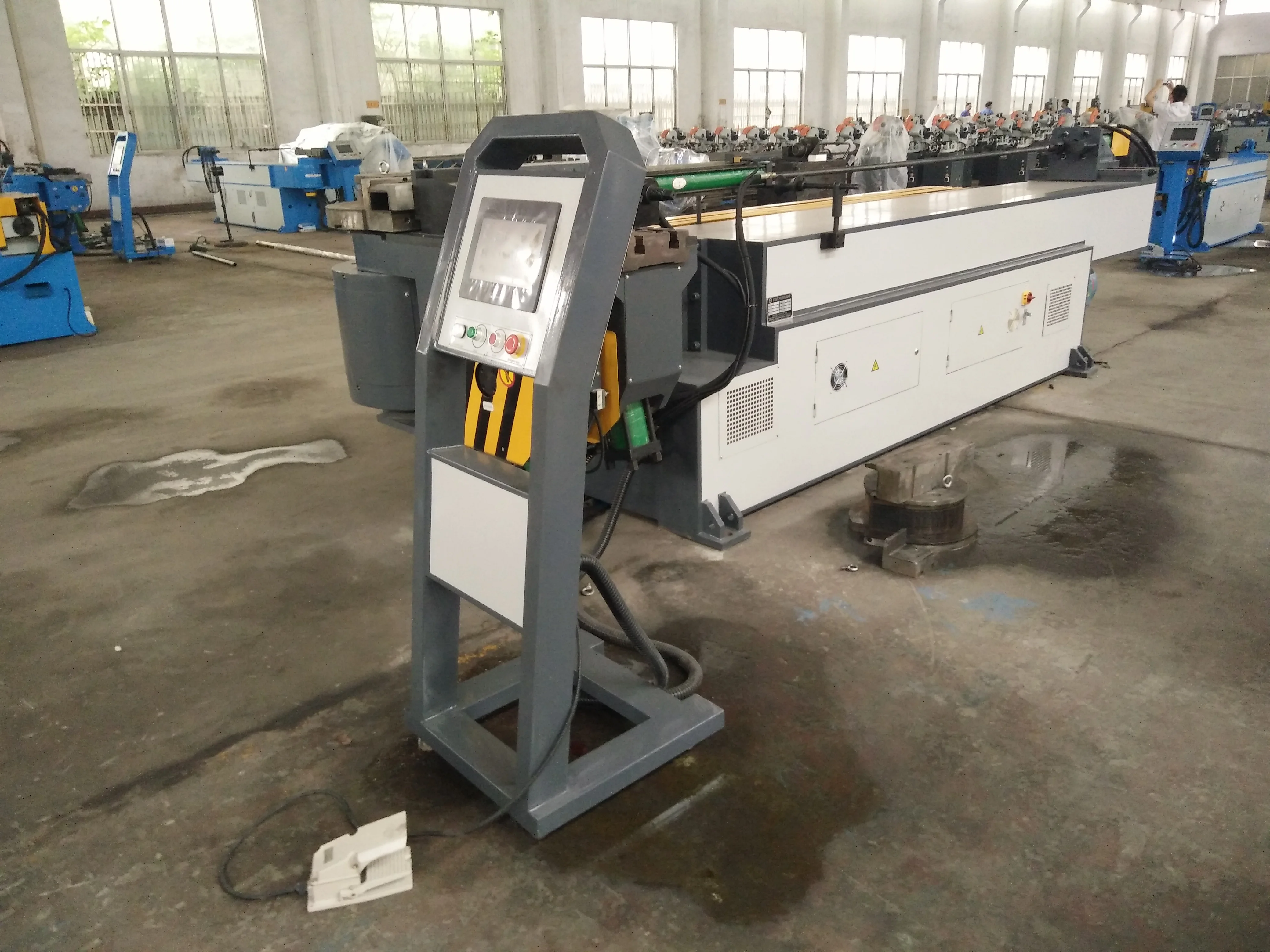

Full hydraulic drove, PLC controlled with touch screen or text pipe bending machine, equipped with devices of pipe clamping, guide mould, mandrel, crease-resistant, assist pushing, pipe bending and so on. Under hydraulic operation, this professional, high speed and economic European pipe bending machine can bend various dimension both normal and abnormal shape metal pipes and bending angles are controlled by high precision imported encoder which ensures high precision of this machine.
Main Technical Parameter
Name
Unit
Parameter
Max. Bending Capacity
mm
120*10
Bending Radius Range
mm
40-500
Max. Bending Angle
°
190°
Though Effective Distance
mm
3500
Bending Speed
°/sec
20
Bending Precision
°
±0.10
System Motor Power
KW
15
Oil Pump Delivery Volume
L
36
Max. Pressure
Mpa
16
L*W*H (Packaging Dimension)
mm
4800*1350*1300
Machine Weight
T
5.5
Configuration of Hydraulic and Electronic Control System
Name
Manufacturer
Hydraulic Motor
Germany Siemens(Beide)or Runmali
Hydraulic Pump
Wuxi Tuoli
Hydraulic Valve
Japan Yuken(Imported)
Oil way Board
Taiwan Shanghong (Imported)
Cylinder
Shanghai Qifan
Touch screen
Taiwan Weinview(Imported)
PLC
Japan Mitsubishi(Imported)
Servo Motor
Japan Mitsubishi(Imported)
Angle controller
Japan Nemicon(Imported)
Transformer
Wuxi Xinyu
Contactor
SCHNEIDER
Above configuration is common kind for NCB, which also can be equipped with brand appointed by customers.
