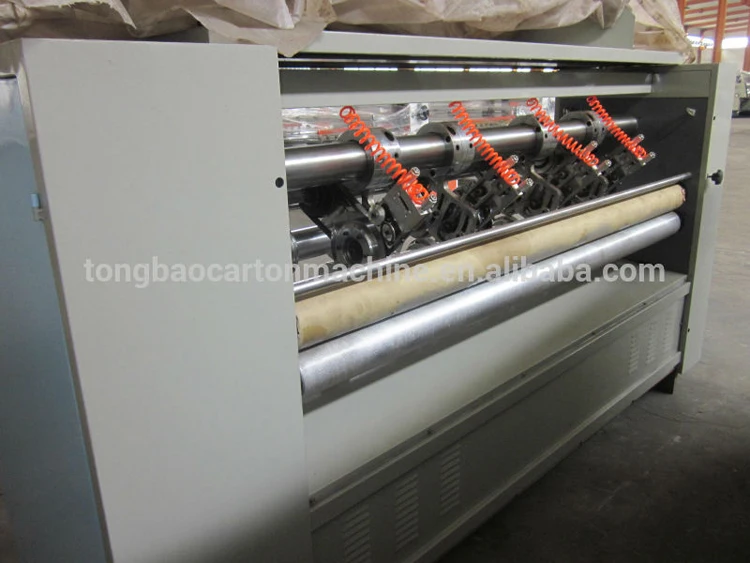

Thin blade slitter & scorer carton making machine

Product Overview

Description

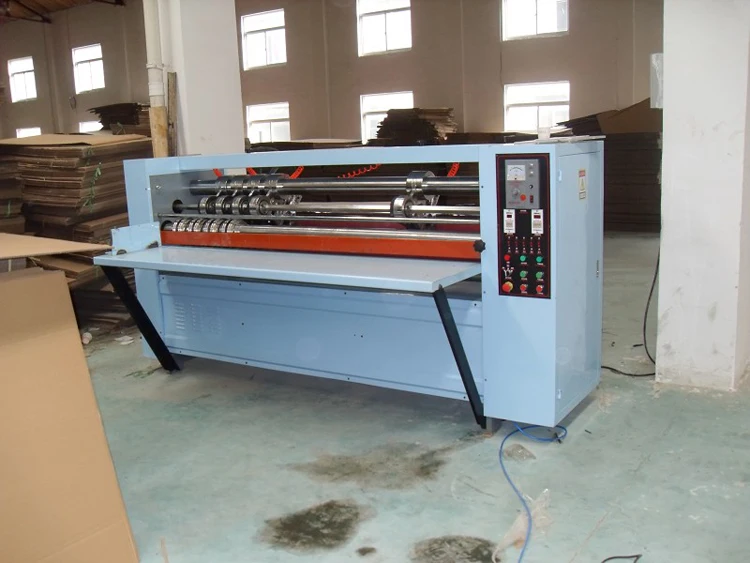

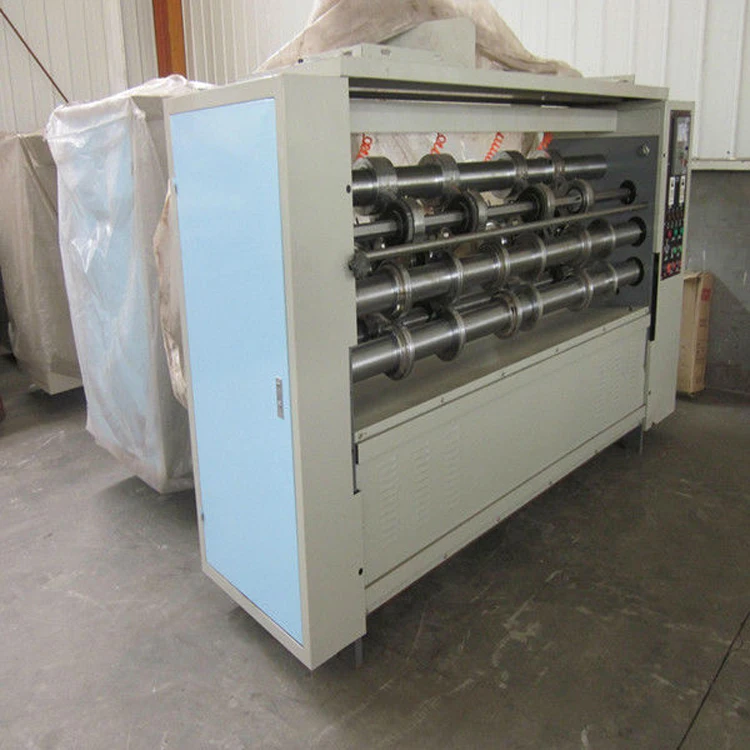

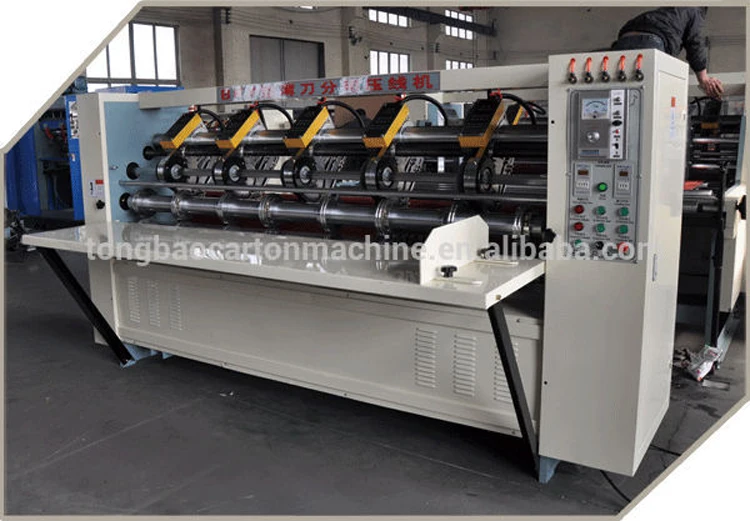

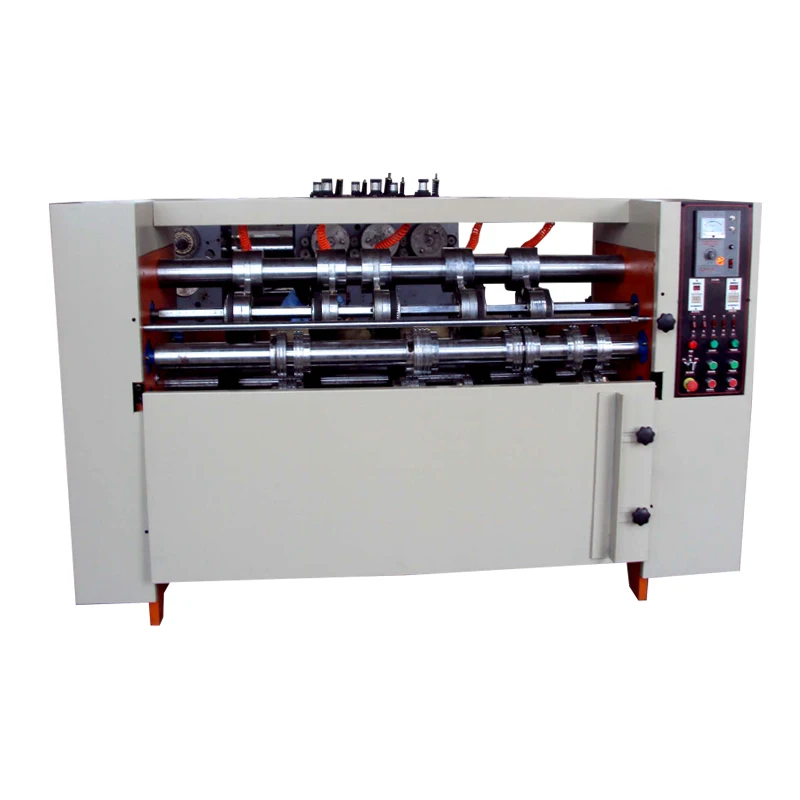

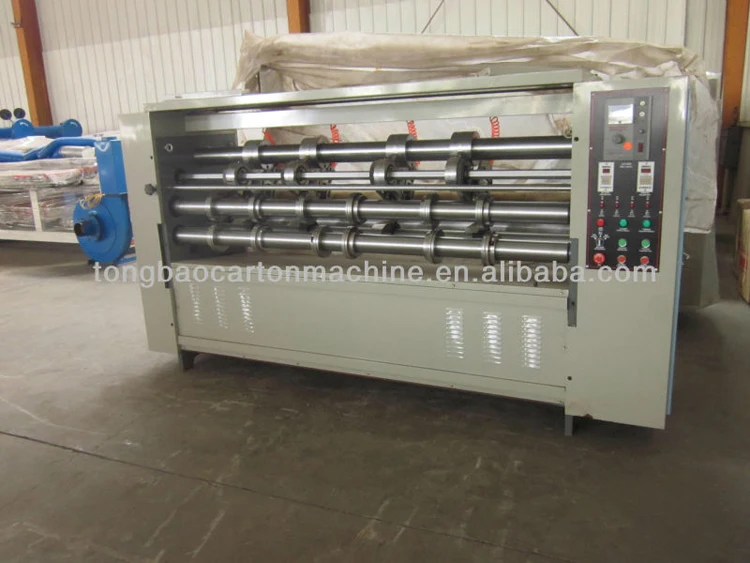

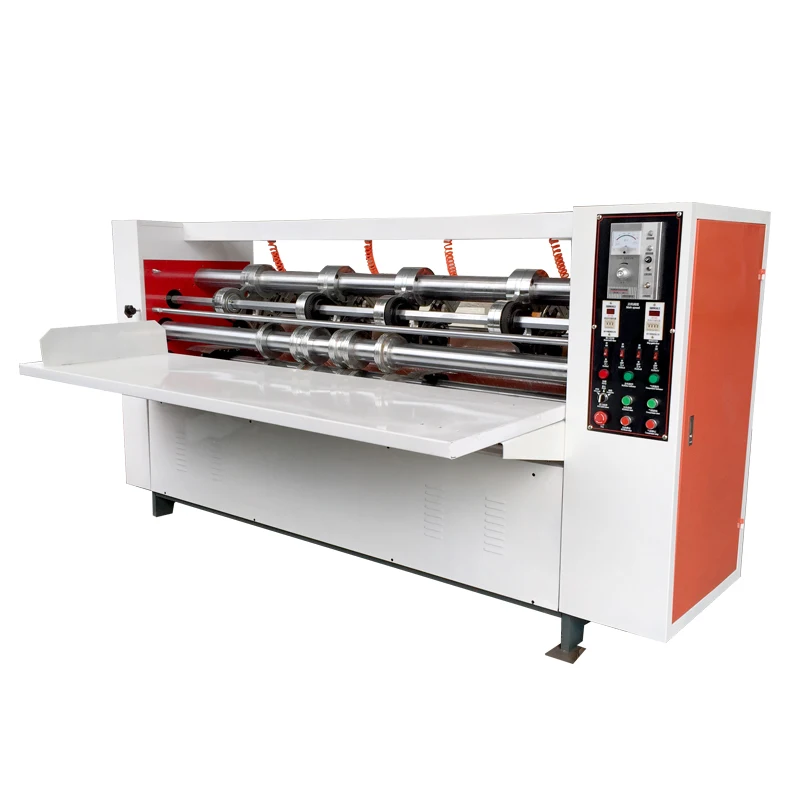

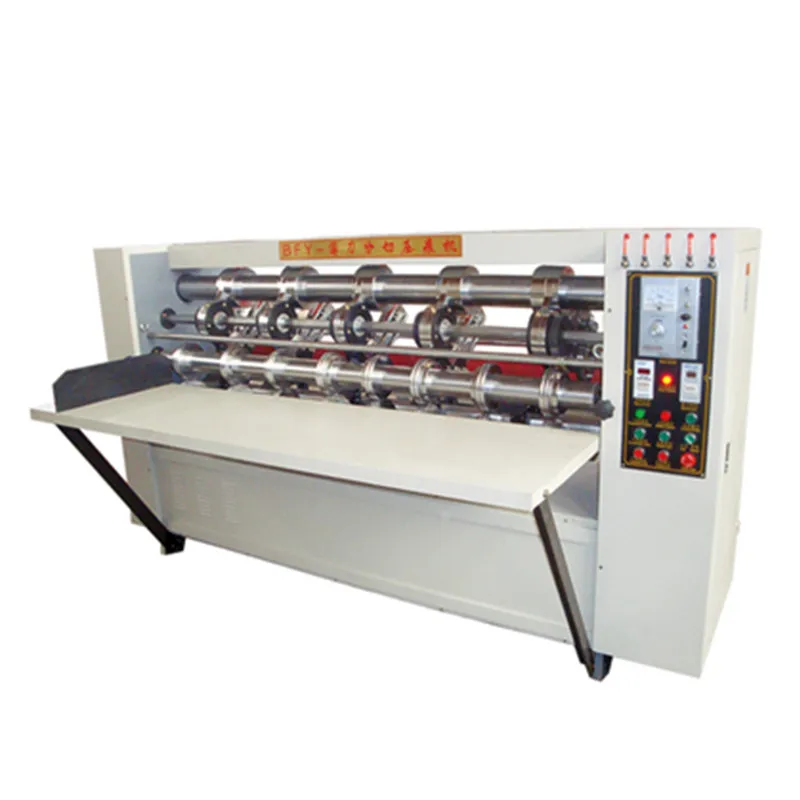

TB Thin blade slitter & scorer carton making machine

Function and characteristic

       1.The machine adopt pre-scoring, then slitting and scoring. Reduce paperboard’s breakage, suit for low quality carton sheet manufacture.

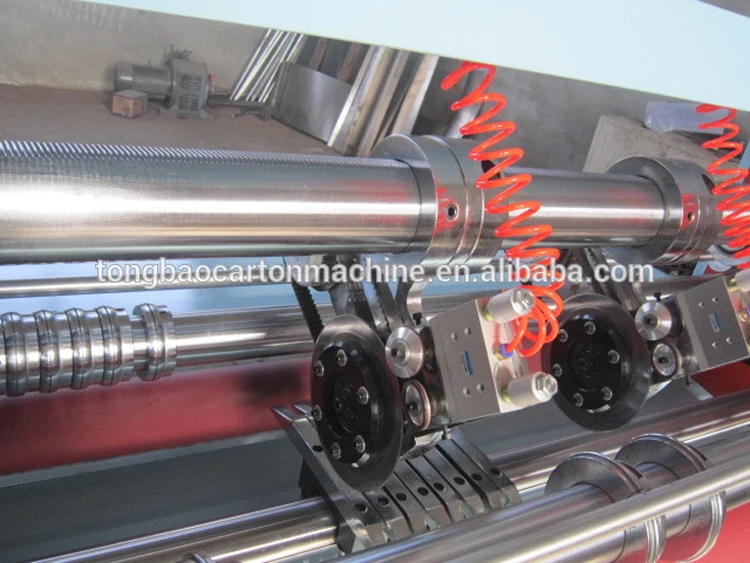

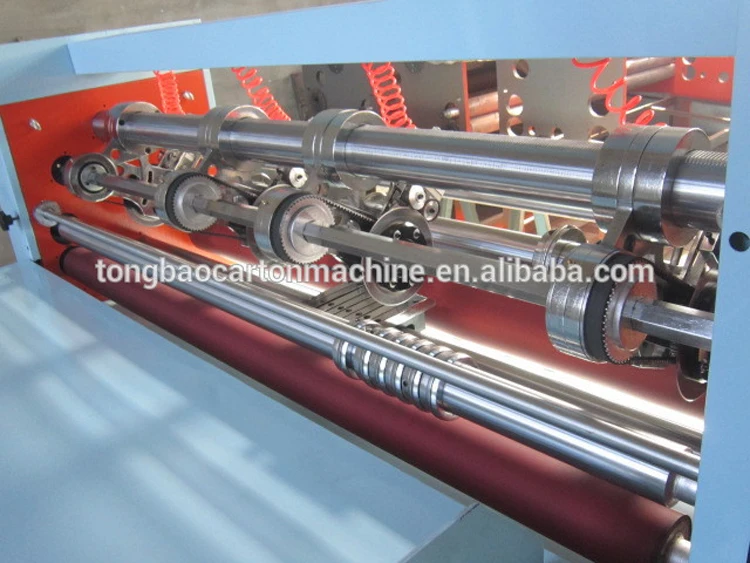

       2. Slitting Part: adopt high quality tungsten steel blade, sharp and long work-life, slice more tidy, non-pressing and non-burr.
       3. Scoring Part: adopt 5 points scoring, scoring distance in-phase adjust, blazonry and easy to bend the carton sheet.
       4. Grinding Part: adopt automatic and manual two kinds pneumatic grinding type, it could be grinding when working, improve work efficiency.
      5. Adopt China famous brand or imported electric element, dependable performa

Technical parameters:



Model		2000	2300	2500
Machine dimension(mm)		2600*750*1400	2900*750*1400	3100*750*1400
Power		3.0kw	4.0kw	4.0kw
Max slitting width	Inverse blade	1900mm	2200mm	2300mm
	Positive blade	1800mm	2100mm	2200mm
Min slitting width	Inverse blade	305mm	305mm	305mm
	Positive blade	140mm	140mm	140mm
Min slitting length		435mm	435mm	435mm
Min scoring width	Positive scoring	30mm	30mm	30mm
	Inverse scoring	80mm	80mm	80mm
Scoring height		0-10mm	0-10mm	0-10mm
Blade(mm)		φ200*122*1.2	φ200*122*1.2	φ200*122*1.2
Blade & Scoring Composed Type		Three blade Four scoring/ Four blade Six Scoring/ Five Blades Eight scoring
