Машина для резки силиконовых вафель
- Category: Laser Scribing >>>
- Supplier: Beijing Boao Laser Tech Co. Ltd.
Share on (497594417):
Product Overview
Description
Machines Introduction
Worktable Type : | Servo Motor Type |
Actual Cutting Size: | 300x300mm |
Cutting Thickness: | <0.5-1.5mm |
Materials : | Silicon Wafer,Glass |
Laser Power : | 20W 30W 50W 100W |
Delivery Time : | 20 Working Days |
Warranty &Service : | 2 Years |
Main Parts
Laser Source
Original Raycus Fiber laser Source
Laser Cutting Head
BOAO laser China
Laser Cutting Software
CNC2000/3000
Worktable
300*300mm Travel, Software Control by PC, Precision +-0.015mm
Vaccum Absorption Function
Vaccum Absorption Function with the Worktable
Servo Motor System
Servo motor Control Worktable
Technical Parameters
Model NO: | BFC20/30/50/100 | ||||||
Laser Type | RAYCUS CHINA | ||||||
Laser Wavelength | 1060nm | ||||||
Laser Maximum Power | 20W/30W/50W/100W | ||||||
Max. Cutting thickness | 1.2mm-1.5MM | ||||||
Suitable Materials | Silicon Water , Glass , Solar Panel | ||||||
Cutting Size | 300*300mm | ||||||
Laser repetition frequency | 200Hz~50kHz | ||||||
Scriber precision | ≤±10μm | ||||||
Max scriber speed | 150mm/s / 180mm/s | ||||||
Min line width | ≤0.15mm | ||||||
Scribing accuracy | ±10μm | ||||||
Work platform | The adsorption of vacuum pump on two dimension programmed moving platform. | ||||||
Cooling System | Air Cooling | ||||||
Continuous working time | 24 Hours | ||||||
Environment temperature | 0-35°C | ||||||
Power requirements | 220V(220V)/50Hz/1kvA | ||||||

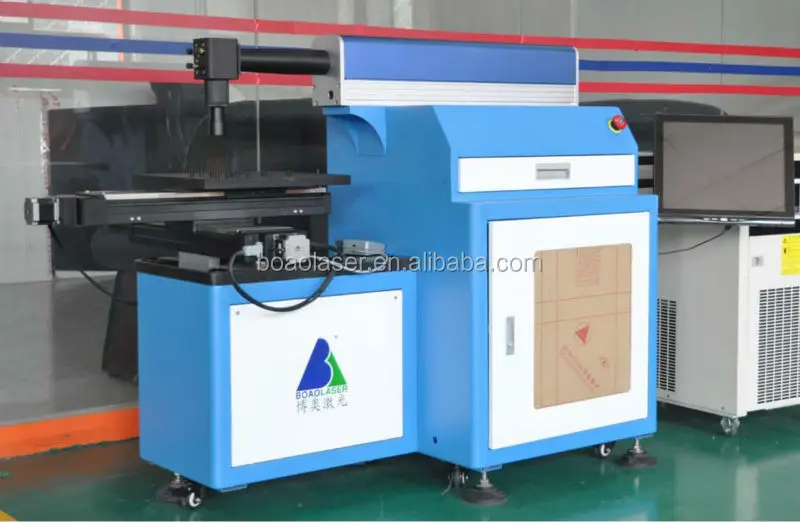

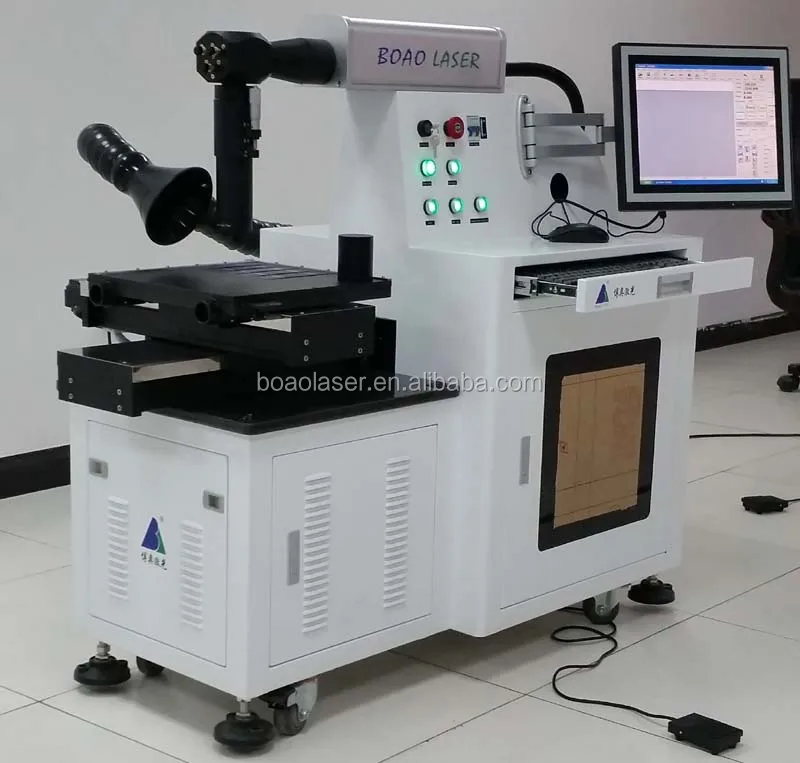

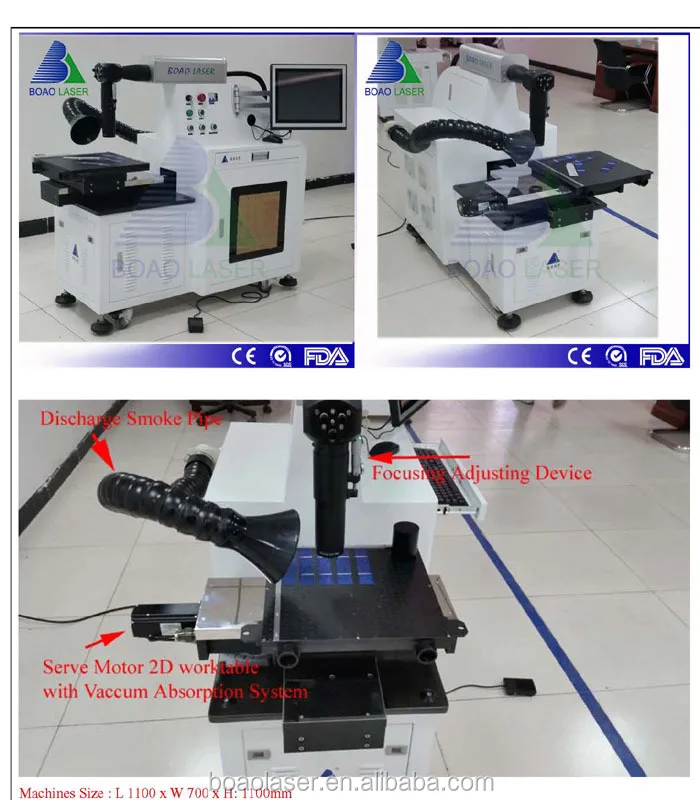

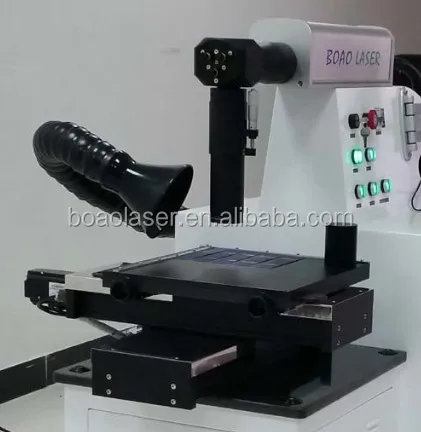

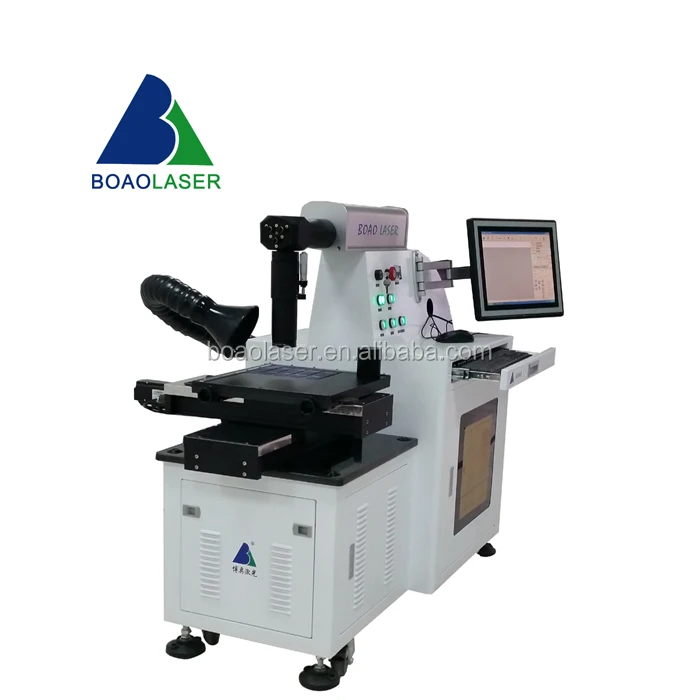

Machines And Cutting Photo
Customers Photo
Germany
Slovenia
Indonesia
Romania
Vietnam
Kzakstan
Italy
Russia
Korea
Turkey
Pakistan
Mexico
BOAO laser Company
BOAO laser Group Was founded in 2006 and is located in Beijng and Zhengzhou of China .It is a high-tech Enterprise which is specialized in R&D, Manufacturing and Marketing Various Laser Machinery .It was approved by CAS(Chinese Academy of Sciences) as the high–tech enterprise which is the largest and most comprehensive science and high-tech research organization in China.
Products:
BOAO laser mainly Research & Production of large laser cutting machines, Medium&Small laser welding machines and Laser Marking machines in China. Invested $ 30 million build BOAO Industry Park and occupation of land 64000M2 , Special for the large Fiber laser cutting machines Research and Production .The main Laser Machines Production :
Fiber laser Cutting Machines Series from 300W--8000W,Cutting size from 500x500mm to 8000x2000mm .Laser welding Machines Series ,Laser Marking Machines Series .
Employee:
The company has 130 employees, including doctoral students, master's degree graduate 10, college or higher accounted for 80% of the number of companies.
Quality Control :
Boao laser based on the ISO9001 quality system standards and European standards for production,All aspect of Strict Quality Control in the Production Process to ensure Quality and Reliability of Laser Machines .
Service :
BOAO laser established relatively Completed Sales and After Sales Service Network , International Trade Sales Management Center, Build a number of effective International Agents and Distributors .Porvide 24 Hours online Service And 48 Hours Resolve Customer Problems Strategy
Products:
BOAO laser mainly Research & Production of large laser cutting machines, Medium&Small laser welding machines and Laser Marking machines in China. Invested $ 30 million build BOAO Industry Park and occupation of land 64000M2 , Special for the large Fiber laser cutting machines Research and Production .The main Laser Machines Production :
Fiber laser Cutting Machines Series from 300W--8000W,Cutting size from 500x500mm to 8000x2000mm .Laser welding Machines Series ,Laser Marking Machines Series .
Employee:
The company has 130 employees, including doctoral students, master's degree graduate 10, college or higher accounted for 80% of the number of companies.
Quality Control :
Boao laser based on the ISO9001 quality system standards and European standards for production,All aspect of Strict Quality Control in the Production Process to ensure Quality and Reliability of Laser Machines .
Service :
BOAO laser established relatively Completed Sales and After Sales Service Network , International Trade Sales Management Center, Build a number of effective International Agents and Distributors .Porvide 24 Hours online Service And 48 Hours Resolve Customer Problems Strategy
