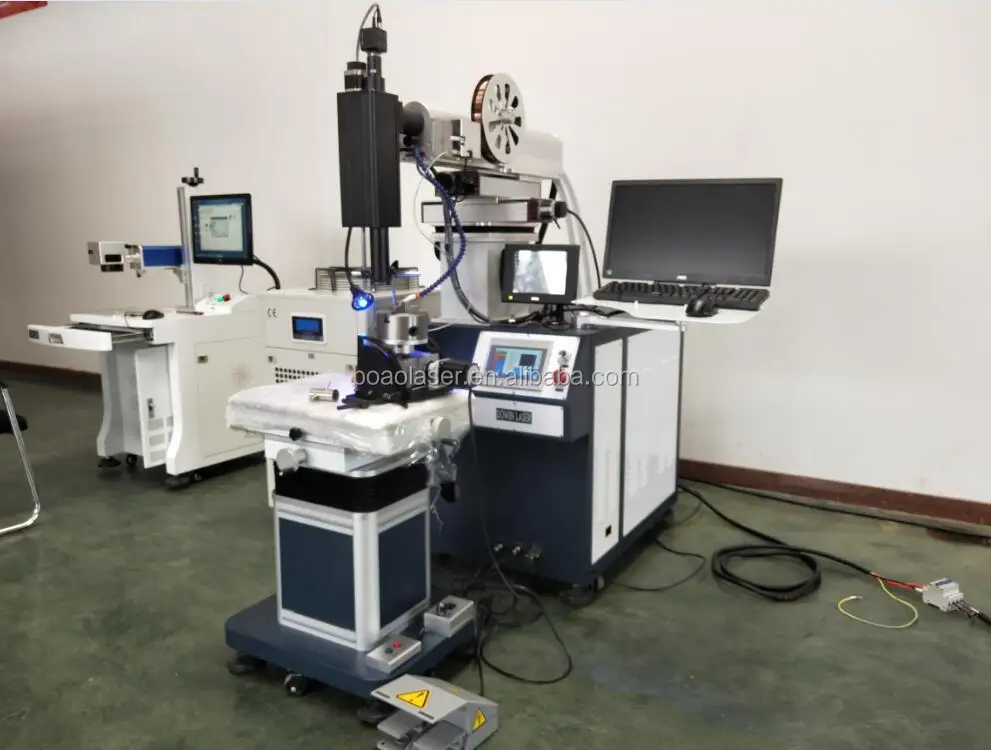

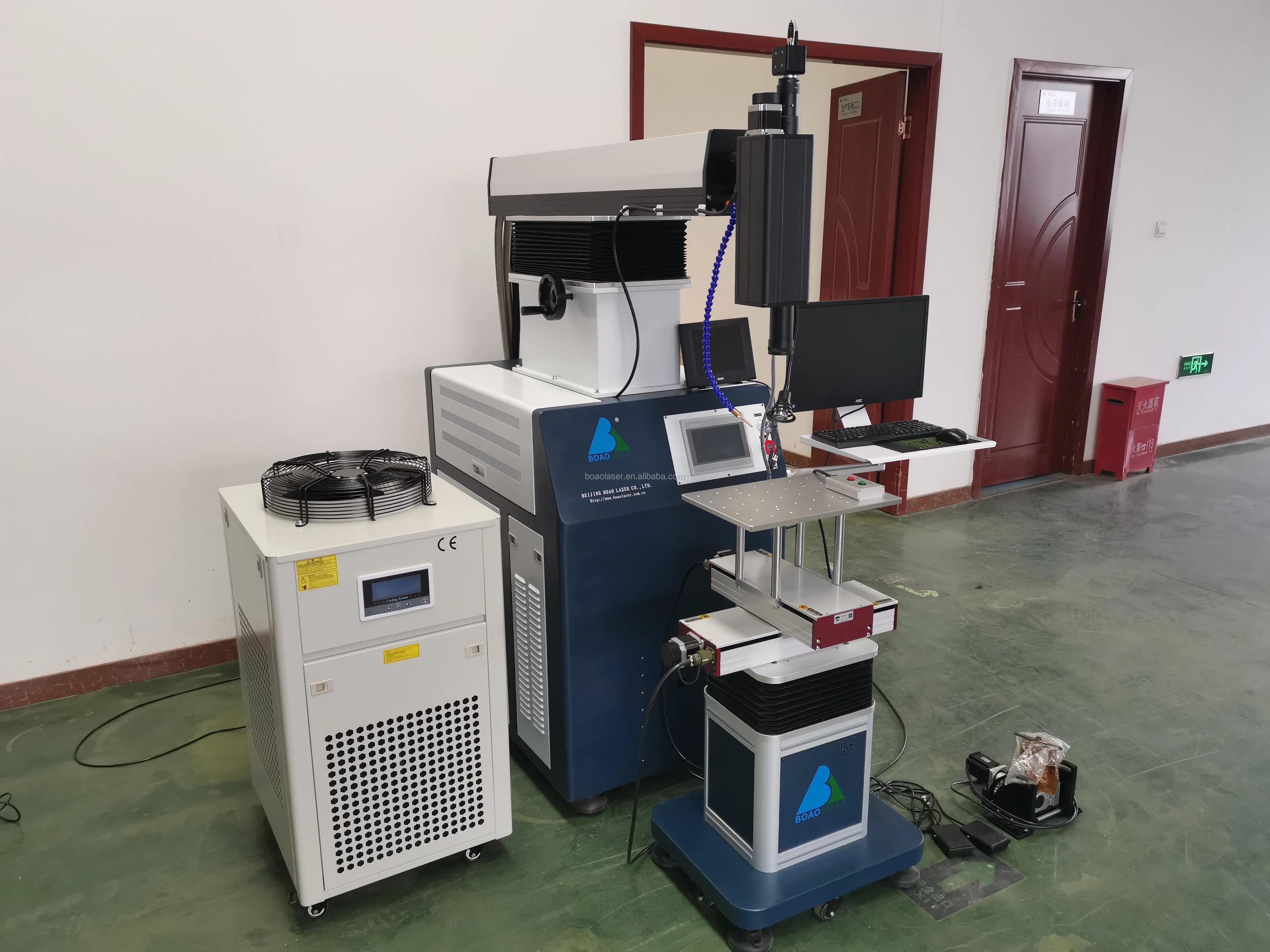

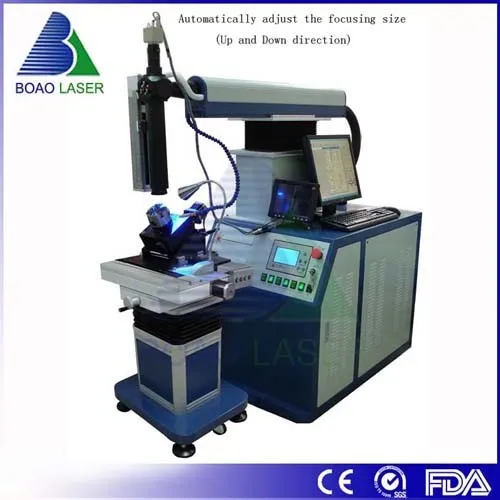

BOAO 4 axis automatic yag laser welding machines 200w 300w 400w jewelry fiber laser welders for metal mould repair
- Category: >>>
- Supplier: Beijing Boao Laser Tech Co. Ltd.
Share on (498441545):
Product Overview
Description
Machines Introduction
Model No: | BMM SERIES |
Application | 4 AXIS automatic welding |
Laser Source : | ND:YAG LASER |
AUTO Focus | 120mm |
Laser Power : | 400W |
Delivery Time : | 2 WEEKS |
Warranty &Service : | 1 YEAR |
Gross weight : | 400KGS |
Welding Spot : | 0.2-3.0MM |
Cooling : | Water Cooling System |
Main Parts
Laser Source
German Spare parts
ND:YAG Rod
Imported From Germany
Xe-Lamp
German Brands
Laser Power Supply
Main Parts Imported From Germany
CCD CAMERA
30 X CCD CAMERA
Chiller
Water Cooling System
Auto Laser Welding Head
Auto Focusing :120mm
Rotating Axis
Dia 90mm ,Max load: 15kgs
Industril PC
CNC2000 Control Software
Technical Parameters
Model | BMM 400 | ||||||
4 AXIS | X=300,Y=200,Z=120MM ,ROTATING AXIS 360 degree. | ||||||
Worktable Load | 100kgs | ||||||
Machines Gross Weight | 380kgs | ||||||
Power supply | 380V/ THREE PHASE/50 OR 60 HZ . | ||||||
Laser type | ND:YAG LASER | ||||||
Adjusting range of light spot | 0.2-3.0MM | ||||||
Laser wavelength | 1064nm | ||||||
Pulse width | ≤20ms | ||||||
Maximum laser power | 430W | ||||||
Pulse frequency | ≤100Hz | ||||||
Laser output focus length | 150mm | ||||||
Laser cooling | Water cooling | ||||||
Observing system | Red light, CCD monitor system | ||||||
Protection gas | One Lline . Argon Gas | ||||||
Worktable Precision | ±0.02mm | ||||||

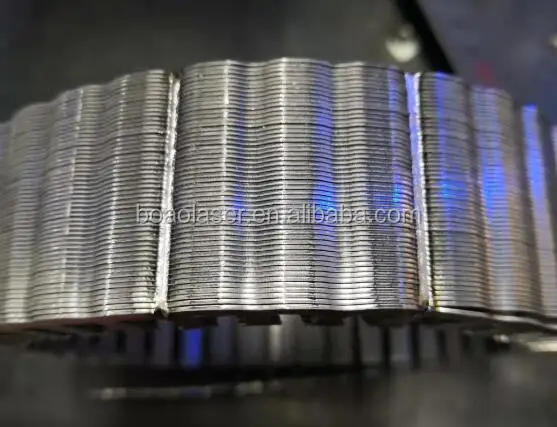

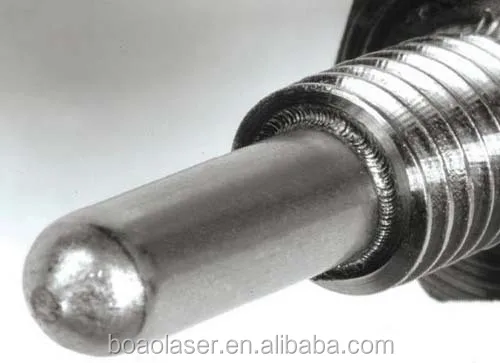

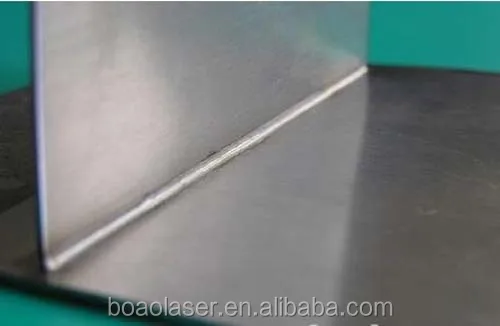

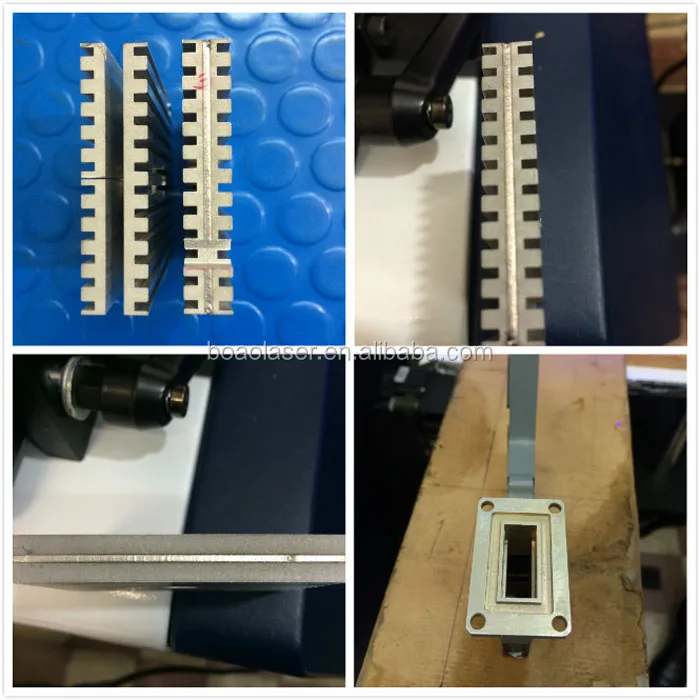

Performance

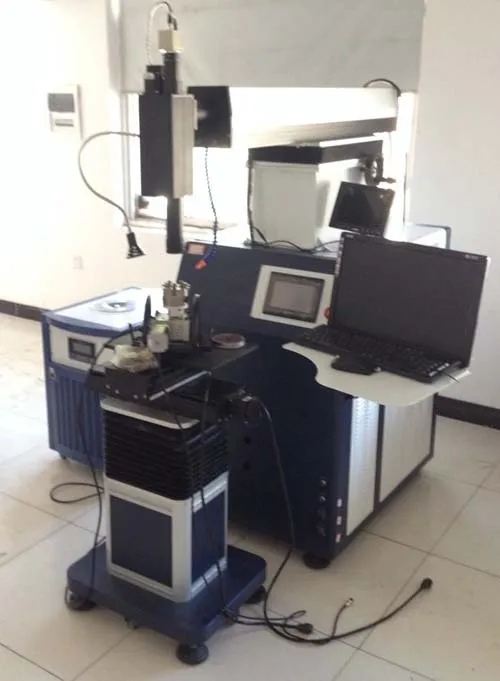

Customers Photo
Germany
Romania
Kzakstan
Korea
Slovenia
Russia
Vietnam
Italy
Indonesia
Turkey
Pakistan
Mexico
BOAO laser Company
BOAO laser Group Was founded in 2006 and is located in Beijng and Zhengzhou of China .It is a high-tech Enterprise which is specialized in R&D, Manufacturing and Marketing Various Laser Machinery .It was approved by CAS(Chinese Academy of Sciences) as the high–tech enterprise which is the largest and most comprehensive science and high-tech research organization in China.
Products:
BOAO laser mainly Research & Production of large laser cutting machines, Medium&Small laser welding machines and Laser Marking machines in China. Invested $ 30 million build BOAO Industry Park and occupation of land 64000M2 , Special for the large Fiber laser cutting machines Research and Production .The main Laser Machines Production :
Fiber laser Cutting Machines Series from 300W--8000W,Cutting size from 500x500mm to 8000x2000mm .Laser welding Machines Series ,Laser Marking Machines Series .
Employee:
The company has 130 employees, including doctoral students, master's degree graduate 10, college or higher accounted for 80% of the number of companies.
Quality Control :
Boao laser based on the ISO9001 quality system standards and European standards for production,All aspect of Strict Quality Control in the Production Process to ensure Quality and Reliability of Laser Machines .
Service :
BOAO laser established relatively Completed Sales and After Sales Service Network , International Trade Sales Management Center, Build a number of effective International Agents and Distributors .Porvide 24 Hours online Service And 48 Hours Resolve Customer Problems Strategy
Products:
BOAO laser mainly Research & Production of large laser cutting machines, Medium&Small laser welding machines and Laser Marking machines in China. Invested $ 30 million build BOAO Industry Park and occupation of land 64000M2 , Special for the large Fiber laser cutting machines Research and Production .The main Laser Machines Production :
Fiber laser Cutting Machines Series from 300W--8000W,Cutting size from 500x500mm to 8000x2000mm .Laser welding Machines Series ,Laser Marking Machines Series .
Employee:
The company has 130 employees, including doctoral students, master's degree graduate 10, college or higher accounted for 80% of the number of companies.
Quality Control :
Boao laser based on the ISO9001 quality system standards and European standards for production,All aspect of Strict Quality Control in the Production Process to ensure Quality and Reliability of Laser Machines .
Service :
BOAO laser established relatively Completed Sales and After Sales Service Network , International Trade Sales Management Center, Build a number of effective International Agents and Distributors .Porvide 24 Hours online Service And 48 Hours Resolve Customer Problems Strategy
Service
Website : | www.boaolaser.com |
General Manager: | Mr. Andy Yue |
Email: | sales@boaolaser.com andy@boaolaser.com |
Tel: | 0086-13910058345 0086-13911547331 0086-10-82895922 |
Wechat/Whatsapp: | 0086-13910058345 |
