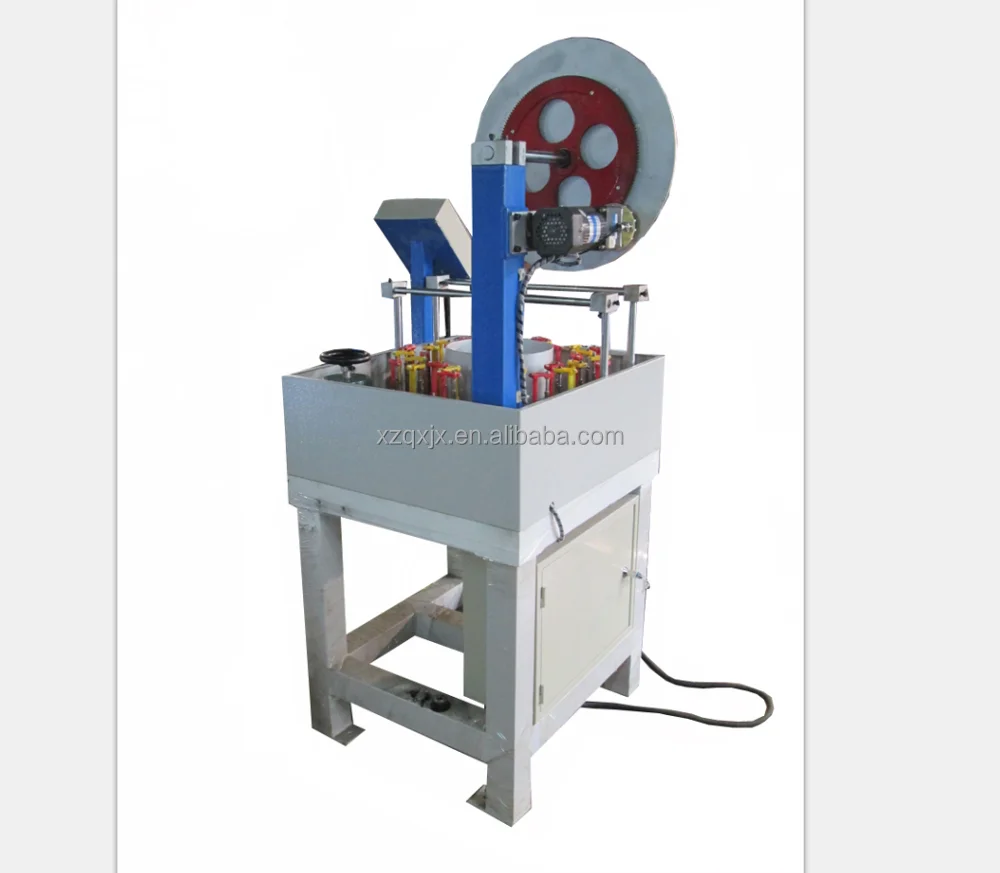

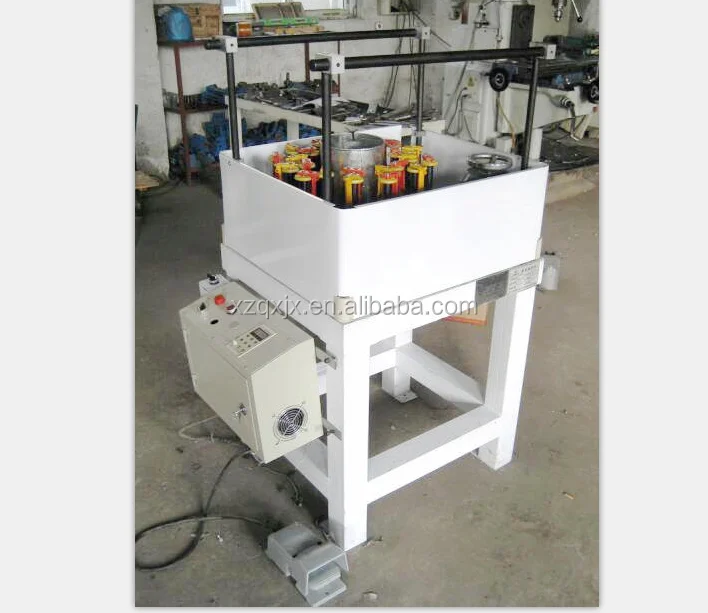

QX90 24 1 wiring harness braiding machine
QX90-24-1 wiring harness braiding machine
QX90-24-1 wiring harness braiding machine
QX90-24-1 wiring harness braiding machine
QX90-24-1 wiring harness braiding machine

QX90 24 1 wiring harness braiding machine

Share on (498669214):


Price:

Quantity:


Product Overview

Description

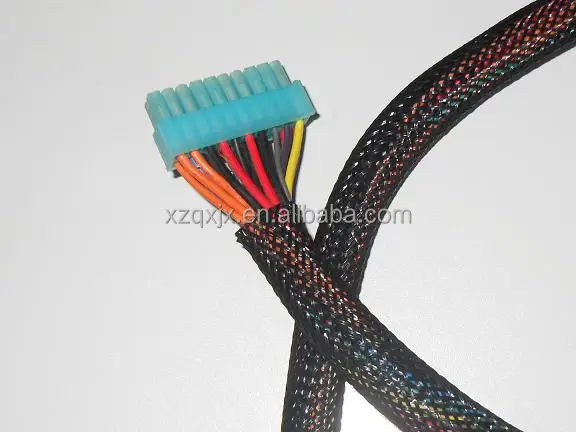

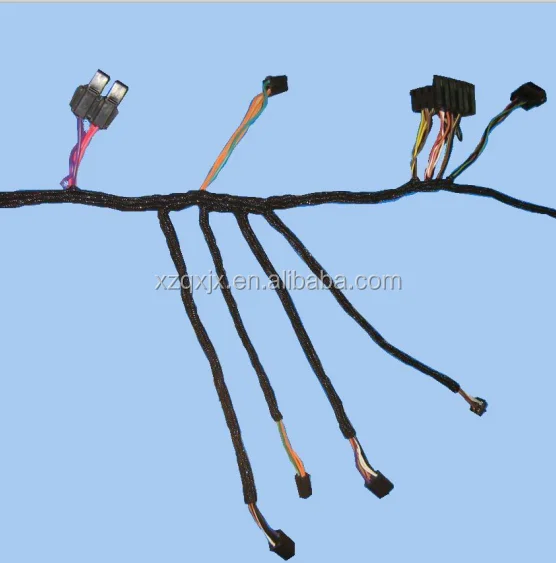

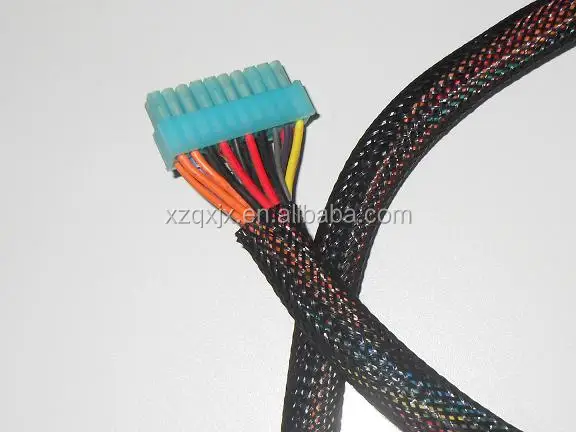

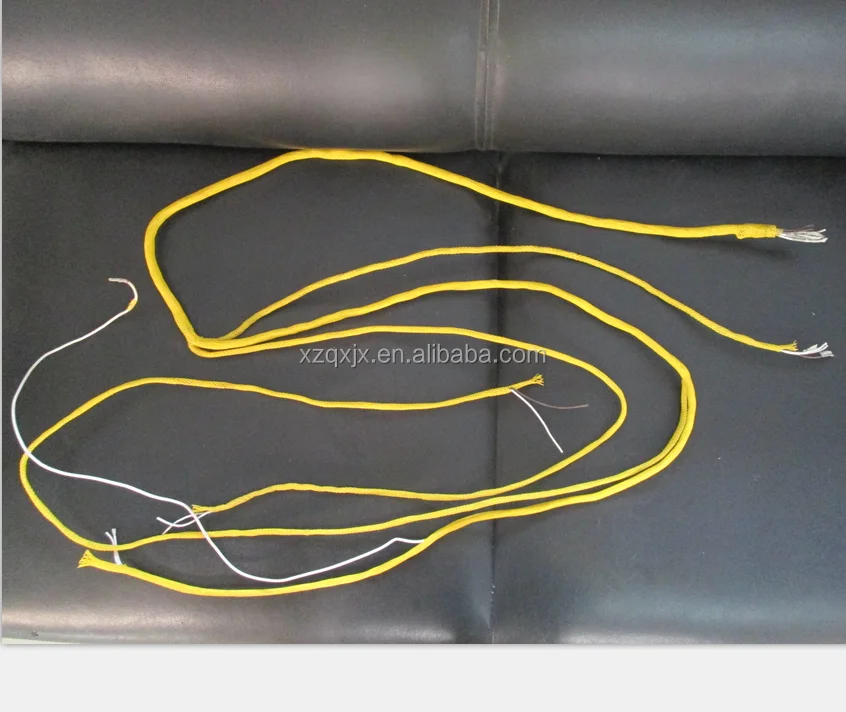

It is used to braid automobile assembly wiring harness, engineering wiring harness, aircraft wiring harness, industrial wiring harness etc. The machines adopt high, medium and low setting to meet different needs and budgets for different customers. With frequency speed control, the machines have good stability and simple operation. Customization is supported.












































































Model



QX90-24-1



Horn gear size



90mm



Head number



1



Spindle number



24



Bobbin number



48



Bobbin size



Φ47*141mm



Motor Power



380V/220V; 0.75KW*1



Max. RPM



330RPM



Machine size



750*750*1750mm



Braiding range



Max Ø25mm (for reference)



Speed adjuster



Included



Yarn breaking stop



Included



Take up device



Included



PLC control PLC



Included



Packing



Plywood case



Delivery time



25 days
