Tower Cranes QTZ80 QTZ125

Product Overview

Description

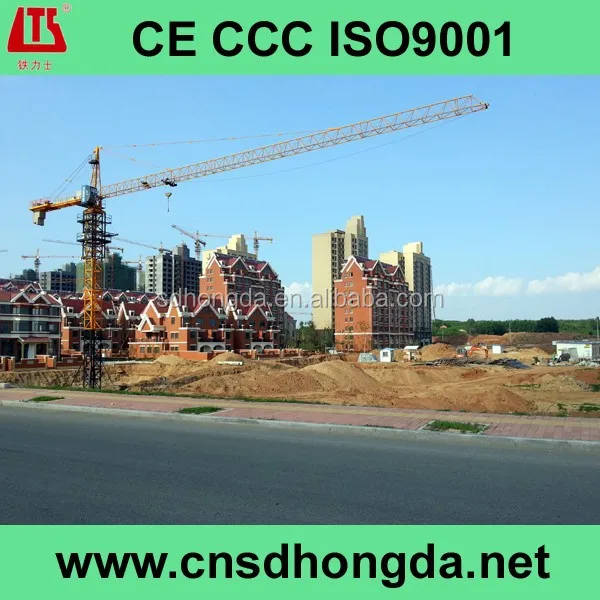

QTZ80-QTZ125 Tower Cranee

Tie Li Shi (Iron Giant) Brand, Famous Trademark of China

CE/CCC/ISO9001 Certified



I. Main Features

This series of tower cranes, ranging from QTZ31.5 to QT500 has a horizontal jib frame, a jib-trolley radius-changing mechanism and a hydraulic self-raising mechanism. It is original in design, reliable in operation and satisfactory in shape. Equipped with all necessary safety devices, these cranes show a good speed-control capacity, satisfactory operating stability and high work efficiency. They can be widely used for the construction of high-rise hotels, residential buildings, high-rise industrial buildings, large-span factory buildings and tower-like buildings like tall chimneys.



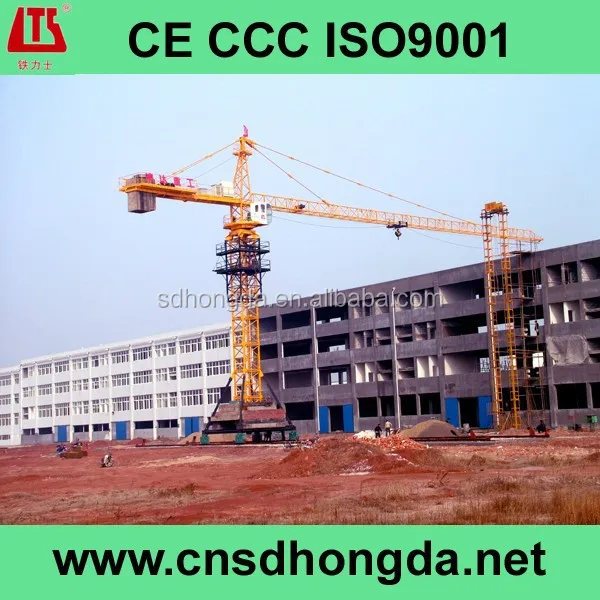

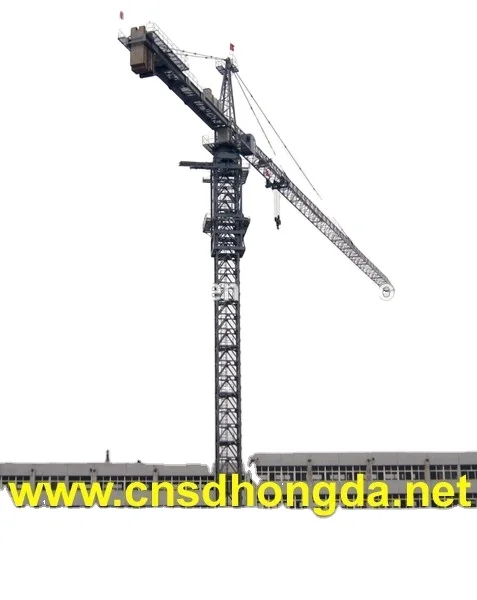

II. Main Components
1. Hoisting System
2. Climbing System
3. Trolley System
4. Slewing System
5. Electrical System
6. Crane Jib
7. Counter Jib
8. Mast Sections
9. Tower Head
10. Control Cabin

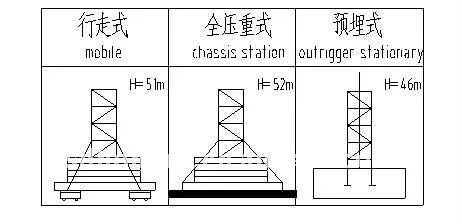

III. Base Forms

1. # Beam Without Ballast;

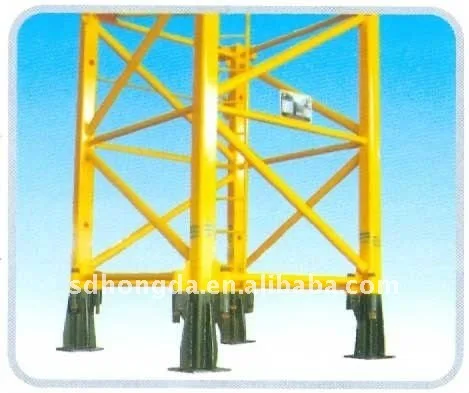

2. Pre-embedded Four Outriggers Type;

3. Cross Beam Inclined Stay Bar With Ballast;

4. Cross Beam Inclined Stay Bar Without Ballast;

5. Traveling Type (Mobile) Tower cranes;

6. Inside Climbing.





IV. Main Specifications

Model Parameters	QTZ125A (TC6015) / (TC5518)	SF120L Luffing Tower Crane	QTZ100A(TC5515)	QTZ80A (TC6010) / (TC5613)
Max Radius (m)	60/55	40	55	60/56
Free Height (m)	46	50	46	46
Max Load (T)	8	3	8	8
Tip Load (T)	1.5/1.8		1.5	1.0/1.3
Max Height (m)	201	130	201	201
Wall-attachment Frame (sets)	6	3	6	8
Main Material Specs (mm)	Square Steel Tube	Square Steel Tube	Square Steel Tube	Square Steel Tube
Mast Section Dimension (m)	1.835*1.835*2.5	1.665*1.665*2.5	1.835*1.835*2.5	1.835*1.835*2.5
Hoisting Speed (m/min)	100/50/8.5	0-80	100/50/8.5	80/40/10
Min Steady Falling Speed (m/min)	4.25	3	4.25	5
Slewing Speed (r/min)	0-0.65	0.77	0-0.65	0-0.6
Radius-changing Speed (m/min)	0-60	50/11	0-60	0-60
Jacking-up Speed (m/min)	0.5	0.6	0.5	0.69
Total Motor Power (kw)	67	64	67	56.4
Independent Structure Weight (kg)	54094	45100	53694	44900
Counter Weight (T)	19.08	12.0	17.64	15.8
