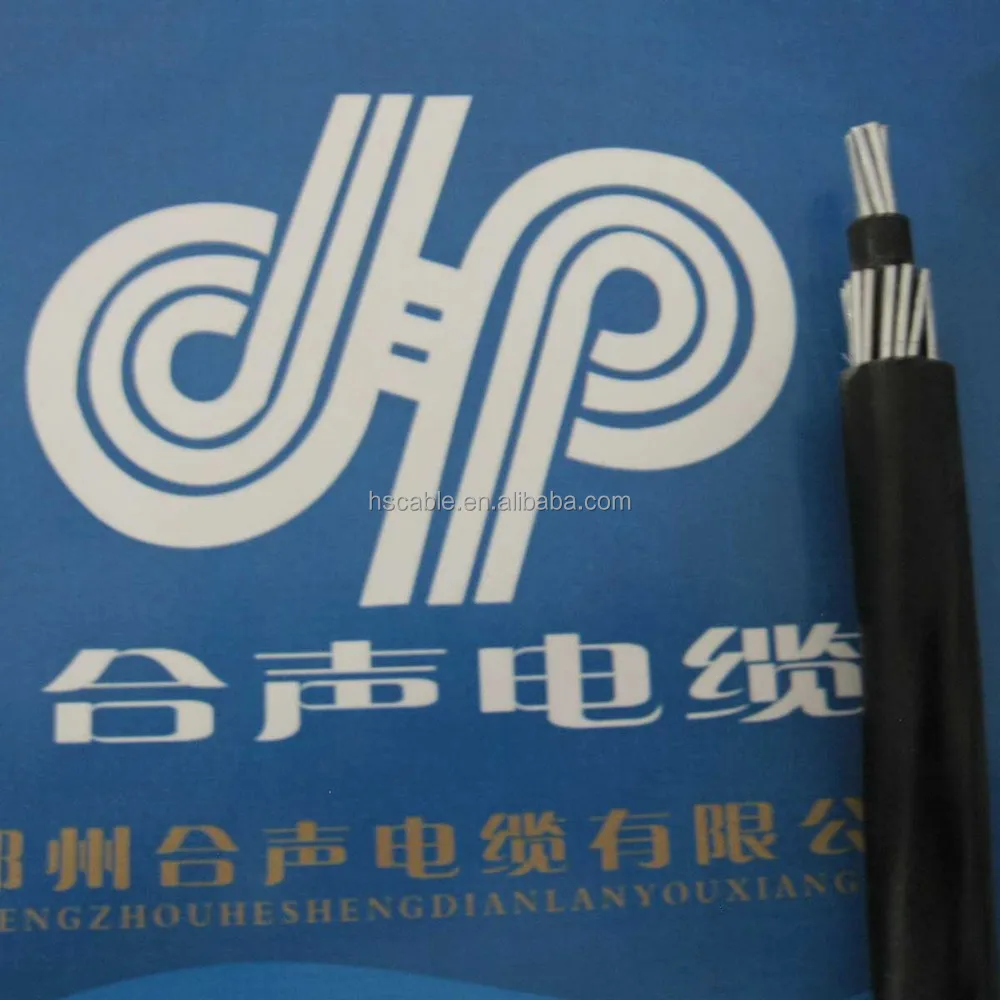

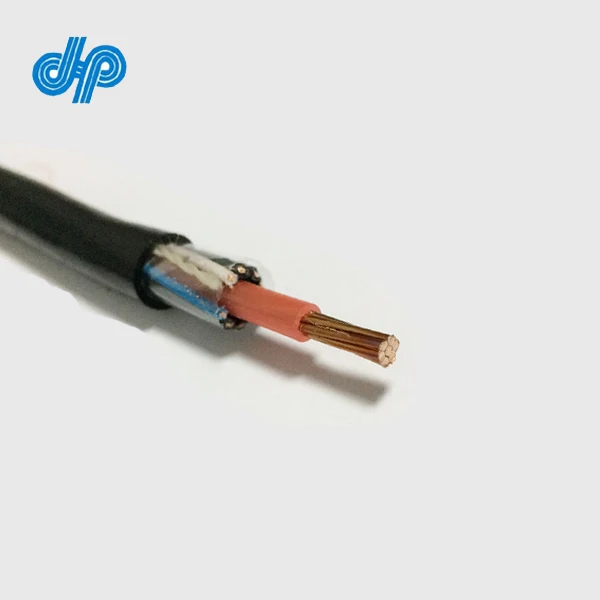

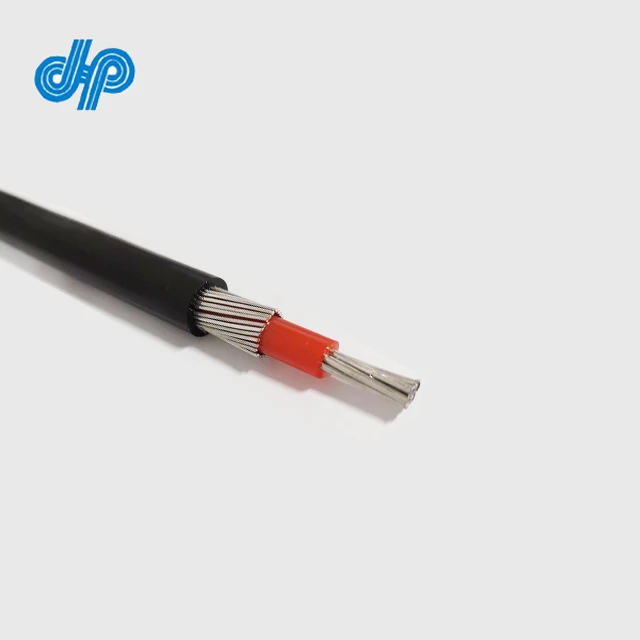

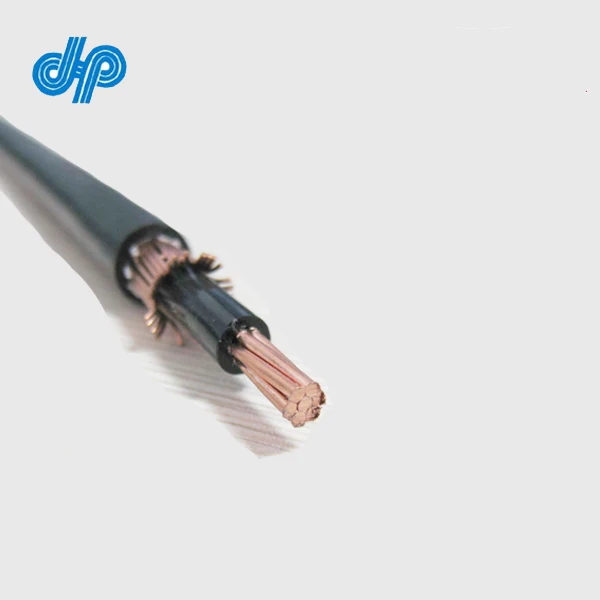

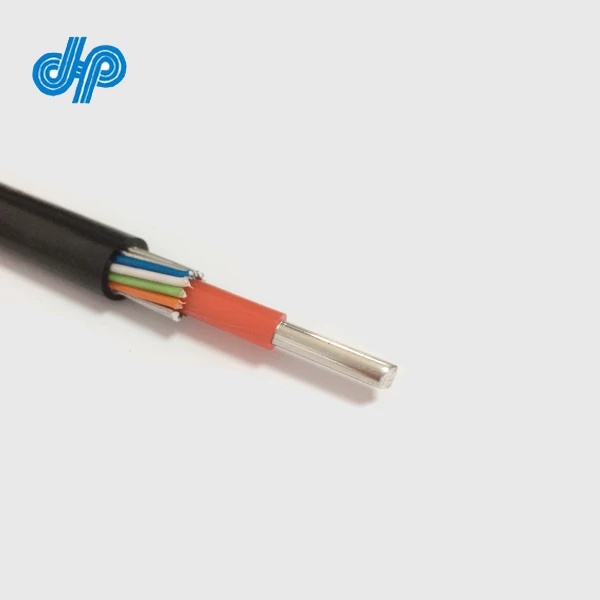

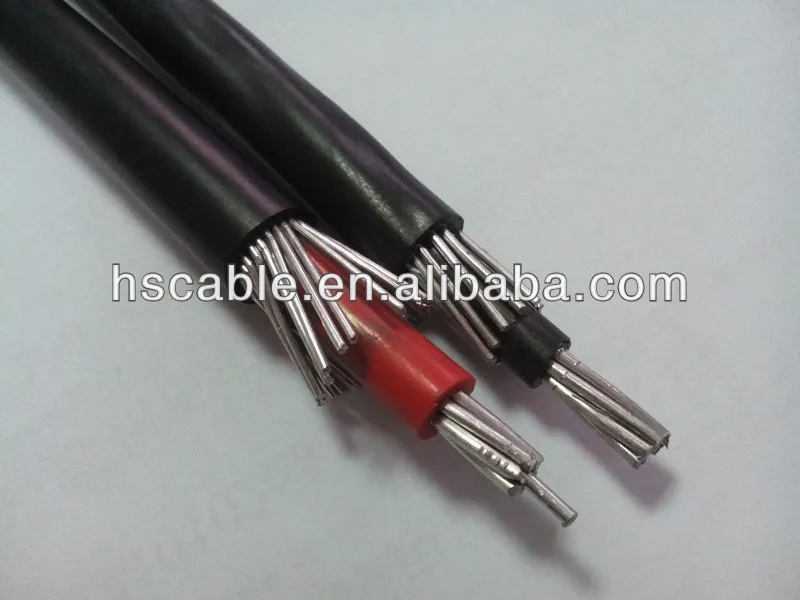

0.6/1KV Aluminum XLPE UV Resistant Concentric Service Entrance Cable 1x10 10mm2

Product Overview

Description



We deliver overhead electrical service from the service head to house meter and in interior wiring systems



Construction

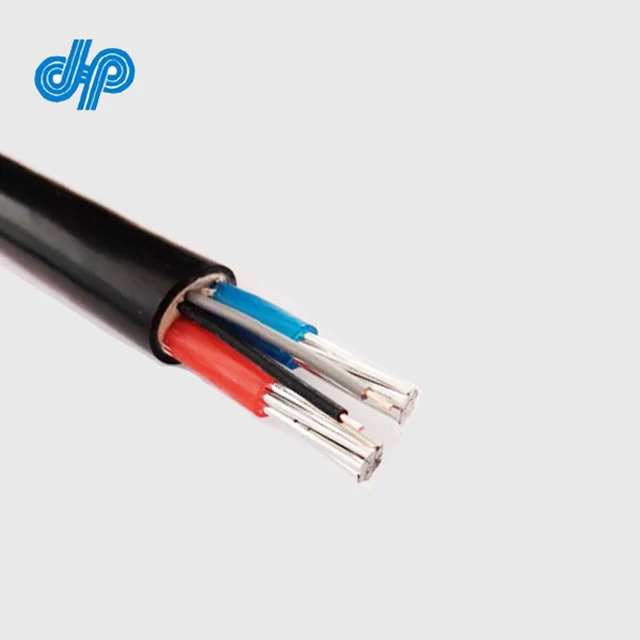

aluminum conductors, PVC insulation, insulated conductors assembled, tape and gray sunlight resistant PVC jacket overall. Three conductor (2 insulated phase conductors, insulated neutral) and four conductor (2 insulated phase conductors, insulated neutral and bare ground wire) constructions are available.



Application

To deliver overhead electrical service from the service head to house meter and in interior wiring systems to supply appliances, 90°C dry, 75°C wet.



IEC 60502-1 IEC 60228 600/1000v
Size (mm2)	Structure Size mm								Copper cable (kg/km)
	Concuctor			Insulation	Concentric conductor		Outer sheath
	Single wire		Dia.	PVC	Single wire		UV-PVC
	No.	Dia.		Thick	No.	Dia.	Thick	Dia.	(kg/km)
10	7	1.35	4.05	1.55	20	0.85	1.4	11.79	301.55
16	7	1.7	5.1	1.55	32	0.85	1.4	12.84	431.7
25	7	2.14	6.42	1.6	29	1.13	1.5	15.02	647.46
16	7	1.7	5.1	1.55	26	1.13	1.4	13.42	244.16
25	7	2.14	6.42	1.6	29	1.13	1.5	15.02	307.3
35	19	1.53	7.65	1.65	27	1.35	1.6	16.99	390.15
