High speed flexo printing and slotting& die cutting machine
- Category: >>>
- Supplier: Cangzhou Tongbao Carton Machinery Co. Ltd.
Share on (499840898):
Product Overview
Description

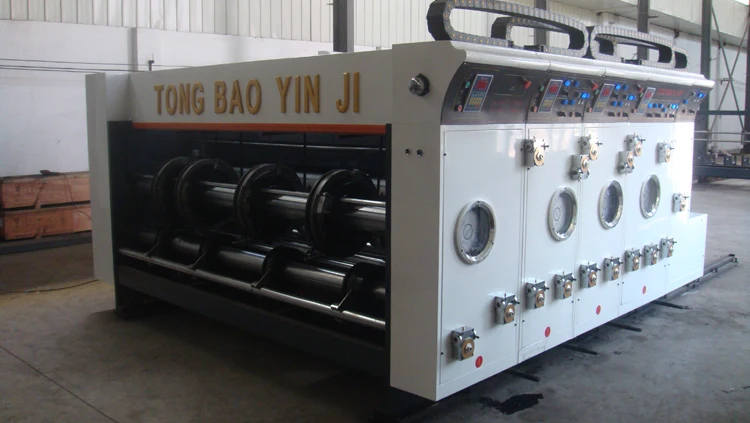

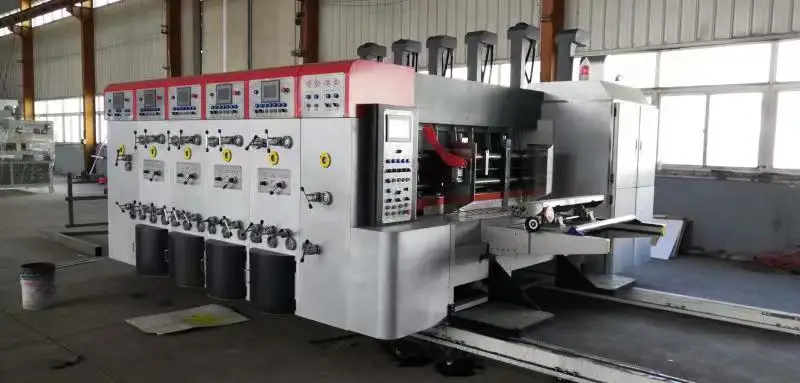

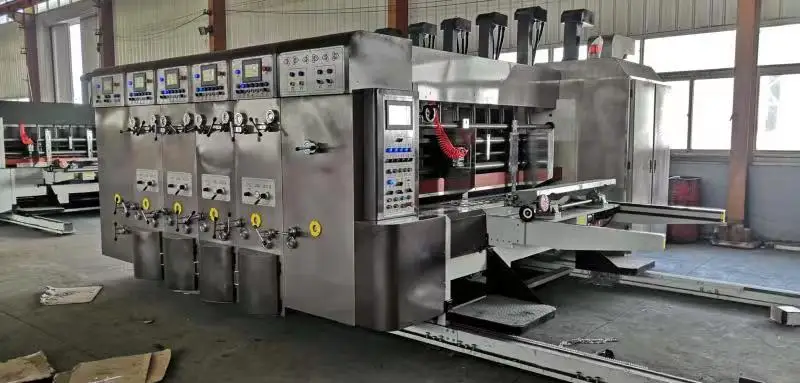

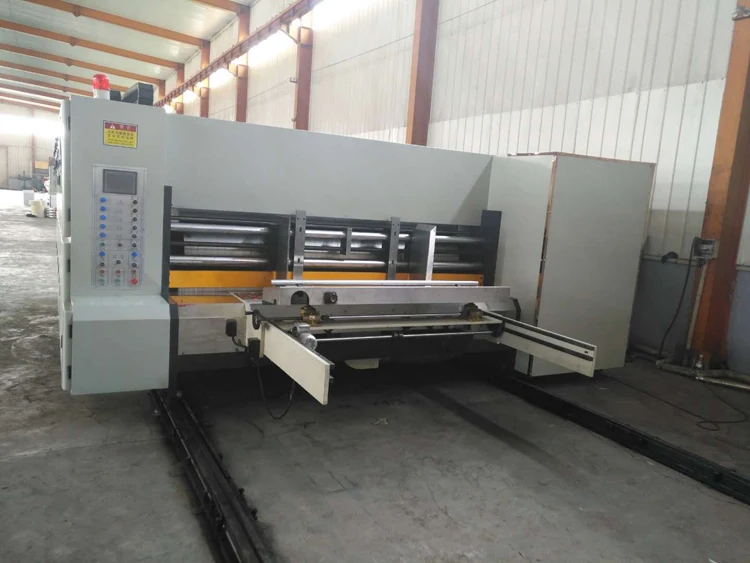

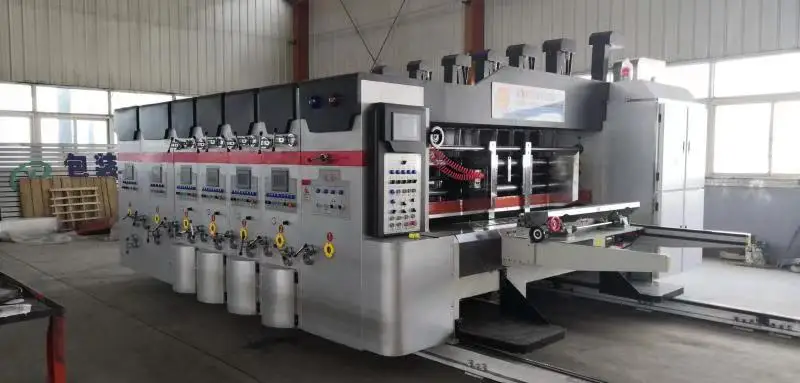

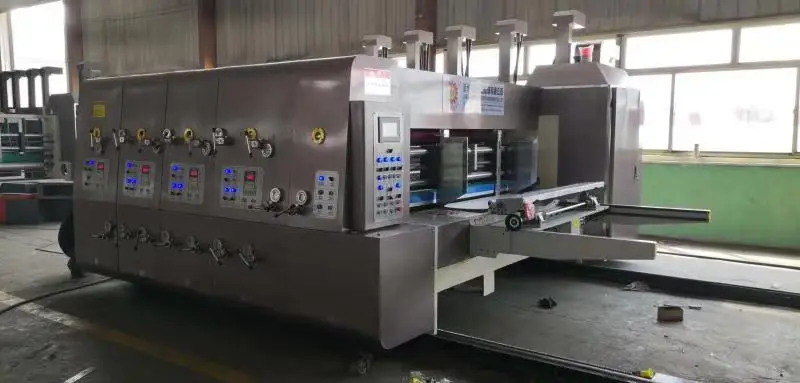

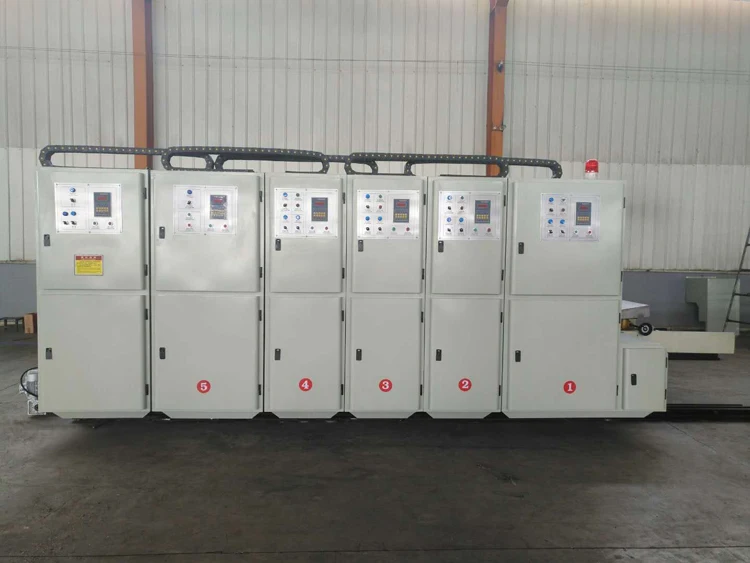

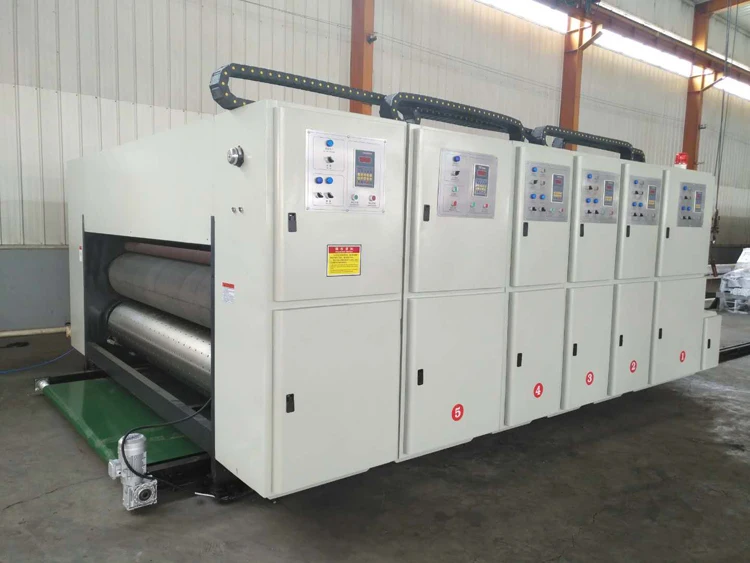

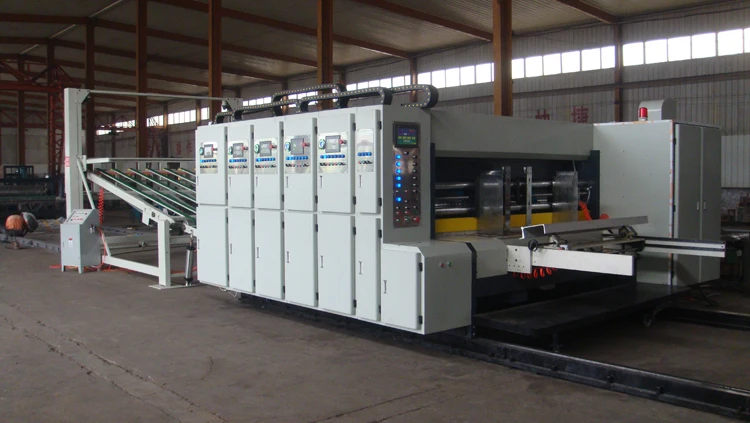

High-speed flexo printing and slotting& die-cutting machine
Product Description
Function and Characteristics
1.International famous brand electric parts and computer software was used in the whole machine(Schneider,DELTA).top-quality and steady;Computer order storage and adjustmen(Beijing kunlun MCGS color touch-screent,faster order update and convenient operation(It can storage the 999 orders in the computer
2.Complete machine baffle and important parts used the temper for decrease the metal internal force;and that parts was made by high precision process center and grinded by digit-controlled grinder
3.All the transmission axle and roller are made by the high-quality steel,temper,and dynamic balance;plated with rigid chrome and grinded surface.
4.All the transmission gear was used the 20 CrMnTi alloy steel,temper,and that parts was made by rubbing,6 grade precision,it still maintains the high topping precision.
5.The transmission unit(connected with the axle and gear),which adopts the hand-free connecting ring to eliminate the interval,suitable for long-term high-speed running
6.All the transmission bearings were adopts strengthen model bearing,setting the dustproof windtight parts and the oiling,handy to maintenance,suitable for long-term to used
7.The whole machine undergoes the spray lubrication
8.The whole machine adjust presetting function, feeding, printing, slotting, die-cutting, automatic zero setting ,memory automatic reposition
9.The whole machine working interval adjustment was adopted free spanner,which is fast to adjustment,and the electromagnetism brake system with the worm wheel and worm setting,fast and convenient to adjustment
10.The mainframe was controlled by the frequency conversion(Brand:DELTA),start-up,running more smoothly
11.The whole machine adopts computer touch screen phase adjustment.Each unit also can adopt numerical control adjustment

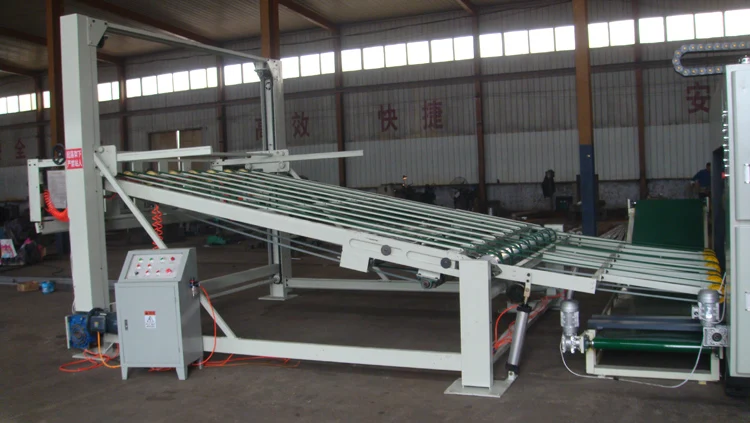

Functions and features:1.This machine is composed by feeder, printer, slotter, die cutter, stacker five components.2. Feeder has lead edge feeder or kick feeder.3. Equipped with high-pressure vacuuming device, can sweep off scraps of paper and impurities on the printing face of cardboard.4. Transmission gear use good quality alloy steel, after carburizing and quenching, use spray lubrication and oil way balance system.5. Use spray lubrication and oil line balanced system.6. Use PLC touch screen multifunction controller. Host machine, fan, phase motor and so on are all using frequency conversion control.7. Slotting unit is electric adjusting each part sizes of the carton box.8.Stacker unit front pneumatic go up and down, back photoelectric tracking, auto going up.
| Main technical parameter: |
name | Unit | Size | ||||
1270×2100 | 1270×2500 | 1270×2800 | 910×1900 | 910×2100 | ||
Economic speed | mm | 100 | ||||
Max. feeding size | mm | 1270×2200 | 1270×2600 | 1270×2900 | 910×2000 | 910×2200 |
Min. feeding size | mm | 350×650 | 260×650 | |||
Skip feeding | mm | 1500×2200 | 1500×2600 | 1500×2900 | 1160×2000 | 1160×2200 |
Max. printing size | mm | 1200×2100 | 1200×2500 | 1200×2800 | 850×1900 | 850×2100 |
Color accuracy | mm | two colors×0.35 three colors±0.5 four colors±0.75 | ||||
Standard printing plate thickness | mm | 7.2 | ||||
Min. slotting distance | mm | 290×60×290×60 | ||||
Max. slotting depth | mm | 300 | 220 | |||
Printing roller axial djustment | mm | ±7 | ||||
die cutting cardboard thickness | - | 3-5ply(slotting fitting cardboard thickness 3,5,7Ply) | ||||
Packaging & Shipping
Packaging-machines will be packed by filmplastic
Shipping-loaded into container

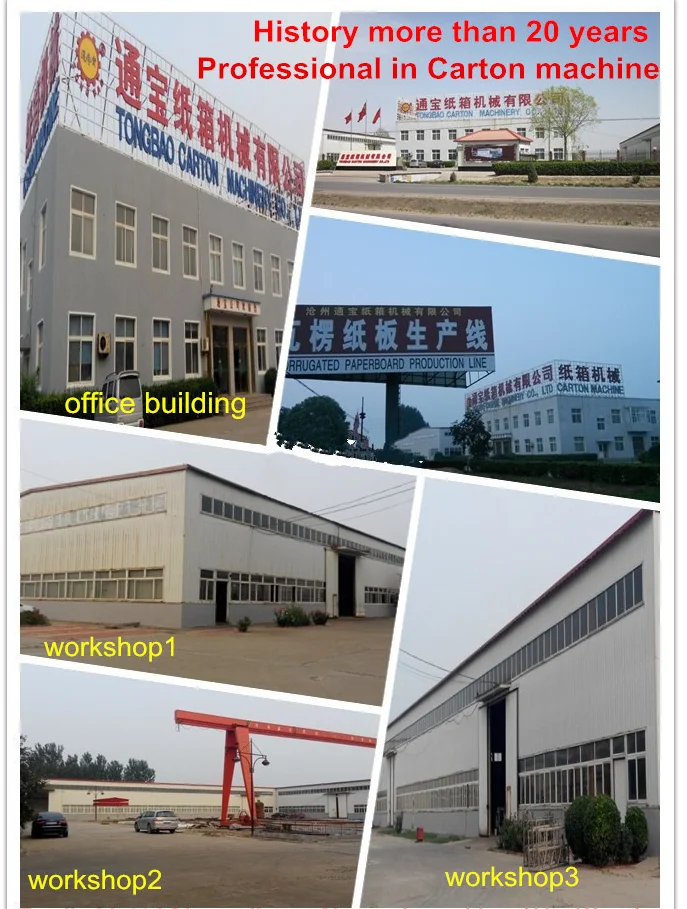

Company Information
Main product: 2, 3, 5,7 layer corrugated paperboard production line (Including mill roll stand,pre-heater,single facer,conveyor bridge,gluing machine,double facer,slitter scorer,cut-off,conveyer and stacker, heating system,air compression system and glue making system etc.); automatic/semi-automatic carton box prining,slotting and die-cutting machine;folder gluer machine;stitching machine etc.
