DC 12V /24V Cabinet Lock With Fail Safe / Fail Secure Adjustable Function

Product Overview

Description

Product Description
•Compact size for simple installation.
•For drawers, lockers, mailboxes, boxes and similar devices used.
•Selecting the cabinet lock operation: fail-safe / fail-secure
•With lock sensor(For PCL-100S)

Specifications
•Dimensions:
  82 (L) x 30 (W) x 28 (H)mm
  3.2(L) x 1.2 (W) x 1.1(H) inch

•Voltage/Current:
  12VDC /250mA, 24VDC/125mA

•Material:
  Lock body(Aluminum alloy)
  Plate cover(stainless steel)
  Fixed buckle(stainless)

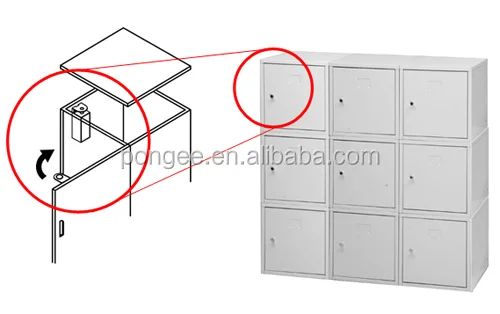

Application

A. Drawer                    B. Cabinet(Sliding door type)   C. Cabinet(Pull door type)

System configuration

How to order
PCL-100:   Cabinet lock, operation: fail-safe / fail-secure
PCL-100S:  Cabinet lock with lock sensor, operation: fail-safe / fail-secure









We reserve the right to change the specification without notice or obligation!
