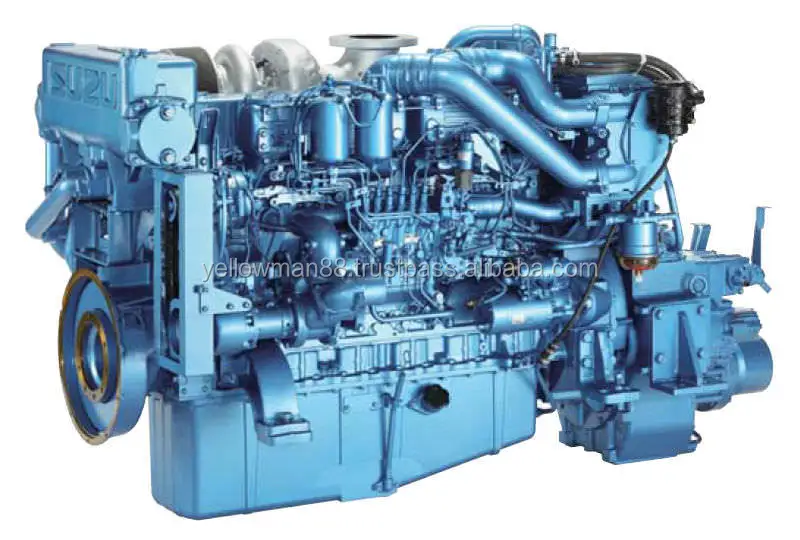

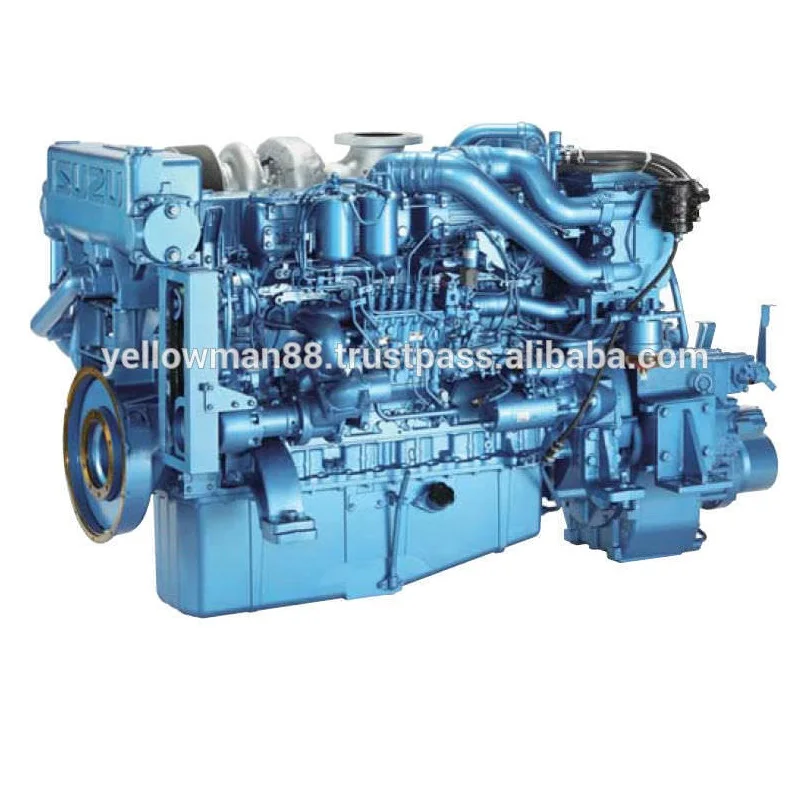

New Boat Engine 4 Cycle Diesel Engine ISUZU Diesel Marine Engine With 6 Cylinders

Product Overview

Description

ISUZU UM6WG1TCX Marine Engines

Model Name: ISUZU UM6WG1TCX

Configuration : 6- Cylinder, vertical in line, 4 cycle diesel engine

Displacement Lit(cid): 15.681 (957)

Rated Output:

• Medium Duty kW(PS)/min: 515(700/2060)


• Light Duty: 537(730)/2100

Engine weight only kg(lbs): 1615(3560)

Cooling method: Freshwater, full flow pressure circulation (seawater, indirect)



Marine Gear:

Marine Gear Model : MGN80B

Clutch Type: Wet, multi-plate hydraulic type

Reverse Type: Constant-mesh type gear

Reduction Ratio: 1.68, 2.03,  2.55, 2.96, 3.31, 3.48
