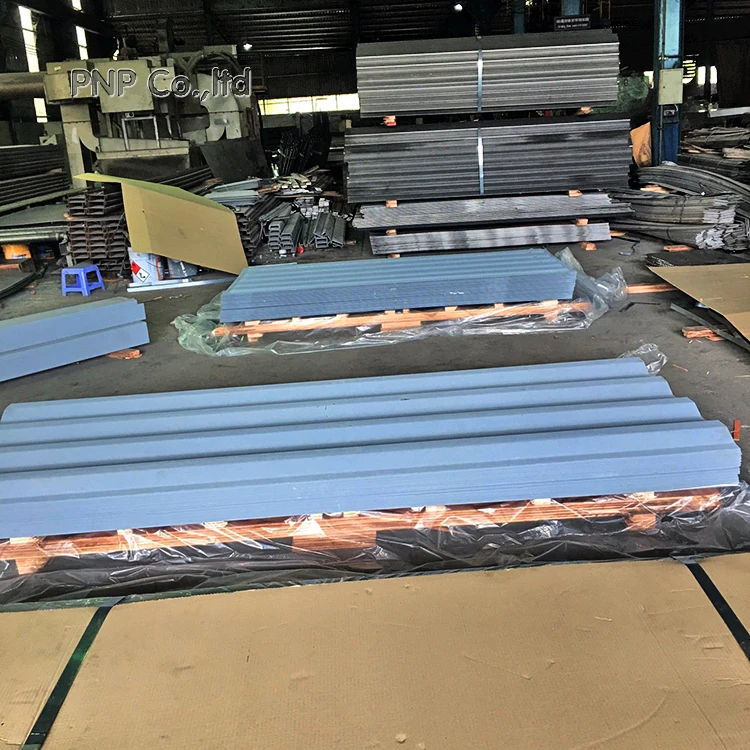

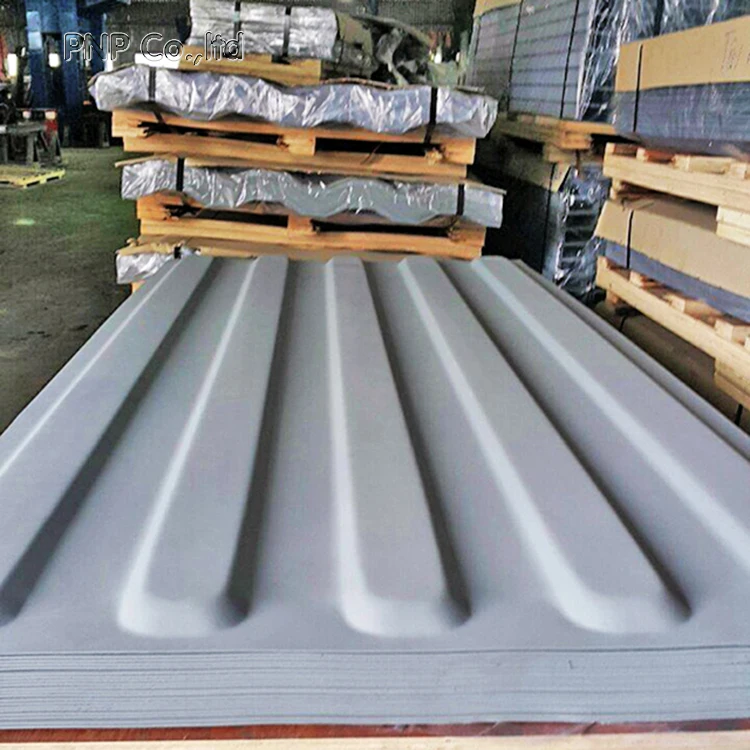

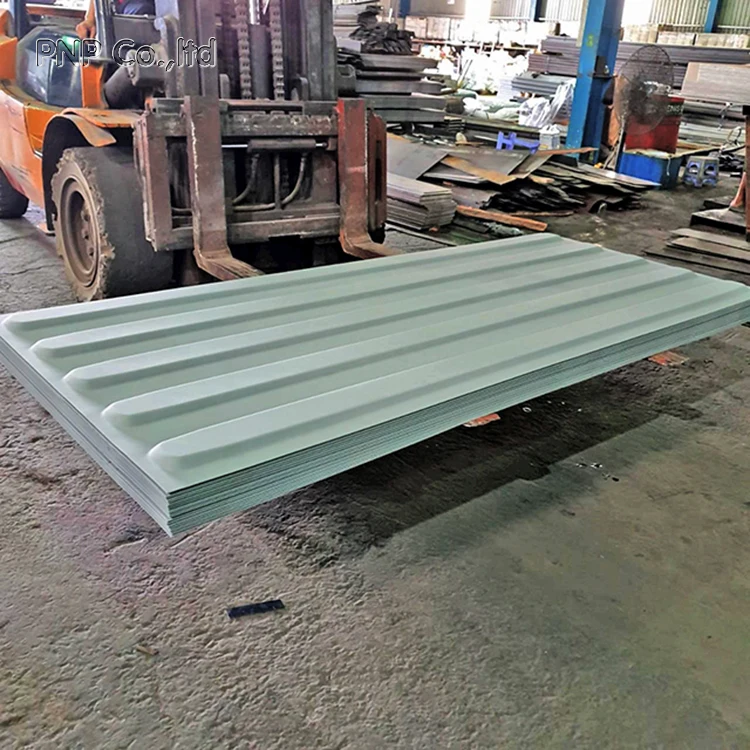

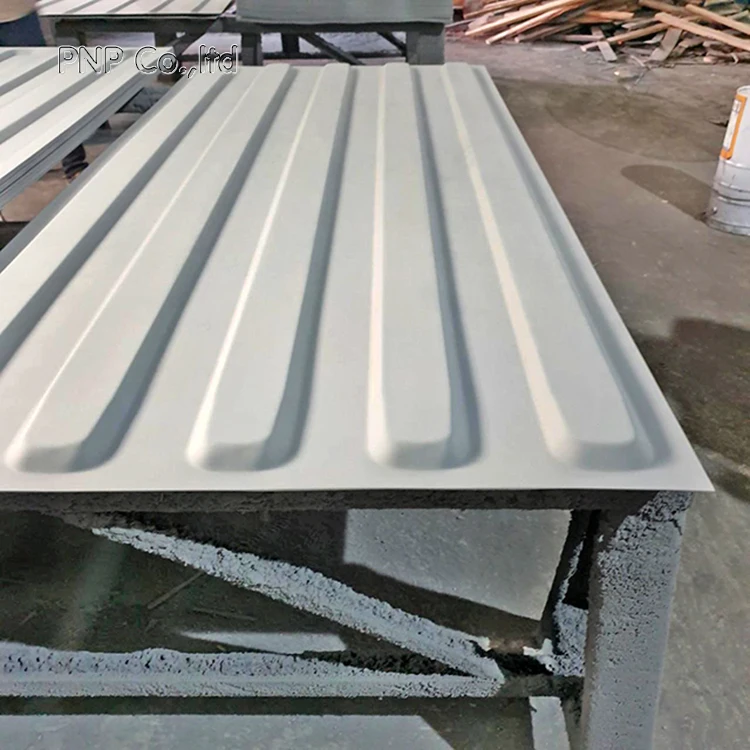

Vietnam factory Shipping container roof panel 5 corrugated die stamped weight 40kg per sheet with customized packing
- Category: >>>
- Supplier: PHUONG NAM PHAT SNG CO. LTD
Share on (50003491909):
Product Overview
Description

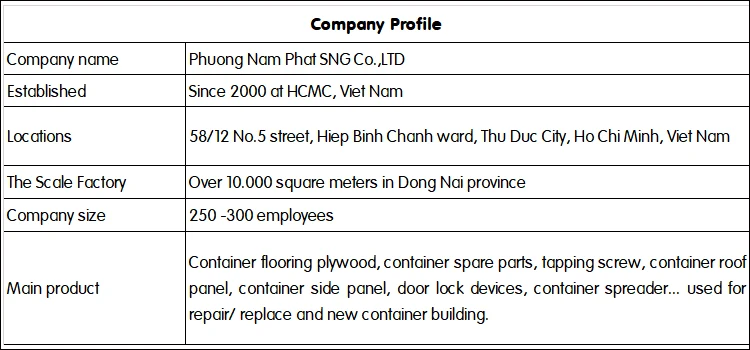

Company Profile
Could you provide me with the details of which parts do you want, We'll quote for you immediately!
Our Services
PNP Co., LTD has more than 11 years of experience in plywood manufacturing, container parts, loading and unloading devices and leading distribution of lifting equipment. Our product including:

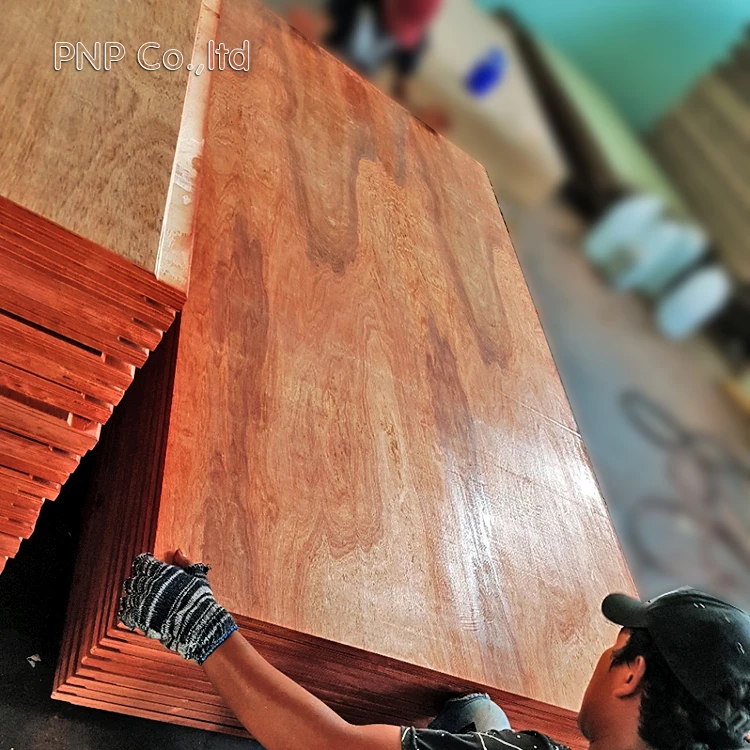

Container Flooring Plywood (28 x 1160/2440/635/580 x 2400mm):
We have 4 types: small plywood: Standard container flooring plywood and high-quality container flooring plywood. General size
famous of 2 type is 28*1160*2400mm/ 28* 1220*2440mm.
- Standard container flooring plywood: 28x1160x2400mm, Weight: 55-59kg/pc
- High quality container flooring plywood: 28 x 1160x2400mm, Weight: 65-70kg/pc.
- Small flooring plywood: 28 x 635 x 2400mm, Weight 32 - 35kg/pc
- Small flooring plywood: 28 x 580 x 2400mm, Weight 27-29kg/pc.
- Keruing Veneers: General size famous of veneers is 0.3 x 1270 x 2500mm, 100% natural, grade A.
Container Body Parts
Including parts for making body shipping/house container like: roof panel, side panel; container posts and rail: bottom side rail, cross member, front corner post, rear corner, spreader, top side rail, door sill container...; Container twist lock, corner casting: roof bow, screws, twist lock, tarpaulins....
Container Door Locking Parts
Including parts for making door locking and accessories of shipping/house container like: Hinge blade, Hinge lug, BBoss, Anti Rack Ring, Door Handle Pressed, Hinge Brass Wash, Cam and cam keeper, tapping screws...
Loading and unloading:
Container spreader string type 20ft/40ft, Container spreader flat type 20ft/40ft or Auto twist container spreader…
Dock Leveler:
We have produce 2 type: Mechanical dock leveler and Hydraulic Dock Leveler with capacity 12.000kg - 14.000kg - 16.000kg.

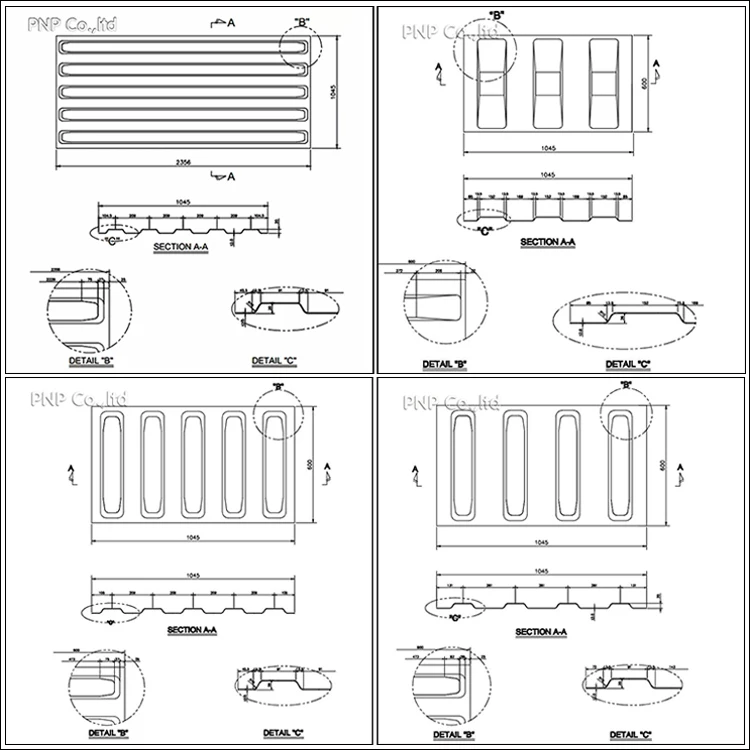

Drawing (CAD)
Product Description
Phuong Nam Phat Co., LTD specializes in producing container spare parts, container flooring plywood, loading and unloading equipment. Regarding the container Side panel size, there is have corrugated steel panels use for sidewall, We have 2 size 1116x2400mm or 1116x2700mm with 2 type thickness 1.6mm and 2.0mm.
Specification

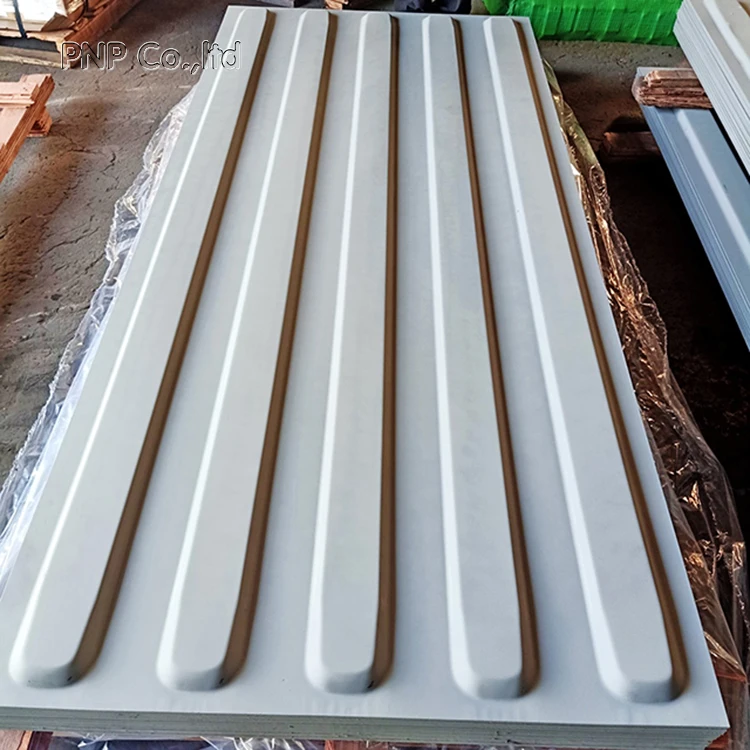

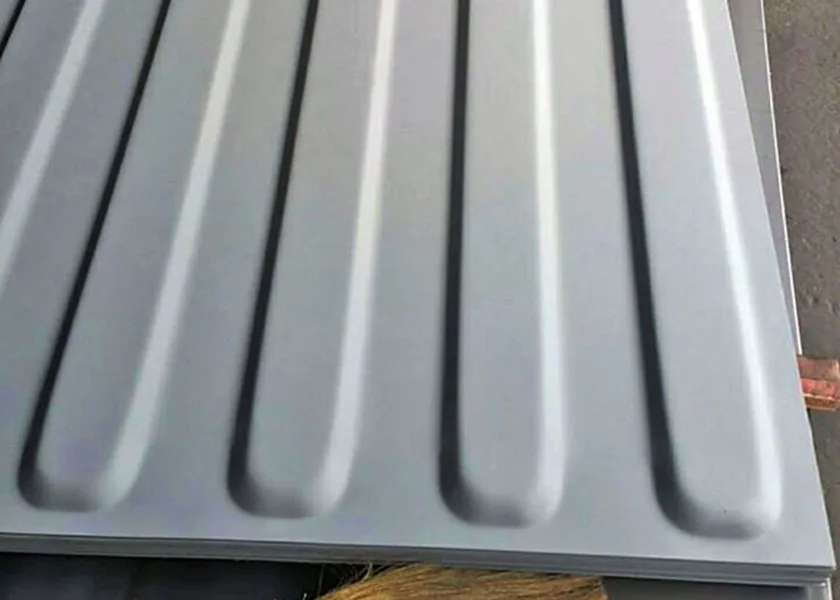

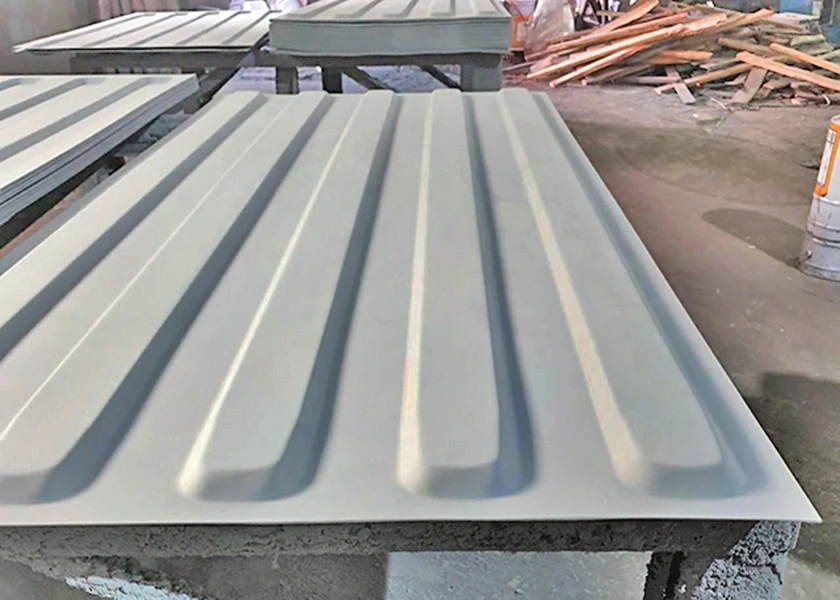

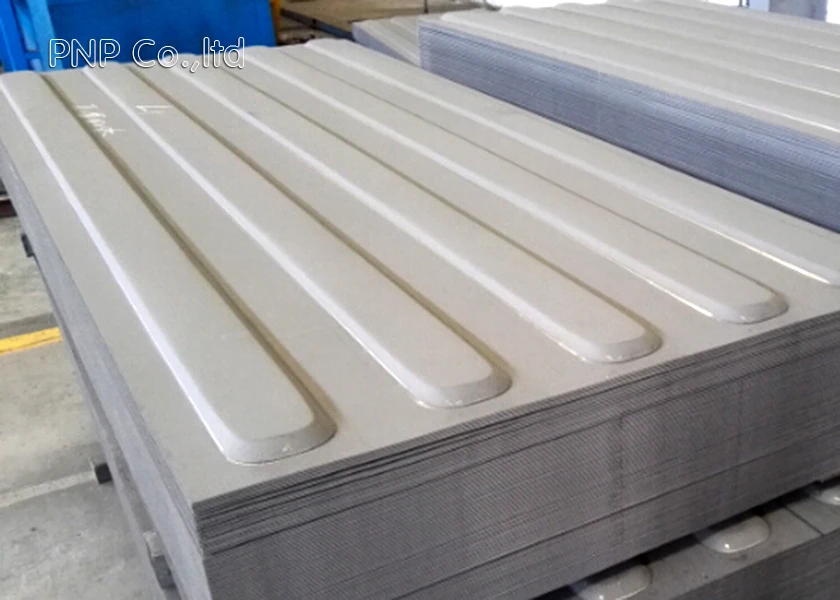

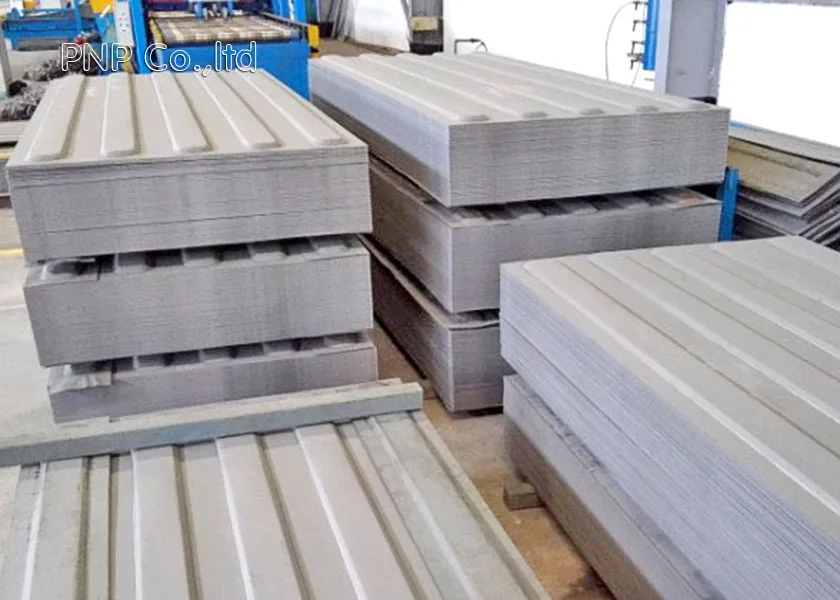

Phuong Nam Phat Co.,LTD specialize in producing container spare parts, container flooring plywood. Regarding the container roof panel, We have 3 corrugations, 4 corrugations, 5 corrugation roof panels. the most popular one is 5 corrugation roof panel with information:
Type of Container roof panel | ||||||||
Type corrugation | Size (mm) | HS Code | Unit | Weight/unit KG (±5%) | ||||
Roof panel 5 corrugation | 2 x 1.045 x 2.356 | 73089099 | Pc | 40 kg | ||||
Roof panel 4 corrugation | 2 x 1.045 x 2.357 | 73089099 | Pc | 40 kg | ||||
Roof panel 5 corrugation | 1,6 x 1.045 x 2.356 | 73089099 | Pc | 31 kg | ||||
Roof panel 4 corrugation | 1,6 x 1.045 x 2.356 | 73089099 | Pc | 31 kg | ||||
Roof panel 3 corrugation | 2 x 1.045 x 2.356 | 73089099 | Pc | 40 kg | ||||
Specification of Container roof Panel:
Brand name | Phuong Nam Phat | Application | Reparing/building/ Replacing roof container. | ||
Country of origin | Viet Nam | MOQ | 100 pcs | ||
Main type | Normal Type for 20ft 40ft | Supply Ability | 10.000 pcs/momths | ||
Material | Corten A Steel (SPA-H) | Color | Light Grey | ||
Thickness | 1.6mm/ 2.0mm | Payment term | T/T 30 % deposit, 70% balance payment before shipment | ||
Condition | New 100% | Delivery time | 14 days | ||
Surface Treatment | Galvanized or depend on the requirements of the customer. | ||||
Advantage | We only use items of high-quality steel to increase the security and strength of the shipping container. Our products all come with installation guides to ensure easy and quick install. | ||||
Purpose of use | Using for building new/ replacing a damaged panel of roof container. Can be glued on top of the existing roof panels providing they are the same profile please check first. | ||||
Other related products | Container panel (tole): roof panel, side panel; container posts and rail: bottom side rail, cross member, front corner post, rear corner, spreader, top side rail, door sill container...; Container twist lock, corner casting: roof bow, screws, twist lock, tarpaulins and container flooring plywood. | ||||
Packaging Details | a. Standard Export Pallet Packing b. Inner and Outer: inner packing: Pallet is wrapped with a 0.20mm plastic bag. Outer Packing: Pallet is covered with plywood or carton and then PVC/steel tapes for strength and safety. c. 50 pcs are packed into one pallet, 10 pallets into one 20ft container. | ||||
Payment term | T/T 30 % deposit, 70% balance payment before shipment | ||||
MOQ | 100 pcs | ||||
Delivery time | 14 days | ||||
Port | Cat Lai - Ho Chi Minh - Viet Nam | ||||
Destination Port | Worldwide | ||||

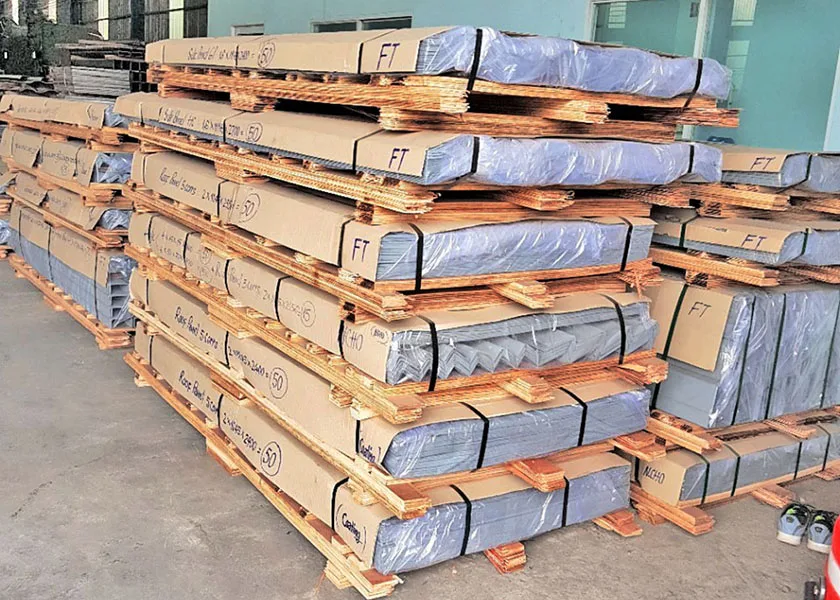

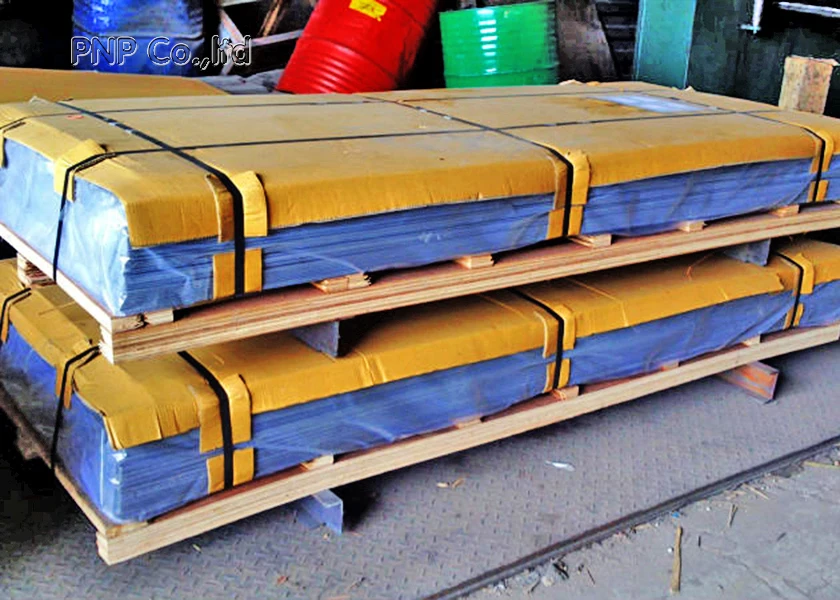

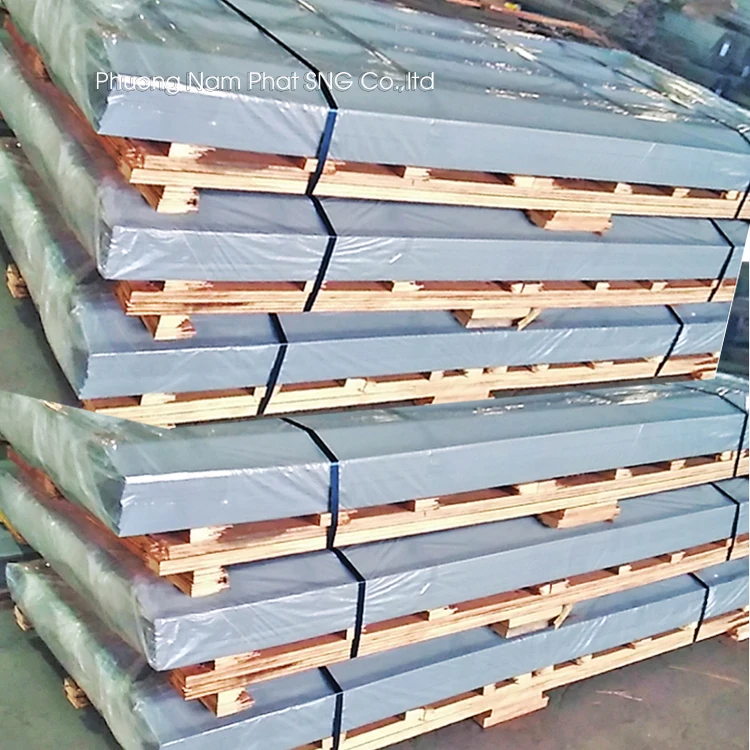

Packing & Delivery

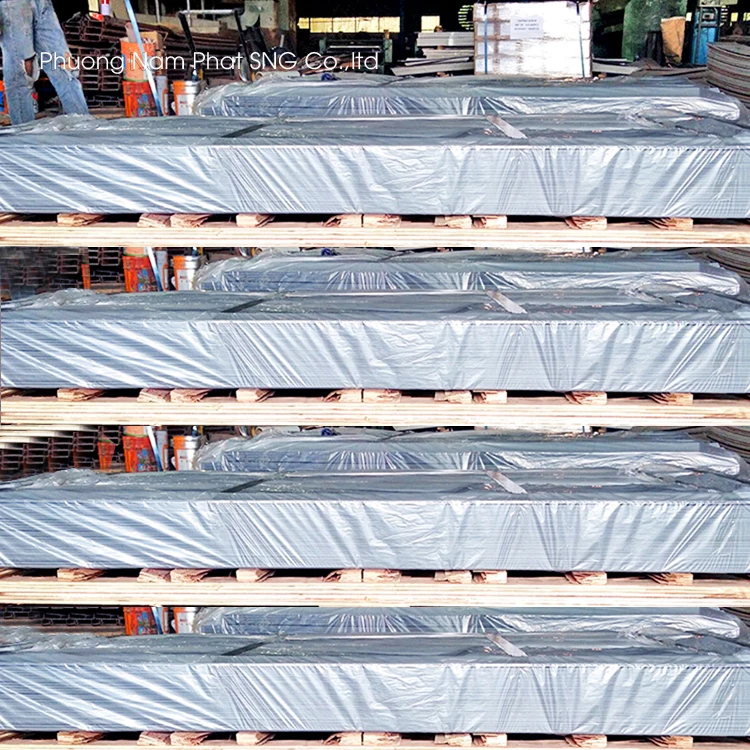

1, Packaging:
a. Packing according to standard international export. The permissible gross weight of most 20' and 40' standard containers is 30,480kg.
b. Inner and Outer:
Inner packing: Pallet is wrapped with a 0.20mm plastic bag.
Outer Packing: Pallet is covered with plywood or carton and then PVC/steel tapes for strength and safety.
d. 50 pcs are packed into one pallet, 10 pallets into one 20ft container.
All the steps made carefully and test by engineers.
2, Mix order into a container:
We could supply all kinds of container spare parts, and also accept Mix Order loaded into one container for shipping. One-Stop Purchasing is our main Service.
3, Shipping
a, Shipping methods: Sealine and ship to any countries in the world.
b, Locking and Sealing: Security seal used in conjunction with locking
mechanism in order to seal the containers for security purposes. These seals are numbered and often color coded.
c, Destinations Port: Worldwide and can be delivered to anywhere.
4, Delivery time: 14 days
a. Packing according to standard international export. The permissible gross weight of most 20' and 40' standard containers is 30,480kg.
b. Inner and Outer:
Inner packing: Pallet is wrapped with a 0.20mm plastic bag.
Outer Packing: Pallet is covered with plywood or carton and then PVC/steel tapes for strength and safety.
d. 50 pcs are packed into one pallet, 10 pallets into one 20ft container.
All the steps made carefully and test by engineers.
2, Mix order into a container:
We could supply all kinds of container spare parts, and also accept Mix Order loaded into one container for shipping. One-Stop Purchasing is our main Service.
3, Shipping
a, Shipping methods: Sealine and ship to any countries in the world.
b, Locking and Sealing: Security seal used in conjunction with locking
mechanism in order to seal the containers for security purposes. These seals are numbered and often color coded.
c, Destinations Port: Worldwide and can be delivered to anywhere.
4, Delivery time: 14 days

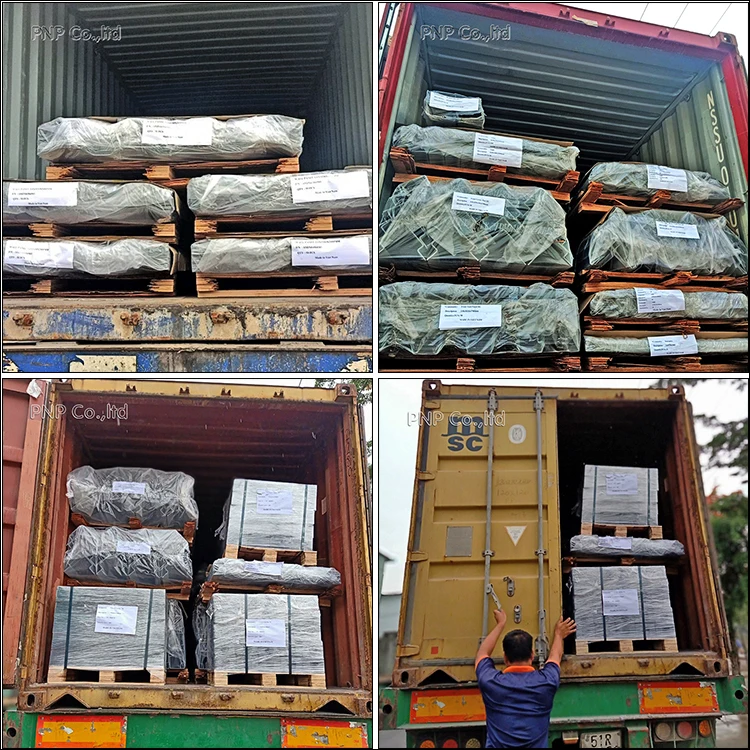

Loading To Customer
