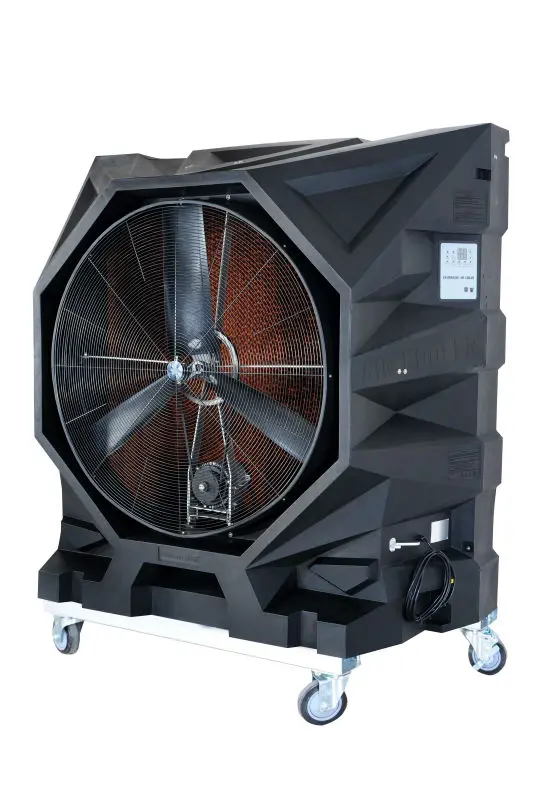

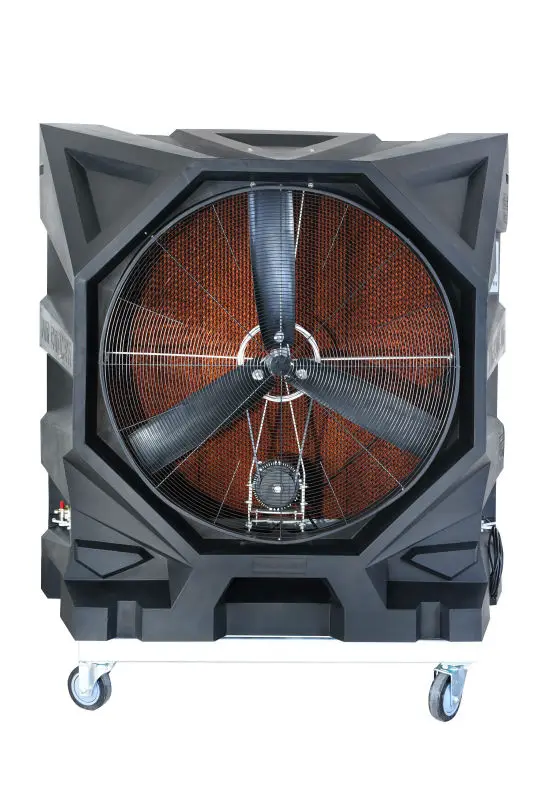

48inch 20000CFM industrial water cool fans

Product Overview

Description

specifications:



2).Model-1



Model: BF-18D

Diameter:  18 Inch / 450mm

Air Volume:  4120 CFM / 7000m3/h

Fan Motor:  1/3 h.p. / 300W

Fan Amperage:  230V 1.5A

Pump Amperage:  230V 0.2

Water Reservoir:  35 Gal / 135L

Unit Dimensions: 6oinch*50inch*26inch ( 1430*980*600mm )

Unit Weight:  132 lbs / 60kg

Cooling Capacity:  1000 sq.ft. / 90m2

Water Supply: Garden house connection pressure



2).Model-2



Model: BF-24D

Diameter: 24inch/630mm

Air Volume: 7000CFM/12000m3/h

Fan Motor: 1/2h.p/370W

Fan Amperage: 120V 4.7A/230V 2.4A

Pump Amperage: 120V 0.4A/230V 0.2A

Water Reservoir: 30Gal/115L

Unit Dimensions: 61inch*50inch*27inch (1560mm*1270mm*680mm)

Unit Weight: 172lbs/78Kg

Cooling Capacity: 1800sq.ft/170m2

Water Supply: Garden house connection pressure



3). Model-3



Model: BF-36D

Diameter: 36inch/920mm

Air Volume: 12000CFM/20400m3/h

Fan Motor: 1/2h.p/370W

Fan Amperage: 120V 5.7A/230V 2.9A

Pump Amperage: 120V 0.5A/230V 0.3A

Water Reservoir: 53Gal/200L

Unit Dimensions: 71inch*63inch*31inch (1800mm*1600mm*780mm)

Unit Weight: 231lbs/105Kg

Cooling Capacity: 2500sq.ft/230m2

Water Supply: Garden house connection pressure



4). Model-4



Model: BF-48D

Diameter: 48inch/1220mm

Air Volume: 20000CFM/34000m3/h

Fan Motor: 1h.p/750W

Fan Amperage: 120V 11.3A/230V 6.8A

Pump Amperage: 120V 0.5A/230V 0.3A

Water Reservoir: 80Gal/300L

Unit Dimensions: 83inch*75inch*36inch (2130mm*1910mm*920mm)

Unit Weight: 370lbs/168Kg

Cooling Capacity: 4000sq.ft/370m2

Water Supply: Garden house connection pressure























Application areas:

Body shops, service garages, air hangers, livestock, warehousing, production lines, school events, outdoor dining, athletic fields, outdoor events, auto auctions, dry cleaners, greenhouse,etc.

1)Industry: injection molding, printing, shoe-making, food processing, rubber, clothing, electronics and other factories.

2)Agriculture: pig farms, poultry farms and other animal venues and greenhouses.

3)Others:Somewhere there are polluted gas, population density and others where need ventilation.

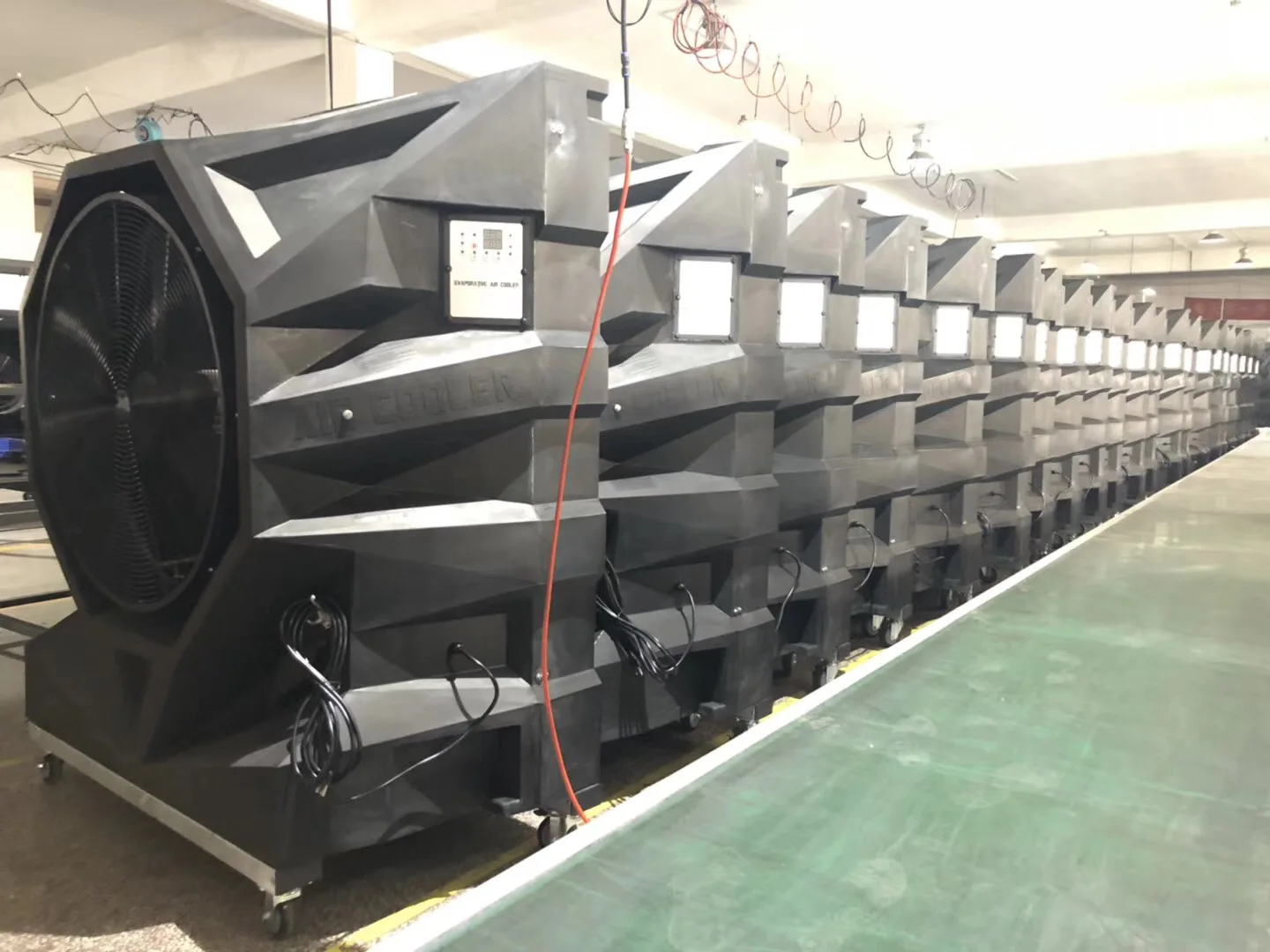

We have our own factory in China and USA, quality was approval by USA.



If you like our products, please don't hesitate to send us inquiry mail.  We will bring you a world of cool and comfortable.
