Beta Titanium Alloy strips/coils, Thick 0.030 1.00 mm, Width 3.0 330 mm Small quantity

Product Overview

Description

Beta Titanium Alloy strips/coils, Thick 0.030 - 1.00 mm, Width 3.0 - 330 mm Small quantity

<Titanium alloys>

TITANIUM Grade1, Grade 2, Grade 3, Grade 4, Grade 7, Grade 11,

Ti38-6-44 Bata C, Beta 21 S, 3-2.5(Grade 9) etc. beta titanium alloy

Thickness 0.030 - 1.00 mm * Width 3.0 - 330 mm * strips/coils/sheets



  Features(Overview)



We are able to produce high performance alloys

Inconel, Hastelloy, Monel, Waspaloy,

nickel alloys, titanium alloys and cobalt alloys,

even if you need these alloys  in small sizes.



  Main uses



Bellows, diaphragms which demand high reliability

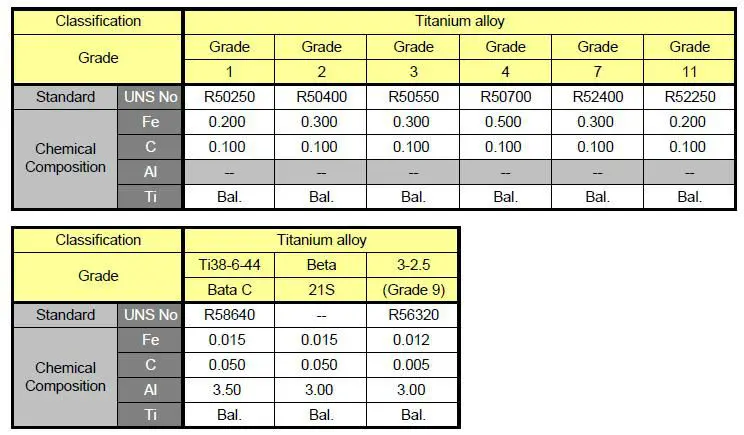

  Products and standard table



TITANIUM Grade1, Grade 2, Grade 3, Grade 4, Grade 7, Grade 11

Ti38-6-44 Bata C

Beta 21 S

3-2.5(Grade 9)   etc.







  Specification details



Type	Cold Rolled Titanium alloys strips/ coils
Grade	TITANIUM Grade1, Grade 2, Grade 3, Grade 4, Grade 7, Grade 11,  Ti38-6-44 Bata C, Beta 21 S, 3-2.5(Grade 9)   etc.
Finish	Roll-Up(Hard),Skin pass(2B) others.
Surface finish	Bright, Dull, Hair Line(HL), others.
Thickness	0.030 - 1.00mm
Width	3.0 - 330mm
Length	Coil (strip)  or  sheet (Length100~2,000mm)
ID	φ300,400,500mm (Inner Core)
MOQ	50kg ≤



Specifications which can adjusted to suit your needs.

Hardness(HV) , Tensile Strength(N/mm²,MPa) , Elongation(%) ,
Proof Stress , Surface Finish ,
Edge Condition(Slited Edge, Rolled Edge, De-burred Edge, etc.) ,
Camber(mm/1M) , Cross bow(mm/Width) , Coil set(mm/1M) ,Surface Roughness(Rmax, Rz, Ra)
Maximum OD , Coil Weight , Packing





  The reason why you choose us



1. Small quantity, short time delivery

If we have stocks, we can ship from a minimum of 1 kg sample in a few days.
We also manufacture custom-order materials in amounts of 300 kg and up

(Some materials are allowed 50 kg) in as few as 3 weeks.



2. High-precision thickness

We guarantee thickness tolerances that cannot be reproduced by competitors.
Example:

            t <0.30mm     Tolerance ±1 - 3 μm guaranteed

            0.30 mm≤t     Tolerance ± 1% guaranteed



3. Ability to add multiple features

We are capable of adding a variety of features to metallic materials

(resin coating, plating, bonding different kinds of metal, multigage skiving, etc.).



4. Unique technology and custom-made solutions

We provide customed solutions to your problems with our unique

technologies and well versed knowledge of materials acquired through

our experience of manufacturing 50,000 items.



5. Choose the appropriate base metals for your needs

We carefully balance quality, delivery time and price,

procure various base metals from all over the world.

We manufacture appropriate products to your needs.



6. To control metal structure(chemical formation)

We can manufacture ultrafine metal structures with a grain size of 1 μm.
Using finer grain sizes provides benefits such as hardenability,

balancing strength and ductility, and precision press processing.



7. Lower total cost

We taking your processing into account,

offer you reduce a total cost by using our product.



8. Global network

Our plant located in Japan, Shanghai and Taiwan,

we also support flexibly local procurement and production transfer.





  Manufacture process







  Order flow









  ISO certifications





ISO9001:2015

Registration Date :   13 March, 2000

Registration No.    :   JMAQA-1646



ISO14001:2015

Registration Date :   14 December, 2006

Registration No.    :   JMAQA-E670







  Global network
