Product Overview

Description

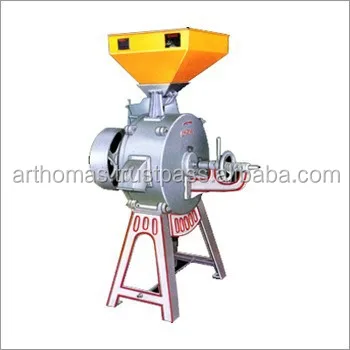

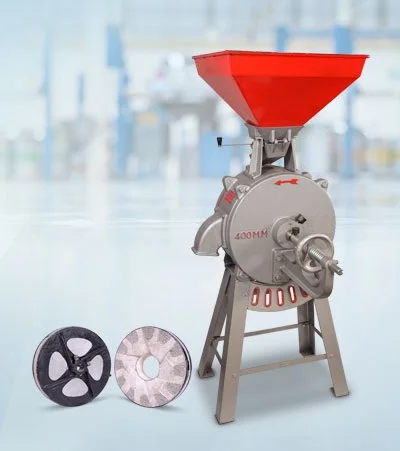

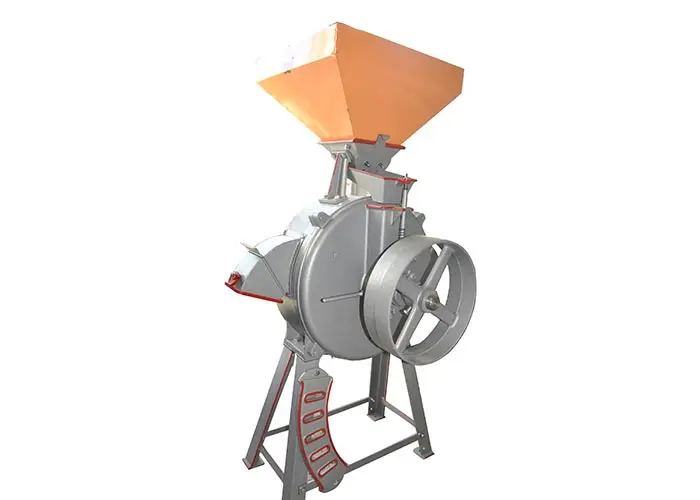

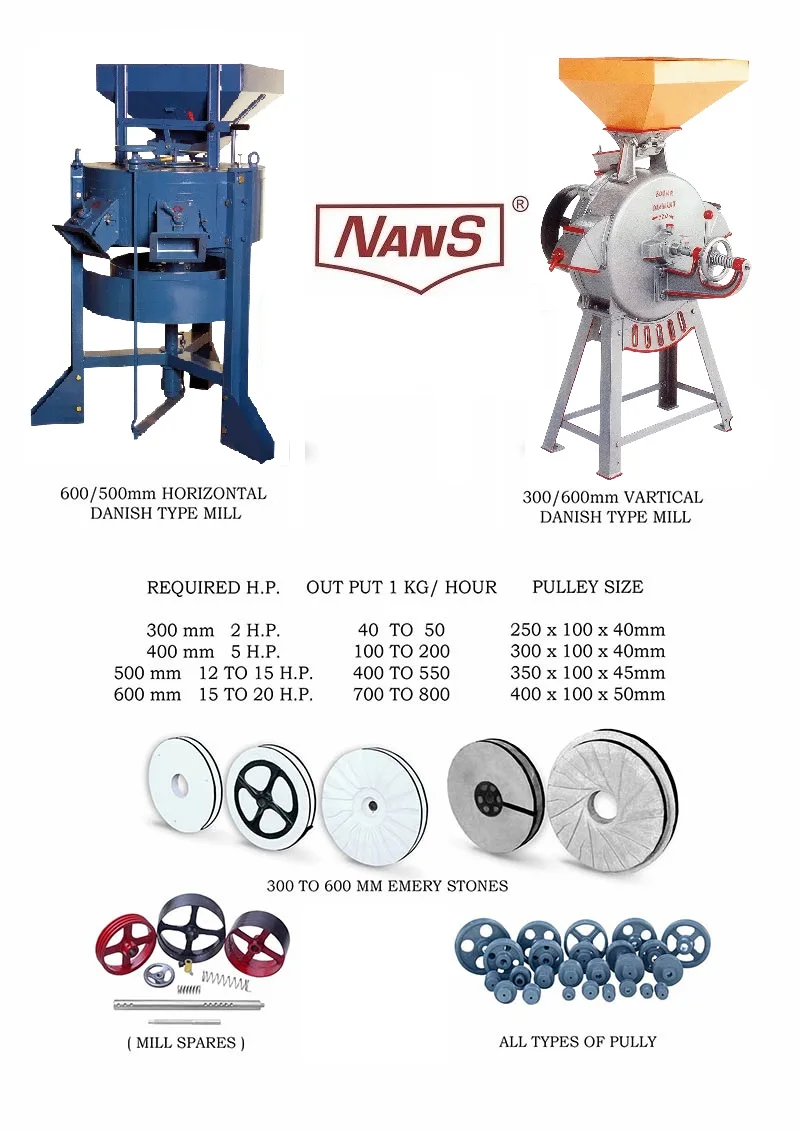

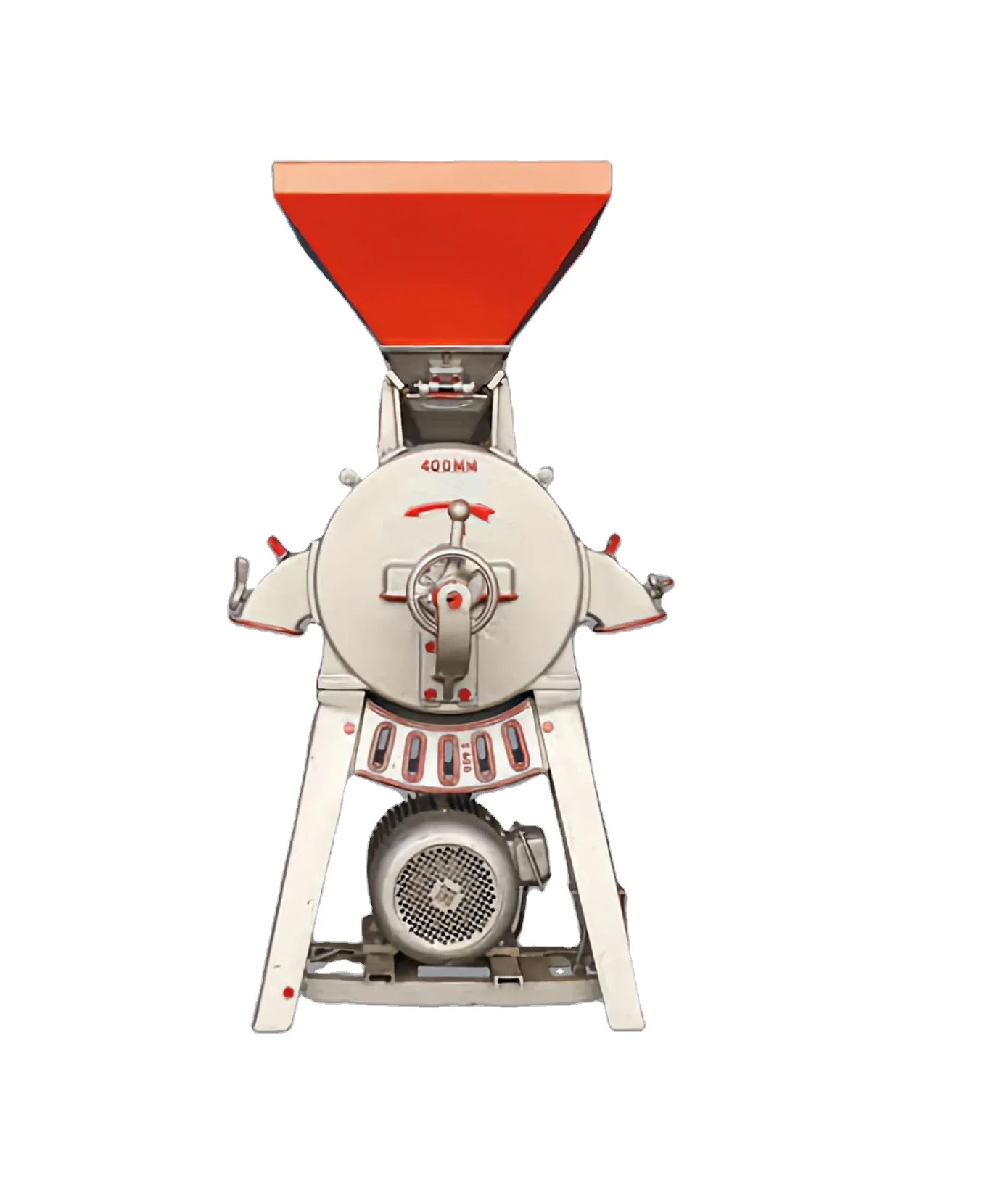

"DANISH" TYPE VERTICAL STONE GRINDING MILL



12"  300 MM - VERTICAL

CAPACITY:200-300 KGS/HR

POWER REQUIRED: 5HPDIESEL ENGINE / ELECTRIC MOTOR



16" 400 MM - VERTICAL

CAPACITY: 400 - 450

POWER REQUIRED: 7.5 HP DIESEL ENGINE / ELECTRIC MOTOR



18" 450 MM - VERTICAL

CAPACITY: 500 - 600

POWER REQUIRED: 10 HP DIESEL ENGINE / ELECTRIC MOTOR



20" 500 MM - VERTICAL

CAPACITY: 700 - 900

POWER REQUIRED: 12.5 HP DIESEL ENGINE / ELECTRIC MOTOR



24" 600 MM - HORIZONTAL

CAPACITY: 800 - 100

POWER REQUIRED: 16 HP DIESEL ENGINE / ELECTRIC MOTOR



We are major Manufacturers & Exporters of Agricultural & Food processing machineries specially designed for the African market. The world renowned brnad owners of "NANS" & "REEJA". Country of orgin India.



Africa's No:1 Brand "NANS"



The only Manufacturers of complete Grinding mill for all needs in INDIA.



Kindly visit our website www.thomaseximp.com to know more about us.









African's No.1 brand "NANS"



Spare parts for "NANS" brand Danish type vertical flour grinding mill , any quantity can be supplied. "NANS" brand Vertical flour Grinding mill & spares are sold like hot cakes throughout the African market. M/s:Thomas International is the one and only "NANTIONAL AWARD" winning  manufacturer in INDIA for complete agricultural & food proocessing machineries & spare parts.

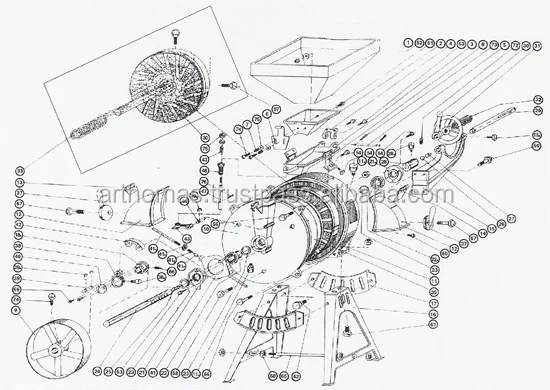

Spare Parts List For “NANS” brand Vertical flour Grinding Mill

Part No. Description Part No. Description Part No. Description Part No. Description

01 Steel plate hooper 21a Cover for ball bearing, back 39a Lock for nos. 39 & 44 59 Screw for bracket no. 15

02 Cast iron hooper 22 Ball bearing, front 40 Stop disc for no. 38 60 Screw for outlet no. 12

03 Shaking clute 22a Ball bearing, back 41 Adjusting ring 61 Bolt with nut for foot no. 16

04 Hinge for no. 3 23 Tightening ring for felt 41d Brake tap for handle 62 Screw for distance piece no. 17

05 Shaft for shaking chute 24/25 Shaft with steel pin 41e Adjusting handle 63 Screw for cover no. 21

06 Inlct trap 25 Steel pin 41g Spring for brake tap 64 Screw for cover no. 21a

07 Spring for no. 6 26 Steel ball 41h Nut for handle 65 Stay bolt for foot no. 16

08 Foot for iron hopper 27 Steel die 42 Shaking strap 66 Grub screw for no. 18x

09 Belt pulley normal 28 Sleeve for ball bearing 43 Rocker arm 67 Screw for shaking lock no. 37

10 Cover for grinding mill 28a Lubricator for no. 28 44 Shaft for rocker arm 68 Nut for bolt no. 65

11 Casing for grinding mill 29 Adjusting spindle 47 Shaking rod 69 Screw for stop disc no. 40

11a Lubricator for nos. 10 & 11 30 Momentary disengaging lever 48 Spring for shaking rod 70 Nut for Spring no. 49

12 Outlet 31 Adjusting wheel 49 Spring for shaking chute 71 Screw for pully no. 9

13 Trap, short 32 Thrust spring 51 Bolt with nut for hopper 72 Screw for sleeve no. 28

14 Trap, long 33 Feed spring 52 Washer for no. 51 73 Split pin for no. 5

15 Bracket for thrust bearing 34 Runner stone 53 Screw for hinge no. 4 74 Screw for inlet tap no. 6

15a Guide screw for no. 29 35 Stationary stone 54 Screw for foor no. 8 75 Washer for inteltrap no. 6

16 Foot 37 Handle for sacking lock 55 Bolt for cover no. 10 76 Split pin for shaking rod no. 47.

17 Distance piece 38 Eccentric strap 56 Screw for cover no. 10

18x Eccentric 38a Lubricator for no. 38 57 Screw for runner stone

21 Cover for ball bearing, front 39 Bolt for no. 38 58 Screw for stationary stone
