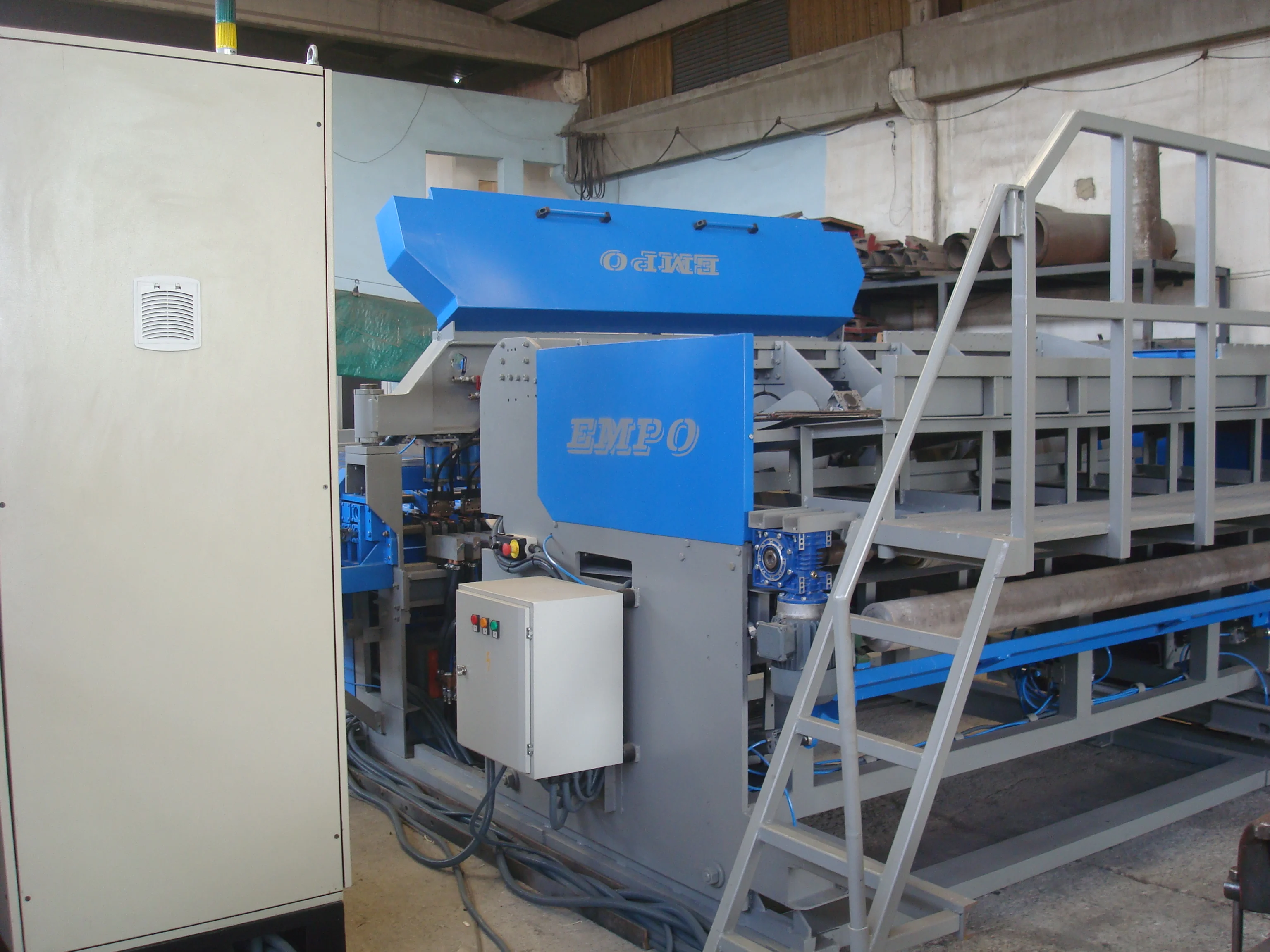

Wire Mesh Making Machine

Product Overview

Description

Diameter to weld                                      :           Æ4mm-Æ8mm

Type Of Wire                                              :           Cold Rolled Wire

Wire mesh width                                       :           2400mm (max.)

Wire mesh Length                                     :           6000 mm (adjustable)

Distance between cross wires                  :           150mm (min )- 250mm (adjustable )

Distance between longitudinal wires      :           150mm (min )- 250mm (adjustable)

Driving unit                                                :            7,5 Kw. Servo motor with its controller

Wire Feeding Control                                :            Servo Control

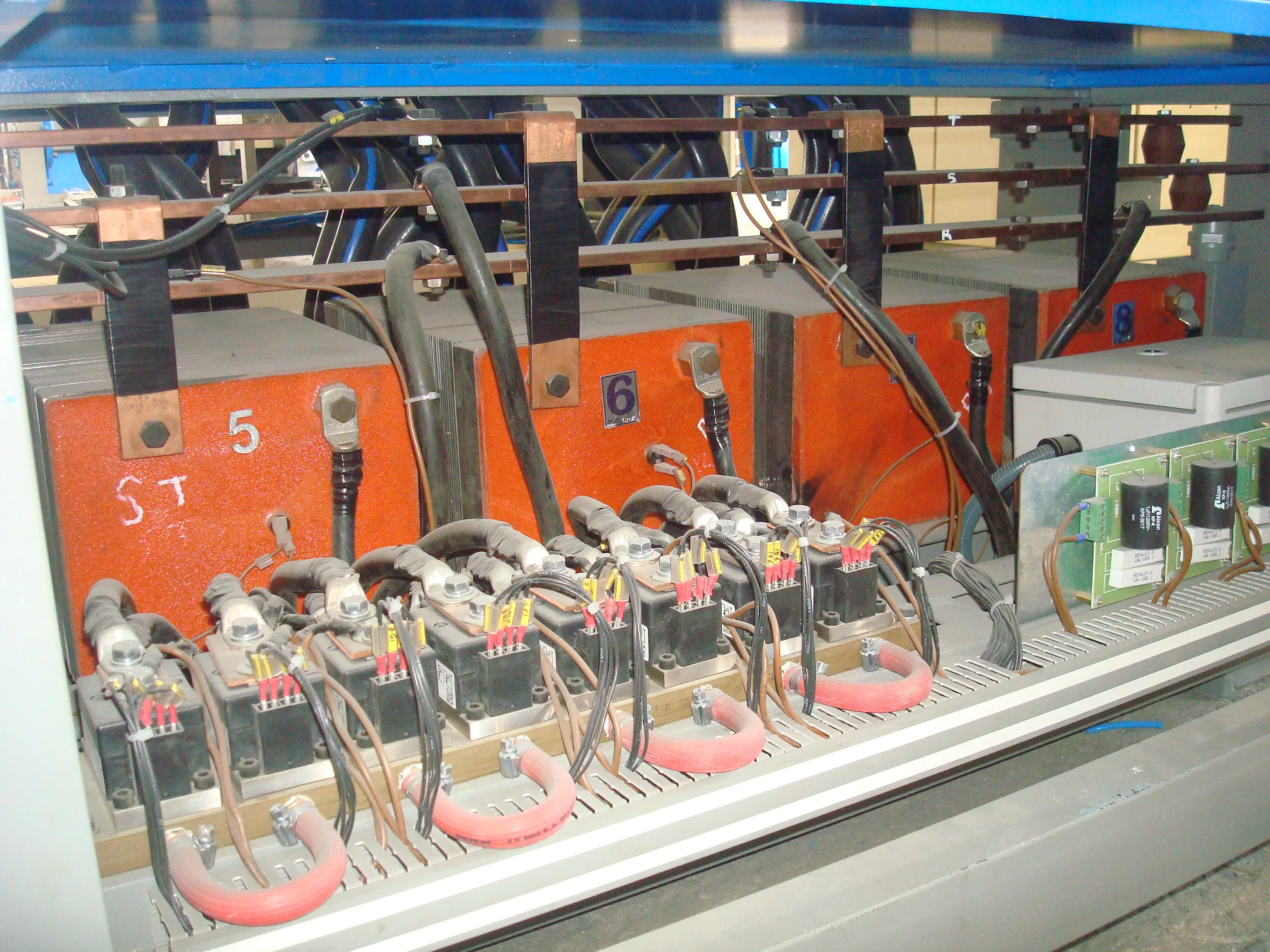

Total Power                                                :            8 units x 120 KVA

Welding current control                            :           All process is under PLC control. In    welding process the current time and current can be changed .

Cooling arrangement                                 :         The system will be colled by 20 C in 4 bar    and 90 lt/min water flow rate .

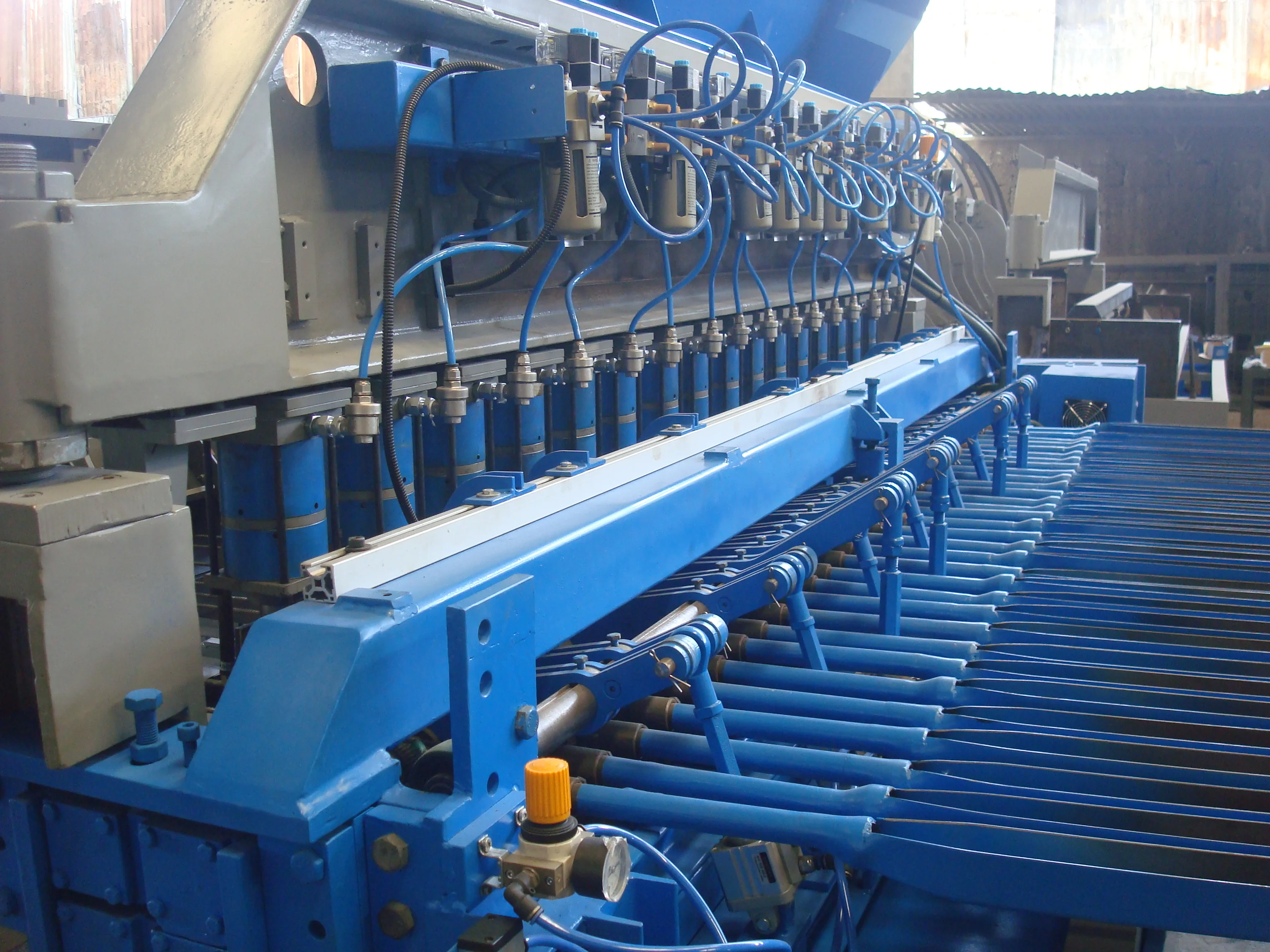

Air Pressure                                                 :         6Bar

Voltage                                                         :         380V 50 Hz

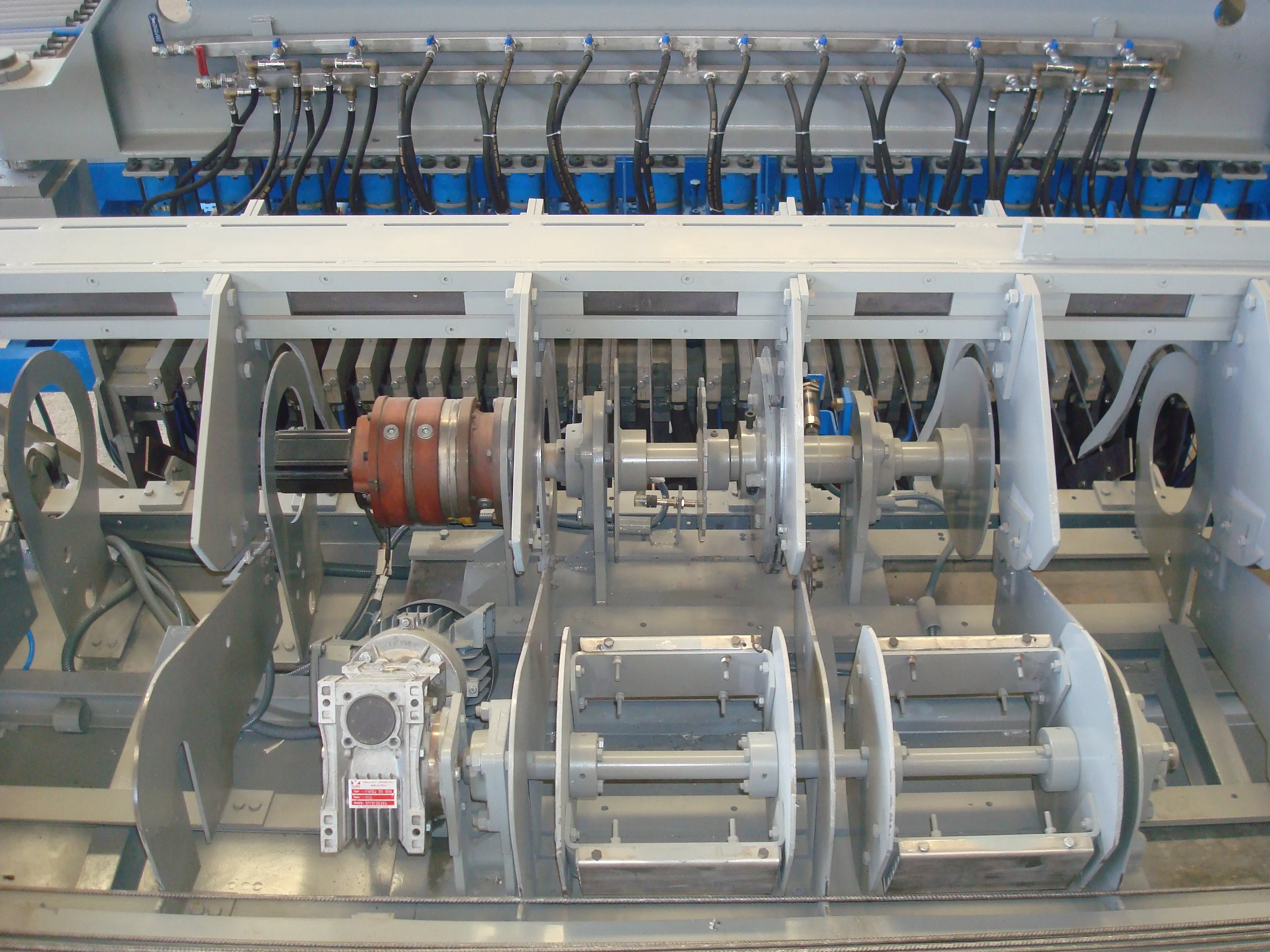

Wire Feeding                                                :           Longitudinal rods will feeding by manually & Transverse ( cross) rods will feeding automatically by the machine.
