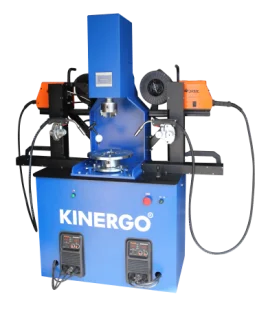

(SV 20.002) Torque Converters Welding Machine with two welding torches
- Category: Auto Synchronizer >>>
- Supplier: KINERGO ZAO
Share on (50009318238):
Product Overview
Description
*** Kinergo implements a flexible pricing system
A minimum price level is available for the implementation of a turnkey business projects with a full line of Kinergo equipment or for wholesale contracts.
For more information, please contact our Sales
Department. We are always open to new projects.
Department. We are always open to new projects.
Specifications:
The number of simultaneously welded torque converters | 1 |
Minimum speed of the turntable, min-1 | 0,01 |
Maximum speed of the turntable, min-1 | 3 |
Max diameter of torque converter, About mm | 450 |
Maximum clamping diameter in the upper chuck, mm | 125 |
Control of the rotation angle of the turntable | programmable |
The method of measuring the exposed clearance of the upper part of the torque converter | automatically programmable |
Power, consumed by the stand, not more than kW | 18 |
Weight, not more than, kg | 550 |
Dimensions, mm | 770х1710х1990 |
Power supply, V | 380 |
Air temperature, С | from +5 to +30 |
Relative humidity,% | 30-80 |
and robotized welding torch holders. Also equipped with welding
inverter Jasik MIG 250
This automated welding machine is equipped with two welding guns which are operated automatically while welding the torque converter’s body. The upper shaft is also equipped with automatic safety break which stops the shaft from damaging the upper cover of TC. The guns are carried by two automated holders: the program moves the guns into the chosen working position and returns it back when the welding is done. The automatic movements can be rectified by moving a special joystick on the panel. This very stand was designed to boost the process of rebuilding of Torque Converters of the same type.
KINERGO company overview...
The company started to work in 2005, when we started to repair torque converters. Time has given us invaluable experience, and as you know the experience combined with the knowledge and inner ambition makes you move on. As a result, our experience and engineering training we materialized in our own TC rebuilding line, using in it all the theoretical knowledge and practical skills of rebuilding of this transmission unit. We did not stop there and run it in the commercial series, which has been successful worldwide. Later, creating a manufacturing base and design department, we have applied our experience in manufacturing equipment in the task of automating processes for mass production. That is why today the KINERGO equipment is operated not only in TC repair shops, but also at the enterprises of industrial complex, where the speed and reliability of equipment is necessary. Now KINERGO equipment is successfully operated from the Far East to the United States.
