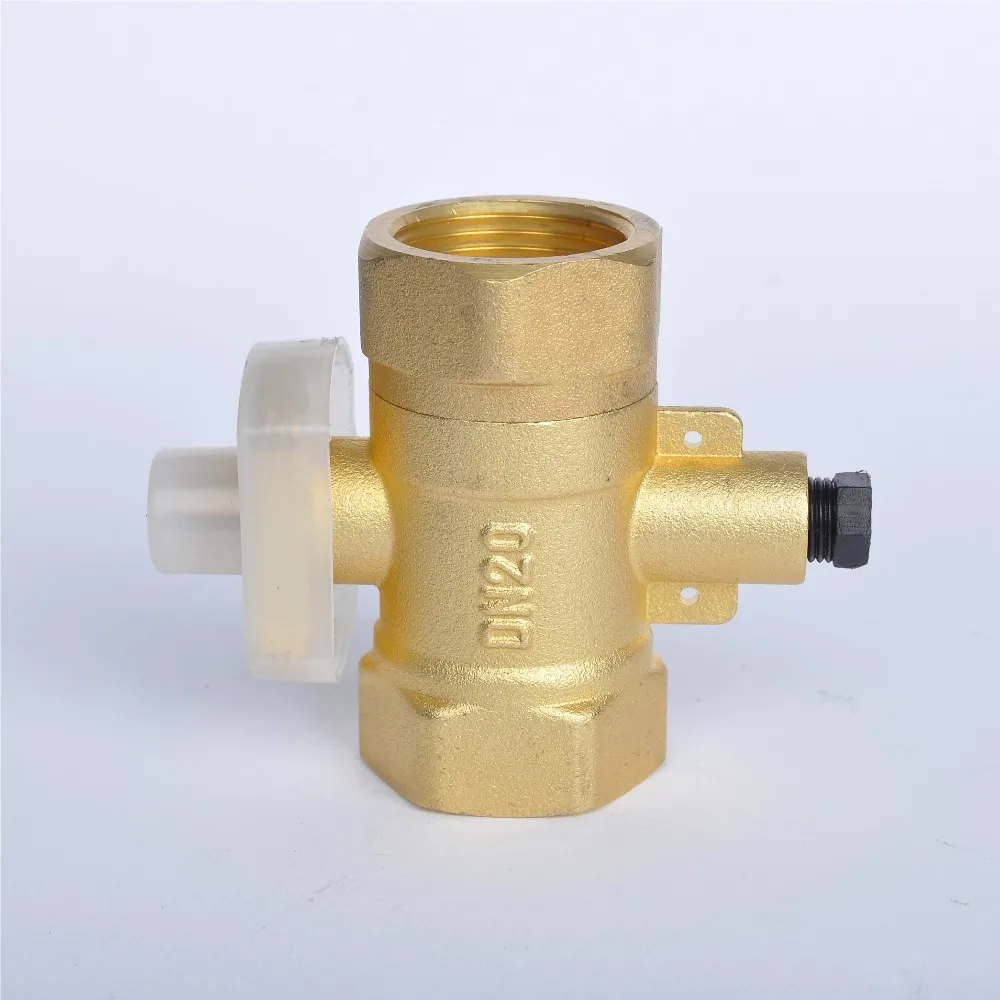

IVC Ultrasonic Heat meter Control Valve

Product Overview

Description





Product Instruction

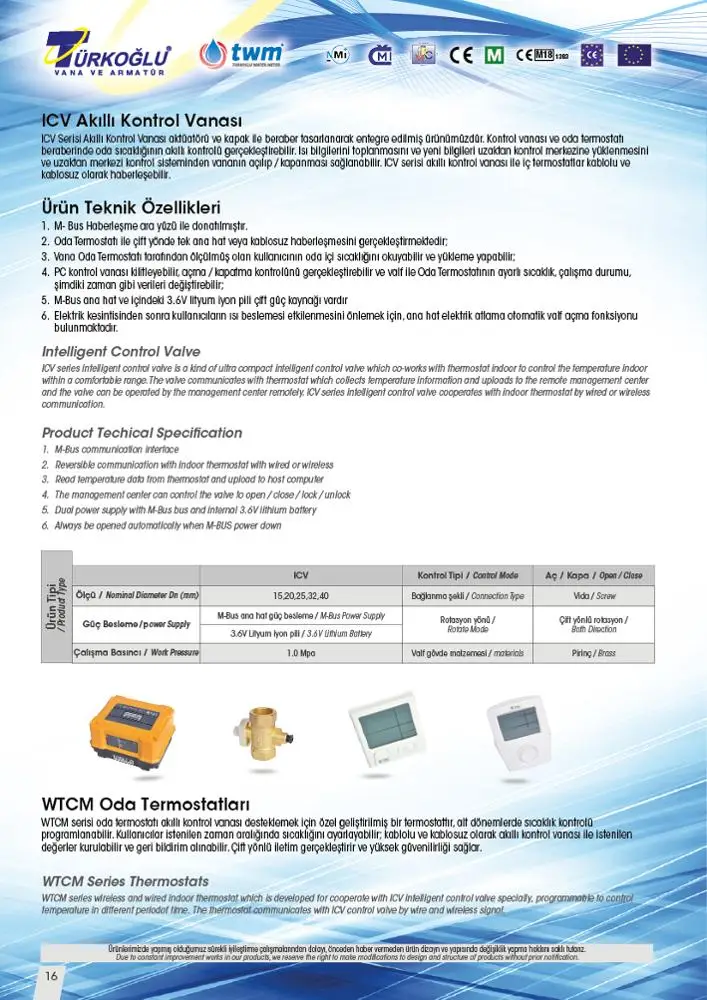

ICV series intelligent control valve is a kind of ultra compact intelligent control valve which co-works with thermostat indoor to control the temperature indoor within a comfortable range. The valve communicates with thermostat which collects temperature information and uploads to the remote management center and the valve can be operated by the management center remotely. ICV series intelligent control valve cooperates with indoor thermostat by wired or wireless communication.







Product Type	ICV	Control Mode	Open/ Close
Nominal Diameter               DN (mm)	15,20,25,32,40	Connection  Type	Screw
Power Supply	M-Bus Power Supply	Rotate Mode	Both Direction
	3.6V Lithium Battery
Work Pressure	1.0 Mpa	Material	Brass







Product Tecnical Specification



M-Bus communication interface

Reversible communication with indoor thermostat with wired or wireless

Read temperature data from thermostat  and upload to host computer

The management center  can control  the valve to open/close/lock/unlock

The management center can set the temperature data, time and work mode

Dual power supply with M-Bus bus and internal 3.6V lithium battery
