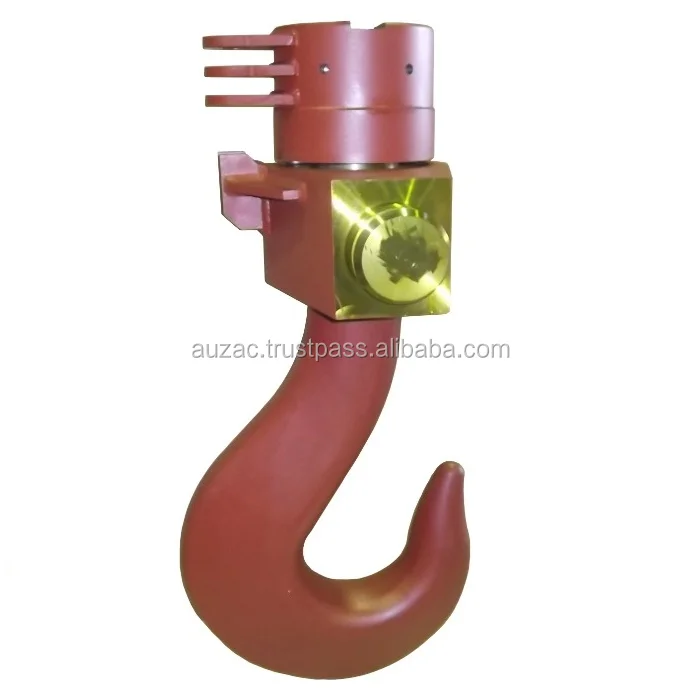

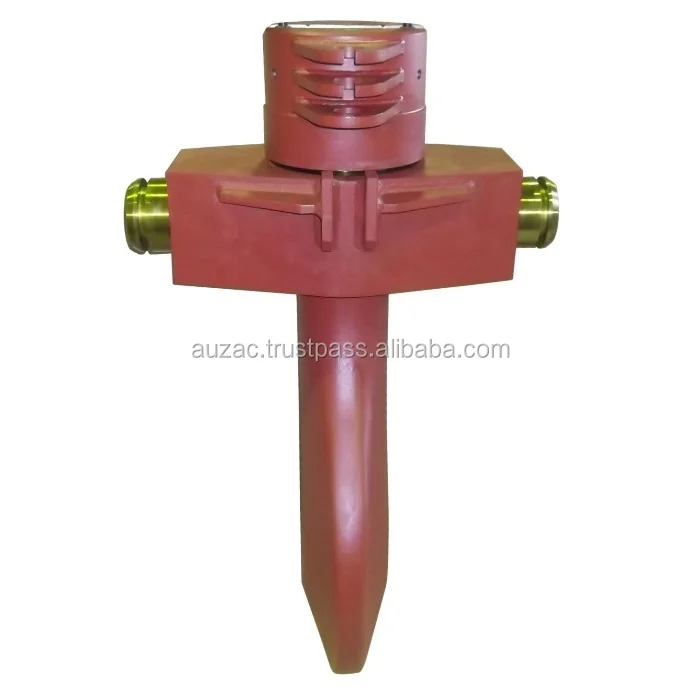

Shank hook with trunnion and hook nut made in Japan
Product Description
We provide a special range of shank hooks which is manufactured as per the international quality standards.
Made by using quality Japanese steel, these are widely used in various industries with features that include heavy duty, drop forge and high load capacity.
Available in carbon steel and alloy steel.
Quench and tempering provide maximum strength without excessive weight and bulk.
The ultimate load is 5 times of the working load limit.
Please inform us of the existence or non-existence of a latch kit at the time of order.
Please feel free to contact us with your specific requirements.
We provide you with Japanese-made high quality shank hooks and eye hooks.
(All of these products are made in Japan.)
We are confident in the quality of our products.
Details
Product Name
Shank hook with trunnion and hook nut made in Japan
Brand Name
AUZAC
Country of Origin
Japan
Usage
Hook Block, Crane Hook, etc...
Standard
Industrial Machinery Unified Standard
Material
Carbon Steel
Finish
Anti-Corrosive Coat, Self Color
Size
3 - 100
Min. Order Quantity
1 pcs
W.L.L.
3 - 100 ton
Packing
Wooden Box or Pallet
Delivery Time
30 - 60 days after the order
Payment Term
T/T, L/C
Business type
Manufacturer, Trading
Notes
Please inquire with the product of specifications especially.
Lifting Beam, Sling, Solid Thimbles, Eyebolts, Metal Working in general
Detail of Dimensions
We are able to manufacture dimensions not currently shown on the list.
Please feel free to make an inquiry.
Process of manufacture
The material is subjected to free forging. hook nut trunnion shank hook
The hook portion is processed either by machining or flame gouging depending on the size.
The shank portion is processed using a numerically controlled lathe.
Magnetic particle testing is conducted.
Penetrant testing is conducted. hook nut trunnion shank hook
Ultrasonic testing is conducted. hook nut trunnion shank hook
Our Services
We are willing to provide a quotation for a single drawing and deal in metal products and resin products.
From design to surface treatment, we manufacture and sell products which meet our customers' needs.
Please feel free to contact us if there is anything that we can do for you. We are sure we could be of assistance to you.
We have substantial experience in export to various countries.
Please contact us by e-mail or online. We will provide you with an immediate and thorough response.
Seeing is believing, we therefore invite you to visit our factory. We are convinced that you will be satisfied with our products.
Please visit our URL for more details.
//www.auzac.jp/en/index.html
Small quantities, trial orders and sample orders are acceptable.
Our products are strictly under the control of ISO9001 QC system.
Business Instructions
Payment Terms: 100% advanced payment before shipment only.
Inquiry
We reply to your inquiry as soon as possible.
Certificate
We provide the Certificate of Origin or the Certificate of Manufacture (COO/COM) at the time of shipment.
Flow to Delivery
Workflow
Company Information
We are the Japanese metalworking manufacturer which has reached 70th anniversary this year from the day of establishment in 1945. We mainly manufacture terminal metal fittings used for wire ropes, and we can also handle metal processing in general.
We started export business five years ago, and we have been trying to respond to our customers’ inquiries more speedily and respectfully. Consequently, we have been doing business with many overseas customers.
We have been striving to offer our customers higher-quality products according to the designs based on analysis software and strength calculation, and we promise to do our best to provide the reliable and secure products.
We recently introduced a combined processing machine “Mazak INTEGREX” in order to meet more various requirements of our customers and we can perform more complex processing now. In addition, 3-D processing with the use of a three axis machining center is one of our strong points.
If we can be of any assistance to you, please do not hesitate to contact us.
When you want to know more! Please copy and paste the URL below to view our website. //www.auzac.jp/en/
