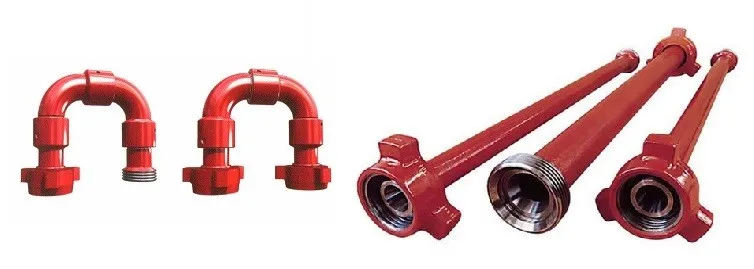

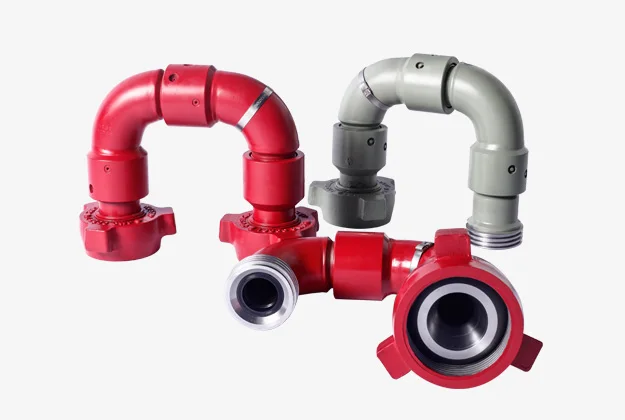

PUP Joints & Swivel Joints

Swivel Joints & Pup Joints

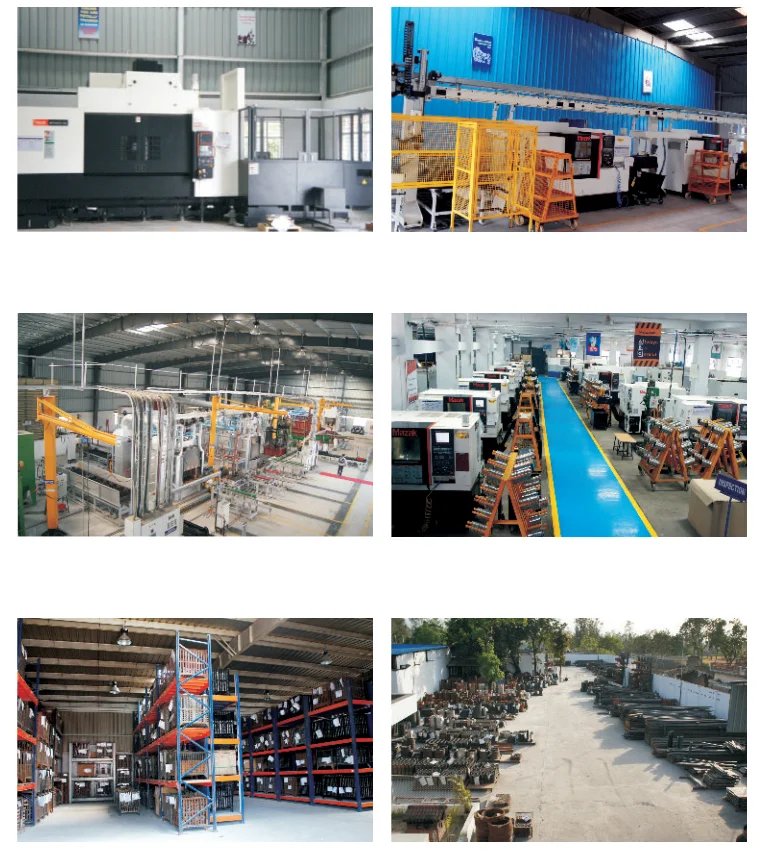

PR manufactures a diverse range of oilfield equipment in its manufacturing facilities in India, using the latest design techniques and CNC machines. These products are available through distributors worldwide, including PR's subsidiary company (STS Products, Inc.) in Houston and various PR locations.

Layers Puzzle Type Parking Equipment

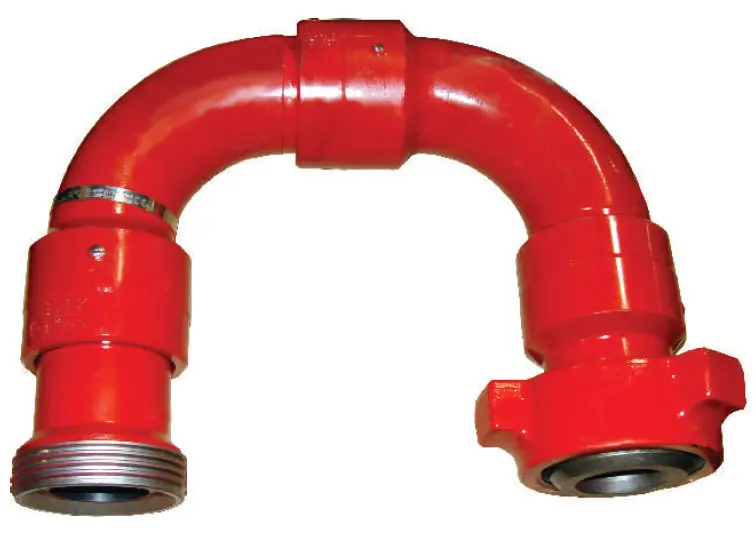

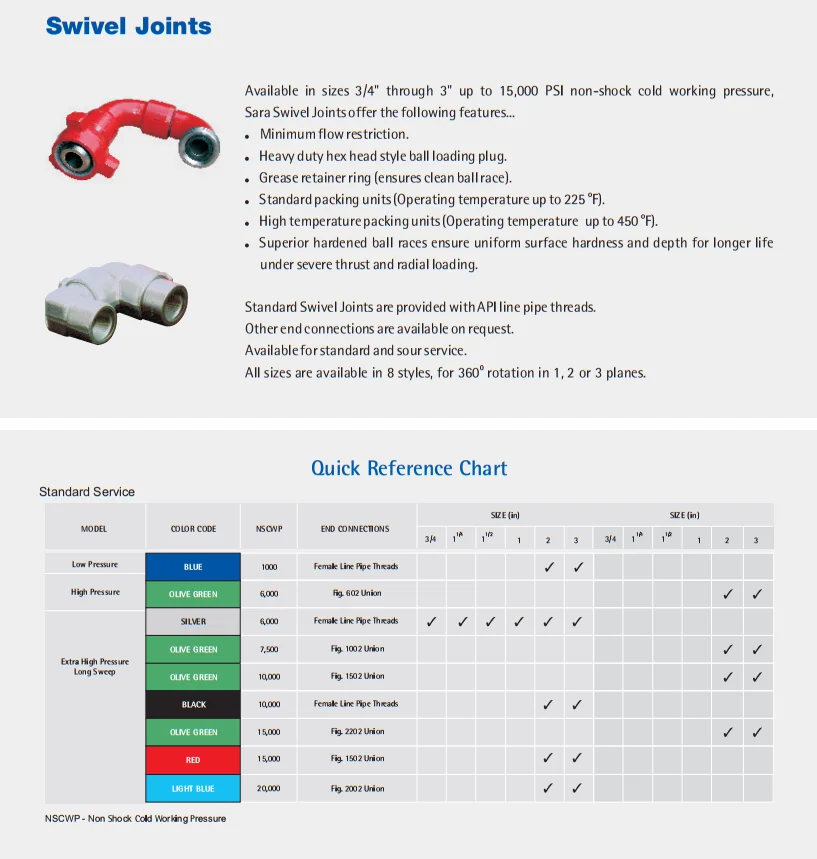

Available in sizes 3/4" through 3 " up to 15,000 PSI non-stock cold working pressure, we provide Swivel Joints with the following features.

Minimum flow restriction
Heavy duty hex head style ball loading plug
Grease retainer ring (ensures clean ball race)
Standard packing units (operating temperature to 225 °F)
Superior hardened ball races ensure uniform surface hardness and depth for longer life under severe thrust and radial loading
Standard Swivel Joints are provided with API line pipe threads
Other end connections are available on request
Available for standard and sour service

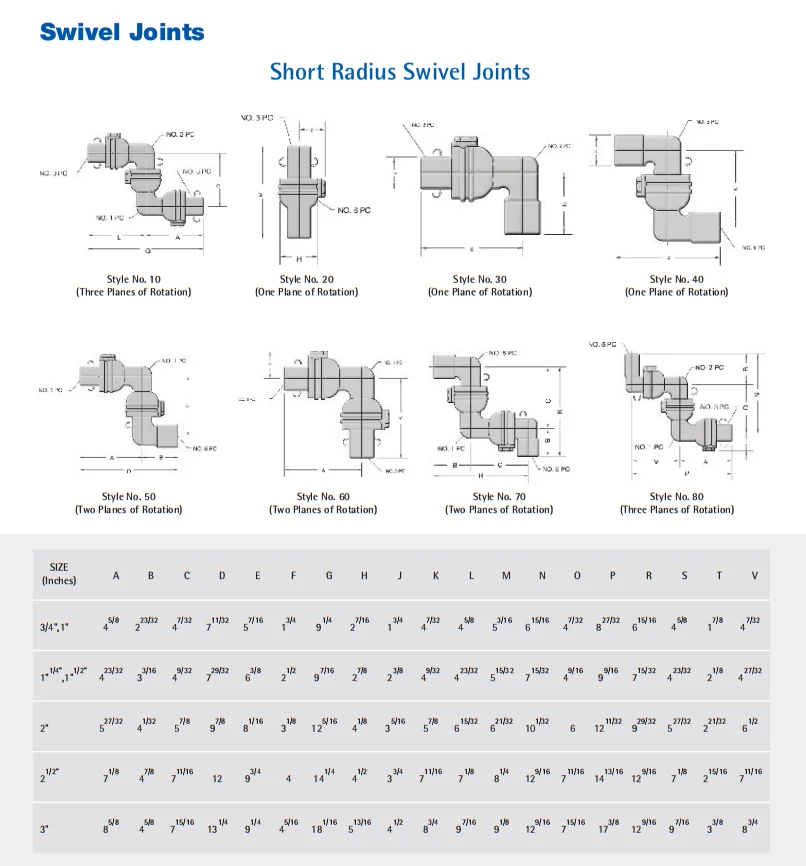

All sizes are available in 8 styles, for 360 rotation in 1, 2 or 3 planes

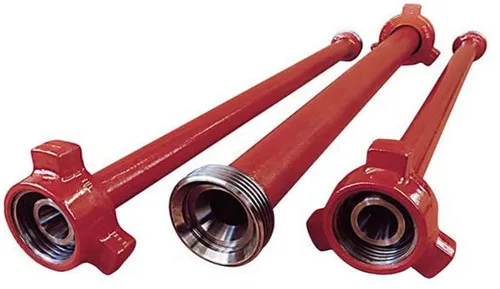

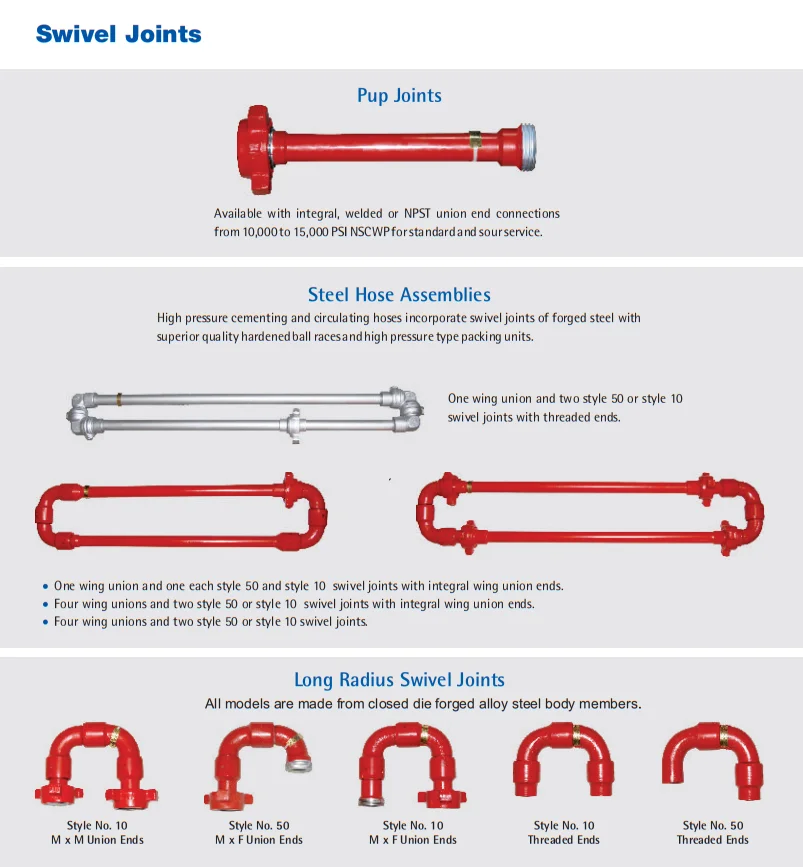

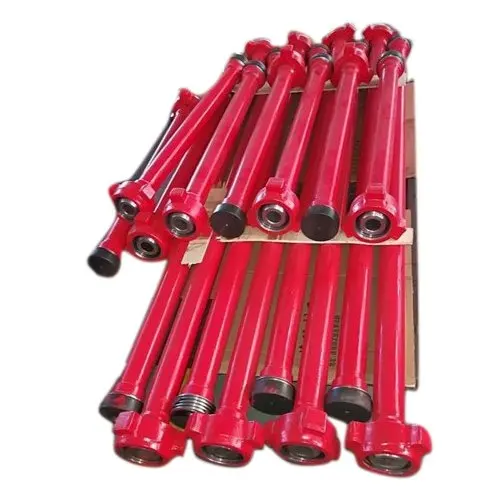

Pup Joint

Available with integral, NPST or welded union end connections from 10,000 to 15,000 PSI NSCWP for standard and sour service.

Steel Hose Assemblies

High pressure cementing and circulating hose incorporate swivel joints of forged steel with superior quality hardened ball races and high pressure type packing units.
