KDST320 2 textile natural lustre finishing machine

Product Overview

Description

KDST320-2 textile natural lustre finishing machine



Specification:



Working width:2000mm,2200mm,2500mm,2800mm

Polishing roller diameter:320mm,370mm,415mm

Heating Type:Electrothermal tube

Surface temperature range of polishing roller:5-250°c

Temperature precision:±5°c

Delivery speed:5-16m/min,with inverters to adjust speed

Rotary speed of front polishing roller:760r/min

Rotary speed of rear polishing roller:700r/min

Heating power:2*49.2KW(2000mm)   2*52.2KW(2200mm)  2*57.45KW(2500mm)  2*57.45KW(2800mm)

Total Power:121.4KW(2000mm) 127.4KW(2200mm) 137.9KW(2500mm)  137.9KW(2800mm)

Weight:5 ton

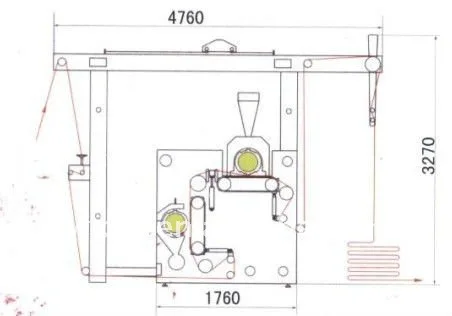

Overall dimension:

4760*4430*3270mm(2000mm) 4760*4630*3270mm(2200mm)

4760*4930*3270mm(2500mm) 4760*5230*3270mm(2800mm)

Power Requirements:Voltage:380V

Frequency:50Hz





Application:

It's suitable for polishing of wool fabric man-made fur,blankets,warp not fall cashmere,coral velvet,super soft short plush knitted fabrics.

Working Width:2000mm,2200mm,2500mm
