Product Overview

Description

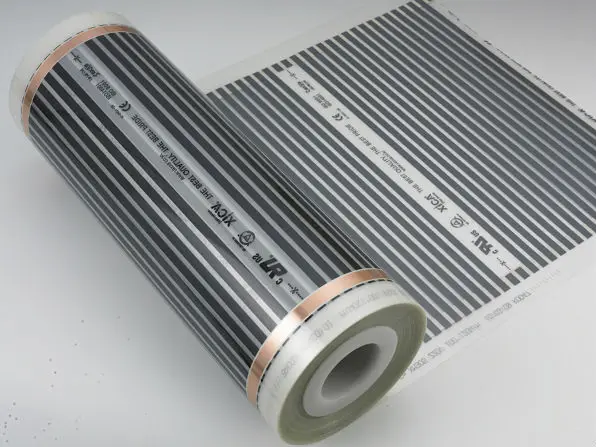

RexVa's Heating Film “XiCA”





RexVa's Heating Film Specifications



RexVa uses an eco-friendly methods for heating your home or business that are both energy-saving and cost-effective; using the most efficient heating film technology.





How RexVa’s Heating Film Works



RexVa's heating film consists of non-flammable infrared elements made from strips that are laminated to ensure that they are waterproof and eliminate any risk of sparking.



This heating film is based on the latest researches in nanoparticle technology to disperse heat evenly throughout floor spaces in a safe, controllable and stable manner.



The RexVa heating film is very flexible and can be adapted to almost any floor space regardless of shape or size, and it can be controlled by an easy-to-use thermostat.































XiCA Heating Film Features



RexVa's Heating Film has the following advantages compared to other heating methods:



1. Quiet and clean heating- Heating method without any noise, vibration or soot
2. Semi-Permanent heating system – Simple structure and high durability
4. Economical heating - Highly efficient convection heating

5. Healthy heating - Far infrared rays and anion radiation

6. Safe heating - Heating method without any combustion



In addition to this , we Rexva :

1. Achieved many certificates which can privide advanced marketing to customers .
- UL, CU, TUV, CE, RoHS ,etc. Please check the certifications in our hompage : //www.rexva.co.kr/home_en/qua02_01.php

2. Achieved many test reports, guaranteed the product quanlity .
- LVD, EMC, durability, product life, dustproof waterproof, shock, far infrared ray, negative ion ,etc. Please check the test reports in our hompage : //www.rexva.co.kr/home_en/qua03_01.php

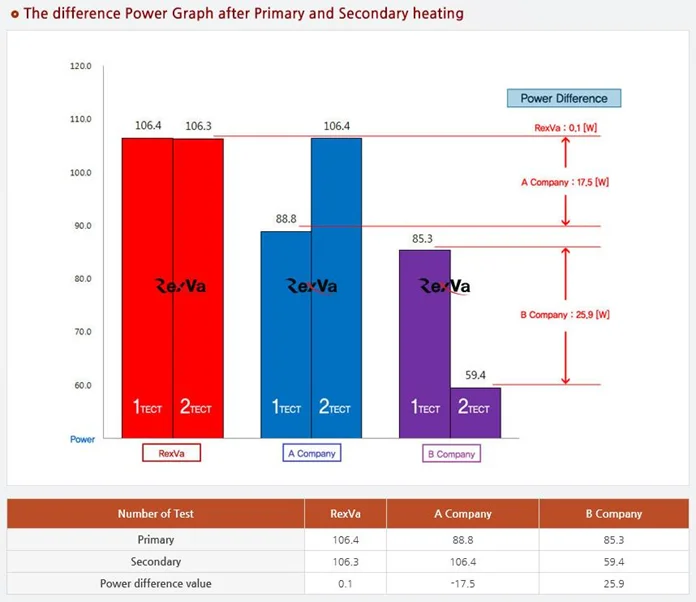

3. Heating film no resistance change due to long-term use
- Excellent technology with patent registered printing equipment
- During production , our air drying chamber can hold 70meters of hetaing film at the same time to drying of carbon and silver fully and removing the moisture in carbon , other manufacturer can only make the air drying chanmber under 10 meters . Please check the production process information in our hompage : //www.rexva.co.kr/home_en/man01_06.php
This is the reason Why heating film resistance does not change . Please refer to the life term test report in : //www.rexva.co.kr/home_en/qua03_01.php


4. Silver on heating film resistance keep stable
- Silver resistance keep stable in 0.3 ~ 0.4 Ω , in the hand , otehr companies silver resistance value are in 0.5~21.2 ohms. . Please check the silver resistance value in our hompage : //www.rexva.co.kr/home_en/man01_02.php

5. Provide the test report for each production when the product leaves the factory .
- Product Specifications
- Heat test result Please check our test instrument in homepage : //www.rexva.co.kr/home_en/tec02_01.php

6. Conducting Tensile strength test for per production roll
- Only the product rolls which can pass the Tensile Strength Test can be shipped .

7. The production capacity in the industry is the best
- Keep the production capacity to be 3 times more than other companies in one month .
- Bulk orders, early delivery available

8. Independent reseach and development of PTC carbon paste to ensure the stability and safety of the product .
- Registered patent for PTC carbon ink
- Using self-developed carbon paste formula and unique PTC carbon ink recipe . Please check our PTC ink manufacturing information in homepage ://www.rexva.co.kr/home_en/tec01_01.php







How Does it Compare to Other Heating Film Systems?



 In terms of installation method, heating method and costs, RexVa's heating film compares very well against other conventional heating methods such as fuel or gas boilers:

• It is thin, lightweight, and can be installed in a 1 day


• It does not freeze or break in cold conditions, and, in general, requires little or no maintenance


• It can heat a room in 4-10 minutes compared to 30-60 minutes for other systems


• It can save up to 60% in costs in comparison to fuel heating



XiCA Heating Film's Specifications



Below is a detailed list of the XiCA heating film products, matched with dimensions, directly available to order from RexVa through Alibaba.





Model	Width	Thickness	Packing	Weight	Power		Temp	Usage
	(Cm)	(mm)	(m/Box)	(Kg)	(w/m)	(w/sqrm)	(℃)
XT-305	50	0.338	150	37	110	220	40~50	General Heating Purpose
XT308	80		100	40	180
XT310	100		100	48	220
XM305-S	50		150	37	110
XM308-S	80		100	40	180
XM310-S	100		100	48	220
XM305-N	50		150	37	110	220
XM308-N	80		100	40	190	230
XM310-N	100		100	48	230	230
XM305-Ultra	50		150	37	110	220
XM308-Ultra	80		100	40	190	230
XM310-Ultra	100		100	48	230	230
XM305-PTC	50		150	37	110	220
XM308-PTC	80		100	40	190	230
XM310-PTC	100		100	48	230	230
XA305-PTC	50		150	37	120	240
XA310-PTC	100		100	48	240

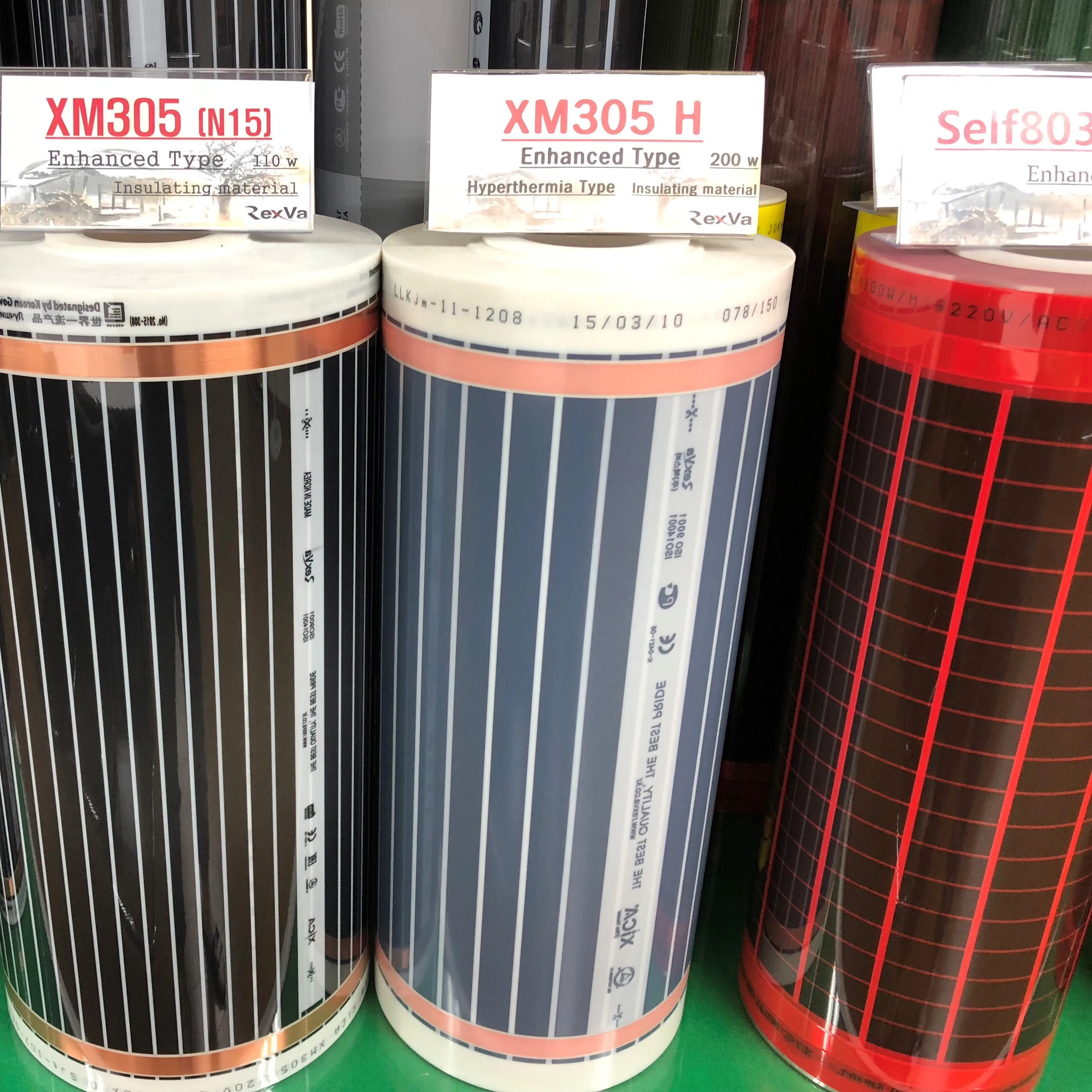

XM305 H	50		150	37	200	400		SAUNA

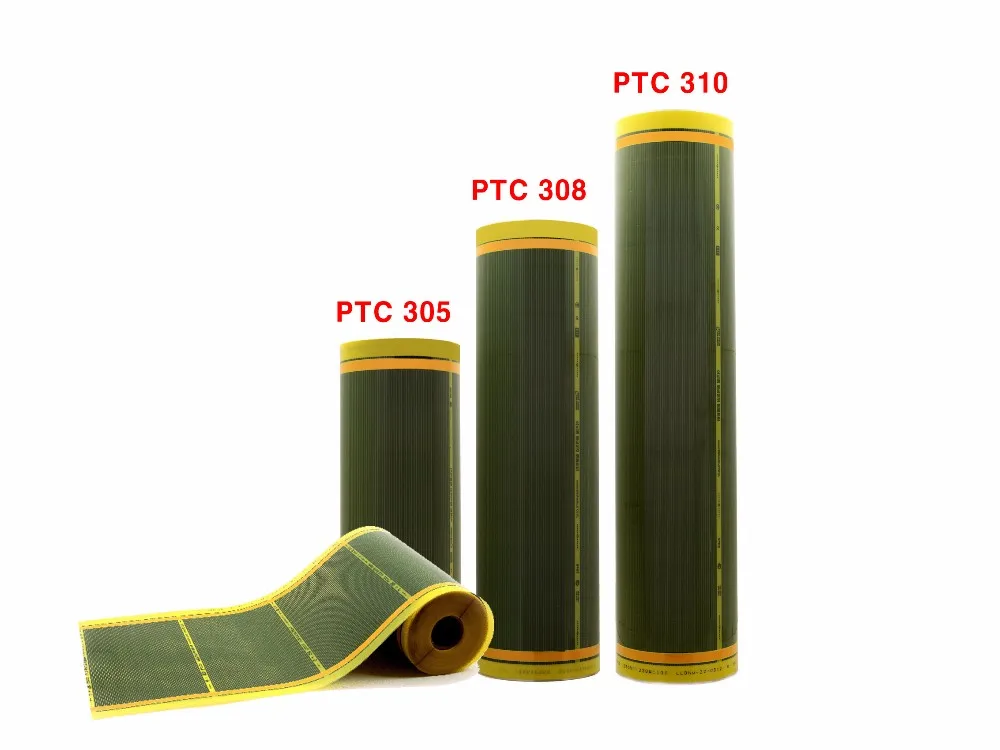

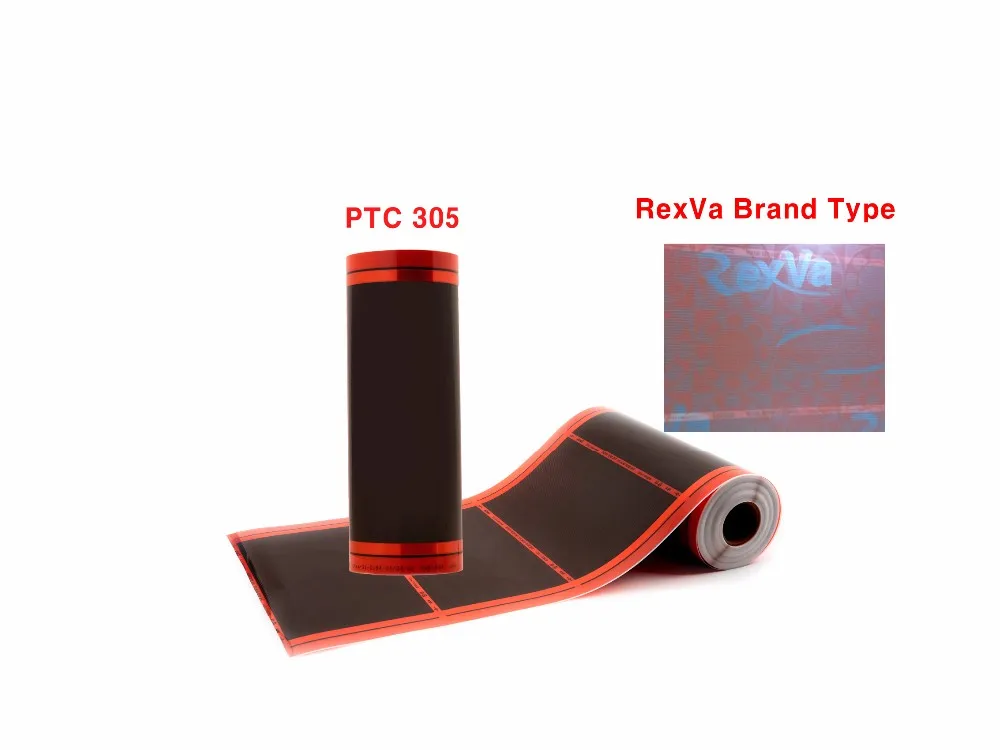

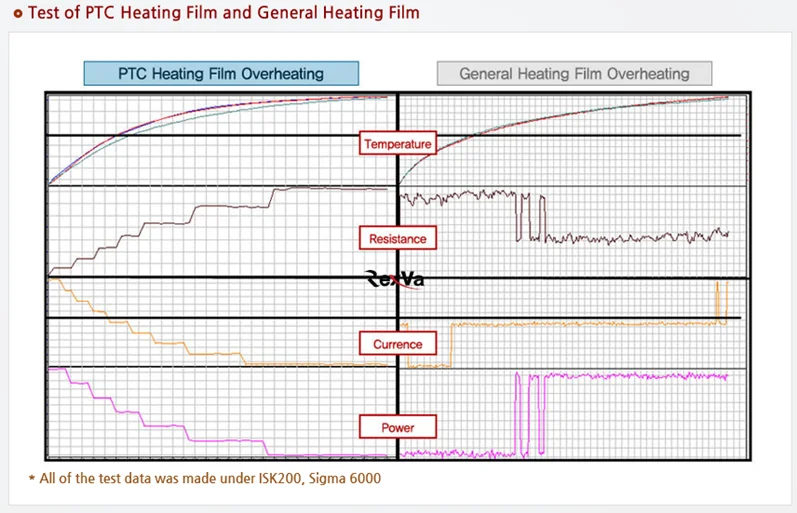

PTC Heating Film



New technologies arise to improve lifestyles.  The PTC heating film from RexVa is no different.

As detailed below, it is constructed to help regulate the temperatures of the heating film.



By being appropriately gauged for a range of temperatures, when they begin to rise or go below that pre-indicated threshold, the PTC heating film will enable re-calibration automatically.













PTC Heating Film technologies are the key for an eco-friendly heating, while you save on your on heating costs!

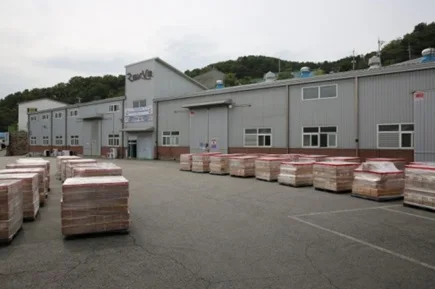

Corporate Profile



In operation since 2006, RexVa is a leading Korean heating product provider of heating films with a strong reputation for manufacturing high-quality underfloor heating systems and related products that comply with national and international safety regulations.







We have consistently promoted “Ondol Culture”, a Korean traditional method of underfloor heating, updating it to meet modern needs and demands via our current heating film line.



We are recognized internationally for the high standards of our heating film products and services and export to over 20 countries including:

• United States


• Canada


• UK


• Russia


• China

We guarantee high quality and safe products through official certifications such:

• CU


• UL (XMx0511, XMx0522, XMx0822, XMx1022)


• CE


• NRTL


• ISO9001


• ISO14001


• GOST


• Ukraine Standard



RexVa at Exhibitions



RexVa regularly participates in international exhibitions and showcases.



We hope to spread the word about how this efficient heating film systems can meet global business demands while being an eco-friendly option.
