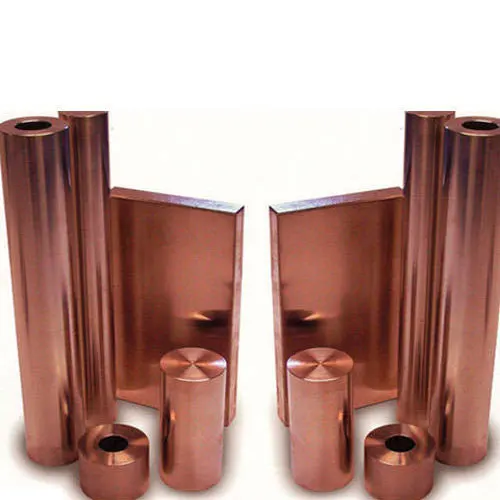

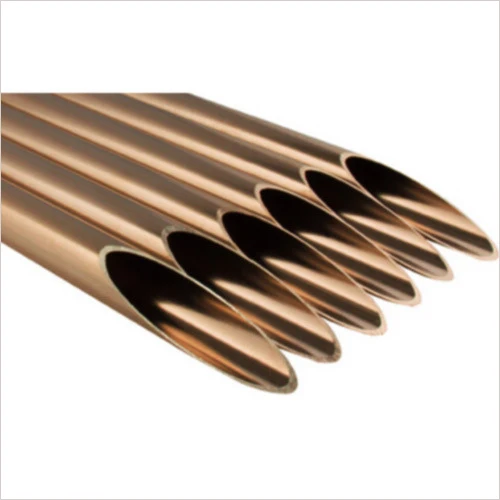

 "C70600 Copper Nickel 90/10 Tubes for refinery "



Product Description








Product Description







C70600 Copper Nickel 90/10:-









The C70600 Copper Nickel is the alloy that offer corrosion resistance in salt water environments. The alloy contains 10-30 percent of nickle with addition of iron and manganese, which are necessary to maintain resistance towards corrosion.

Typical Uses for C70600 Copper Nickel "90/10":

  • AUTOMOTIVE :  Power Steering Tube, Brake Lines

  • CONSUMER : Screw Lamp Bases

  • INDUSTRIAL : Condenser Plates, Condensers, Weld Torch Tips, Heat Exchanger Tubes, Valve Bodies, Evaporator Tubes, Pressure Vessels, Distiller Tubes, Pump Impellers for Oil Refining, Ferrules, Evaporators

  • MARINE : Boat Hulls, Tube Sheet for Salt Water Service, Salt Water Pipe Fittings, Salt Water Piping Systems, Salt Water Piling Wrap, Hot Water Tanks, Salt Water Baffles, Propeller Sleeves, Ship Hulls, Water Hoses

  • PLUMBING : Flanges





Equivelent Specifications:-





























SPECIFICATIONSDESIGNATION
ISOCuNi10Fe1Mn
EuropenCuNi10Fe1Mn
BSCN 102
JISC 7060
RussianMNZMo10-1-1


Chemical Composition:






























 CuFePbMnNiZn
Min/MaxRem1.0 - 1.80.0519.0 - 11.01
Nominals88.61.4--10-


Specification:



















































End ProductSpecification
BarASTM B151, B122, MILITARY MIL-C-15726
Pipe, SeamlessASME SB466, ASTM B466
Pipe, WeldedASME SB467, ASTM B608, B467
PlateASTM B122, MILITARY MIL-C-15726
Plate, CladASTM B432
Plate, Condenser TubeASME SB171, ASTM B171, SAE J463, J461
RodASTM B151, MILITARY MIL-C-15726
Rod, WeldingAWS A5.15
SheetASTM B122, MILITARY MIL-C-15726, SAE J463, J461
StripASTM B122, MILITARY MIL-C-15726
Tube, CondenserASME SB111, ASTM B552, B111, MILITARY MIL-T-15005, SAE J463, J461


Fabrication



















































Joining TechniqueSuitability
BrazingExcellent
Butt WeldExcellent
Capacity for Being Cold WorkedGood
Capacity for Being Hot FormedGood
Coated Metal Arc WeldingGood
Gas Shielded Arc WeldingExcellent
Machinability Rating20
Oxyacetylene WeldingFair
Seam WeldGood
SolderingExcellent
Spot WeldGood


Physical Properties:































































Product PropertyUS CustomaryMetric
Coefficient of Thermal Expansion9.5 ·10-6 per oF (68-572 F)17.1 ·10-6 per oC (20-300 C)
Density0.323 lb/in3 at 68 F8.94 gm/cm3 @ 20 C
Electrical Conductivity9 %IACS @ 68 F0.053 MegaSiemens/cm @ 20 C
Electrical Resistivity115.0 ohms-cmil/ft @ 68 F19.12 microhm-cm @ 20 C
Melting Point - Liquidus2100 F1149 C
Melting Point - Solidus2010 F1099 C
Modulas of Elasticity in Tension18000 ksi124000 MPa
Modulus of Rigidity6800 ksi46880 MPa
Specific Gravity8.948.94
Specific Heat Capacity0.09 Btu/lb/oF at 68 F377.1 J/kg · oK at 293 K
Thermal Conductivity26.0 Btu · ft/(hr · ft2·oF)at 68F45.0 W/m · oK at 20 C


Sizes Available:































HOLLOW RODSMin Bore Size 20 mm and Max OD 100 mm
ROUND RODS8mm To 100 mm
HEX10mm To 60mm
SQUARE10mm To 60mm
FLAT10mm Min Thickness and max Width 120mm
BILLETSUp to 200 mm
INGOTSAs per Specification
