Rods Brass Bars C62400 Aluminum Bronze Is Alloy IN;7903232 3 Meters up Hexagonal C360 Three Extrusions

Share on (50018363491):


Price:$9.50 - $10.00

Quantity:


Product Overview

Description

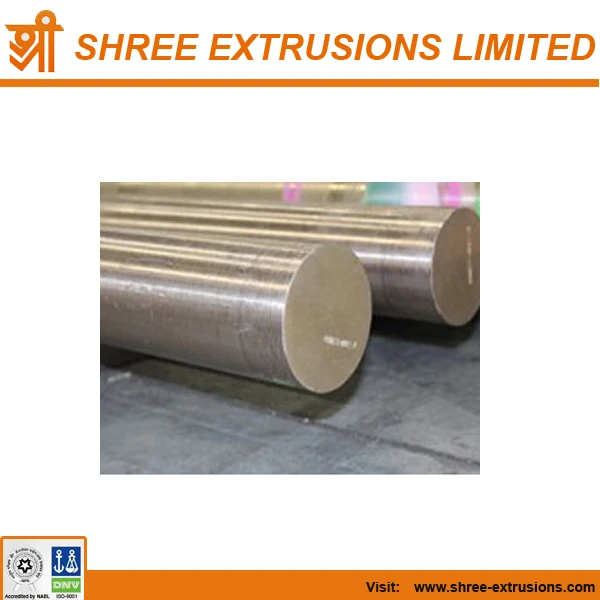

" C62400 Aluminum Bronze Rods  "



Product Description








Product Description







C62400 Aluminum Bronze






The aluminum bronze C62300 and C62400 is used while manufacturing valve and pump components for industrial process streams, marine equipment, high strength fasteners and pole line hardware.



Applications :-


  • Fasteners : Nuts, Bolts

  • Industrial : Gears, Bearing Races, Valve Stems, Worm Gears, Valve Guides, Valve Seats, Bearings, Bushings, Cams, Pump Rods

  • Marine: Marine Hardware



Chemical Composition:






























 AlCuFeMnSiSn
Min (%)10.0 - 11.5Rem2.0 - 4.50.30.250.2
Max (%)11.000086.00003.0000---


Specifications :



















End ProductSpecification
ForgingsSAE J463, J461
RodASTM B150
Rod, WeldingAWS A5.7


Fabrication:























































Joining TechniqueSuitability
BrazingFair
Butt WeldGood
Capacity for Being Cold WorkedPoor
Capacity for Being Hot FormedExcellent
Coated Metal Arc WeldingGood
Forgeability Rating80
Gas Sheilded Arc WeldingGood
Machinability rating50
Oxyacetylene WeldingNot Recommended
Seam WeldGood
SolderingNot Recommended
Spot WeldGood


Physical Properties































































Product PropertyUS CustomaryMetric
Coefficient of Thermal Expansion9.0 ·10-6 per oF (68-572 F)16.2 · 10 6? per °C (20-300 C)
Density0.269 lb/in3 at 68 F7.45 gm/cm3 @ 20 C
Electrical Conductivity12 %IACS @ 68 F0.07 MegaSiemens/cm @ 20 C
Electrical Resistivity86.4 ohms-cmil/ft @ 68 F14.36 microhm-cm @ 20 C
Melting Point Liquid US1900 F1038 C
Melting Point Solid US1880 F1027 C
Modulas of Elasticity in Tension17000 ksi117000 MPa
Modulas of Rigidity6400 ksi44130 MPa
Specific Gravity7.457.45
Specific Heat Capacity0.09 Btu/lb/°F @ 68 F377.1 J/kg · °K at 293 K
Thermal Conductivity34.0 Btu · ft/(hr · ft2 ·°F) @ 68 F58.8 W/m · °K at 20 C


Sizes Available



























ROUND RODS8mm To 70 mm
HEX10mm To 60mm
SQUARE10mm To 60mm
FLAT10mm Min Thickness and max Width 120mm
BILLETSUp to 200 mm
INGOTSAs per Specification






Company Information








About Us







Established in the year 1989, Shree Extrusions Limited has earned a prestigious position as a manufacturer, supplier and exporter of Extruded Profile in Non Ferrous Metals. Our never-ending list of products includes Aluminum Bronze Rods, Nickel Silver Wire, Aluminum Bronze, Copper Alloy and Brass Rod. Moreover, we also offer Brass Wire for Leaded Ball Pen Tip, Nickel Silver Wire for Ball Pen Tip, Brass Wire, Aluminum Silicon Bronze Rod and Naval Brass. We have been able to earn the accolades of many renowned organizations such as Govt. of India Ministry Defense, Hindustan Shipyard Ltd, Naval Dockyard and Ship Building Centre owing to the international level of quality.

Though, our products are acclaimed worldwide but we have built a strong client base in Asian Countries. Our well established infrastructural setup is located in Jamnagar, Gujrat. The use of latest technologies such as Spectrometers (spark as well as ERF X-Ray Fluorescence) and Electronic & Computerized UTM makes us offer world-class quality products. The entire range products offered by us are valued for its excellent performance, longer service life, economical prices and high tensile strength. These are mostly used in architectural fittings, hardware, electric components, forged components, industrial valves, defense components and pump rods. We fabricate our range of products using high-grade raw material such as virgin non ferrous metals, scraps and turning.

Our mentor, Shri Radheshyam L. Kabra has more than 35 years of experience in the domain, enabling him to proficiently manage our organizational activities. Under his able guidance, we have been able to achieve enviable market credibility.






Our Vision:



“Backed by top notch technology and proven track record in various industries of the world Shree Extrusions Ltd., vision future needs & supplies wide range of products.”


Prouct Podrtfolio:



We have emerged as a top-notch company engaged in manufacturing, supplying and exporting of aluminium extruded profiles in non ferrous alloys. Our entire range includes Brass Wire for Leaded Ball Pen Tip, Nickel Silver Wire for Ball Pen Tip, Brass Wire, Aluminum Silicon Bronze Rod and Naval Brass. We even offer, Aluminum Bronze Rods, Nickel Silver Wire, Aluminum Bronze, Copper Alloy and Brass Rod. These are fabricated using high-grade raw material such as virgin, scrap and turning and can be customized as per the requirements of our customers. All our products are widely used in architectural fittings, hardware, electric components, forged components, industrial valves, defense components and pump rods. The range of extruded non ferrous metals available with us is preferred over others due the following features:

  • Corrosion resistance

  • Enhanced durability

  • High conductivity ( Brass Rod)

  • Optimum fluidity (Brass Ingot & Billet)

  • Ability to function with perfection even in high temperatures

  • Excellent tolerance(Mechanical Brass Part)






Product Range








Product Range

ljjlkproduct range.png





Certifications









Certifications & Achievements















We offer finest range of extruded non ferrous metals & metal profiles, which are appreciated all through the Asian countries. Due to hard-work and premium quality products, we have earned the certificates & approvals from the following prestigious organizations:

  • Govt. of India Ministry Defense

  • Our Laboratory has been approved by SQAE(AR), Mumbai

  • Garden Reach Shipbuilders & Engineers Limited, Calcutta

  • Material Organization Mumbai, Vishakhapatanam, Khambhalia

  • Hindustan Shipyard Ltd., Vishakhapatanam

  • Mazagon Dock Limited, Mumbai, India

  • Naval Dockyard, Mumbai

  • Ship Building Centre, Vishakhapatanam








Quality Assurance



Our constant endeavor, to be a niche player in our work, sets us above from others. Each of our products go through stringent checks and controls at various stages. The cornerstone of our success lies in a proactive management & excellent product quality. We use high-grade raw material sourced from authentic vendors of the market. Our quality-testing lab is approved by SQAE (AR), Mumbai and is has modern equipment and facilities that ensure flawlessness of our products. Our facilities consist of:

  • Spectrometers (spark as well as ERF X-Ray Fluorescence)

  • Electronic and Computerized UTM

  • Impact Testing Machines with photography

  • Microscopy with photography



Repeat orders from our clients speak volumes about our consistency in quality & performance. Our team of quality controllers conduct stringent quality tests & control mechanisms based on the following parameters:

  • Raw material used

  • Preciseness

  • Corrosion resistance

  • Durability



Owing to our state-of-the-art production & quality assessment facility, we have been able to complete our bulk orders within the committed time period and without any compromise on quality. We have been able to build a strong client base in Asian countries and have attained huge market credibility.















Contact Us








Contact Us





















Shree Extrusions Limited



Contact Person :
Pratik Kabra (CEO)

Address : No. 217/218, G. I. D. C., Phase 2, Okha Rajkot Road
Jamnagar - 361004, Gujarat, India


Call Us : 08071681757












Areas of Application








Industrial Applications
