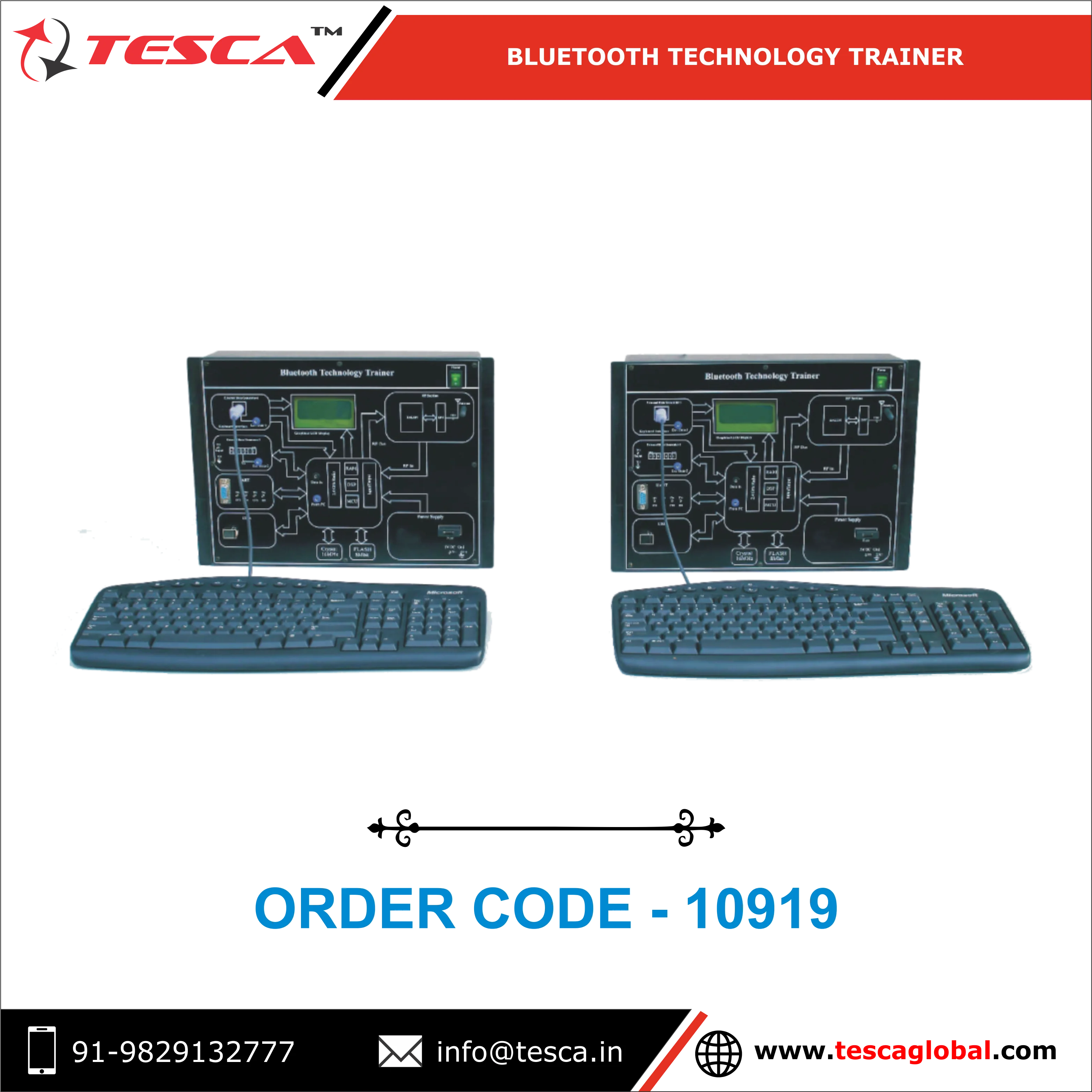

Bluetooth Technology Trainer
Order Code - 10919
Specification
Bluetooth Technology Trainer
Order Code - 10919

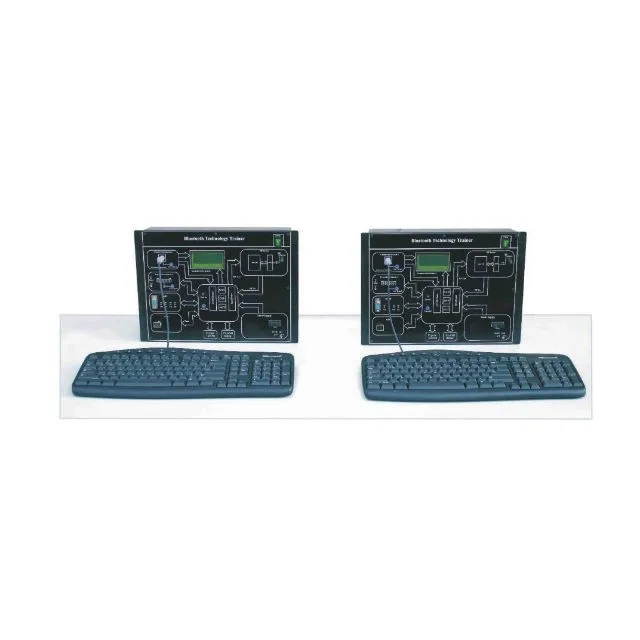

The Bluetooth Technology Trainer, is designed considering the International Communication Standards. It is helpful for students and researchers in the field of RF and IT engineering to understand the basic concepts of Bluetooth Technology. Based on Class 2 Bluetooth System having range up to 10 meters and is fully compliant for Data Communication. It consists of two identical modules and any one of these can be selected as a Master or Slave for Communication. This Training System can be connected to PC for operation and execution of Bluetooth AT Commands. Bluetooth standard AT commands can be run on the graphical LCD display also with the help of keyboard.
*Graphical LCD display
*Bluetooth enabled devices detection
*Designed considering all the Communication Standards
*Data Generator is provided on-board
*User friendly software
*Equipped with UART & USB port
*Computer independent Training System
*Test points are provided to observe signals
Technical Specifications
Carrier Frequency : 2.40 GHz to 2.48 GHz
Bandwidth : 80 MHz
Modulation : GFSK, 1Mbps
No. of Channels : 79
Channel Intervals : 1 MHZ
Frequency Hopping : 1600 hops / sec
Transmission Power : +4dBm max (2.5mW)
Transmission Range : 10 meter approximate
Output Interface : UART and USB
Power Supply : 230V ±10%, 50 Hz
Operating Voltage : 5V
Operating Temperature Range : - 20°C to 85°C
Antenna : Whip Antenna
Scope of Learning
Study the functioning of Bluetooth Trainer
Pairing of Slave unit with Master unit using software
Study of AT commands
Data Communication using UART
Data Communication using USB
Study of Communication using internal data
Study of RF signals
