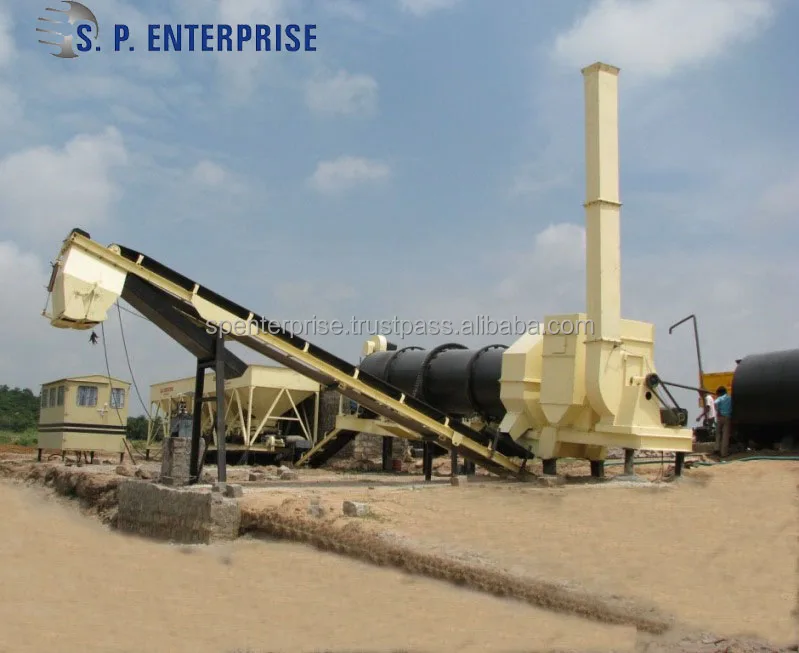

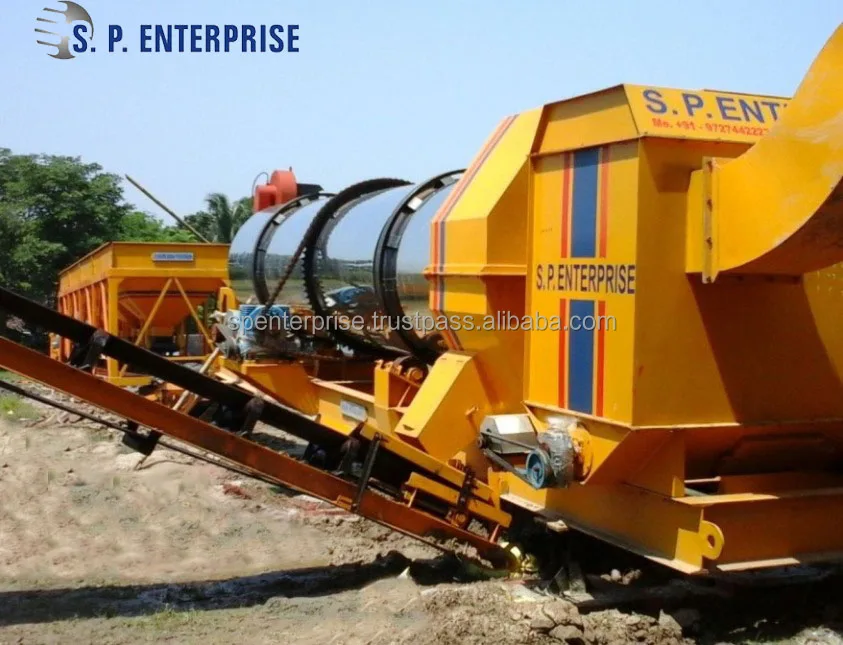

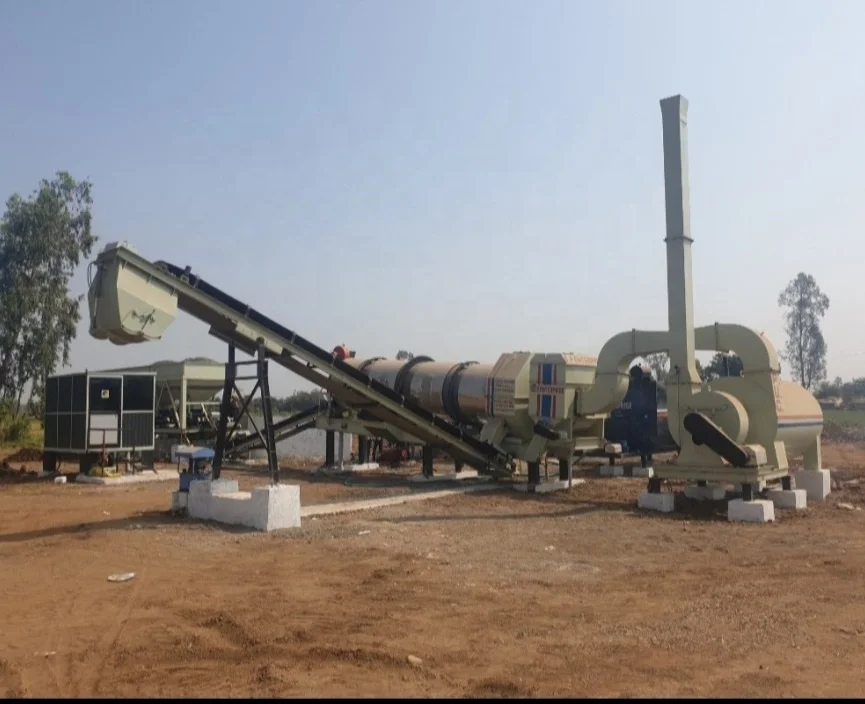

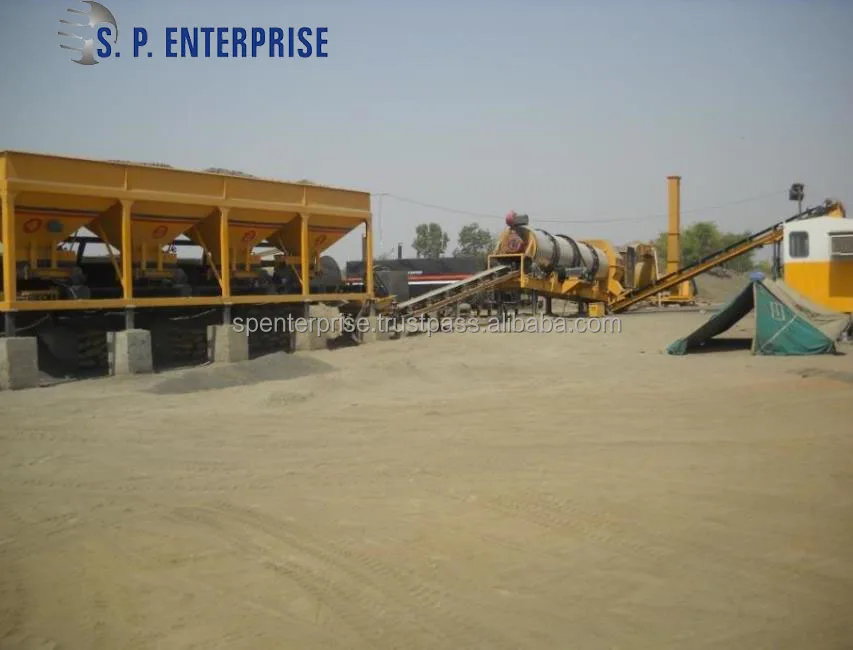

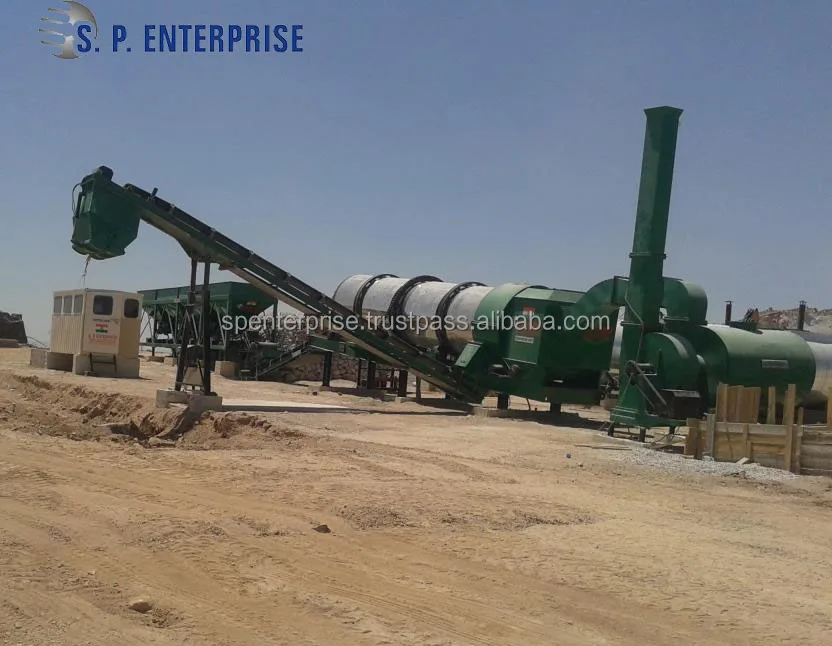

Energy Efficient SDM 30 Hot Mix Plant, 30 40 tph capacity
- Category: >>>
- Supplier: S P ENTERPRISE
Share on (50019013371):
Product Overview
Description
Products Description
Hot Mix Plant - 30 tph to 40 tph capacity, Model: SDM-30
Hot Mix Plant Features:
Our Asphalt Drum Mix Plants are available in Stationary & Mobile (Portable) versions.
These are manufactured as per the international market standard to produce best quality hot mix material with low dust emission and at low fuel consumption.
They are fully automatic as per modern drum mix technology and operated by user friendly electronic control panel.
Its modular construction ensures ease of operation & maintenance.
Our Asphalt Drum Mix Plants are available in Stationary & Mobile (Portable) versions.
These are manufactured as per the international market standard to produce best quality hot mix material with low dust emission and at low fuel consumption.
They are fully automatic as per modern drum mix technology and operated by user friendly electronic control panel.
Its modular construction ensures ease of operation & maintenance.
Product Specifications
MODEL | SDM-30 | |
Rated Output Capacity | 30-40 TPH | |
COLD AGGREGATE FEEDER BINS | ||
No. of Bins | 4 | |
Total Storage Capacity | 28 tons | |
Bin Auxiliary Conv. Belt Drive Motor | 1.5 HP x 4 Pole – 4 nos. | |
Bin Auxiliary Conveyor Belt Size | 450 mm x 3 ply | |
Bin Auxiliary Conveyor Gear Box | 20:1 – 4 Nos. | |
Gathering Conveyor Belt Size | 500 mm x 3 Ply | |
Gathering Conveyor Drive Motor | 5.0 HP x 4 Pole | |
Gathering Conveyor Gear Box | 20 : 1 | |
Bin Vibrator Motor | 1.0 HP | |
SINGLE DECK VIBRATORY SCREEN | ||
Drive Motor | 1.0 HP | |
SLINGER (COLD) CONVEYOR | ||
Conveyor Drive Motor | 5.0 HP x 4 Pole | |
Conveyor Gear Box | 5:1 | |
Conveyor Belt Size | 500 mm x 3 Ply | |

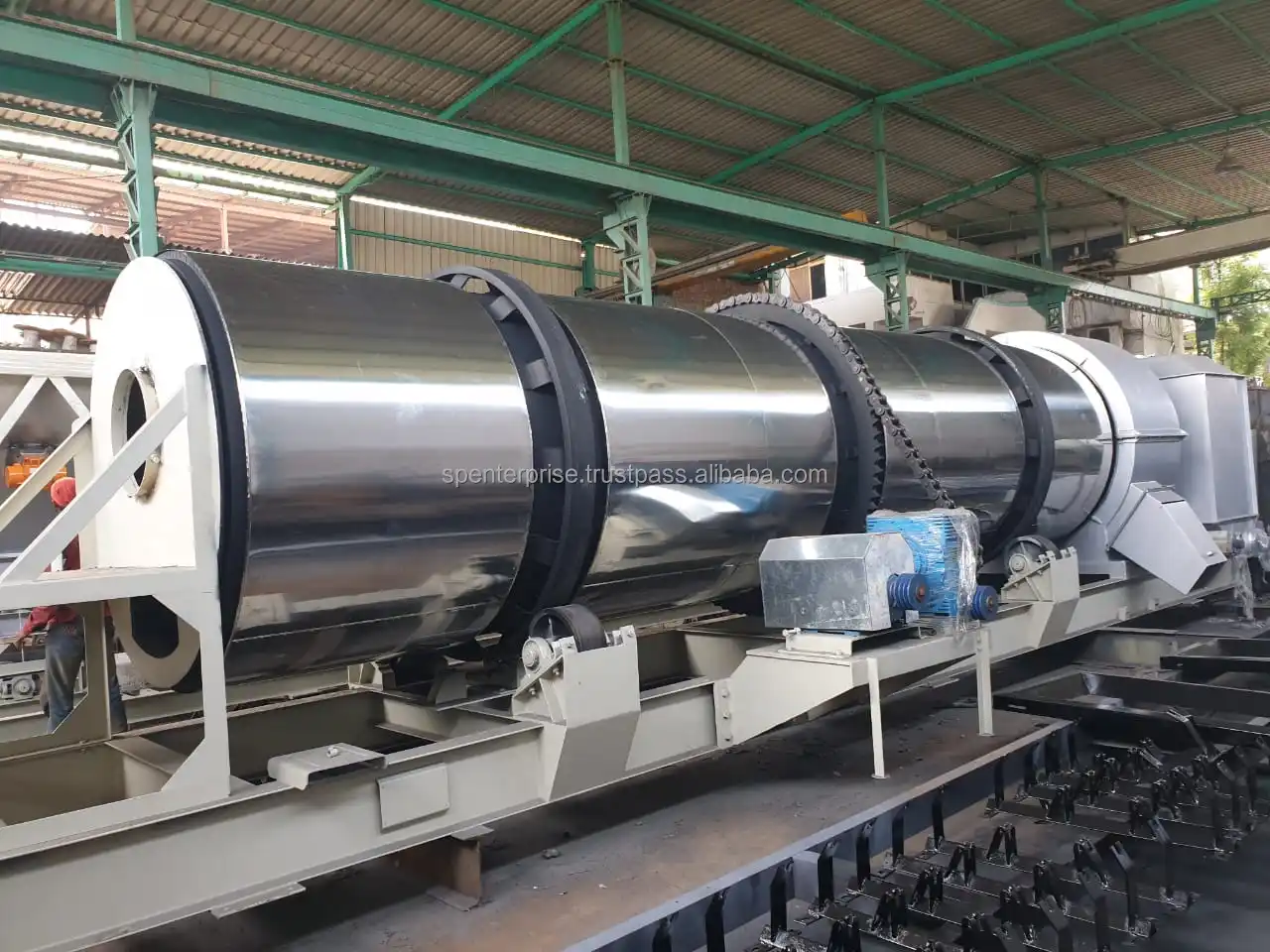

DRYING CUM MIXING (THERMODRUM) UNIT | ||
Thermodrum Diameter | 1000 mm | |
Thermodrum Length | 5500 mm | |
Thermodrum Drive Motor | 15.0 HP X 4 Pole | |
Exhaust Drive Motor | 15.0 HP X 4 Pole | |
Dust Collector Screw Motor | 1.0 HP x 4 Pole | |
LOAD OUT CONVEYOR | ||
Conveyor Belt Size | HR 500 mm x 3 Ply | |
Conveyor Drive Motor | 5.0 HP x 4 Pole | |
Conveyor Drive Gear Box | 13 : 1 | |
Gob Hopper Capacity | 800 Kgs. | |
Hydraulic Power Pack Motor | 2.0 HP | |

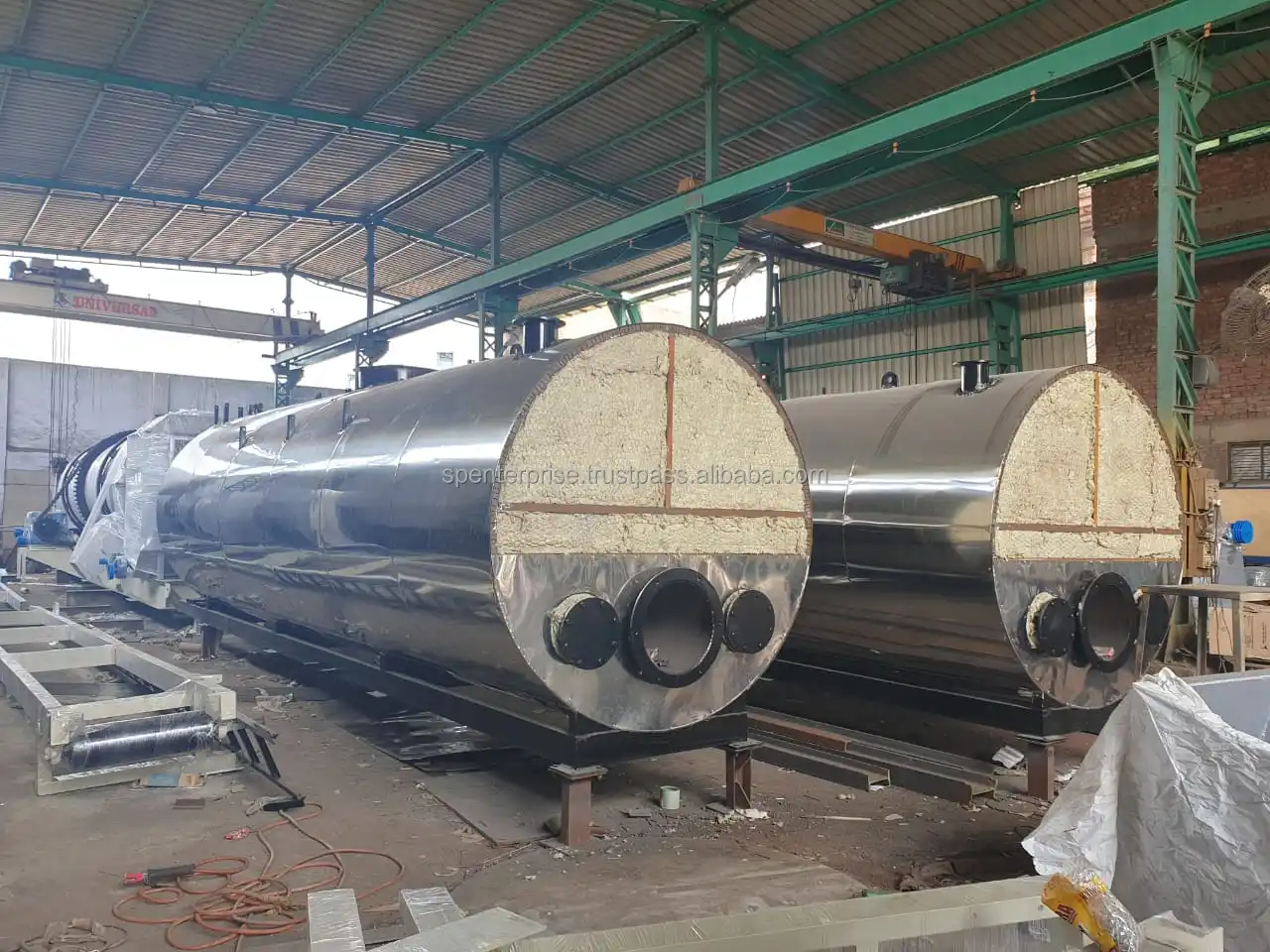

BITUMEN TANK | ||
Tank Capacity | 12,000 Ltrs. | |
Bitumen Pump Drive Motor | 3.0 HP x 4 Pole | |
MINERAL FILLER UNIT | ||
Drive Motor | 1.5 HP x 4 Pole | |
Hopper Capacity | 0.8 Cum | |
Air Blower | 3.0 HP | |
FUEL STORAGE TANK | 2500 Liters | |
TOTAL CONNECTED HP | 75 HP | |
RECCOMMENDED D.G. SET | 80 KVA | |
OPEN LAND REQUIRED | 35 m. x 30 m. | |
POWER SUPPLY | 415 V / 380 V, 50 Hz / 60 Hz, 3 Phase, A.C. | |
Note: Due to continuous development policy, specifications are subject to change. | ||
Plant Components
Product Range
Asphalt Drum Mix Plant
Wet Mix Macadam Plant
Asphalt Paver
Bitumen Sprayer Truck
Trolley Bitumen Sprayer
Concrete Batching Plant
Customer Photos
Company Profile
S.P. Enterprise is ISO 9001:2015 certified manufacturers and exporters of Road Construction Equipments like Asphalt Plant, Asphalt Paver, Bitumen Sprayer, Road Broomer, Chip Spreader, Concrete Batching Plant etc.
Certifications
FAQ
FAQ
1. What is the acceptable payment terms? A. Confirmed Letter of Credit or T/T
2. What is the deliver period?
A. Our standard delivery period is 30 days on ex-works basis.
3. What are the price basis?
A. Prices are on FOB Indian Seaport basis nearest to our company. We also offer on CIF & CFR basis.
2. What is the deliver period?
A. Our standard delivery period is 30 days on ex-works basis.
3. What are the price basis?
A. Prices are on FOB Indian Seaport basis nearest to our company. We also offer on CIF & CFR basis.
