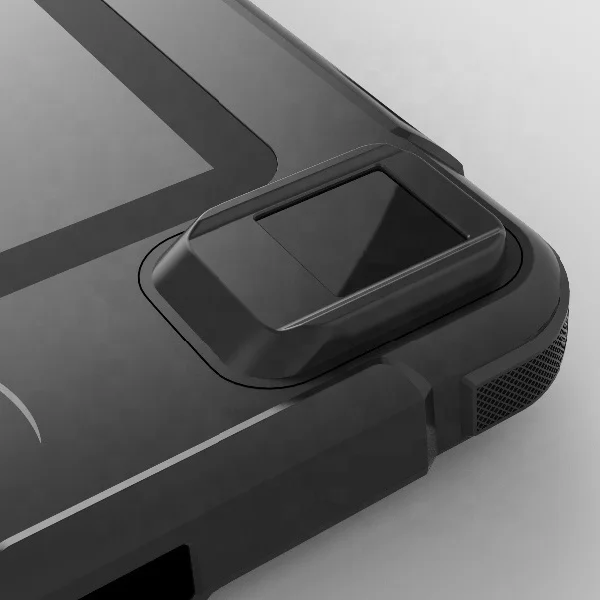

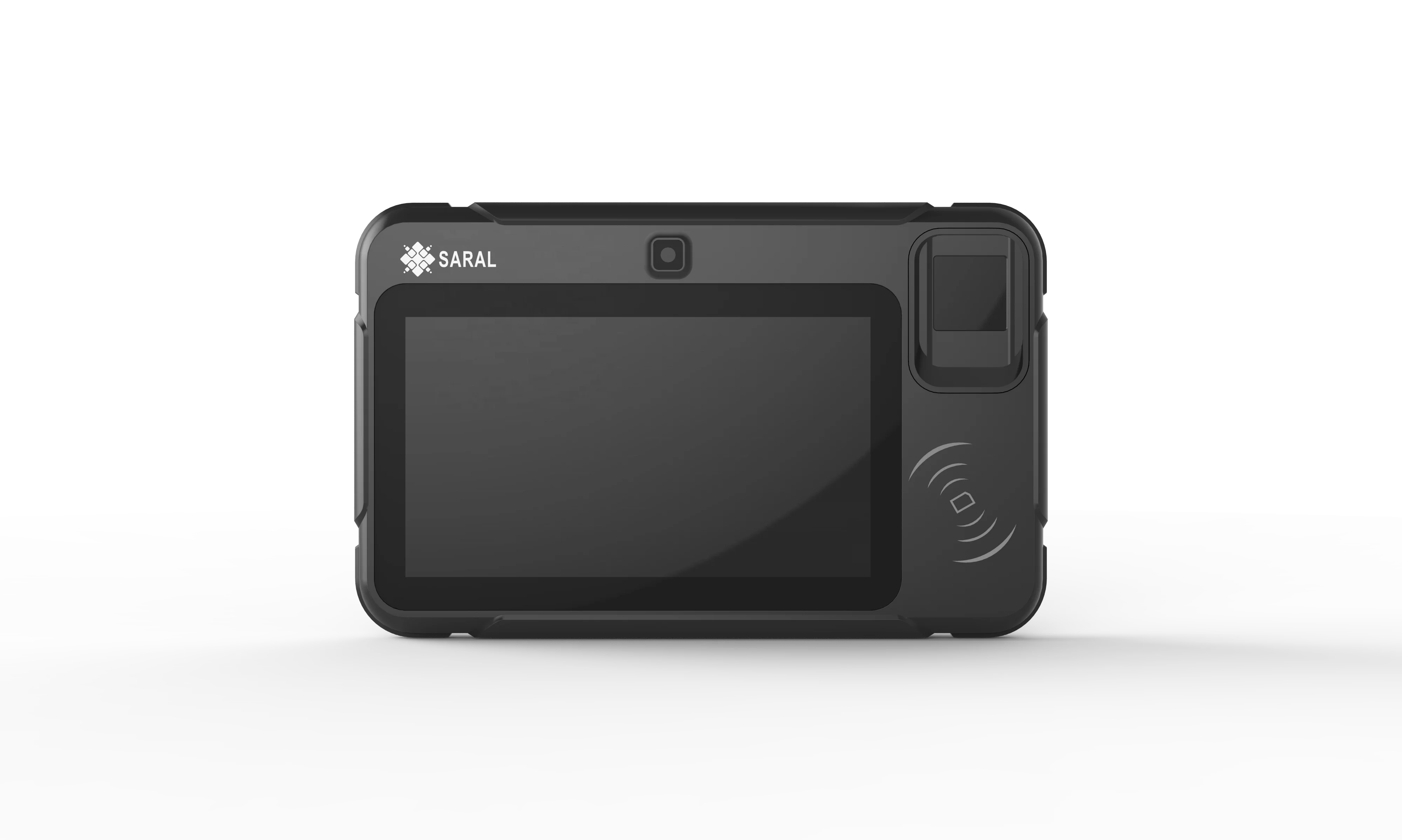

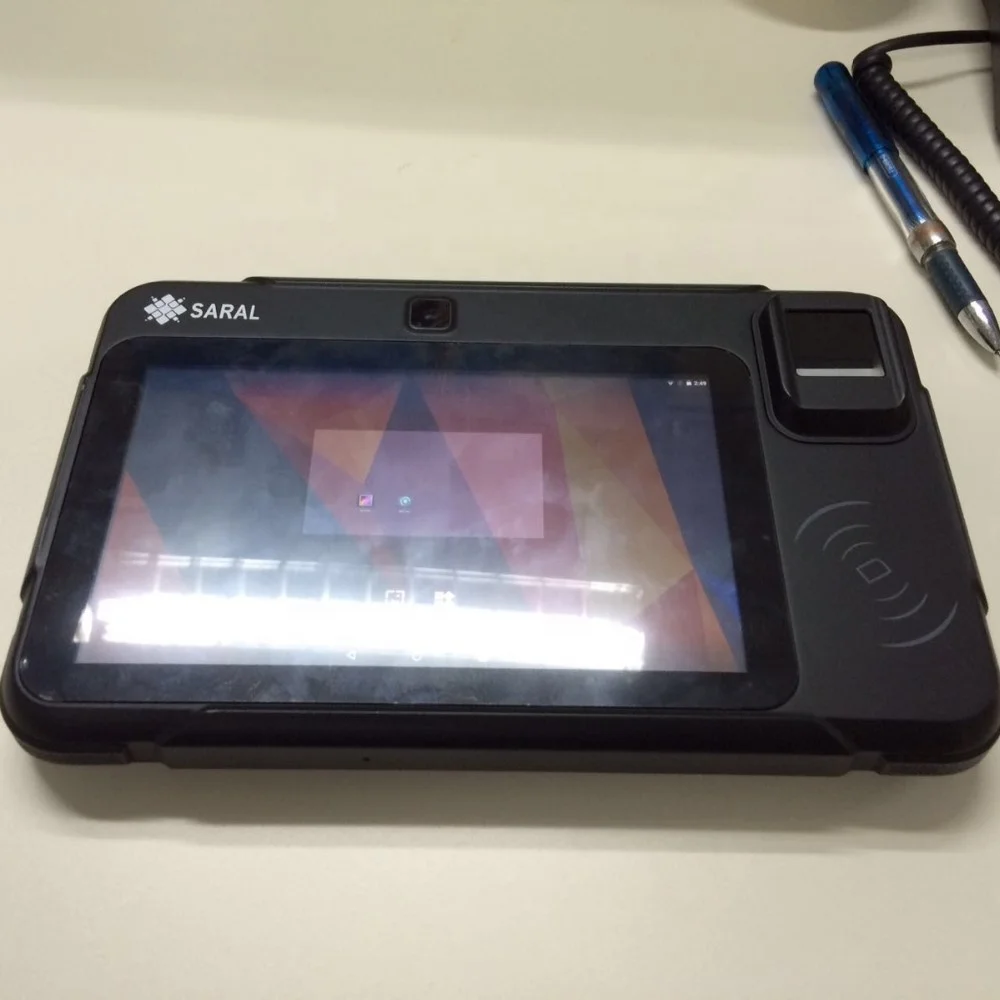

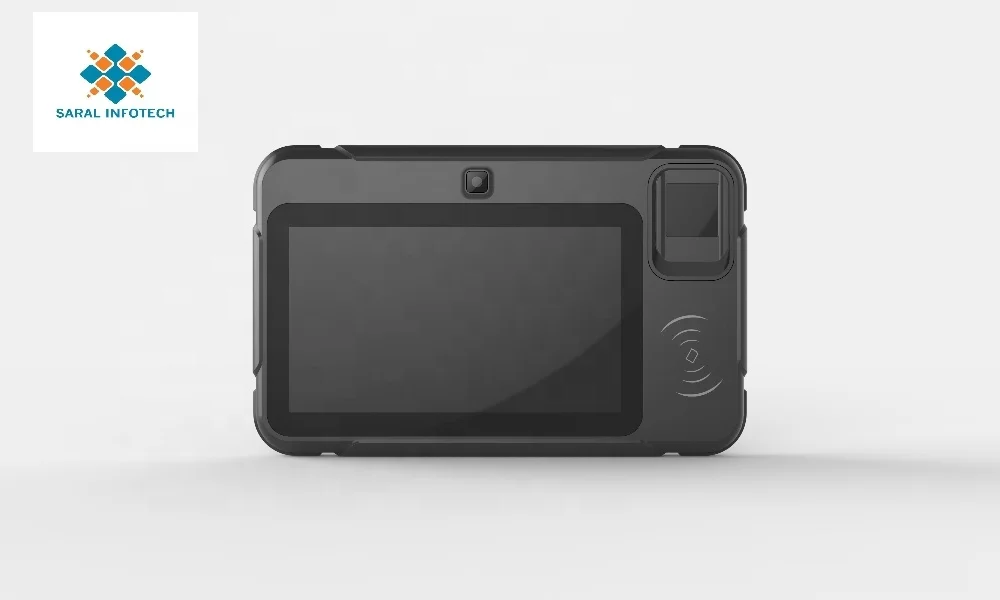

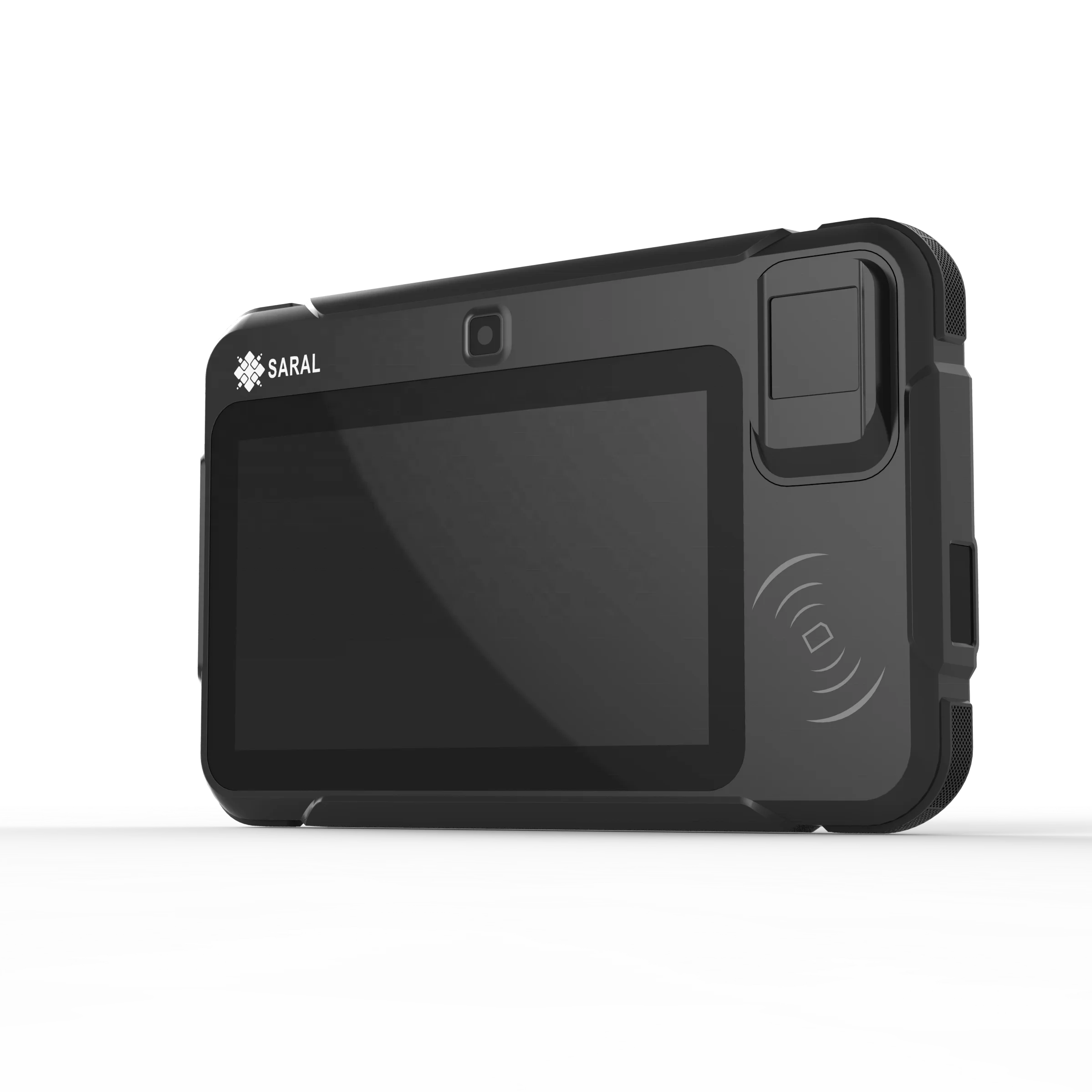

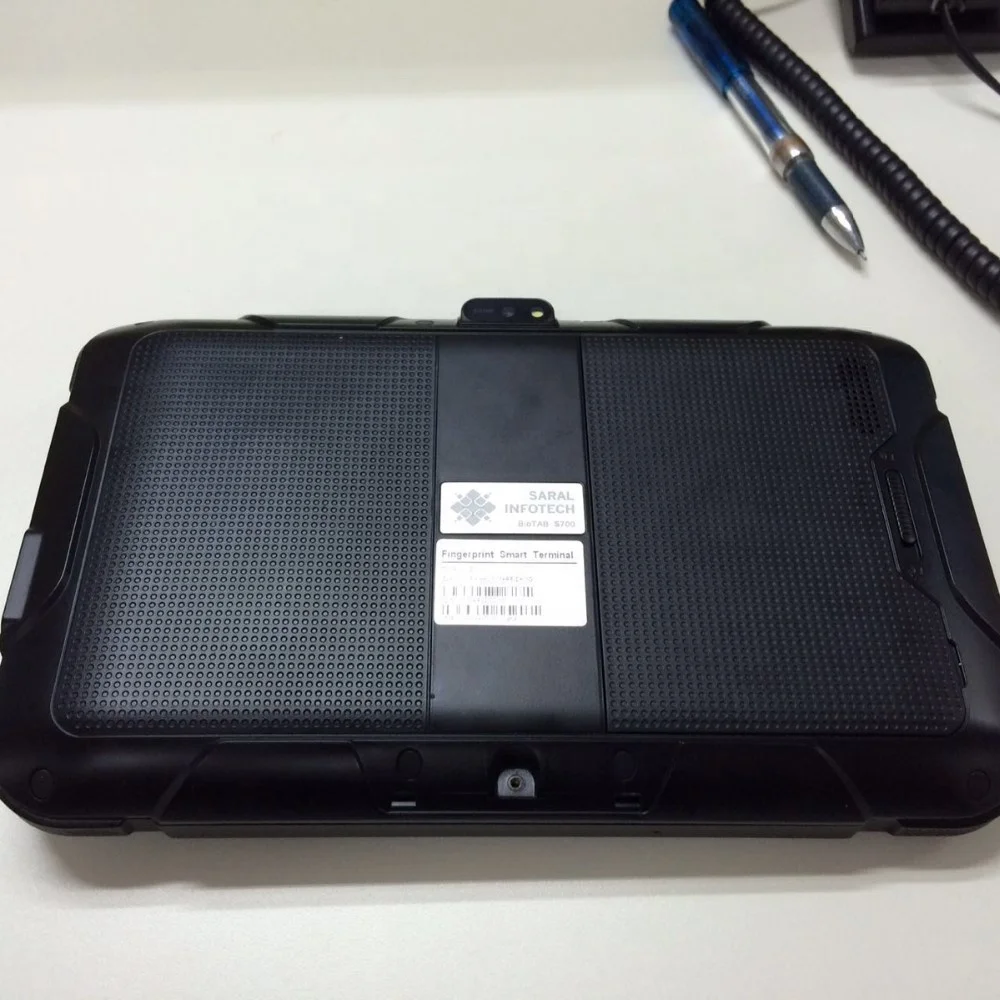

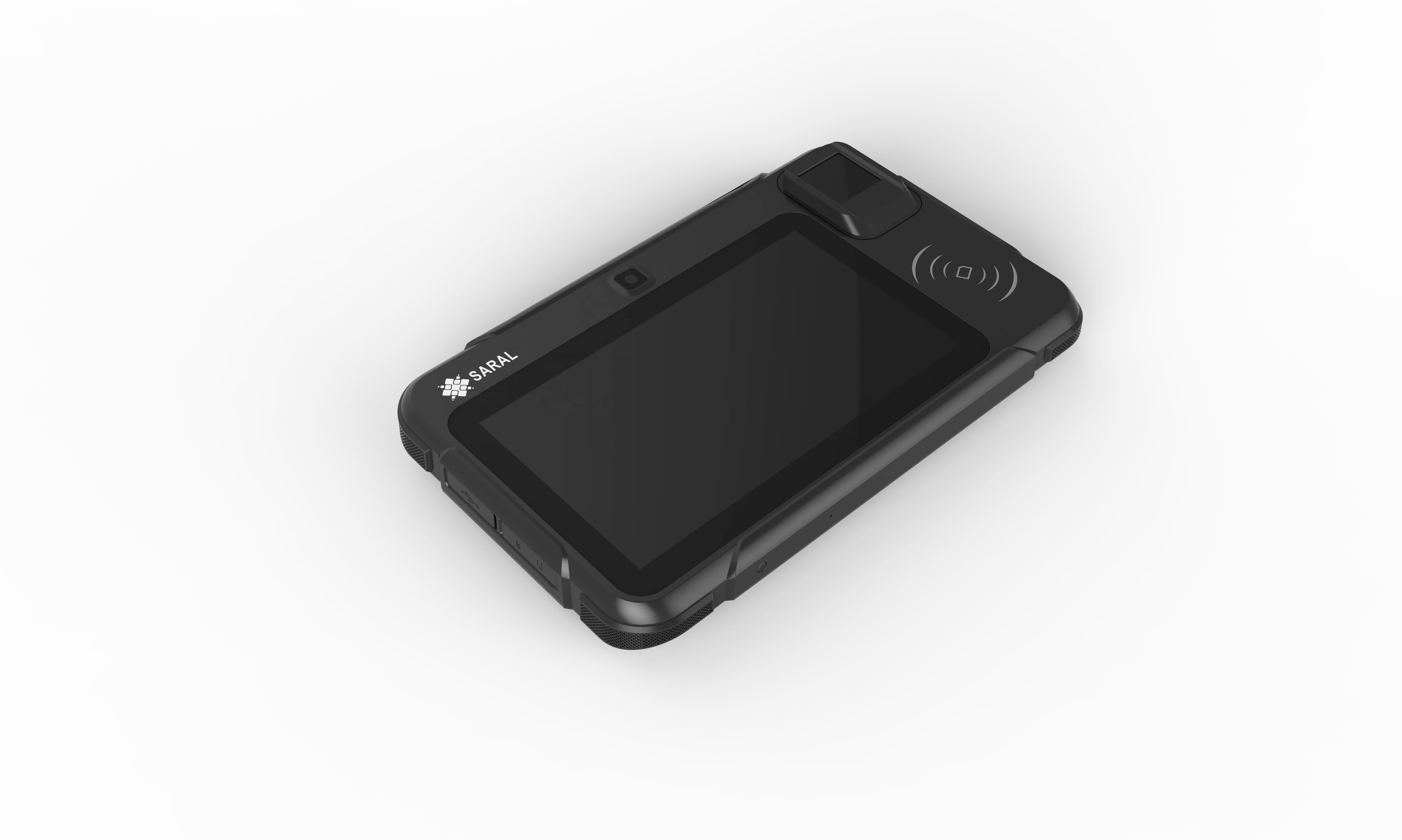

Biometric fingerprint reader with 10,000 mAH Powerful battery

General Specifications:

Screen

G+G Capacitive Multi-Touch screen

Screen Size

7.0"

Resolution

1280*800 HD IPS

System OS

Android 5.1 OS

CPU

1.3Ghz Quad core

NAND Flash + SRAM*

8GB Flash + 1GB SRAM

Optional: 16GB Flash + 2GB SRAM

Camera*

Standard: front (200w) back (500w)

Optional: front (500w) back (1300w)

TF

Maximum 32GB

Power*

6000/10000 mAH

Power Replace

Support

3G*

WCDMA

SIM Card

Dual SIM

WIFI

802.11 b/g/n/a

Bluetooth

v 4.0

GPS/AGPS*

Support

USB

MicroUSB (USB 2.0, OTG)

Data Transfer

Mini USB, UART

Product Dimension

233.4(L) x 146.2(W) x 28.2(H)mm

Net Weight

620 grams

Gross Weight

780 grams

Options

NFC, 2D barcode Module

Capture Mode

Touch

Sensor Type

Optical

Image Size

300 x 400 pixels

Platen Size

18.2 mm x22.9 mm

Effective Sensing Area

15.24 mm x 20.32 mm

Resolution

500 dpi

Matching

1:1, 1:N

Supported Standards

ANSI INCITS 378, BioAPI, FIPS 201 and FAP 20 (PIV-071006) , ISO/IEC 19794-2, ISO/IEC 19794-4, SP 800-76

Card Type

ID card or S50, S70, Ultralight, Mifare Pro, Mifare Plus, Mifare Desfire

Reading Distance

0 - 5 cm

Reading Time

< 1s

Rotation

360®

Rotary angle

±50®

Tilt angle

±50®

Visual angle

Horizontal 37.5®, Vertical 24.5®

Ambient Light

0-100000 LUX

Supported Code System

Two Dimensional barcode PDF417, Data Matrix, QR Code, One Dimensional barcode

ID card

Floating population

Public Security

Internet Bar

Education

Social Security

Endowment insurance

Temporary Entrance

Entertainment

Hotel

Senior member

Mobile payment

Retail shopping

Hospital

Post

Government
