Цифровой IC тренажер (TTL) (для проверки истины таблицы логических ворот) макетная плата тренажер
- Category: Educational Equipment >>>
- Supplier: TESCA TECHNOLOGIES PRIVATE LIMITED
Share on (50019249643):
Product Overview
Description
Products Description

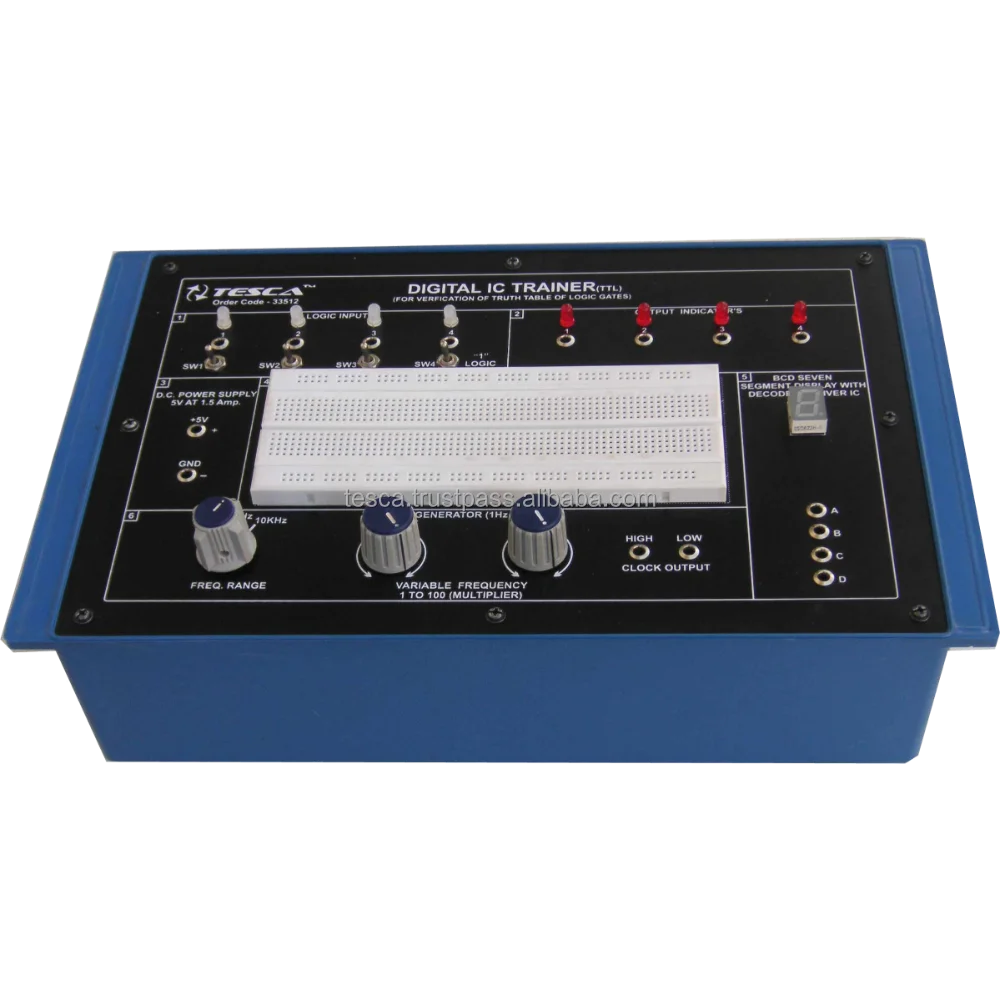

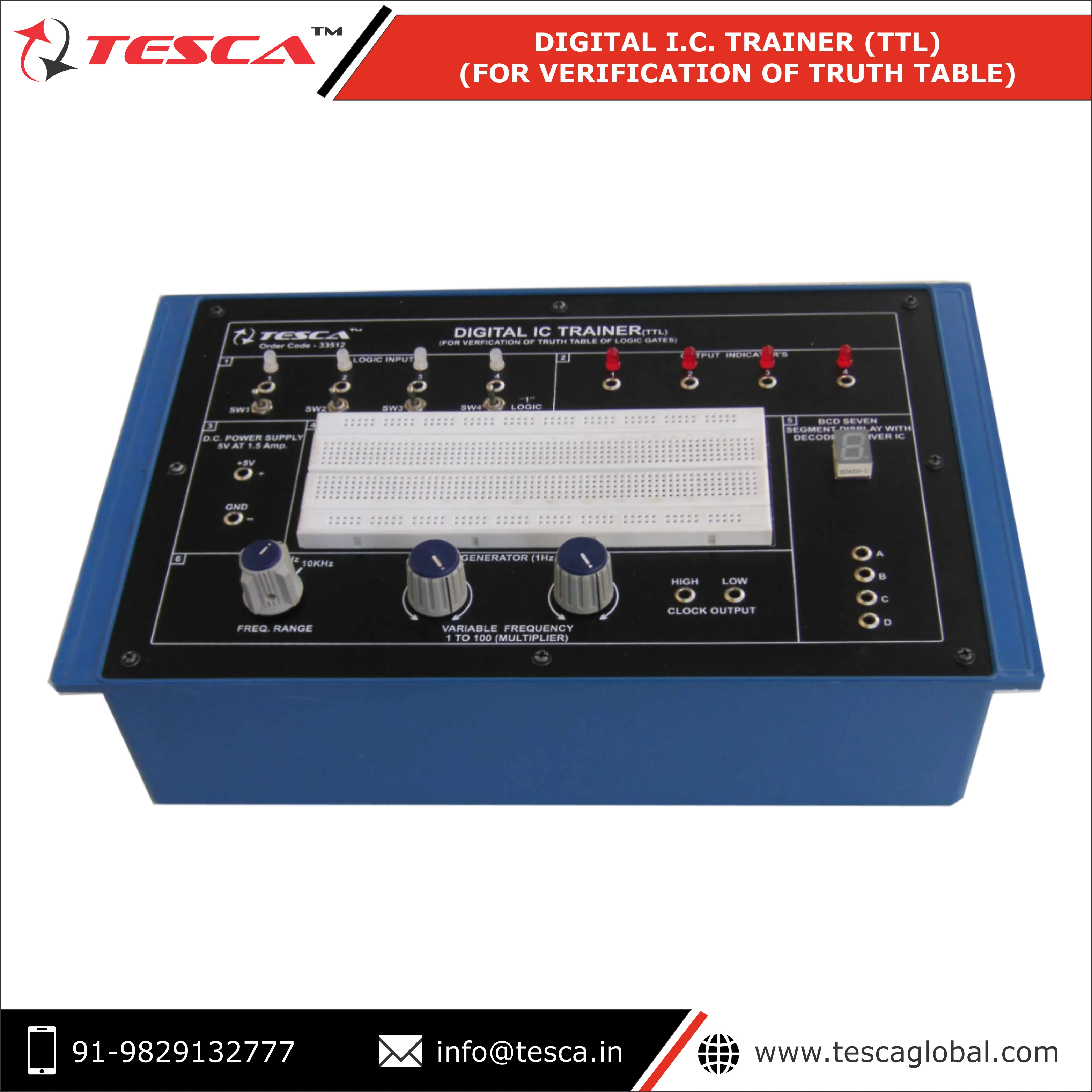

Digital I.C. Trainer (TTL) (for verification of Truth Table)
Specification
Digital IC Trainer (TTL) has been designed for verification of the truth table of logic gates and address etc. Students can be trained about the digital ICs by using this board. The fundamentals of the digital ICs can easily be understood by performing required experiments for verification of truth table of logic gates. Quite large area of the bread board has been provided on the panel for ICs. Students can make the circuits easily on the bread board with the help of other accessories which have been provided on the panel.
Practical experience on this board carries great educative value for Science and Engineering Students.
SPECIFICATIONS
* OUTPUTD.C. VOLTAGE : Fixed 5V ±1%.
* OUTPUTCURRENT : 1.5 Amp.
* LOAD REGULATION : ±1% of the highest specified output voltage. (NO LOAD TO FULL LOAD)
* RIPPLE AND NOISE : less than 5 mV.
* VARIABLE CLOCK FREQUENCY : 1 Hz -100 Hz, 100 Hz -10 KHz, 10 KHz - 1 MHz
* LOGIC INPUTS : Four switches for High/Low.
* OUTPUTINDICATORS : Two 5 mm bright Red LEDs.
* SEVEN SEGMENT DISPLAY : “Common Anode” type Red LED.
* BREAD BOARD : Half main strip for connections & : One full main strip each set for ICs.
* OPERATING CONDITIONS : 0 to 40°C and 95% R.H. at 40°C.
* LOGIC GATES PROVIDED : OR (7432), AND (7408), NOT (7404) NAND (7400), NOR (7402) & EX-OR
(7486)
* EXTRAFEATURES : Other ICs can also be used to perform required experiments with any gates/address etc.
* INPUT VOLTAGE : 230 V ±10% at 50 Hz A.C. Mains.
* Strongly supported by detailed Operating Instructions, giving details of Object, Theory, Design procedures, Report Suggestions and Book References.
