Product Overview

Description



Products Description

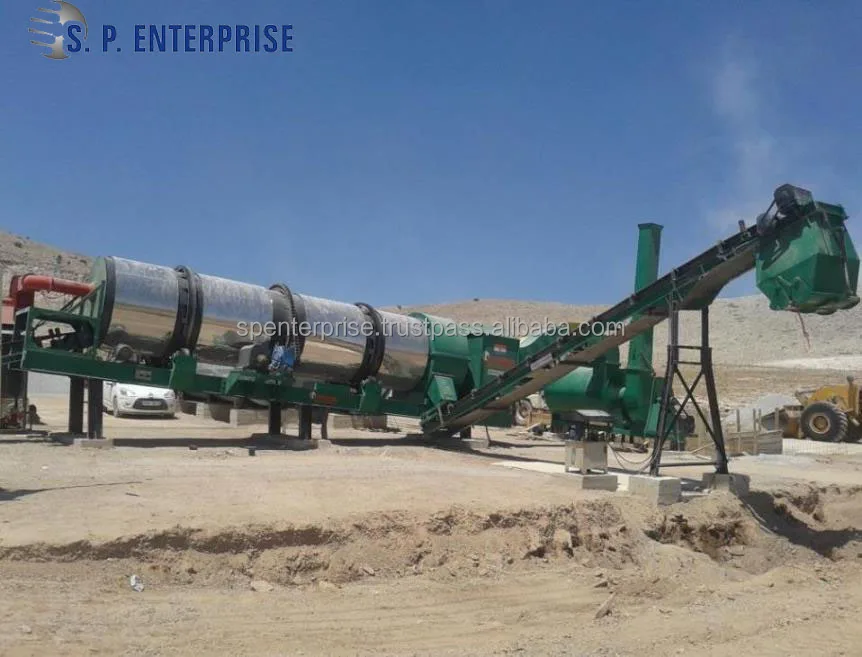

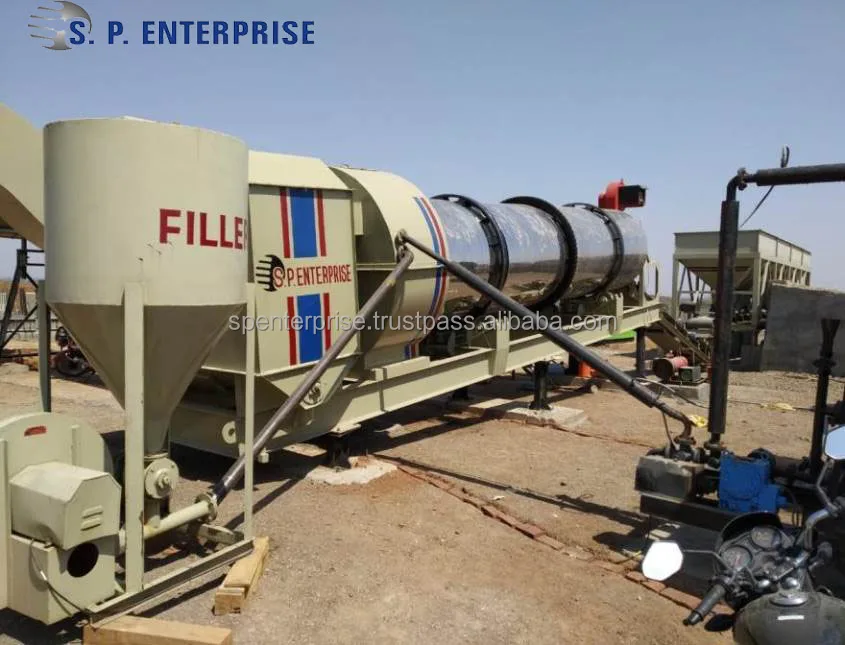

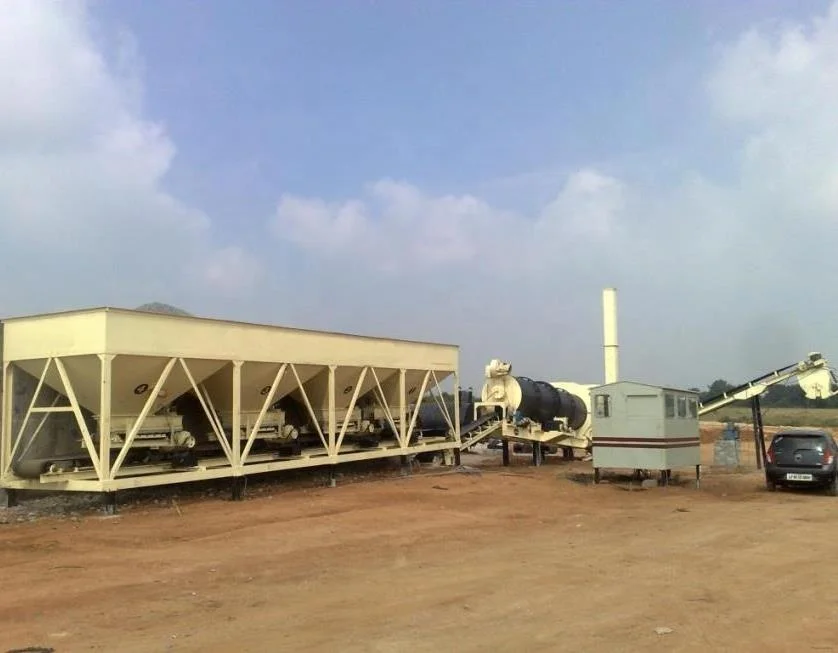

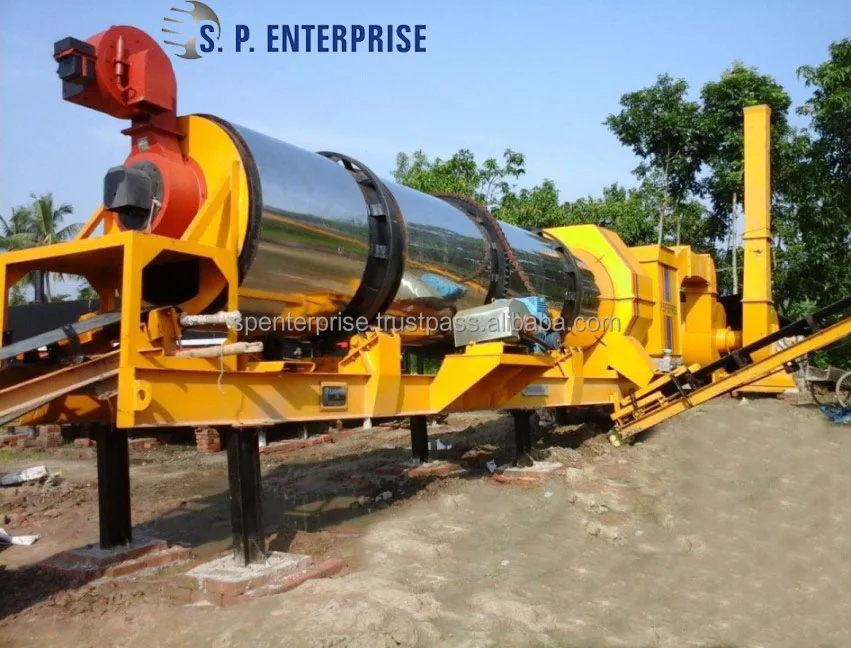

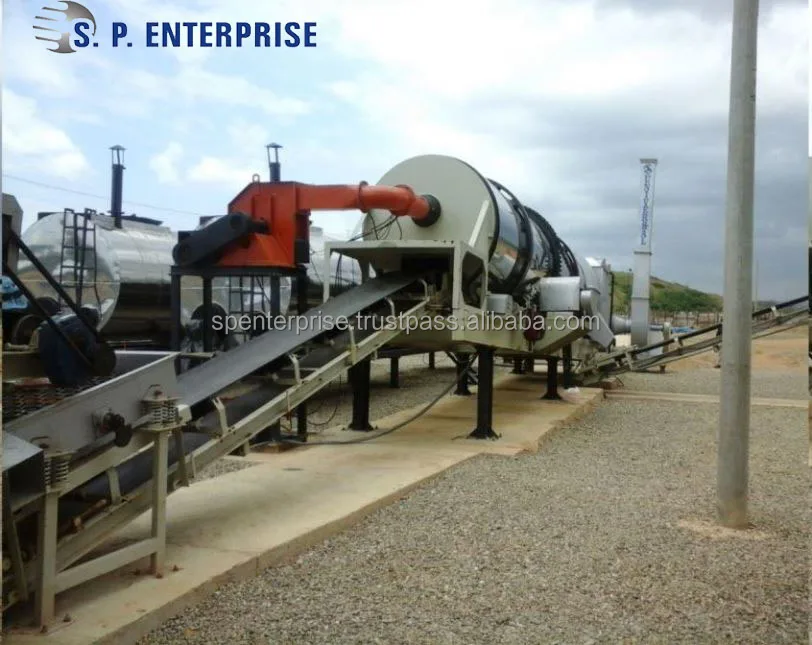

Continuous type Asphalt Mixing Plant- 30 TPH capacity

Our Asphalt Drum Mix Plants are available in Stationary & Mobile (Portable) versions. These are manufactured as per the international market standard to produce best quality hot mix material with low dust emission and at low fuel consumption. They are fully automatic as per modern drum mix technology and operated by user friendly electronic control panel. Its modular construction ensures ease of operation & maintenance.

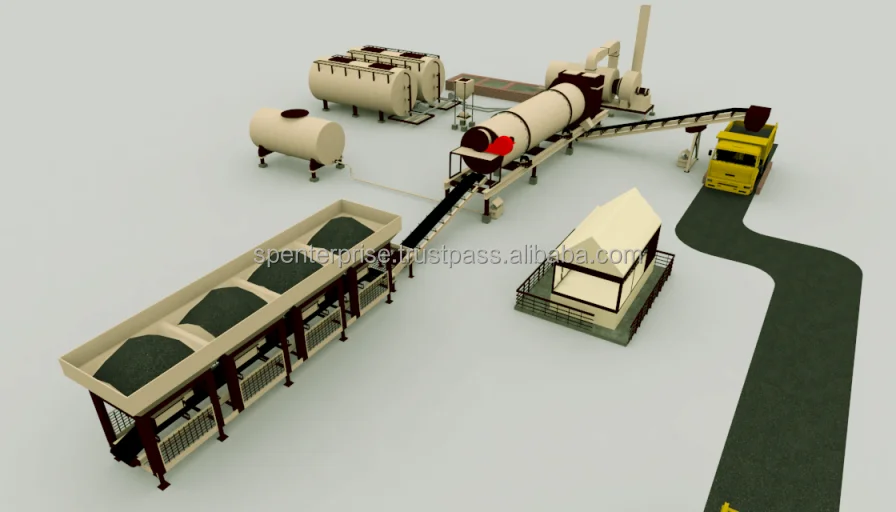

ASPHALT MIXING PLANT LAYOUT




Product Specifications


MODEL
SDM-30
Rated Output Capacity
30-40 TPH
COLD AGGREGATE FEEDER BINS
No. of Bins
4
Total Storage Capacity
28 tons
Bin Auxiliary Conv. Belt Drive Motor
1.5 HP x 4 Pole – 4 nos.
Bin Auxiliary Conveyor Belt Size
450 mm  x 3 ply
Bin Auxiliary Conveyor Gear Box
20:1 – 4 Nos.
Gathering Conveyor Belt Size
500 mm x 3 Ply
Gathering Conveyor Drive Motor
5.0 HP x 4 Pole
Gathering Conveyor Gear Box
20 : 1
Bin Vibrator Motor
1.0 HP
SINGLE DECK VIBRATORY SCREEN
Drive Motor
1.0 HP
SLINGER (COLD) CONVEYOR
Conveyor Drive Motor
5.0 HP x 4 Pole
Conveyor Gear Box
5:1
Conveyor Belt Size
500 mm x 3 Ply
DRYING CUM MIXING (THERMODRUM) UNIT
Thermodrum Diameter
1000 mm
Thermodrum Length
5500 mm
Thermodrum Drive Motor
15.0 HP X 4 Pole
Exhaust Drive Motor
15.0 HP X 4 Pole
Dust Collector Screw Motor
1.0 HP x 4 Pole
LOAD OUT CONVEYOR
Conveyor Belt Size
HR 500 mm x 3 Ply
Conveyor Drive Motor
5.0 HP x 4 Pole
Conveyor Drive Gear Box
13 : 1
Gob Hopper Capacity
800 Kgs.
Hydraulic Power Pack Motor
2.0 HP
BITUMEN TANK
Tank Capacity
12,000 Ltrs.
Bitumen Pump Drive Motor
3.0 HP x 4 Pole
MINERAL FILLER UNIT
Drive Motor
1.5 HP x 4 Pole
Hopper Capacity
0.8 Cum
Air Blower
3.0 HP
FUEL STORAGE TANK
2500 Liters
TOTAL CONNECTED HP
75 HP
RECCOMMENDED D.G. SET
80 KVA
OPEN LAND REQUIRED
35 m. x 30 m.
POWER SUPPLY
415 V / 380 V, 50 Hz / 60 Hz, 3 Phase, A.C.
Note: Due to continuous development policy, specifications are subject to change.
