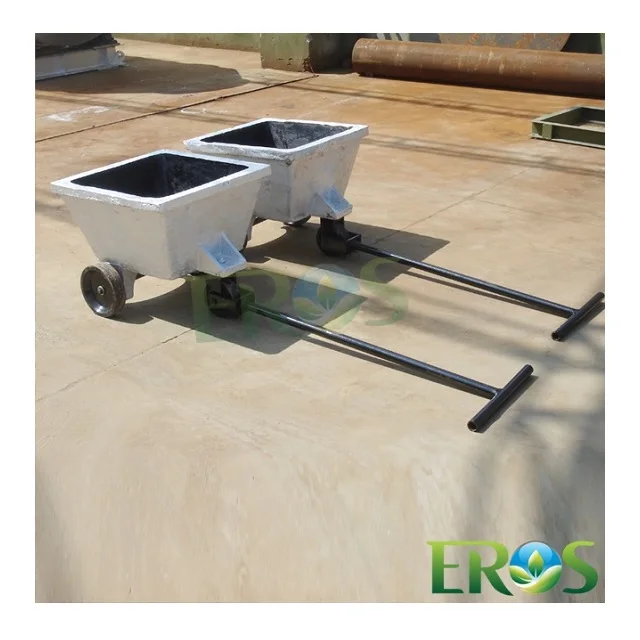

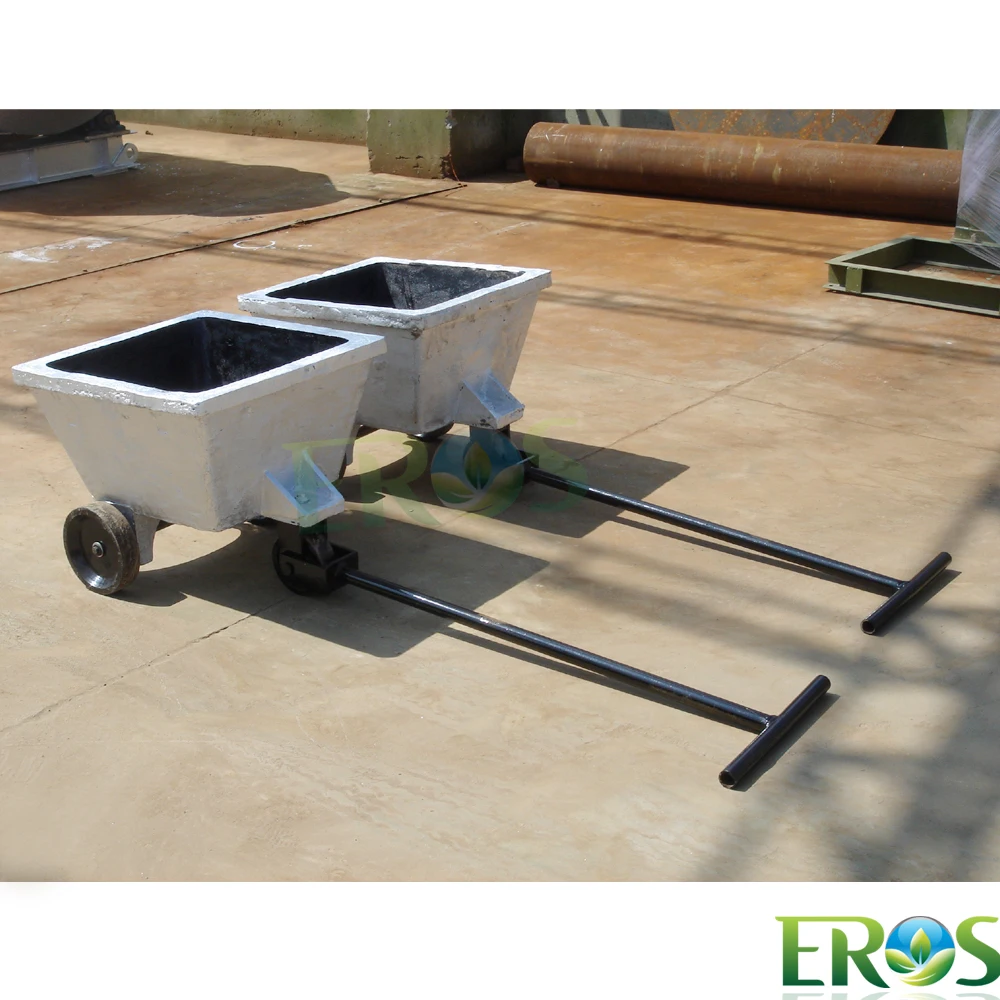

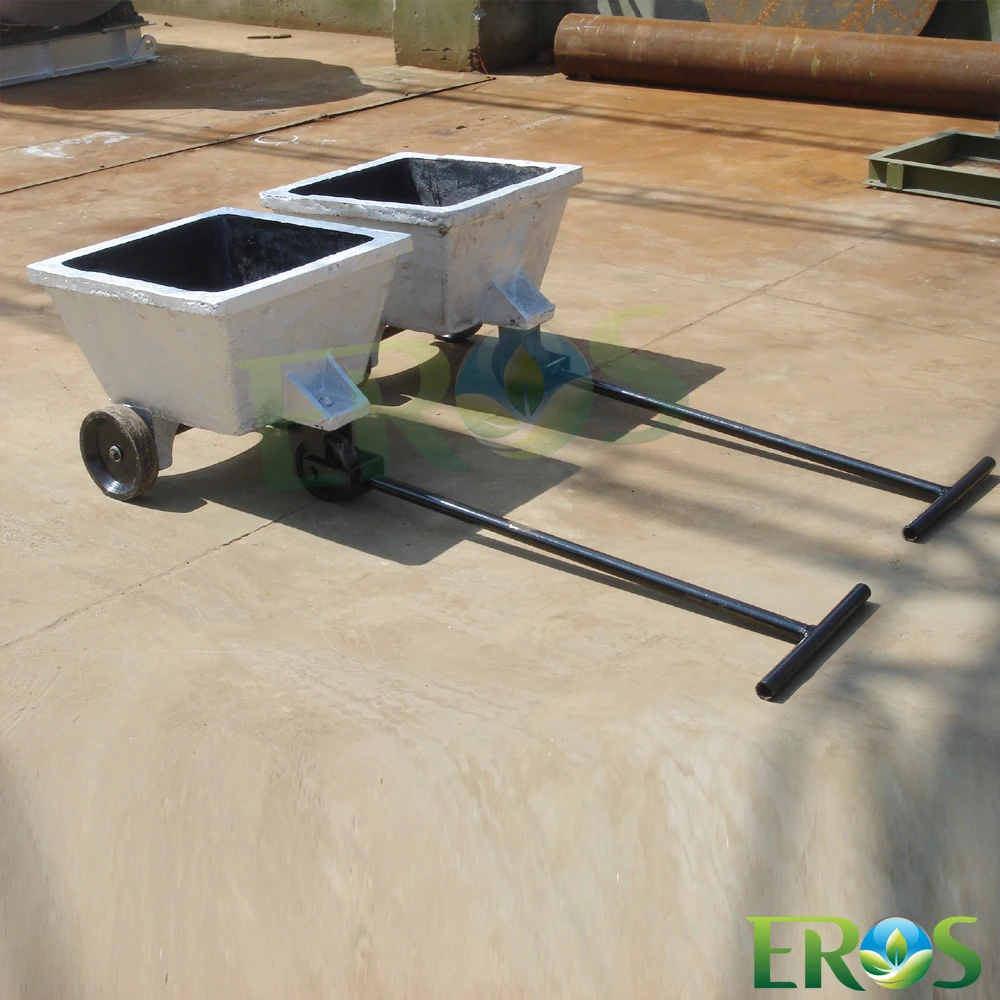

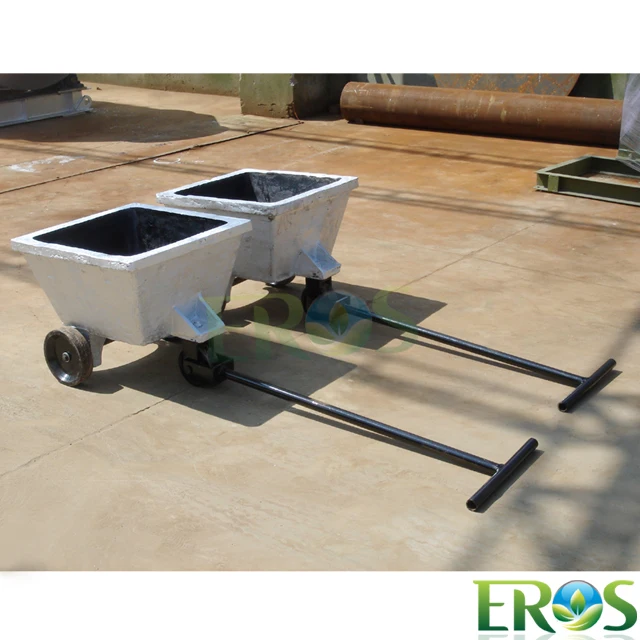

We have gained expertise in manufacturing and supplying high quality Ingot and Jumbo Ingot Moulds. Offered products are collection trolleys used for collecting molten lead from rotary furnaces. These products can be of varying capacities, ranging from three hundred kilograms to eight hundred kilograms. Offered moulds have trolley type structure with two unidirectional wheels at the back and one free spin wheel at the front; and it is provided with a handle to pull it.
Features:-
High material strength
Fine finish
Rust proof
Specification:
Shape :
Pyramidical Hopper Type
Size – Top : 500mm x 500mm (Inside)
Size – Bottom : 350mm x 350mm (Inside)
Height : 500mm MoC
: SG Iron Thk : 40mm
Back Wheels : 200mm Dia x 50mm Wd
Front Wheel : 150mm Dia x 50mm Wd
Ingot and Jumbo Ingot Moulds
We have gained expertise in manufacturing and supplying high quality Ingot and Jumbo Ingot Moulds. Offered products are collection trolleys used for collecting molten lead from rotary furnaces. These products can be of varying capacities, ranging from three hundred kilograms to eight hundred kilograms. Offered moulds have trolley type structure with two unidirectional wheels at the back and one free spin wheel at the front; and it is provided with a handle to pull it.
