HVAC controller with temperature actuated automatic damper at reasonable prices

Product Overview

Description

HVAC controller with temperature actuated automatic damper at reasonable prices







Main parts                   AES Resin - weather resistance material



Mechanical parts                  POM Resin – sliding material



Metal parts                           Stainless steel alloy



Valid ventilation area 300cm2



Actuation temp.           Auto-close at less than 3 ℃
Auto-open at more than 9 ℃







Mechanical parts including Ni-Ti based shape memory alloy etc. are used in a reliable vent unit. Automatically actuated vent require no time and labor and is very economical.



The vent is automatically closed during cold weather and prevents cold air from entering through the vent, which saves heating costs.



Also, the vent is automatically opened during hot weather and prevents rotting, mold, pest or condensation caused by inadequate ventilation.







Other temperature range model is also available



Auto-close at less than 12 ℃Auto-open at more than 18℃









Main parts                   AES Resin - weather resistance material



Mechanical parts                  POM Resin – sliding material



Metal parts                           Stainless steel alloy

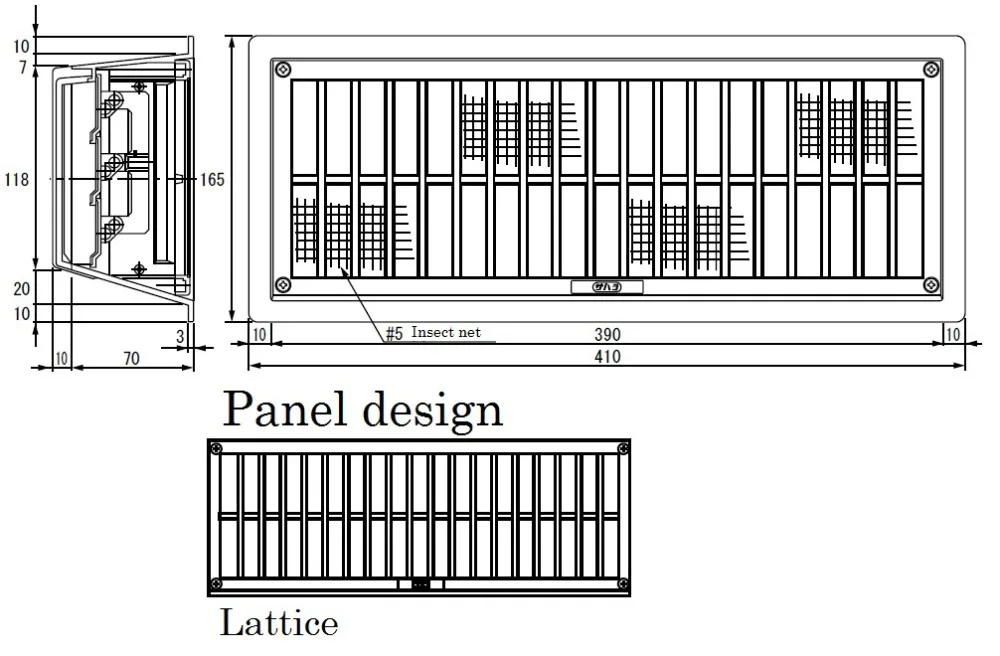

Size                          165mmx410mm



Valid ventilation area 300cm2



Actuation temp.

Auto-close at less than 3°C (37°F)



Auto-open at more than 9°C (48°F)









Mechanical parts including Ni-Ti based shape memory alloy etc. are used in a reliable vent unit. Automatically actuated vent require no time and labor and is very economical.



The vent is automatically closed during cold weather and prevents cold air from entering through the vent, which saves heating costs.



Also, the vent is automatically opened during hot weather and prevents rotting, mold, pest or condensation caused by inadequate ventilation.





Other temperature range model is also available



Auto-close at less than 12°C (54°F) Auto-open at more than 18°C (65°F)

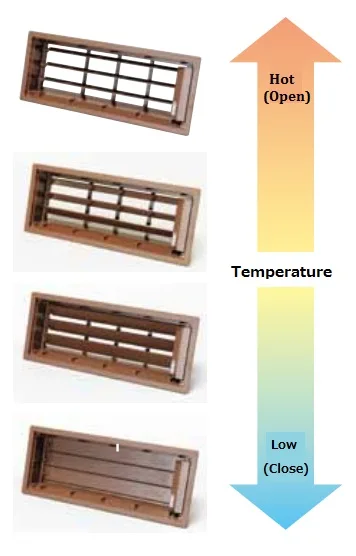

Temperature sensing damper



When the temperature gets low, shape memory alloy is actuated and shut the vent automatically to prevent cold air from entering.



 When the temperature gets high, open the vent automatically to secure ventilation.

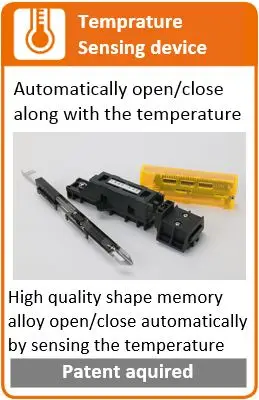

Features of temperature sensing device



A)     Anti-corrosive material;    Nickel and Titan based



B)     High quality spring;         Individual management with first Japanese original actuator



C)     Best condition setting;      Individual setting with original setting with original decision system



D)    High level developing technology; Based on accumulated data for a long time



E)     Changeable temperature setting;  Temperature at which the damper open/close can be changed depending for the use.







Item	Size (mm)	Panel design	Color	Qty./inner carton	Qty./master carton	Price	Item code
AYS 03C-AKB	165x410	lattice	Bronze	1	10	US$ 56-60	35400001
AYS 03C-AKG			Gray				35400003
