High Pressure Air Hose - Made in Korea No.1 PVC Hose Manufacturer in Korea - SEJONGFLEX
PURPOSE
For the air used for various machines
For the air used in various civil, construction, and paint works
For excavation (mines, roads and so on)
The other special purposes
FEATURE
It resists high pressure very much.
The good elasticity and flexibility obtained from special mixing enables easy handling.
It is lighter than a rubber hose by 30% so that it is user-friendly.
It has the strength in wear resistance and weather resistance.
It is the long life edition product so that it has a long lifetime.

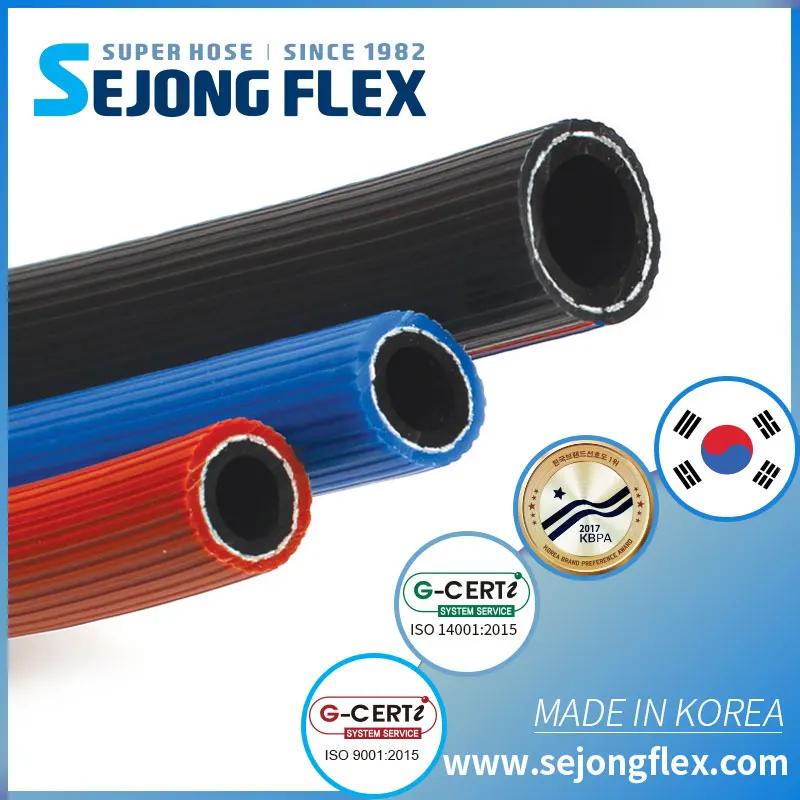

STRUCTURE
Especially, both the high tensile strength of the very high tenacity yarn manufactured with the special twisted-yarn facility and the strong adhesive power of the vinyl layer and the very high tenacity yarn enables the high strength in pressure resistance. Moreover, the introduction of the state-of-the-art adhesion method makes the structure unchanged in spite of high pressure and several conditions.

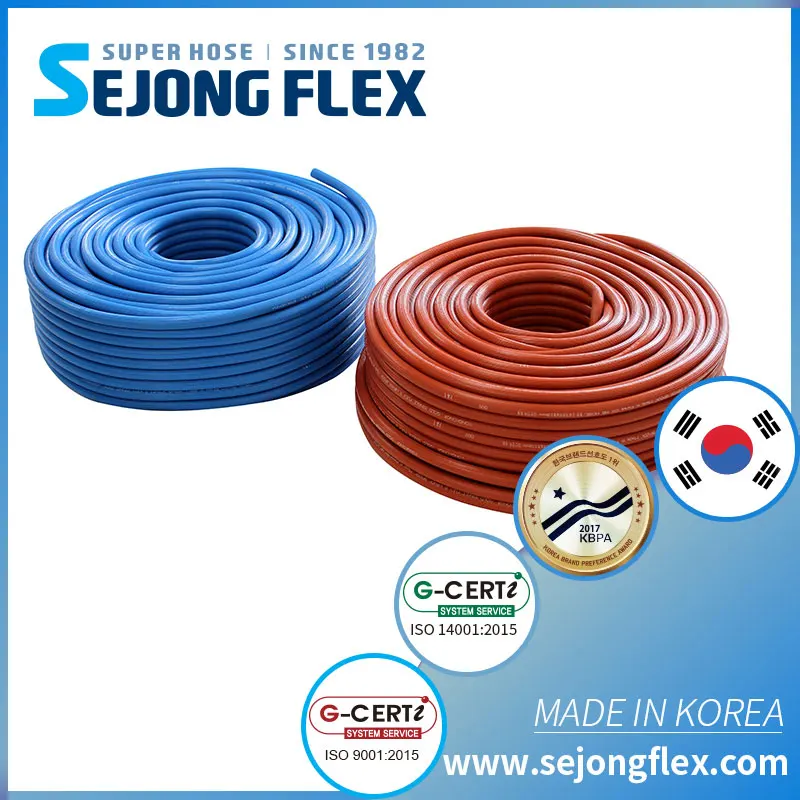

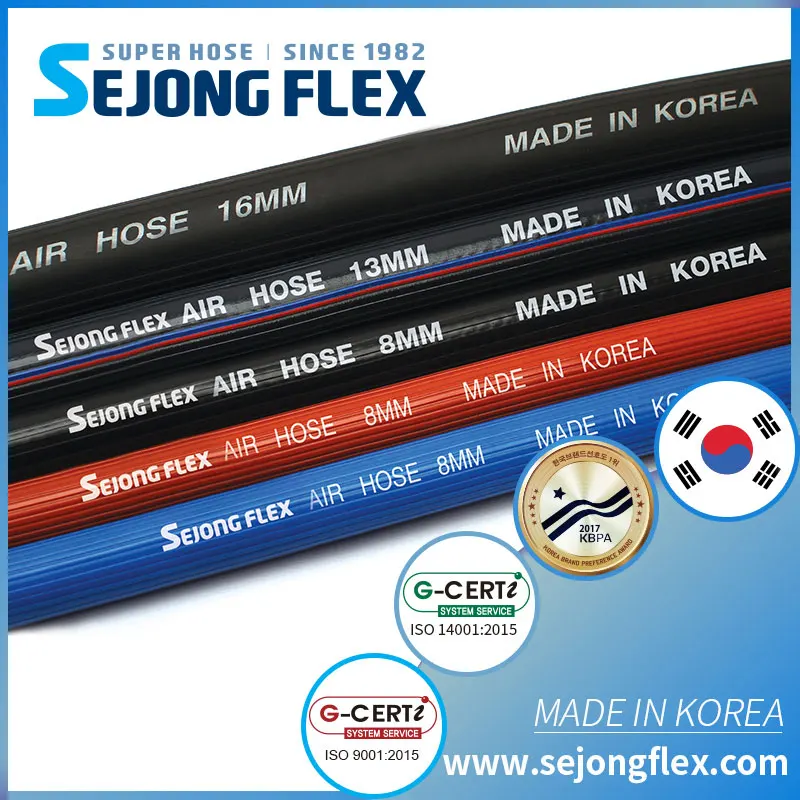

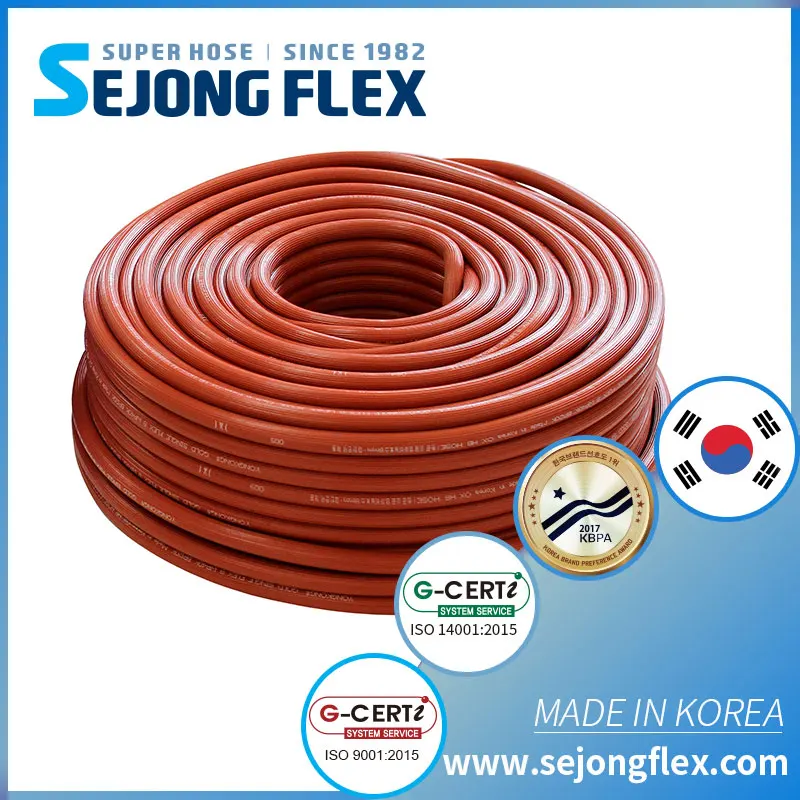

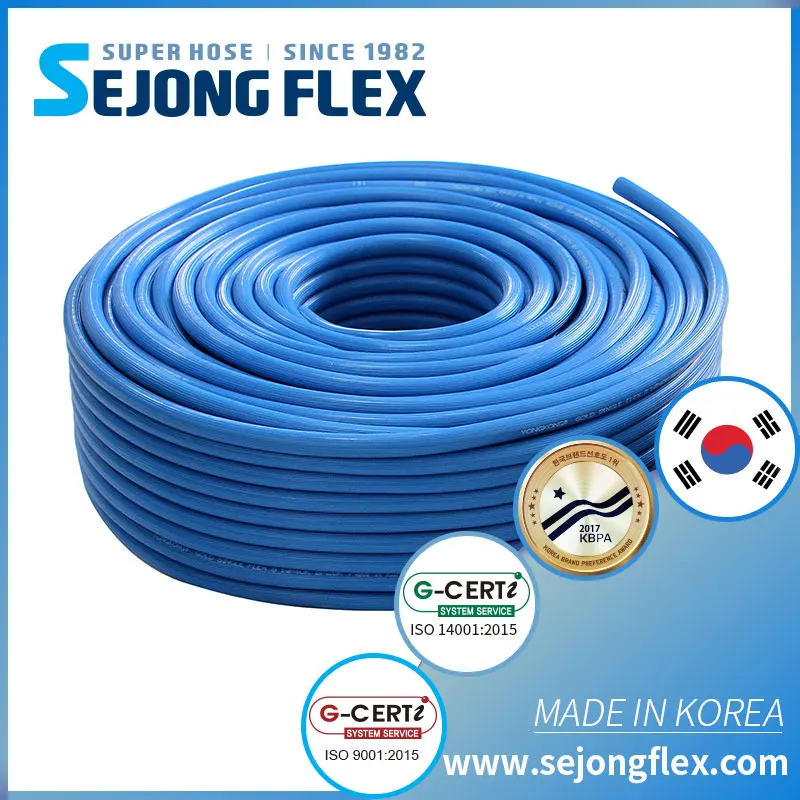

High Pressure Air Hose
Material
PVC
HS CODE
3917.39.2000
MOQ
20 feet container
Place of Origin
KOREA
SPECIFICATION
Model
I.D
O.D
Working
Brust
Packing unit
mm
mm
mm
kgf/cm2
kgf/cm2
Meters
6.5
6.5±0.6
12.5±0.5
40
170
50/100/150/200
8.0
8.0±0.6
15.0±0.6
40
150
50/100/150/200
9.5
9.5±0.7
16.0±0.7
40
150
50/100/150/200
13.0
13.0±0.7
20.6±0.7
40
120
50/100/150
16.0
16.0±0.8
25.0±1.0
40
100
50/100
19.0
19.0±1.0
30.0±1.0
40
100
50/100
25.0
25.0±1.0
36.0±1.0
40
100
50
The product excluding the one with the specification can be produced on the order basis.
Product Detail Images
PAYMENT
= T/T, L/C
PACKAGE
Packaging & Shipping
Release
(1)Quality test: 100% pressure test and leakage test before packing. (2) packing details: standard export packing or according to customer's special requirements
Our Services
- We can do the designs according to customers' requirements.
- We can open customers' own mold as per their requirements.
- We can offer you a good after-sell service.
- High Quality and Competitive Price
- Prompt delivery
Company Information
Brand Identity
PVC Raw Material Suppliers
- 100% original PVC raw material from LG chem, Hanwha KOREA
Global Networks
Exporting to over 50 countries : The U.S.A, China, Japan, Europe, South Africa, Etc.
Factory View
Contact Us
IF YOU ARE INTERESTED IN OUR PRODUCTS, PLEASE DO NOT HESITATE TO CONTACT WITH US.
