High Precision Machine
HiROX

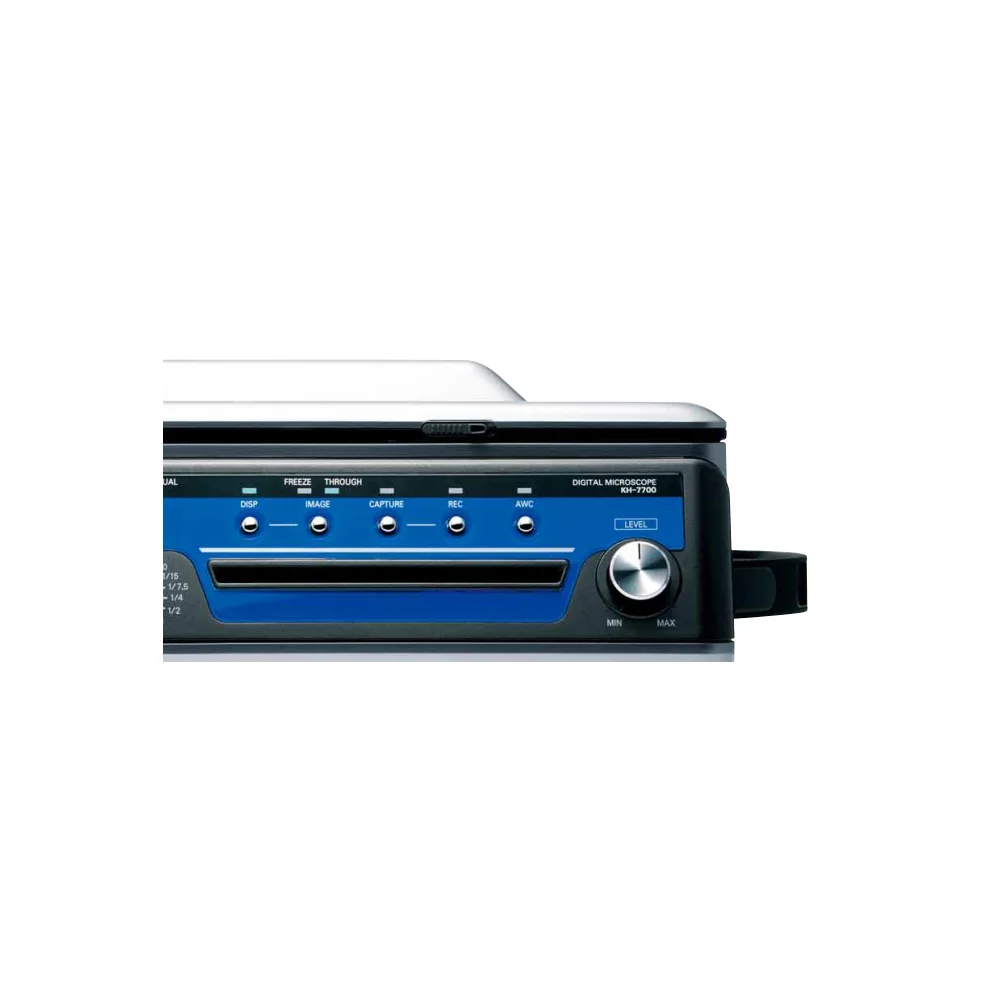

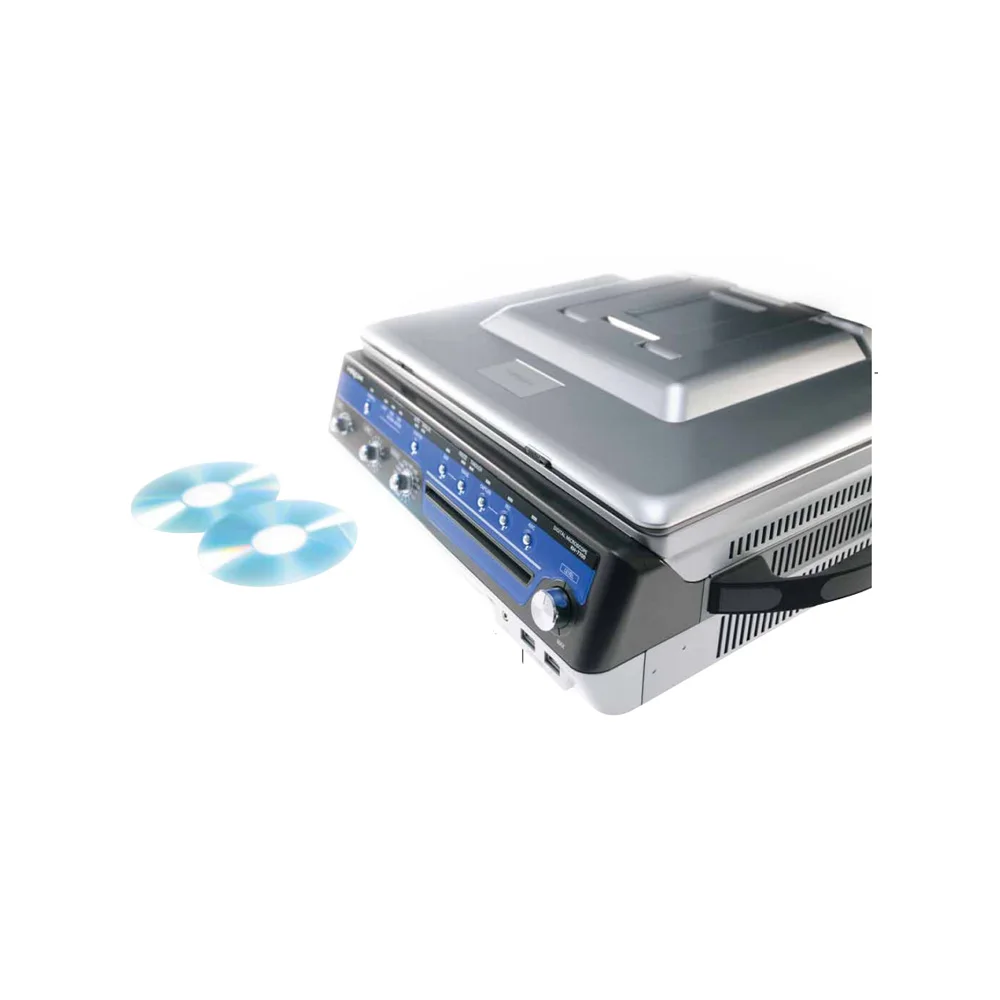

KH-7700 Digital Microscope System is HIROX's newest most advanced development. The digital camera, light source, LCD monitor, computer and software are all integrated into this one unit. The KH-7700 provides the user with the ultimate in high performance observation, measurement, analysis, recording, management, and output.
Specification : Main Control Unit (Basic Functions)
| Camera | Imaging device | 1/1.8 inch 2.11 megapixel CCD |
|---|---|---|
| Scanning Mode | Progressive scan | |
| Total number of pixels Approx. | 2.01 megapixels 1688 (H) x 1236 (V) | |
| Number of effective pixels Approx. | 2.01 megapixels 1688 (H) x 1236 (V) | |
| Frame rate | 30 fps (15 fps, double buffer method) | |
| Electronic shutter | AUTO(1/15 ~ 1/15000), 1/15000, 1/8300, 1/5800, 1/4400, 1/3600, 1/2500, 1/1000, 1/500, 1/250, 1/125, 1/60, 1/30, 1/15 | |
| Slow shutter | 1/7.5, 1/4, 1/2, 1, 2, 4, 8, 16 | |
| Gain | AUTO.MANUAL, OFF | |
| White balance | AUTO, MANUAL (R, B) | |
| LCD monitor | Image adjustment | Gamma correction, color correction, edge enhancement |
| Display size | 15" LCD color monitor | |
| Pixel pitch | 0.1905mm(H)×0.1905mm(V) | |
| Number of pixels | 1600(H)×1200(V) | |
| Brightness | 200cd/m2(typ.) | |
| Contrast ratio | 500:1(typ.) | |
| Light source | Viewing angle | 170°[H], 170°[V] (type.) |
| Lamp | 60 W metal halide lamp | |
| Lamp life | 4000 H (average) | |
| Color temperature | 5500±100K | |
| Output | Analog RGB output | UXGA, SXGA, XGA |
| Pinter output | USB2.0(B type)±ictBridge | |
| LAN | 10BASE-T/100BASE-TX/1000BASE-T | |
| External terminal | Round 6 pin | |
| ACS terminal | Round 10 pin | |
| Remote control | RS-232C connector | |
| Input | Mouse and keyboard input | USB 2.0 (Type A) |
| USB ports | USB 2.0 (Type A) x 6 | |
| Microphone input | MIC jack | |
| Record | Recording media | 160 GB hard disk, CD-R/RW, DVD±R/+R DL/±RW/-RAM |
| Still image format | Exif-TFF [non-compressed], BMP [non-compressed], Exif-JPEG [compressed] | |
| Compression mode | JPEG [4 levels] | |
| Number of recorded still pixels | Standard: 1600x1200, 1280x960, 1024x768, 800x600, 640x480, 320x240 | |
| High resolution: 6400x4800, 4800x3600, 3200x2400, 2400x1800 | ||
| Video image format | AVI [non-compressed] | |
| Number of recorded video pixels | 1600x1200(7.50FPS), 1280x1024(7.50FPS), 1024x768(15.00FPS), 800x600(15.00FPS), 640x480(15.00FPS) | |
| Image adjustment | Contrast, edge enhancement, noise reduction, binarizing | |
| Rated voltage | AC100 ~ 240V, 50/60Hz | |
| Power consumption | 250W | |
| Ambient temperature | 5°C to 40°C (No freezing or condensation) | |
| Storage temperature | -15°C to 50°C (No freezing or condensation) | |
| Relative humidity | 25 to 85% RH (No condensation) | |
| Atmosphere | Corrosive gas prohibited | |
| Weight | Main Unit | Approx. 12 kg |
| Camera | Approx. 1kg | |
| Size | LCD shut | 417.4(W)x154(H)x343.1(D)mm |
| LCD open | 417.4(W)x429.6(H)x343.1(D)mm |
About Jimk Nikko Kizai Original Carbide End Mill
A joint development by NIKKOKIZAI and Hitachi Tool!
Jimk Panacea is a heat-resistant coating that has excellent ability to stick to various materials. It is extremely hard (3000HV) and therefore is abrasion resistant.
This all-purpose tool is effective with a wide range of materials, from carbon steel (soft steel) to hardened steel (under 52HRC).
Jimk ATH is newly developed coating maintains the current wear and tear resistant qualities while providing improved lubricity through the use of nano-crystalline grains.
This can be used on a wide range of materials, from prehardened steel (harder than 40HRC) to hardened steel.
For use with copper, aluminum, and resin machining.
SD(DLC) coating ball end mill that shines in seven colors.
SD(DLC) long neck ball end mill that shines in seven colors.
Jimk NK Carbide End Mill is Low-cost, high performance, from mold cutting to parts cutting
Material: nonferrous, resin, aluminum, copper, steel up to HRC 50
Jimk Nikko original endmill are certified that these are extremely precise in the domestic market.
About Cutting Tools
Our main itmes, cutting tools, we supply Japanese famous brands like Mitsubishi Hitachi Tool, OSG and many manny Japanese brands..
We have particular blades and coatings that are suitable for metal patterns, mild steel, hardened metals, copper, and aluminum.
We provide a lineup of two bladed, four bladed, ball, and ribbed ball cutters, various sizes and items available.
High precision and high quality with good price cutting tools here.
Carbide End Mill, HSS End Mill, Drill, Tap, Reamer, Insert and other cutting tools available.
About Toolings
We have some Japanese famous maker's toolings, hydraulic chuk, shrink chuk, collet chuk and other tool holders. High accuracy and
low cost, speedy measuring operation, suitable for your machining processes.
Hydraulic Chuck
It is suitable for machining processes that require high runout accuracy, for burnishing drills/reamers, ball end mills, diamond reamers and grinding tools.
Shrink Chuck
Slim design avoids interference with the side wall and draft of the mold.
Collet Chuck
High precision collet, nut and body that outperforms standard ER systems. Reliable and stable runout accuracy will also tremendously contribute to improving machining capability and cost reduction. The ERC collet with the best runout accuracy in the world.
About Measuring Equipments
We have many Japanese famous maker's measring instruments.
High accuracy and low cost, speedy measuring operation, suitable for your machining processes.
Three-dimensional measuring instruments
High accuracy and low cost
Digital venire calipers
Further smooth slider surface, waterprof, solar powered, various types here
Micrometer
For variable measuring force, speedy measuring operation
Height gauges
Universal type, universal type to square column, standard type
About High Precision Machine
We have some Japanese famous maker's high precision machine, Full Digital Control Die-sinking EDM - Aitronix AX1601
Broken Tap Remover EDM - JIGTEC TAPTOR D and High precision Digital Microscope - HiROX and other working machines.
High accuracy and low cost, speedy operation, suitable for your machining processes.
Easy operation and High efficiency available.
About other products
We have particular parts and other products that are suitable for mold and mold parts.
Many kinds of consumption goods available like chemical products,
Polishing and deburring items also available.
Our Suppliers
Company Introduction
NIKKOKIZAI INC. was established in 1974. Since then, NIKKOKIZAI has been dedicatedly selling cutting tools and parts, polishing tools, jigs, and measuring instruments in compliance with the needs of die manufacturers.
In response the recent needs of low-price dies, NIKKOKIZAI has been making efforts toward the development of tools improving the efficiency of production and offering them at reasonable prices.
It is NIKKOKIZAI's motto to work with mold manufacturers continuously.
Our Motto "Together with Mold Maker"
- To increase accuracy
- To reduct costs
- Work efficiency
- The act of prolonging rool's life
- The shortening of work hours
To make people enrich through our brand power with tradition and innovation A Pride creating together.
We realize 960 companies full of wealth and reflect them together!
