Durable and Reliable precision parts micrometer for industrial use , small lot order available

Product Overview

Description

ZZZZZZZZZZZZZZZZZZZZZZZZZZZZZZZZZZZZZZZZZZZZZZZZZZZZZZZZZZ

Durable and Reliable precision parts micrometer for industrial use , small lot order available ZZZZZZZZZZZZZZZZZZZZZZZZZZZZZZZZZZZZZZZZZZZZZZZZZZZZZZZZZZ



Even the person who was inexperienced in operation with one hand attached

a constant pressure device to get rid of unevenness and the individual difference

of measurements and enabled the stable measurement.

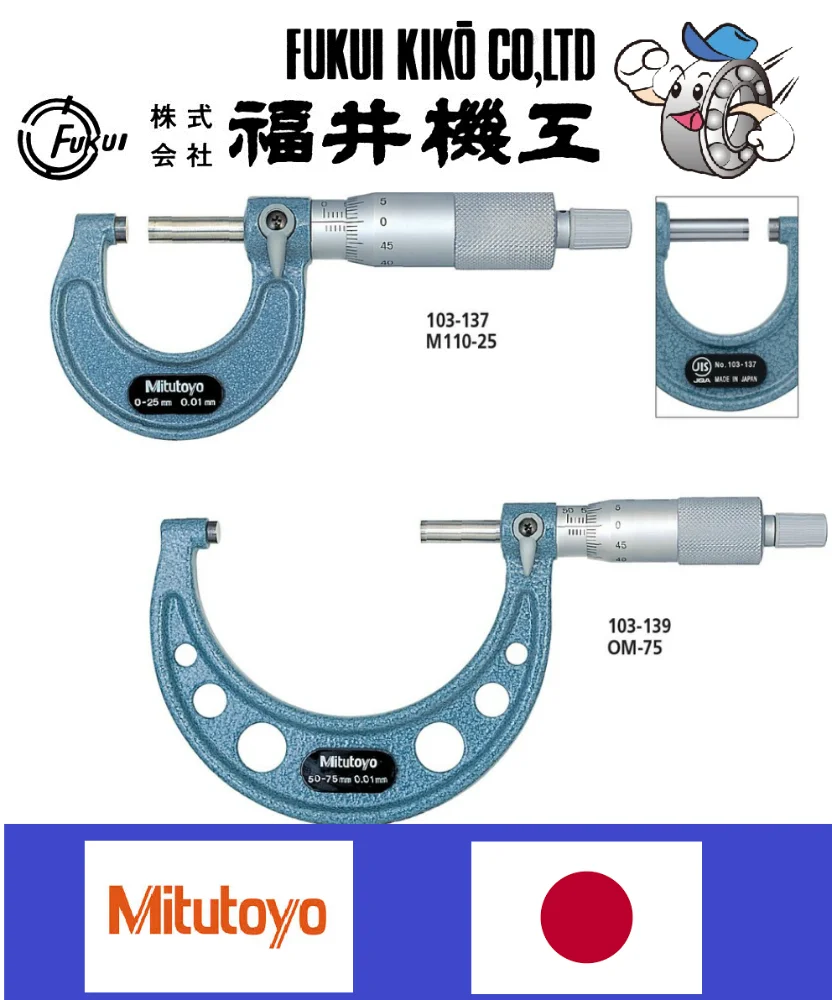

Outside Micrometers

SERIES 103

1. Baked-enamel-finished frame.

2. Measuring faces: Carbide

3. Equipped with Ratchet Stop for constant measuring force.







Order NO.	Brand name	Range	Graduation	L	a	b	c
103-137	M110-25	0~25	0.01	30.3	2.8	9	28
103-138	M110-50	25~50	0.01	55.3	2.8	10	38
103-139	OM-75	50~75	0.01	80.3	2.8	12	49
103-140	OM-100	75~100	0.01	105.3	2.8	14	60
103-141	OM-125	100~125	0.01	132.8	5.3	17	79
103-142	OM-150	125~150	0.01	158.2	5.7	19	94
103-143	OM-175	150~175	0.01	183.6	6.1	20	106
103-144	OM-200	175~200	0.01	208.8	6.3	19	118
103-145	OM-225	200~225	0.01	234.2	6.7	18	130
103-146	OM-250	225~250	0.01	258	5.5	18	143
103-147	OM-275	250~275	0.01	284	6.5	18	156
103-148	OM-300	275~300	0.01	309	6.5	18	169



Technical Data

Flatness: 0.6μm/.000024”for models up to 300mm/12”

1μm/.00004” for models over 300mm/12”

Parallelism:

(2 + R/100) μm, R = max, range (mm)

[.00008+.00004 (R/4)]", R = max, range (inch)

*fraction rounded dow



Since our founding, the company has accumulated 50 years of success and experience.

We can coordinate with more than 3000 domestic manufacturers,

mainly in the field of industrial machinery parts.



Our company home page (in Japanese) also contains information about our products.
