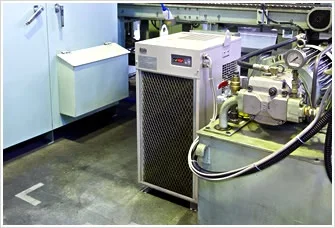

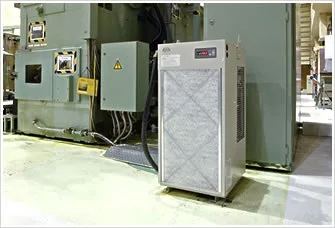

Apiste Oil chiller Non flon air cooled oil chillers small manufacturing machines
- Category: >>>
- Supplier: SATOH INDUSTRIES CO. LTD.
Share on (50026878112):
Product Overview
Description
Apiste Oil Chiller small manufacturing machines
Specifications
| Cooling method | Air-cooled type |
|---|---|
| Cooling capacity(W) | 1350/1580 |
| Usable Oil | Lubricant, petroleum hydraulic oil |
| Setting criteria / tuned type | Room temperature, unit temperature |
| Control target / tuned type | Outlet opening oil temperature |
| Temperature control range / tuned type(℃) | Within -9.9 to +9.9 of the set standard temperature |
| Control target / fixed type | Outlet opening oil temperature |
| Temperature control range / fixed type(℃) | 5~45 |
| Temperature control accuracy (°C) | ±0.1 |
| Oil viscosity (mm2/s) | 2~100 |
| Use Area Temperature(℃) | 5~45 |
| Power-supply voltage(V) | Three-phase AC200 |
| Power-supply voltage(V) | 2.8/2.6 |
| Consumption current(W) | 600/720 |
| External dimensions(mm) | H720×W360×D500 |
| Weight(kg) | 53 |
| Coating Color | Munsell N7 |
| Pipe connection / Oil outlet | Rc3/4 |
| Pipe connection / Oil intlet | Rc3/4 |
| Pump / rated output(W) | 400 |
| Pump / Discharge rate(L/min) | 12/14.4 |
| Relief valve pressure setting (MPa) | 0.6 |
| Refrigerant / Type | HFO-1234yf |
| Refrigerant / Fill ration(g) | 306 |
| Noise (dB (A)) | Approx. 70 |
| Safety circuit / Compressor | Temperature protector, overcurrent relay |
| Safety circuit / Cooling cycle | Pressure switch |
| Safety circuit / Pump | Overcurrent relay, relief valve |
| Input/output / Alarm output | Rated voltage normally open, normal close |
| Input/output / Run/stop input | Rated voltage normally open |
*Cooling capacity, current consumption, and power consumption values are based on a 35ºC room temperature and 35ºC oil temperature (ISO VG5).
*Do not use machining fluids, grinding fluids, water and water soluble liquids, pharmaceutical and food product liquids, gasoline, kerosene, thinner and other highly volatile, low-lubricant fluids, or flame-retardant hydraulic oil.
Temperature control precision is based on the temperature gage reading under constant load.
* Maintain power supply voltage within ±10% of rated voltage.
