The GEMUe 653 2/2 way diaphragm valve has a stainless steel bonnet and is manually operated Made in Germany

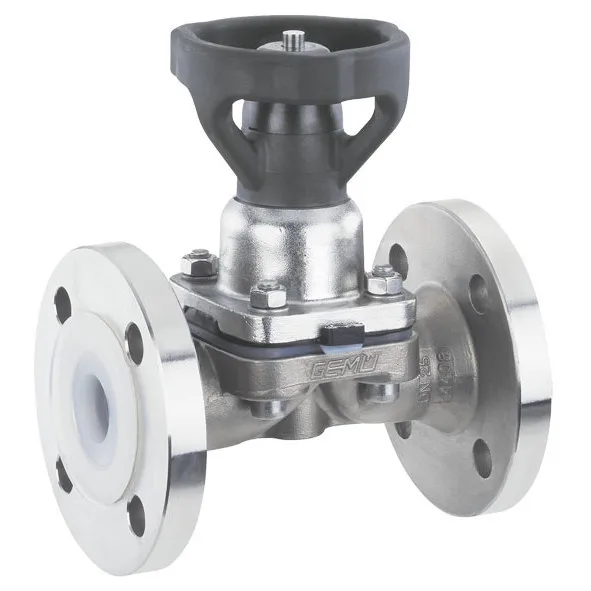

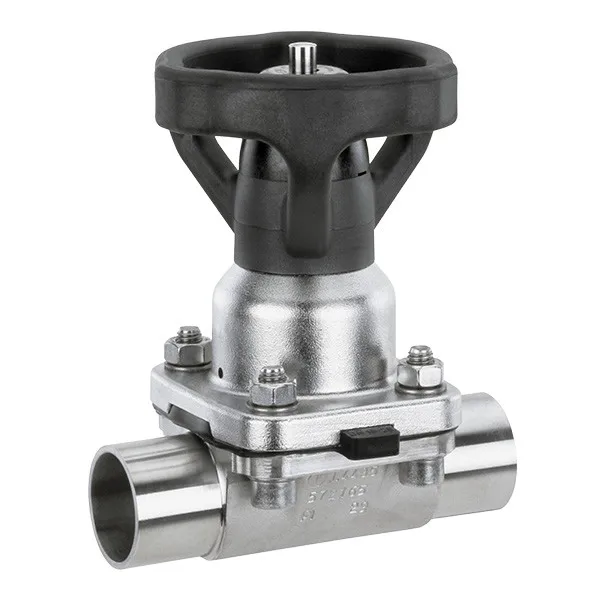

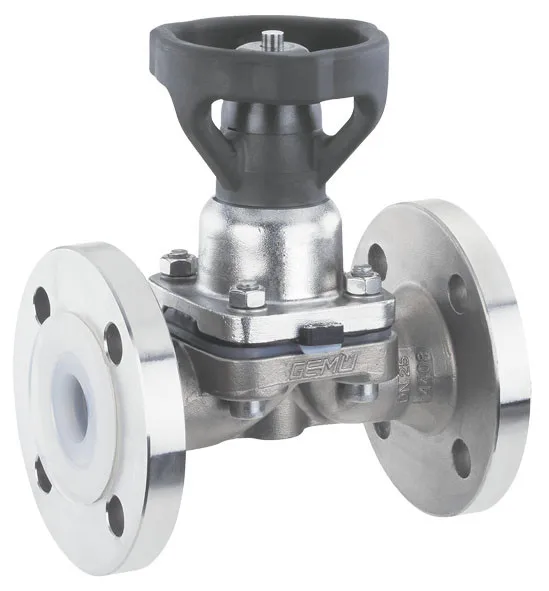

The GEMUe 653 2/2-way diaphragm valve has a stainless steel bonnet and is manually operated. The valve features a handwheel made of temperature and chemical resistant plastic. An integral optical position indicator is standard.
CIP/SIP capable
Autoclave capability
Extensive range of accessories available
Opening stroke and closing stroke limiter
Handwheel locking available upon request (electric or mechanical)
Configurable with proximity switches for position feedback

Body configurations: 2/2-way body | i-body | Multi-port body | T body | Tank valve body | Welding configuration
Connection types: Clamp | Flange | Spigot | Threaded connection
Connection standards: ANSI | ASME | BS | DIN | EN | ISO | JIS | SMS
Body materials: 1.4408, investment casting material | 1.4435 (316L), forged material | 1.4435 (BN2), forged material | 1.4435, investment casting material | 1.4539 (904L), forged material
Diaphragm materials: EPDM | FKM | PTFE/EPDM
Conformities*: 3A | CRN | EAC | Oxygen | Reg. (EU) No. 10/2011 | Regulation (EC) No. 1935/2004 | Regulation (EC) No. 2023/2006 | TA Luft (German Clean Air Act) | USP

Characteristics:

Pictures:

We offer various payment options. Please contact us for futher details.

1. Our products are packed according to the international export packing standards for seaworthy packing: carton box, plastic bag, wooden or iron/steel pallet or container.


2. We can also deliver our products carefully packed according to customer requirement. Please contact us for getting further details.


3. Packaging includes the full set of documents and (if necessary) operate maintenance and engine operate manual, spare parts list and set of inspection certificate issued by manufacturer.
