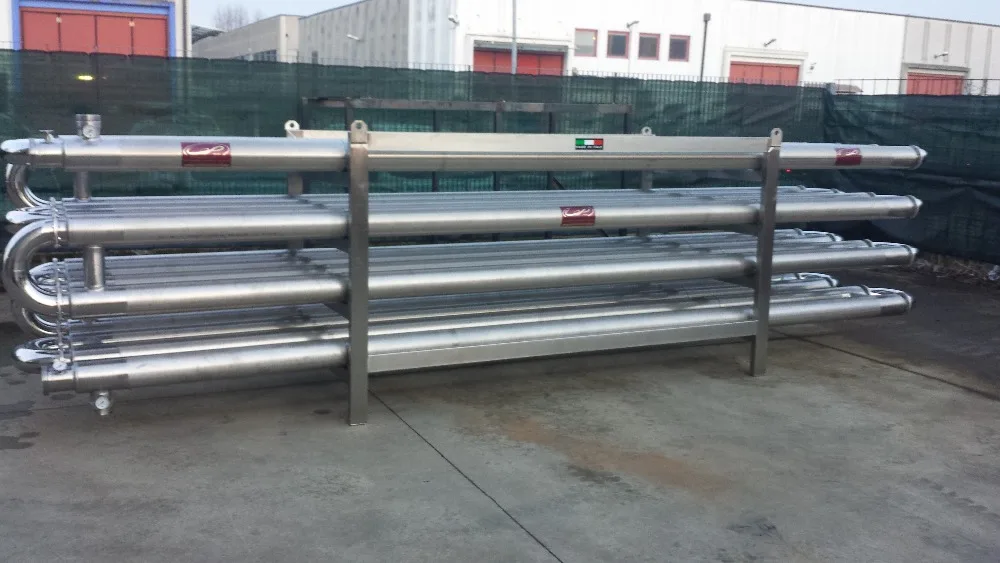

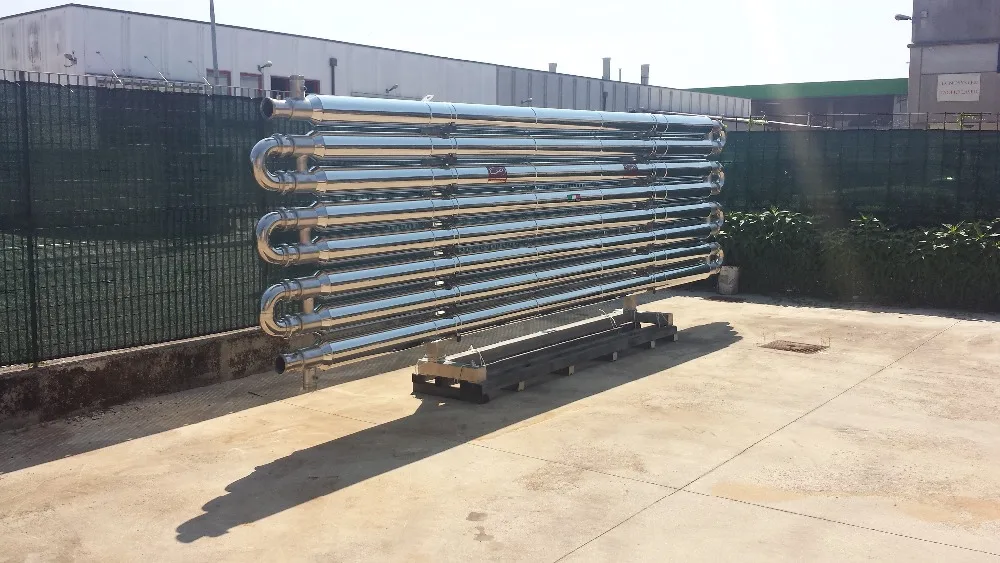

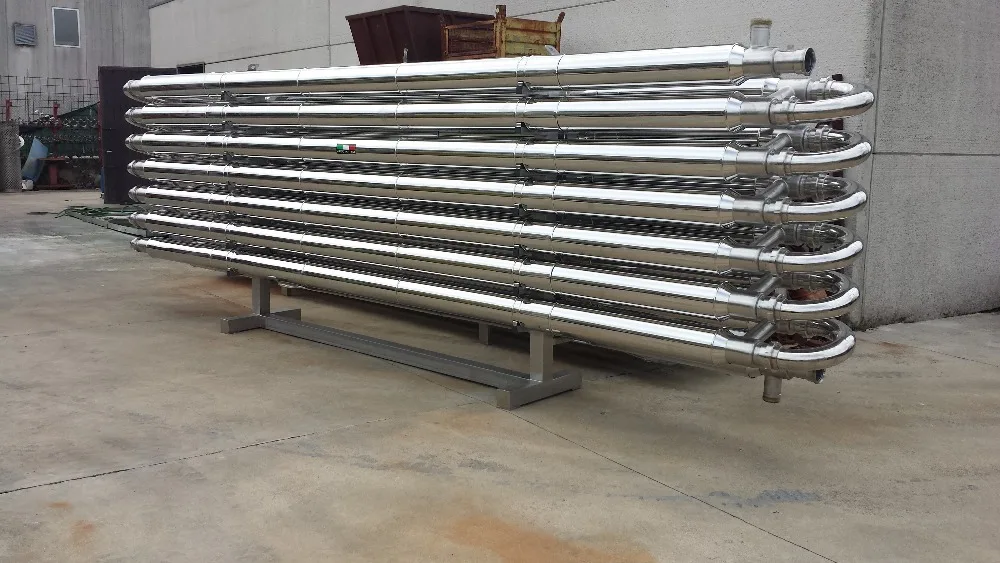

HEAT EXCHANGER TUBE IN TUBE MASH/WINE

Product Overview

Description

WEB SITE WWW.CEPITALY.COM





EQUIPMENT FOR WINE





TUBE IN TUBE HEAT EXCHANGER



                        The functions are calculated with a refrigerant solution that in input is



                         7° C and in output is 12° C, products in input +25°C and +15° C in output,



                        refrigerant exchanger equipped with timer thermometers that measure



                        the temperature of the products at input and output



     225             Performance kcal/h 12,000 Tubes Ø.40x60 4 Tubes length 3mt.



     226             Exchanger insulation 12,000kcal/h Ø. 60:130



                        Meas. 3300x500xh1100mm.



     227             Performance kcal/h 18,000 Tubes Ø.40x60 6  Tubes length 3mt.



     228             Exchanger insulation 18,000kcal/h Ø. 60:130



                        Meas. 3300x500xh1300mm.



     229             Performance kcal/h 15,700 Tubes Ø.40x60 6  Tubes length 2mt.



     230             Exchanger insulation 15,700kcal/h Ø. 76:140



                        Meas. 2300x500xh1400mm.



     231             Performance kcal/h 24,000 Tubes Ø.52x76 6  Tubes length 3mt.



     232             Exchanger insulation 24,000kcal/h Ø. 76:140



                        Meas. 3300x500xh1400mm.



     232             Performance kcal/h 47,000 Tubes Ø.52x76 6  Tubes length 6mt.



     234             Exchanger insulation 47,000kcal/h Ø. 76:140



                        Meas. 6300x500xh1400mm.



     235             Performance kcal/h 32,000 Tubes Ø.70x101 6  Tubes length 3mt.



     236             Exchanger insulation 32,000kcal/h Ø. 101:180



                        Meas. 3400x600xh1600mm.



     237             Performance kcal/h 40,000 Tubes Ø.70x101 8  Tubes length 3mt.



     238             Exchanger insulation 40,000kcal/h Ø. 101:180



                        Meas. 3400x700xh1900mm.



     239             Performance kcal/h 50,000 Tubes Ø.70x101 10  Tubes length 3mt.



     240             Exchanger insulation 50,000kcal/h Ø. 101:180



                        Meas. 3400x800xh2300mm.



     241             Performance kcal/h 60,000 Tubes Ø.70x101 12  Tubes length 3mt.



     242             Exchanger insulation 60,000kcal/h Ø. 101:180



                        Meas. 3400x800xh2600mm.



     243             Performance kcal/h 40,000 Tubes Ø.70x101 4  Tubes length 6 mt.



     244             Exchanger insulation 40,000kcal/h Ø. 101:180



                        Meas. 6400x600xh1300mm.



     245             Performance kcal/h 60,000 Tubes Ø.70x101 6  Tubes length 6 mt.



     246             Exchanger insulation 60,000kcal/h Ø. 101:180



                        Meas. 6400x600xh1600mm.



     247             Performance kcal/h 80,000 Tubes Ø.70x101 8  Tubes length 6 mt.



     248             Exchanger insulation 80,000kcal/h Ø. 101:180



                        Meas. 6400x800xh1900mm.



     249             Performance kcal/h 100,000 Tubes Ø.70x101 10  Tubes length 6 mt.



     250             Exchanger insulation 100,000kcal/h Ø. 101:180



                        Meas. 6400x800xh2300mm.



     251             Performance kcal/h 125,000 Tubes Ø.70x101 12  Tubes length 6 mt.



     252             Exchanger insulation 125,000kcal/h Ø. 101:180



                        Meas. 6400x800xh2600mm.







     253             Performance kcal/h 150,000 Tubes Ø.70x101 14  Tubes length 6 mt.



     254             Exchanger insulation 150,000kcal/h Ø. 101:180



                        Meas. 6400x800xh1700mm. (2 rows)



     255             Performance kcal/h 175,000 Tubes Ø.70x101 16  Tubes length 6 mt.



     256             Exchanger insulation 175,000kcal/h Ø. 101:180



                        Meas. 6400x800xh1900mm. (2 rows)



      257            Performance kcal/h 125,000  Tubes Ø.80x114 10  Tubes length 6 mt.



     258             Exchanger insulation 125,000kcal/h Ø. 114:190



                        Meas. 6500x800xh2300mm.



     259             Performance kcal/h 150,000 Tubes Ø.80x114 12  Tubes length 6 mt.



     260             Exchanger insulation 150,000kcal/h Ø. 114:190



                        Meas. 6500x800xh2700mm.



     261             Performance kcal/h 175,000 Tubes Ø.80x114 14  Tubes length 6 mt.



     262             Exchanger insulation 175,000kcal/h Ø. 114:190



                        Meas. 6500x800xh1800mm. (2 rows)



     263             Performance kcal/h200,000 Tubes Ø.80x114 16  Tubes length 6 mt.



     264             Exchanger insulation 200,000kcal/h Ø. 114:190



                        Meas. 6500x800xh1950mm. (2 rows)



     265             Performance kcal/h225,000 Tubes Ø.80x114 18  Tubes length 6 mt.



     266             Exchanger insulation 225,000kcal/h Ø. 114:190



                        Meas. 6500x800xh2150mm. (2 rows)



     267             Performance kcal/h250,000 Tubes Ø.80x114 20  Tubes length 6 mt.



     268             Exchanger insulation 250,000kcal/h Ø. 114:190



                        Meas. 6500x800xh2300mm (2 rows)



     269             Performance kcal/h250,000 Tubes Ø.101x139 16  Tubes length 6 mt.



     270             Exchanger insulation 250,000kcal/h Ø. 139:220



                        Meas. 6600x800xh2300mm. (2 rows)



     271             Performance kcal/h240,000 Tubes Ø.129x168 20  Tubes length 6 mt.



     272             Exchanger insulation 240,000kcal/h Ø. 168:250



                        Meas. 6600x800xh2700mm.



     273             Performance kcal/h320,000 Tubes Ø.129x168 16  Tubes length 6 mt.



     274             Exchanger insulation 320,000kcal/h Ø. 168:250



                        Meas. 6600x800xh2500mm. (2 rows)



     275             Performance kcal/h400,000 Tubes Ø.129x168 20  Tubes length 6 mt.



     276             Exchanger insulation 400,000kcal/h Ø. 168:250



                        Meas. 6600x1500xh2500mm. (4 rows)



     277             Performance kcal/h480,000 Tubes Ø.129x168 24  Tubes length 6 mt.



     278             Exchanger insulation 480,000kcal/h Ø. 168:250



                        Meas. 6600x1500xh2800mm. (4 rows)
