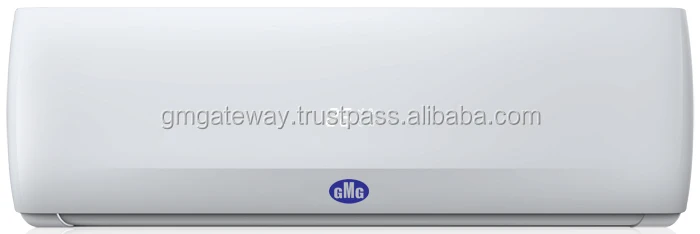

GMG AIR CONDITIONER SASO MODEL

Product Overview

Description

Split type model	12K				18K				24K				30K
	Cooling & Heating		Cooling Only		Cooling & Heating		Cooling Only		Cooling & Heating		Cooling Only		Cooling & Heating		Cooling Only
Condition	T1	T3	T1	T3	T1	T3	T1	T3	T1	T3	T1	T3	T1	T3	T1	T3
Cooling Capacity (W)	3400	2950	3400	2950	5000	4400	5000	4400	6150	5400	6150	5400	7900	6600	7900	6600
Heating Capacity (W)	3500		-	-	/		4750		5860		-	-	7400		-	-
Rated Input (w) - cooling	985	1220	985	1220	1485	1818	1485	1818	1810	2250	1810	2250	2323	2750	2323	2750
- heating	1030		-		/		1397		1770		-		2312		-
EER for Cooling ((Btu/hr)/w)	11.67	8.7	11.67	8.7	11.67	8.70	11.67	8.70	11.67	8.70	11.67	8.70	3.4	2.4	3.4	2.4
COP for Heating (w/w)	3.4		/		/		3.40		3.40		-		3.2		/
No. of stars	7				7				7				7
Power Supply
Volt/Phase/Hz	220-230V/1/60Hz		220-230V/1/60Hz		220-230V/1/60Hz		220-230V/1/60Hz		220-230V/1/60Hz		220-230V/1/60Hz		220-230V/1/60Hz		220-230V/1/60Hz
Rated Current (A) - Cooling	4.2	5.3	4.2	5.3	6.5	7.9	6.5	7.9	7.8	9.7	7.8	9.7	10.1	11.9	10.1	11.9
- Heating	4.47		/		/		6.1		7.7		-		10.1		/
Noise (dB (A)) (indoor) H/M/L	42/38/37/36		42/38/37/36		44/41/38		44/41/38		49/46/42		49/46/42		51/46/43/41		51/46/43/41
- (Outdoor)	54		54		57		57		60		60		60		60
Indoor air flow ( m3/h)	700		700		1150		1150		1250		1250		1350		1350
System
Refrigerant	R410A		R410A		R410A		R410A		R410A		R410A		R410A		R410A
Compressor Brand	GMCC		GMCC		GMCC		GMCC		HIghly		Highly		TOSOT		TOSOT
compressor type	ROTARY		ROTARY		ROTARY		ROTARY		ROTARY		ROTARY		ROTARY		ROTARY
Liquid Pipe Diameter (mm)	6		6		6		6		9.52		9.52		9.52		9.52
Gas Pipe Diameter (mm)	12		12		12		12		15.88		15.88		19.05		19.05
Condenser
a.Number of rows	2		2		2		2		2		2		3		3
b.Number of tubes	24		24		30		30		38		38		57		57
e.Fin type (code)	Non- hydrophilic		hydrophilic		Non- hydrophilic		hydrophilic		Non- hydrophilic		hydrophilic		Hydrophilic		Hydrophilic
f.Tube outside dia.and type	7 Inn. Grv.		7 Inn. Grv.		7 Inn. Grv.		7 Inn. Grv.		7 Inn. Grv.		7 Inn. Grv.		7 Inn. Grv.		7 Inn. Grv.
Evaporator
a.Number of rows	2		2		2		2		2		2		2		2
b.Number of tubes	16		16		18		18		20		20		20		20
e.Fin type (code)	Hydrophilic aluminium foil		Hydrophilic aluminium foil		Hydrophilic aluminium foil		Hydrophilic aluminium foil		Hydrophilic aluminium foil		Hydrophilic aluminium foil		Hydrophilic		Hydrophilic
f.Tube outside dia.and type	7 Inn. Grv.		7 Inn. Grv.		7 Inn. Grv.		7 Inn. Grv.		7 Inn. Grv.		7 Inn. Grv.		7 Inn. Grv.		7 Inn. Grv.
Features
Remote Controller	yes		yes		yes		yes		yes		yes		yes		yes
Removable & Washable Panel	yes		yes		yes		yes		yes		yes		yes		yes
Washable Filter	yes		yes		yes		yes		yes		yes		yes		yes
Turbo	yes		yes		yes		yes		yes		yes		yes		yes
Dimensions  Weight
Dimensions WxHxD (mm) - Indoor	900*220*302		900*220*302		1020*215*320		1020*215*320		1100×250×325		1100×250×325		1100×250×325		1100×250×325
- Outdoor	805*540*270		805*540*270		843*700*315		843*700*315		910*860*310		910*860*310		910*860*310		910*860*310
Packing - WxHxD (mm) - Indoor	970*280*360		970*280*360		1140*290*390		1140*290*390		1250*330*430		1250*330*430		1250*330*430		1250*330*430
- Outdoor	900*620*340		900*620*340		1005*780*420		1005*780*420		1060*920*425		1060*920*425		1060*920*425		1060*920*425
40HQ (qty)	235				155				108				108
